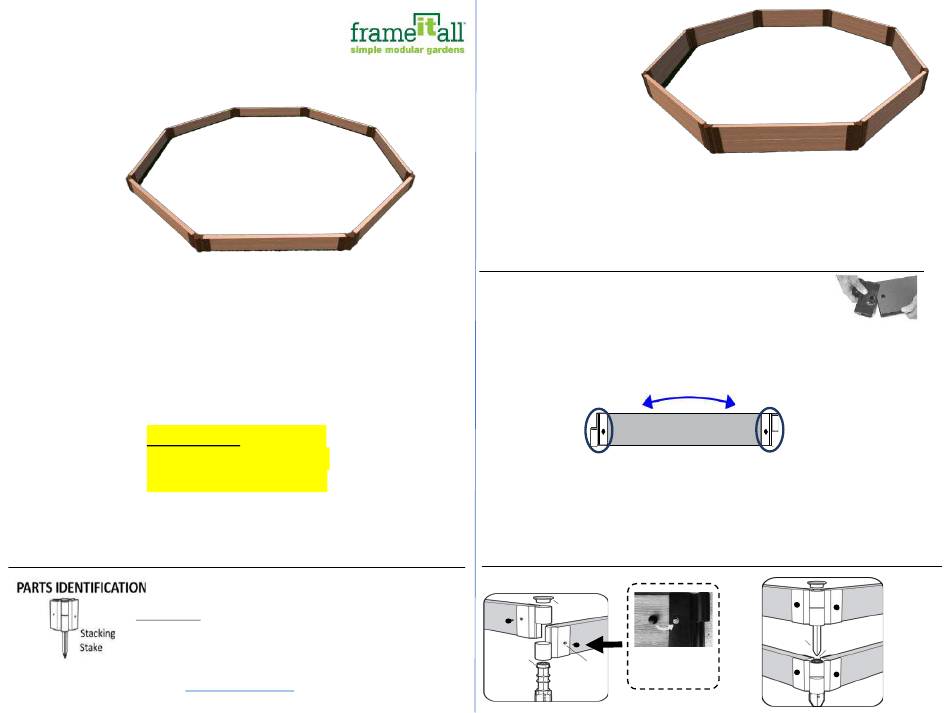

FRAME IT ALL 70001023-MD250 Manual

70001023-MD250, 70002023-MD550, 71001023-MD750
71002023-MD1000, 71002023-EC1200, 72001023-MD1000
72001023-EC1200, 72002023-MD1250, 72002023-EC1200
73001023-MD1250, 73001023-EC1200, 73002023-MD1500
73002023-EC1900, 73002023-EP2000
1 LEVEL KIT CONTAINS:
•
8 x Composite Timbers 4' Straight
•
16 x Stacking Brackets
•
8 x Anchor/Ground Level Serrated Stakes
•
32 x Plugs/Locking Nubs
•
8 x Caps
•
1 x Rubber Liner
•
1 x Underlayment
•
1 x Water Pump
•
1 x Pump Tubing
IMPORTANT: READ ALL
INSTRUCTIONS BEFORE
STARTING YOUR BUILD!
**NOTE
Stacking stakes should only be used
when stacking boards for water
garden application.
ONLY Stacking Stakes can stack!
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
Water Garden
Octagon
1 LEVEL
Required Tools:
•
Shovel
•
Levelling tool
•
Hammer
Recommended Tools:
•
Pond Safe Foam
Sealant
•
Grading Rake
2 LEVEL KIT CONTAINS:
•
16 x Composite Timbers 4' Straight
•
32 x Stacking Brackets
•
8 x Stacking Stakes (**See Note Below)
•
8 x Anchor/Ground Level Serrated Stakes
•
64 x Plugs/Locking Nubs
•
8 x Caps
•
1 x Rubber Liner
•
1 x Underlayment
•
1 x Water Pump
•
1 x Pump Tubing
ASSEMBLY INSTRUCTIONS – Building the Frame
STEP 1:
Assemble the curved timbers by sliding one end of the timber into the channel end of one
of the brackets. Use plugs to lock the bracket in place.
Repeat this process on the other end of the timber flipping the bracket in the opposite
direction. (see example). Repeat for all remaining straight timbers.
How the Joints Work
Use a Cap to
complete the
top level.
Use anchor
stakes for
ground level
Use plugs (included)
frames and
Use plugs to
stacking stakes to cover the holes on
cover the holes
for additional
– two plugs are
both side of timbers
levels.
required per
bracket (1 on
each side)
2 LEVELS
Use stacking
stake when
creating a multi-
level
