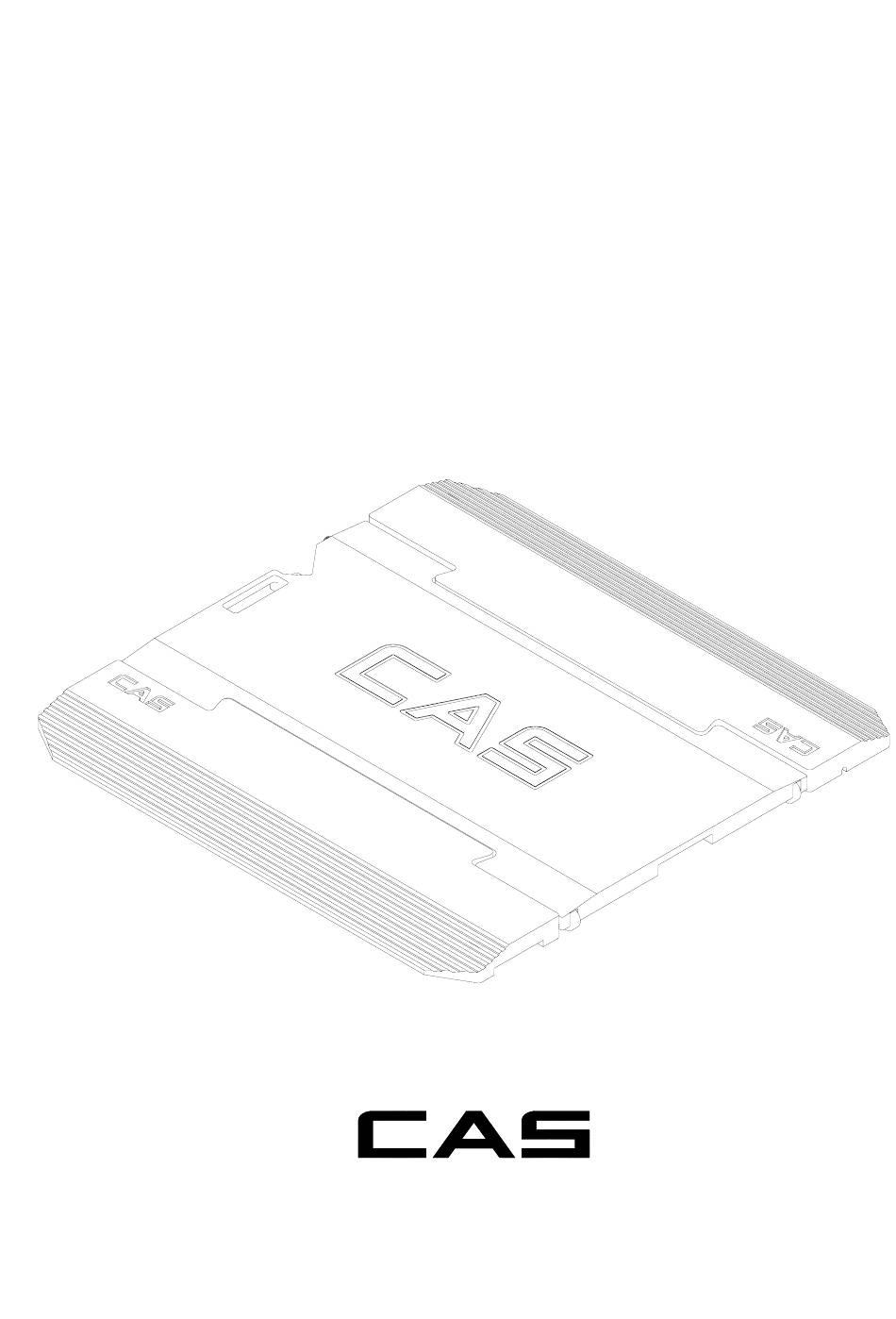

- Page 1 Road Weigher ━━━━━━━━━━━━━━━━━━━━━━ MODEL : RW - P Series ━━━━━━━━━━━━━━━━━━━━━━ OWNER'S MANUAL...
- Page 2 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ Table of Contents * * * * * * ………………………………… 1. PREFACE ………………………………… 2. FEATURE ………………………………… 3. SPECIFICATIONS ◆ OVERVIEW ◆ DIMMENSION ◆ PRODUCT SPECIFICATION ………………………………… 4. APPLICATION OF DUMMY PLATE ………………………………… 5. USAGE OF CONNECTOR & ROLLER - 2 -...
- Page 3 ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 1. PREFACE We greatly appreciate your purchase of CAS Road Weigher, which is used for displaying the value of weight loaded on each shaft of vehicle. These goods have hold excellent performance and splendid properties through strike tests as well as devoting ourselves under severe quality management.
-
Page 4: Specification
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 3. SPECIFICATION ◆ OVERVIEW RW-10P, 15P RW-05P ◆ DIMENSION RW-10P, 15P RW-05P - 4 -... - Page 5 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ ◆ PRODUCT SPECIFICATION MODEL RW-01P RW-05P RW-10P RW-15P 1,000kg 5,000kg 10,000kg 15,000kg (2,000lb) (10,000lb) (20,000lb) (30,000lb) 0.5kg 10kg Division (1lb) (5lb) (10lb) (20lb) Accuracy L×W 500×400 (19.7"×15.7") 900×500 (35.4"×19.7") Size 40 (1.6“) WEIGHT 15.8kg (RAMP : 1.9kg X 2EA) 30.2kg (RAMP : 6.4kg X 2EA) ◆...
- Page 6 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 4. Application of Dummy Plate ( The ground condition : flatness , hardness , zero declination of close axis) * Application data of dummy plate is possible to be changed according to the ground condition and vehicle condition (old vehicle’ occasion) - 6 -...
- Page 7 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 5. Usage of Connector & Roller ◆ Connection of connector ◆ Moving roller (RW-10P,15P) Roller - 7 -...
