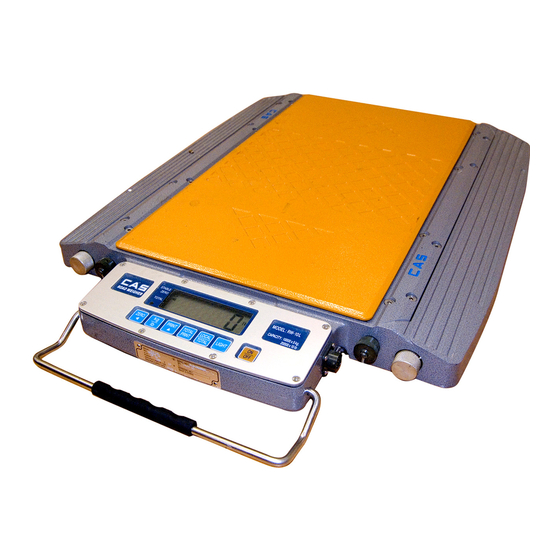

- Page 1 Road Weigher ----------------------------------------------- MODEL : RW SERIES ----------------------------------------------- OWNER'S MANUAL (kg/lb Version)
-
Page 2: Table Of Contents
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ Table of Contents ····················· 1. Introduction ······················ ························ 2. Feature ··························· ············ 3. Technical Specification ··········· ◆ Overview ◆ Dimension ◆ Specification ◆ product ············· 4. Connection for Scales ··········· ························· 5. Charging ························· ··· ··········· 6. Front Panel Description ··········... - Page 3 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 1. Introduction We greatly appreciate your purchase of CAS Road Weigher, which is used for displaying the value of weight loaded on each shaft of vehicle. These goods have hold excellent performance and splendid properties through strike tests as well as devoting ourselves under severe quality management.
- Page 4 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 2. Feature ◆ small size & Slim(height 60mm) type ◆ built in high accuracy load cell - 4 -...
- Page 5 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 3. Technical Specification ◆ Overview RW-S TYPE RW-L TYPE ◆ Dimension - 5 -...
- Page 6 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ ◆ Specification MODEL RW-02S RW-05S RW-10S RW-05L RW-10L 2,000kg 5,000kg 10,000kg 5,000kg 10,000kg MAX. CAPACITY MIN. DIVISION ACCURACY P×P' 340×310 340×600 SIZE NORMAL 1.5V AA size 12EA DC7.2V 2.6Ah BATTERY (AA size 12EA) POWER OPTION (AC 110V/220V Include Charger) RUNING TIME 20hour (only charging battery,charging time 8hour) DISPLAY...
-
Page 7: Connection For Scales
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 4. Connection for scales for 2 scales for 4 scasles for 6 scales - 7 -... -
Page 8: Charging
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 5. Charging ◆ changing battery ◆ Charger Connection - 8 -... - Page 9 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ MODEL : RW-05S Road Weigher CAPACITY : 5,000 x 2kg ■ DISPLAY STABLE : lights up when the weight to be in stable condition. ZERO :lights up when current weight is 0 kg. TOTAL : lights up when press lb : current weight is lb kg : current weight is kg...
- Page 10 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ ■ KEY ZERO key : Used to return the display to the center of ZERO when the platform is empty kg/lb key : Display kg/lb by turn (U.S.A version) PRINTER key : Print the current total weight (the weight is added to the total weight of a vehicle) TOTAL PRINT key: Display the total weight of a vehicle for a second Print the total weight of a vehicle(summing each axle)
-
Page 11: Test Mode
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 7. Test Mode (1) HOW TO ENTER Press the "ON/OFF" key while pressing the key and TEST menu starts. (2) AVAILABLE KEYS : Move to the left by 1 place of the set value. : Increase the first place set value to 1 : Move into next menu. - Page 12 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ ２ ２ FUNCTION : LCD display test LCD DISPLAY DESCRIPTION tESt2 Test 2 condition 88888 Test 2 is performed automatically. REF 1. Program is automatically shifted to menu selection mode after completing ３ ３ FUNCTION : Load cell test and A/D conversion LCD DISPLAY DESCRIPTION Test 3 condition...
- Page 13 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ REF 1 Do this test after the connection between serial port of computer and serial port of indicator REF 2 Send no. 1 in computer keyboard and check if indicator receive no. 1 Send no. 1 in indicator keyboard and check if computer receive no. 1 ５...
-
Page 14: Set Mode
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 8. Set Mode (1) HOW TO ENTER Press the "ON/OFF" key while pressing the key and TEST menu starts. (2) AVAILABLE KEYS : Increase the first place set value to 1 : Move to the left by 1 place of the set value. : Move into next menu. - Page 15 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ Select the primary base unit Primary unit is kg Primary unit is lb Serial port usage Not used Connection with Serial printer Automatic Zero Tracking Not used. Auto zero tracking will automatic- 1 : 0.5 digit ally bring the displayed back to "0"...
- Page 16 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ Select the Back Light mode Manual Back Light Mode Automatic Back Light Mode Device ID 01 : Device ID 01 It is used the no. of indicator when system 99 : is connected. Device ID 99 Ouantity of scales one scale two scales four scales...
- Page 17 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ Change Date/Time (Ex. 1999/12/11 13:10:01) LCD Display DESCRIPTION ▲ : Increase of no. YEAR C1 99 ◀ : Shift of digit C2 12 MONTH : C3 11 LIGHT : Store and C4 13 HOUR move into next menu C5 10 MINUTE : C6 01...
-
Page 18: Calibration Mode
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 9. Calibration Mode (1) HOW TO ENTER Open the front cover of RW and Press the "ON/OFF" key while pressing the CAL s/w on the Display PCB. Another : Turn on the Power while pressing the ZERO key and press key and CAL mode starts... - Page 19 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ : Minimum Division SET FUNCTION RANGE ---> 0.0005 ∼ 100 kg/lb LCD DISPLAY DESCRIPTION CAL 2 CAL 2 condition ▲: Input the next division. LIGHT : Store and 1 kg/lb move into next menu 0.01 kg/lb 0.01 REF 1.
- Page 20 Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ : Zero Calibration FUNCTION LCD DISPLAY DESCRIPTION CAL 4 CAL 4 condition LIGHT: ULoAd Unload the tray and press ENTER Zero calibration and - - - Under zero calibration Move into next menu. Zero calibration is completed. GOOD REF 1.
-
Page 21: Error Message And
Road Weigher ▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩▩ 9. Error message and Trouble Shooting Err 02 ▣ Reason Load cell connection failure or error in A/D conversion part. ☞ Trouble shooting Check the load cell connector to see if the polarity of signal is reversed. Err 06 ▣...
