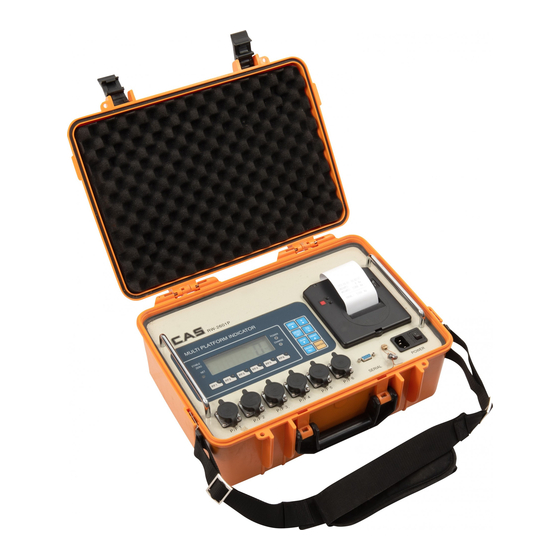

Summary of Contents for CAS RW-2601P Series

  • Page 2: Table Of Contents

    CONTENTS - RW-2601P Series Caution.............. 4 1. Introduction..........5 2. Features............7 3. Technical Specifications......7 4. Explanation of Frontal Aspect....9 5. Test Mode.............11 6. Set Mode ............. 14 7. Calibration Mode ........17 8. Error message and Trouble shooting ..21 - RW-P Series 1.

  • Page 3: Caution

    Caution ⊙ Safety Caution Make sure to comply with the safety cautions as they are designed to prevent dangers in advance by using the products safely and properly. Cautions are categorized into 2 types and the significances of ‘Warning’ and ‘Caution’...

  • Page 4: Introduction

    We are confident that you will find the CAS RW_Series will meet all of your most demanding needs. CAS indicator is shaped firmly and delicately designed to coincide with the special requirements of several industrial fields and includes many functions and various external interfaces.
  • Page 5 This may interfere with accurate reading. environment. Our Dealers : CAS feels that each of its valued customers should get the best service available. Whether it’s the initial installation of our product, maintenance/repair work, or simply answering questions about our products, CAS Corporation and all of its Authorized Dealers are highly trained to assist you with any need regarding CAS products.

  • Page 6: Features

    2. Features Features  Up to 6 axle(P/F) scales.  Compact size & light weight Box type.  Built in inner clock for date / time print.  Built in printer.  Built in Battery Charger & Large Capacity Battery. (6V/10A x 2 ea) 3.
  • Page 7  Dimension  Specification Accessory Model Name 2201P/2401P/2601P Printer Box Operating Power Inner Battery Operation. (DC 6V) Power Source AC 110/220 V , 50/60 Hz( For Battery Charger)) Cable AC Cord, Display Type LCD 6 Digit(25mm) Built In Printer Adaptor. Without Display.

  • Page 8: Explanation Of Frontal Aspect

    4. Front panel Description (1) Display lamp STABLE lamp : Turn on when the weight is stable. ZERO lamp : Turn on when the current weight is 0 kg(0 lb). GROSS/NET lamp : Turn on when the current weight is NET weight. lb/kg : Turn on when the weight unit is lb or kg.
  • Page 9  PRINT Key : Used to print the current weight.  TURCK No. Key : Used to input the number plate of vehicle which is used to weigh. Only you can input number within five digits.  PRINT Key : Used to store current condition and exit in CALIBRATION, TEST, SET mode. ...

  • Page 10: Test Mode

    5. Test Mode (1) How to enter Press the "ON/OFF" key while pressing the key, and TEST menu starts. (2) Available keys Change the set value. Used to increase the set value + 1. Change the digit of the set value. Used to increase the set value ×10. Move to the next menu.
  • Page 11 < Key List > Code Number Code Number P/F 1 Tare P/F 2 Gross/Net P/F 3 kg/lb P/F 4 P/F 5 Print P/F 6 Truck No. Zero Enter TEST 2 FUNCTION : LCD display test Display Description ENTER key : TEST 2 condition.
  • Page 12 TEST 4 FUNCTION : Serial Interface / Printer test Display Description ENTER key : tESt 4 Test 4 condition Exit from the Test Press Enter key. - - - - Mode GOOD It will be moved to Normal Mode Other key : after test mode.

  • Page 13: Set Mode

    6. Set Mode (1) How to enter Press the "ON/OFF" key while pressing the key, and TEST menu starts. (2) Available keys Change the set value. Used to increase the set value + 1. Change the digit of the set value. Used to increase the set value ×10. Move to the next menu.
  • Page 14 Select Primary Base-unit Primary unit is kg Primary unit is lb Select Primary Base-unit Not used Connection with Serial printer Automatic Zero Tracking Not used 1 : 0.5 division Auto zero tracking will automatically bring the displayed back to “0” when 9 : 4.5 division there are small deviations.
  • Page 15 Select Option Clock Not used Used Quantity of Scales Display Description C1 10 YEAR : 10 ▲ : Increase of no. C2 08 MONTH : 08 ◀ : Shift of digit. C3 25 DAY : 15 Enter : Store and C4 13 HOUR : 13 move to the next...

  • Page 16: Calibration Mode

    7. Calibration Mode (1) How to enter Turn on the Power while pressing the key, and then press key, and press Enter key as soon as you selecting the number of platform. If you don't set the number of platform, it will automatically be moved to Normal Mode.
  • Page 17 CAL 1 FUNCTION : Maximum Capacity Set RANGE  1 ~ 99,999 kg/lb Display Description Program version ti. 03 ▲ : Increase of no. CAL 1 CAL 1 condition 10000 ◀ : Shift of digit. Maximum 10000 kg / lb Enter : Store and Capacity move to the next menu.
  • Page 18 CAL 3 FUNCTION : Setting Weight In Span RANGE  1 ~ 99,999 kg/lb Display Description CAL 3 CAL 3 condition ▲ : Increase of no. Maximum Capacity of CAL 1 ◀ : Shift of digit. 10000 kg / lb (ex : 10000) Enter : Store and Setting weight...
  • Page 19 CAL 5 FUNCTION : Span Calibration Function Display Description CAL 5 condition CAL 5 Unload the weight which was set in LOAd CAL 3. It is displayed the setting weight. Setting weight And then, press Enter key. Enter : Span - - - - Under span calibration.

  • Page 20: Error Message And Trouble Shooting

    8. Error message and Trouble shooting Err 02 Reason ▣ Load cell connection failure or error in A/D conversion part. Trouble shooting ☞ Check the load cell connector to see if the polarity of signal is reversed. Err 06 Reason ▣...
  • Page 21 Lower the resolution. The resolution = allowed weight/one division Modify the allowed weight in CAL1 or modify the division in CAL2 so that the resolution should be below 1/10,000. Err 22 Reason ▣ The weight for span calibration is set to be lower than 10 % of the maximum capacity of the scale.
  • Page 22 Err 25 Reason ▣ The load cell output is too large at SPAN calibration. Trouble shooting ☞ Setting of current resolution is not possible due to the error in load cell. Proceed calibration again with less resolution. Err 26 Reason ▣...

  • Page 23: Rw-P Series

    RW-P Series 1. PREFACE We greatly appreciate your purchase of CAS Road Weigher, which is used for displaying the value of weight loaded on each shaft of vehicle. These goods have hold excellent performance and splendid properties through strike tests as well as devoting ourselves under severe quality management.

  • Page 24: Technical Specifications

    3.TECHNICAL SPECIFICATION  OVERVIEW  DIMENSION...
  • Page 25  PRODUCT SPECIFICATION MODEL RW-01P RW-05P RW-10P RW-15P 1,000 kg 5,000 kg 10,000 kg 15,000 kg (2,000lb) (10,000lb) (20,000lb) (30,000lb) 10kg Division (20lb) Accuracy 0.1% 500x400(19.7”x15.7”) 900x500(35.4”x19.7”) Size 40(1.6”) WEIGHT 15.8kg 30.2kg ◆ OPTION 1) Dummy Plate - Material : Rubber (NBR) - Reference : page 33...

  • Page 26: Application Of Dummy Plate

    4. Application of Dummy Plate Clossification First 3 rd 4 rd Weighing Weighing Weighing Weighing Q’TY ACCURACY PLATE: ±1~3% PLATE: ±0.1% PLATE: ±1~3% DUMMY: 12EA PLATE: ±1~2% PLATE: ±0.1% PLATE: ±1~2% DUMMY: 12EA E PLATE: ±0.5% PLATE: ±1~3% DUMMY: 12EA E PLATE: ±0.5% (The ground condition : flatness, hardness, zero declination of close axis)

  • Page 27: Usage Of Connector & Roller

    5. Usage of Connector & Roller  Connection of connector  Moving roller (RW-10P,15P)
