- Page 1 User Manual Thermal Monocular CONDOR LRF 2.0 SERIES V5.5.118 202412 Contact Us...
-
Page 2: Table Of Contents
Thermal Monocular User Manual CONTENTS Overview ........................1 Device Description ..........................1 Main Function ............................1 Appearance ............................1 Preparation ......................4 Install Battery ............................4 2.1.1 Battery Instruction .......................... 4 2.1.2 Battery Installation .......................... 4 Cable Connection ..........................5 Attach Neck Strap .......................... - Page 3 Record Video ..........................26 5.6.4 View Local Album .......................... 27 Export Files ............................28 5.7.1 Export Files via HIKMICRO Sight ....................28 5.7.2 Export Files via PC ......................... 29 System Settings ..................... 30 Adjust Date ............................30 Adjust Time ............................30 Set Language .............................
-
Page 4: Overview

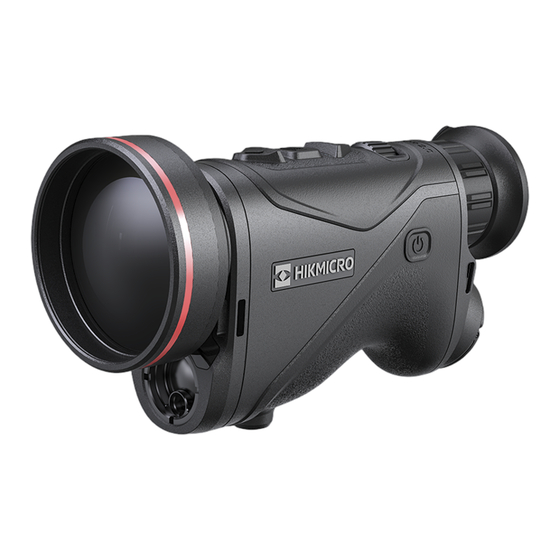

Thermal Monocular User Manual Overview Device Description HIKMICRO CONDOR LRF 2.0 series is a powerful and innovative thermal monocular equipped with a high-end infrared detector. The device can be mainly applied in the forest & field hunting, birding, animal searching, adventuring, and rescuing scenario regardless of light and weather conditions. - Page 5 Thermal Monocular User Manual Pictures in this manual are for illustration purpose only. Please take the actual product for reference. Figure 1-1 Appearance Table 1-1 Component Descriptions Component Description The piece placed closest to the eye to Eyepiece view the target. Diopter Adjusts the dioptric setting.
- Page 6 Thermal Monocular User Manual Component Description To connect the device to power supply Type-C Interface or transmit data with a type-C cable. Flashing Red & Green: Error occurred. Charging Status Solid Red: Charging. Indicator Solid Green: Fully charged. 5, 8, 12, Strap Attachment Attaches the neck strap or hand strap.
-
Page 7: Preparation
Thermal Monocular User Manual Preparation Install Battery 2.1.1 Battery Instruction The device supports removable Li-ion 21700 battery, and the battery size should be 22.3 mm × 76 mm. The battery rated voltage and capacity is 3.59 V/5500 mAh. To ensure better conductivity, if the battery compartment cover gets dirty, use a clean cloth to wipe the thread. -
Page 8: Cable Connection
Thermal Monocular User Manual 3. Insert the battery compartment cover (3) and rotate it clockwise (4) until it is tight and locked. Figure 2-3 Close the Cover Cable Connection Steps 1. Lift the type-C interface cover. 2. Connect the device and power adapter with a type-C cable to charge the device. -
Page 9: Attach Hand Strap
Thermal Monocular User Manual 1. Thread one end of the neck strap through a neck strap attachment point. Figure 2-6 Thread Neck Strap through Attachment Point 2. Thread the neck strap through the strap buckle and fasten the neck strap, as is shown in the picture. Figure 2-7 Thread Neck Strap through Strap Buckle 3. -
Page 10: Use Carrying Bag
Thermal Monocular User Manual 2. Thread the hand strap through the hand strap buckle, and fasten the hand strap to secure it. 3. Repeat above steps to finish mounting. 4. Adjust the tightness of the hand strap as needed. Figure 2-9 Attach Hand Strap Use Carrying Bag The carrying bag comes a safety strap and MOLLE system for comfortable carrying and ensures the device safety. -
Page 11: Power On/Off
When the low power note shows, charge the battery. The auto power off takes effect only when the device isn’t in operation or connected with HIKMICRO Sight app. -
Page 12: Auto Screen Off
Thermal Monocular User Manual The auto power off countdown will start again when the device exits standby mode, or the device is restarted. Auto Screen Off Auto screen off function darkens the screen to save energy and extend battery life. Steps 1. -
Page 13: App Connection
Figure 2-11 Device Menu (Round Screen Style) Figure 2-12 Device Menu (Square Screen Style) App Connection Connect the device to the HIKMICRO Sight app via hotspot, and then you can capture picture, record video, or configure parameters on your phone. Steps 1. -
Page 14: Firmware Status
Check Firmware Status Steps 1. Open the HIKMICRO Sight and connect your device to the app. 2. Check if there is an upgrade prompt on the device management interface. If there is no upgrade prompt, the firmware is the latest version. - Page 15 Thermal Monocular User Manual 2. Tap the upgrade prompt to enter the firmware upgrade interface. 3. Tap Upgrade to start upgrade. Note The upgrading operation may vary due to app updates. Please take the actual app version for reference. Upgrade Device via PC Before You Start Please get the upgrade package first.
-
Page 16: Image Settings
Thermal Monocular User Manual Image Settings Adjust Diopter Make sure the eyepiece covers your eye and aim at the target. Adjust the diopter adjustment ring until the OSD text or image is clear. Figure 3-1 Adjust Diopter Note When adjusting diopter, DO NOT touch the surface of lens to avoid smearing the lens. -
Page 17: Adjust Brightness
Thermal Monocular User Manual Note When adjusting focus, DO NOT touch the surface of lens to avoid smearing the lens. Adjust Brightness You can adjust the brightness of the screen in the menu. Steps 1. Hold to show the menu. 2. -
Page 18: Adjust Sharpness
Thermal Monocular User Manual Figure 3-3 Adjust Tone Adjust Sharpness Steps 1. Hold to show the menu. 2. Press to select and press to confirm. 3. Press to adjust sharpness. 4. Hold to save and exit. -
Page 19: Select Scene Mode
Thermal Monocular User Manual Figure 3-4 Sharpness Comparison Select Scene Mode You can select proper scene according to actual using scene to improve the display effect. Steps 1. Hold to show the menu. 2. Go to Advanced Settings, select and press to confirm. -
Page 20: Switch Palettes
Thermal Monocular User Manual Note At least one palette should be enabled. 5. Hold to save the settings and exit. 3.8.2 Switch Palettes Press in the live view interface to switch the selected palettes. White Hot The hot part is light-colored in view. The higher the temperature is, the lighter the color is. - Page 21 Thermal Monocular User Manual Fusion From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple. Red Monochrome The whole image is red colored. The higher the temperature is, the lighter the color is. Green Monochrome...
-
Page 22: Adjust Digital Zoom
Thermal Monocular User Manual The whole image is green colored. The higher the temperature is, the lighter the color is. Adjust Digital Zoom You can zoom in and out the image by using this function. Press the live view interface to switch the digital zoom ratio switches between 1×... -
Page 23: Zoom Pro
Thermal Monocular User Manual Figure 3-5 Set PIP Mode Note If the PIP function is enabled, only the PIP view zooms when adjusting the digital zoom ratio. The PIP view temporarily displays the zoom ratio when adjusting the digital zoom of the device . -
Page 24: Correct Defective Pixel
Thermal Monocular User Manual 3.13 Correct Defective Pixel The device can correct the defective pixels on the screen which are not performed as expected. Steps 1. Hold to show the menu. 2. Go to Advanced Settings, press to select 3. Press to enter the DPC setting interface. -
Page 25: Measure Distance
Thermal Monocular User Manual Measure Distance The device with an LRF module in the lens can detect the distance between the target and the observation position with laser. Before You Start When measuring the distance, keep the hand and the position steady. Otherwise, the accuracy may be affected. - Page 26 Thermal Monocular User Manual Figure 4-1 Distance Measurement Result means the straight-line distance, and means the horizontal distance. Caution The laser radiation emitted from the device can cause eye injuries, burning of skin or inflammable substances. Before enabling the laser ranging function, make sure no human or inflammable substances are in front of the laser lens.
-
Page 27: General Settings
Thermal Monocular User Manual General Settings Set OSD You can choose whether to display the OSD information on the live view interface. Steps 1. Hold to show the menu. 2. Go to Advanced Settings, and select 3. Press to enter OSD setting interface. 4. -
Page 28: Burning Prevention
Thermal Monocular User Manual 4. Hold to save the settings and exit. Result The brand logo is displayed at the bottom left of the image. Burning Prevention Avoid direct sunlight and enable the Burning Prevention function to reduce the risk of sensor damage from the heat. Steps 1. -
Page 29: Capture And Video
Thermal Monocular User Manual Figure 5-1 Hot Tracking Capture and Video 5.6.1 Capture Picture In the live view interface, press at the same time to capture pictures. Note When capturing succeeds, the image freezes for 1 second and a prompt shows on the display. -
Page 30: View Local Album
Thermal Monocular User Manual Figure 5-2 Record Video 2. Hold again to stop recording. 5.6.4 View Local Album Captured images and recorded videos are automatically stored in the device, and you can view the files in local albums. Steps 1. Hold to show the menu. -
Page 31: Export Files
HIKMICRO Sight. Before You Start Install HIKMICRO Sight on your mobile phone. Steps 1. Open HIKMICRO Sight and connect your device to the app. See App Connection. 2. Tap Media to access device albums. Figure 5-3 Access Device Albums 3. Tap Local or Device to view the photos and videos. -
Page 32: Export Files Via Pc
Thermal Monocular User Manual live view interface. The exporting operation may vary due to app updates. Please take the actual app version for reference. 5.7.2 Export Files via PC This function is used to export recorded videos and captured pictures. Before You Start Make sure the device is turned on when connecting the cable. -
Page 33: System Settings
Thermal Monocular User Manual System Settings Adjust Date Steps 1. Hold to show the menu. 2. Go to Advanced Settings, and select 3. Press to enter the configuration interface. 4. Press to select the day, month, or year to be synchronized, and press to change the number, then press again to... -
Page 34: Cast Device Screen To Pc
Thermal Monocular User Manual 5. Hold to save settings and exit. Cast Device Screen to PC The device supports casting screen to PC via a UVC protocol-based streaming media player. You can view the device image on the PC display for details. -
Page 35: View Device Information
Thermal Monocular User Manual 4. Press to disable the function when the collection is finished. Note When disabling the diagnostic log, a prompt will appear on the interface indicating the progress of diagnostic log collection. This operation cannot be interrupted. Once the log collection is finished, the prompt will disappear. -
Page 36: Frequently Asked Questions
Thermal Monocular User Manual Frequently Asked Questions Why does the charge indicator flash improperly? Check the following items. Check whether the device is charged with standard power adapter and the charging temperature is above 0 ° C (32 ° F). ... -
Page 37: Legal Information
DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKMICRO HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES... - Page 38 Thermal Monocular User Manual YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
-
Page 39: Regulatory Information
Thermal Monocular User Manual Regulatory Information These clauses apply only to the products bearing the corresponding mark or information. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Directive 2014/30/EU (EMCD), Directive 2014/35/EU (LVD), Directive 2011/65/EU (RoHS), Directive 2014/53/EU. - Page 40 Thermal Monocular User Manual may include lettering to indicate cadmium (Cd), or lead (Pb). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. B 급 기기 : 이 기기는 가정용 (B 급 ) 전자파적합기기로써 주로 가정에서 사용하는...
- Page 41 Thermal Monocular User Manual Wesentlichen die gleichen Funktionen erfü llt, an einen Endnutzer abgegeben wird. 4. Datenschutz-Hinweis: Altgerä te enthalten hä ufig sensible personenbezogene Daten. Dies gilt insbesondere fü r Gerä te der Informations- und Telekommunikationstechnik wie Computer und Smartphones. Bitte beachten Sie in Ihrem eigenen Interesse, dass fü...
-
Page 42: Symbol Conventions
Thermal Monocular User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or Note supplement important points of the main text. Indicates a potentially hazardous situation, which if Caution not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. -
Page 43: Safety Instruction
Thermal Monocular User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. Please read all the safety information carefully before using. Transportation Keep the device in original or similar packaging while transporting it. ... -
Page 44: Maintenance
Thermal Monocular User Manual For long-term storage of the battery, make sure it is fully charged every half year to ensure the battery quality. Otherwise, damage may occur. The built-in battery cannot be dismantled. Please contact the manufacture for repair if necessary. ... -
Page 45: Using Environment
Thermal Monocular User Manual Using Environment Make sure the running environment meets the requirement of the device. The operating temperature shall be -30 ° C to 55 ° C (-22 ° F to 131 ° F), and the operating humidity shall be from 5% to 95%. ... - Page 46 Thermal Monocular User Manual Manufacture Address Room 313, Unit B, Building 2, 399 Danfeng Road, Xixing Subdistrict, Binjiang District, Hangzhou, Zhejiang 310052, China Hangzhou Microimage Software Co., Ltd. COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions, including without limitation, the United States, European Union, United Kingdom and/or other member countries of the Wassenaar Arrangement.
