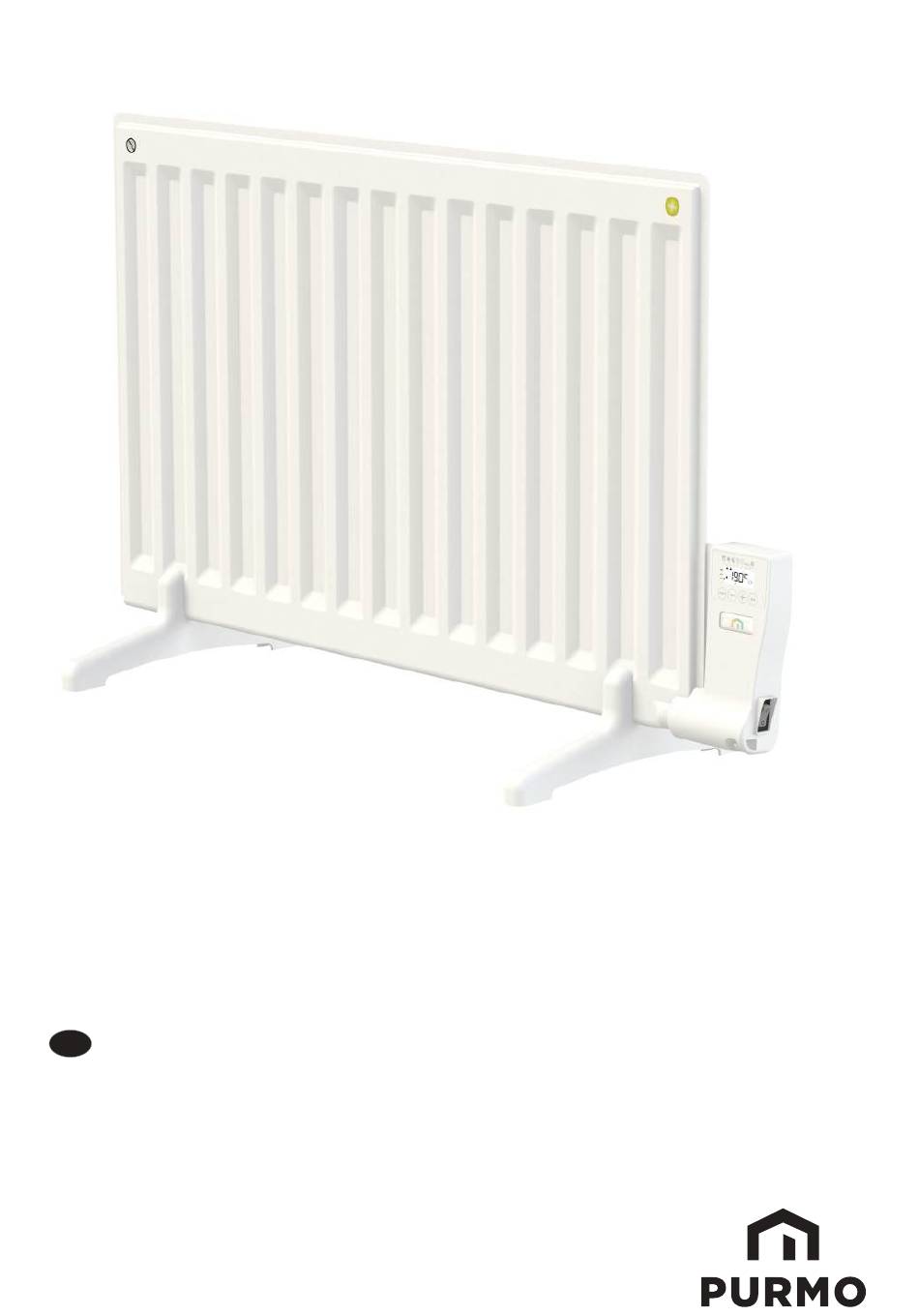

- Page 1 KABA INSTALLATION AND OPERATING MANUAL A NEW GENERATION THAT TURNS EVOLUTION INTO A REVOLUTION CLASS I – 230V – 50 HZ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product information......................................3 Product information ..........................................3 Safety information ...........................................7 General information ..........................................7 Installation ..............................................7 Overview ..........................................9 Product plus points ..........................................9 Operation .........................................9 Diagram ................................................9 Power ON ..............................................10 Selecting the operating mode ......................................10 Gauge consumption, energy savings ....................................10 Setting the comfort mode temperature ....................................10 Consumption indication accumulated in kWh, energy savings ............................11 Child anti-tamper, keypad lock/unlock ....................................11 7 day and daily program integrated, energy savings ...............................11... -
Page 3: Product Information
PRODUCT INFORMATION Free Standing Free Standing Free Standing Only position the feet in the second channel in from each end of the radiator... - Page 4 PRODUCT INFORMATION Minimum Distance Around Installed Radiator (Wall Mounting Only) For Wall Mounted Bracket Installation (mm) (mm) (mm) (mm) (mm) 100 - 150 100 - 150 * Recommended distance (mm) (mm) (mm) (mm) 100 - 150 100 - 150...
- Page 5 PRODUCT INFORMATION For Wall Mounted Bracket Installation For Wall Mounted Bracket Installation...
- Page 6 PRODUCT INFORMATION...
-
Page 7: Safety Information
SAFETY INFORMATION INFORMATION SAFETY Due to the safety standard its cord out of reach of children aged less than 8 years. Children of less than 3 years AU/NZS 60335, the text below is should be kept away from the unit unless obligatory for all electric products, not continuously supervised. -
Page 8: General Information
GENERAL INFORMATION 1. GENERAL WALL FIXING (Optional) INFORMATION • The minimum distances as specified in picture 2A should be carefully observed. • The radiator must be fixed to the wall using the correct • This appliance is a sealed electric radiator. wall brackets for this product. -
Page 9: Overview
OVERVIEW OPERATION DIAGRAM Electronic PlD control unit for electric radiator, programmable digital control, white color. • Buttons overview Selecting operating modes Plus and minus buttons, used to set temperatures, time, date and programs Save settings • Indicators overview PRODUCT FEATURES - Electronic PID control with microprocessor. -
Page 10: Power On
POWER ON Mode overview Display Power on switch • Frost protection mode This mode enables you to protect your home against the effects of cold Set the switch in ON position in or- weather (frozen pipes, etc.), by main- der to power up the appliance. taining a minimum temperature of 7°C in it at all times. -
Page 11: Consumption Indication Accumulated In Kwh, Energy Savings
CONSUMPTION INDICATION 1- From Auto, Comfort, Eco or Frost protection mode, press ACCUMULATED IN KWH, ENERGY for 5 seconds. The cursor moves to the setting day and time mode. SAVINGS It is possible to see the estimation of energy consumption in kWh since the last reset of the energy meter. - Page 12 Choices programmes 3- With , select P1. P1 will flash. Press for 5 seconds to make changes. Schematic sequence of programmes: Comfort Your device’s default setting is non-stop Comfort for 7 days a week. Programmes overview - Comfort: your device will operate in Comfort mode, 24 hours a day, as regards each day selected.
- Page 13 Manual and temporary exemption from a running The days of the week will scroll on display with the programmes CONF that you set for them, meaning Comfort every day. program This function allows you to change the Eco mode temperature temporarily until the next scheduled change in temperature or the transition to 0:00.
-
Page 14: Open Window Detection, Energy Savings
Manual activation OPEN WINDOW DETECTION, ENERGY By pressing SAVINGS more than 5 seconds, the device will switch Frost protection Important information about the open window mode. detection Important: the open window detection is sensitive to temper- ature variations. The device will react to the window openings in accordance with different parameters: temperature setting, rise and fall of temperature in the room, outside temperature, 5 sec. -
Page 15: User Settings
USER SETTINGS ACCESS You access to user settings in 3 steps: From Auto, Comfort, Eco or Frost protection mode : Information Information User = User settings display display Press for 5 Press briefly Press briefly seconds twice Setting sequence: Eco mode temperature lowering-level Frost protection temperature Comfort setting temperature limit Temperature unit... -
Page 16: Setting The Temperature Unit
= Factory settings reset If you do not want to change it, press : the device chang- es automatically to set the maximum setting. To exit the user = Factory settings not reset settings, press twice. 3- Press the key for 5 seconds. -
Page 17: Installer Settings
INSTALLER SETTINGS ACCESS You access to installer settings in 4 steps: From Auto, Comfort, Eco or Frost protection mode : Information Information InSt = Installer display displays settings Press for 5 Press briefly Press for 10 Press briefly seconds twice seconds Setting sequence: Open window detection... -
Page 18: Restoring Factory Settings
The PIN code is initialized, the next setting automaticaly appears: 3- Press to confirm. The new code is now saved. PIN Code activation. Activation/deactivation of the PIN Code appears on the display. Press to enable PIN code. appears on the display. = PIN code enabled = PIN code disabled 4- Press again on... -
Page 19: Expert Settings
The following factory values will be effective: 3- Press the key for 5 seconds. The device returns to its initial configuration and goes back automatically to the home dis- Settings Factory settings play of the installer settings. Operating Comfort setting temperature 19°C Keypad lock Disabled... -
Page 20: Setting The Power
To correct, then proceed as follows : To validate, save the new value and exit the mode, press . To Sensor temperature = 24°C exit the Expert settings, press 3 times. (The measured temperature may be different due to the loca- tion of the thermostat in the room). -
Page 21: Restoring Factory Settings
RESTORING FACTORY SETTINGS REMOTE MANAGEMENT BY POWER SHUTDOWN If the PIN code protection is disabled, the user, installer and ex- pert settings are re-initialized: rest 1- From the Power setting setting, press appears on Important : The power supply of the device should the display. -
Page 22: General Information
GENERAL INFORMATION . TECHNICAL 5. MAINTENANCE, CHARACTERISTICS REPAIR AND DISPOSAL WARNING: Disconnect electrical supply before carrying • ENVIRONMENTAL CONDITIONS: out any maintenance activity. - Operating temperature -30°C to +50°C • The product can be cleaned using a soft damp cloth. - Storage temperature -30°C to +70°C Do NOT use chemical or abrasive cleaners as they will... -
Page 23: Warranty
Warranty period For Purmo heating products, Purmo radiators and FINIMETAL Towel Rails: 10 years from the date the goods are purchased, in the case of the radiator or towel rail body. - Page 24 Warranty limitations Generally, the warranty may not apply if: ● the goods are not stored or transported in dry conditions; ● mechanical damage to the goods is caused by misuse (for example, due to an overload as a result of sitting on the radiator or towel rail);...
-
Page 25: Eco Directive
At minimum heat output eI min N.A. with working time limitation In standby mode with black bulb sensor N.A. Purmo Group (UK) Ltd, Eastern Avenue, Team Valley, Gateshead, Tyne and Wear. NE11 0PG UK Contact details... - Page 26 NOTES...
- Page 27 NOTES...
- Page 28 Purmo Group (UK) Ltd P24MI534 ver1 Eastern Avenue, Team Valley, Gateshead, Tyne and Wear. NE11 0PG United Kingdom...
