Purmo V10 Manual

Installation Procedure:

1. Decide on the position of the radiator and mark the
mounting bracket positions according to Fig 1.
2. Align the wall brackets according to Fig 3 and mark the
hole fixing hole positions.
3. Drill and plug the bracket fixing holes and fix the brackets
securely to the wall.
4. Mount the radiator on the brackets and connect the
radiator to the heating system.
5. Fit the plugs and vent to the radiator.
6. Fill the system and vent the radiator.
7. Balance the system to ensure correct flow through all
radiators.

Safety Precaution:

Radiators are hot when in use, and as such, present a risk of
burns to users on prolonged contact.
The temperature of a radiator is dependent on the temperature
of the system water, as set by the system installer or end user.
Installers and users should ensure that those who come in to
close proximity to hot radiators are aware of the risks of burns.
Installers and users should take all necessary steps to minimise
the risk of burns. If the risk is significant, consideration should
be given to installing low temperature radiators, or to placing
guards in front of radiators.
For the correct installation of radiators it is essential that the
fixing of the radiator is carried out in such a way that it is
suitable for intended use AND predictable misuse.
A number of elements need to be taken into consideration
including fixing method used to secure the radiator to the wall,
the type and condition of the wall itself, and any additional
potential forces or weights, prior to finalising installation.
IN ALL CASES IT IS STRONGLY RECOMMENDED THAT A
SUITABLY QUALIFIED PROFESSIONAL INSTALLER OR SIMILAR
TRADESPERSON CARRIES OUT THE INSTALLATION.
PLEASE NOTE: The fixing materials provided are only intended
for installation on walls made of solid wood, bricks, concrete
or on timber frame stud walls where the fixing is in to the
timber. All walls being considered should have no more than
a maximum of 3 mm wall finishing. For walls made of other
materials, for example hollow bricks, please consult your installer
or specialist supplier. ONCE AGAIN, IF YOU ARE UNSURE, IT
IS STRONGLY RECOMMENDED THAT A SUITABLY QUALIFIED
PROFESSIONAL INSTALLER OR SIMILAR TRADESPERSON
CARRIES OUT THE INSTALLATION.

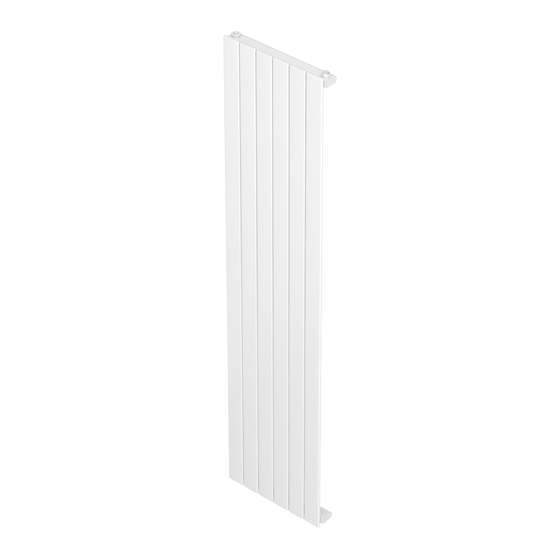

Vertical Flat Tube Radiator
Models: V10 & V20

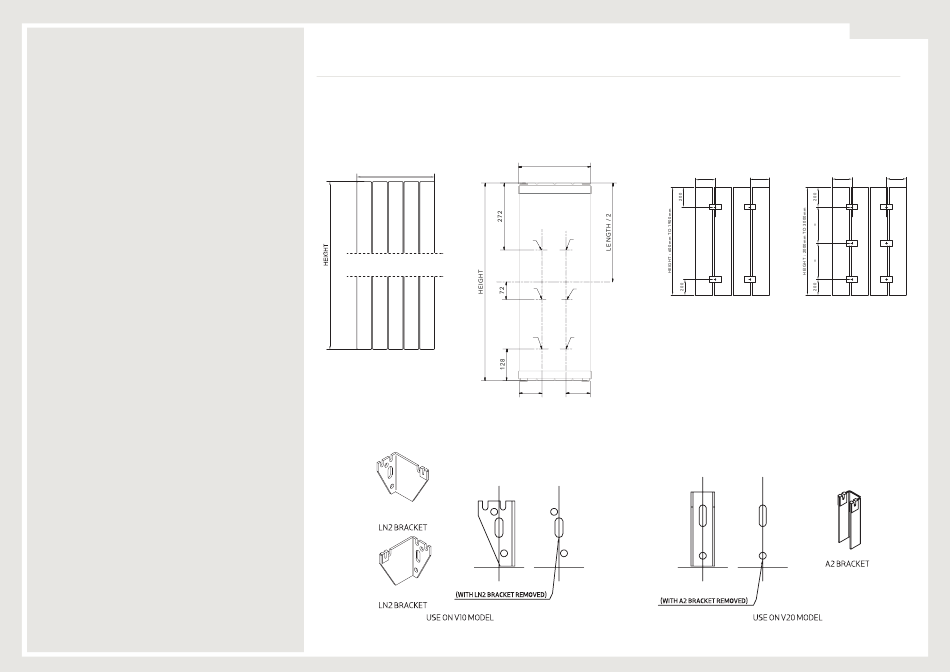

RADIATOR WALL LOCATION
FIG 1.
LENGTH
RADIATOR
RIGHT HAND
LEFT HAND
LENGTH
2
1
5 6
4
3
DIMENSION A
V10: 100mm
A A
V20: 88mm

MOUNTING BRACKET DETAILS

FIG 3.
PENCIL MARKS
MOUNTING LUG LOCATIONS
FIG 2.
ALL RADIATOR LENGTHS ALL RADIATOR LENGTHS
88
88 88
PENCIL MARKS
Purmo Group, Gateshead, NE11 0PG; Purmo Group Newcastle West, V42 TD39
DSVI-001
88
