T670 Omni Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to field-
install the RUCKUS T670 Omni access point (AP). For detailed information
on planning the installation, performing a site survey, and operating the
T670 Omni, refer to the RUCKUS Outdoor Access Point User Guide,
available at https://support.ruckuswireless.com.
NOTE: The minimum software version for the T670 Omni AP is
SmartZone (SZ) 7.0 or later, Unleashed (UN) 200.17 or later, and
RUCKUS One (R1) 7.0.0.200 or later.
DANGER: Installation of this equipment must comply with local and
national electrical codes.
WARNING! Only trained and qualified personnel should install, replace,
or service this equipment. This equipment should be installed in
restrcted-access areas only.
WARNING! RUCKUS strongly recommends that you wear eye protection
before mounting the T670 Omni.
CAUTION! Make sure that you form a 80mm - 130mm (3-in.-5-in.) drip
loop in any cable that is attached to the AP or the building. This will
prevent water from running along the cable and entering the AP or the
building where the cable terminates.
CAUTION! Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
http://
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
http://docs.commscope.com/?docs-box
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
(http://docs.commscope.com/?
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box
Copyright
©
2024 CommScope, Inc. All rights reserved.
Published September 2024, Part Number 800-73566-001 Rev B
Before You Begin
Before deploying RUCKUS products, please check for the latest software
and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Before deploying your RUCKUS Access Point, verify that all items listed
in Package Contents are included in the package. If any item is damaged
or missing, notify your authorized RUCKUS sales representative. Also,
make sure that you have the required hardware and tools.
Required Hardware and Tools
• ½-in. (13-mm) flat-blade screwdriver or equivalent
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe, pole or a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors, flat
washers, and hex nuts for flat-surface mount
Package Contents
A complete T670 field installation package includes all of the items listed
below:
• T670 Access Point
• M25 data cable glands
• Outdoor AP Mounting Bracket kit
• One ground wire with lug
• Cloud Management Statement
• Four ½-in. (12.7-mm) wide adjustable clamps, 2.5-in. (63.5-mm)
diameter, for main mounting bracket on smaller poles
• Safety cable kit
• Declaration of Conformity
Mounting Instructions
Connecting and Sealing the RJ-45 Cables
The T670 may use zero, or one or two RJ-45 cables: one for Ethernet when
configured as a Root AP (RAP), and another when the T670 is connecting
to a peripheral device, such as a small cell or micro cell radio. When the
T670 uses RJ-45 cables, connect and seal the cables using the M25 data
cable glands as shown in
http://
http://
http://
http://support.ruckuswireless.com/
Figure
4.

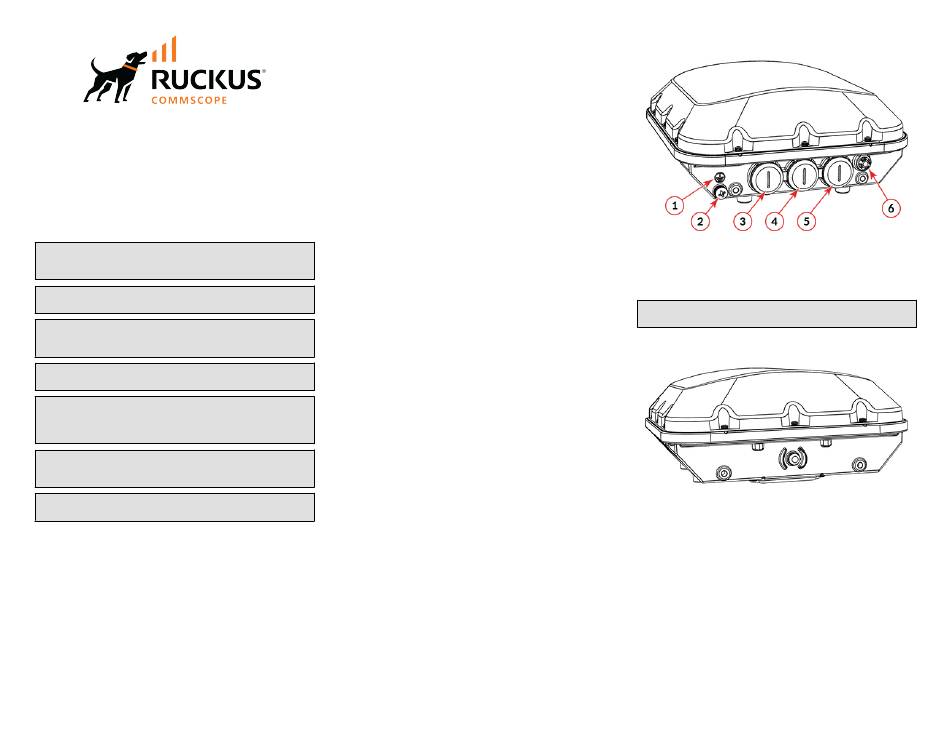

FIGURE 1 T670 AP Port-side View
1. Ground symbol
4. Ethernet
2. Ground screw
5. DC
3. PoE IN
6. LED indicators
WARNING! Do not use any PoE injector not tested and approved by
RUCKUS to power the T670 Access Point.
FIGURE 2 T670 AP Back View
Page 1 of 4
