CommScope RUCKUS Unleashed T750SE Quick Setup Manual

Unleashed T750SE Access
Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to field-
install the RUCKUS Unleashed T750SE access point (AP). For detailed
information on installation, management and operating the T750SE, refer
to the Unleashed Online Help, available at https://
docs.ruckuswireless.com/unleashed/200.9.
WARNING! Only trained and qualified personnel should be allowed to
install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with local and
national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm (3"-5") drip loop
in any cable that is attached to the AP or the building. This will prevent
water from running along the cable and entering the AP or the building
where the cable terminates.
CAUTION! Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING! RUCKUS WIRELESS strongly recommends that you wear eye
protection before mounting the T750SE.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
Copyright © 2020 CommScope, Inc. All rights reserved.
Published July 2020, Part Number 800-72628-001 Rev A
Before You Begin
Before deploying RUCKUS WIRELESSs products, please check for the latest
software and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Before deploying your RUCKUS WIRELESS Access Point, verify that all
items listed in Package Contents are included in the package. If any item
is damaged or missing, notify your authorized RUCKUS WIRELESS sales
representative. Also, make sure that you have the required hardware
and tools.
Required Hardware and Tools
• 1/2" (13 mm) flat-blade screwdriver or equivalent
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe, pole or a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors, flat
washers, and hex nuts for flat-surface mount
Package Contents
A complete T750SE field installation package includes all of the items listed
below :

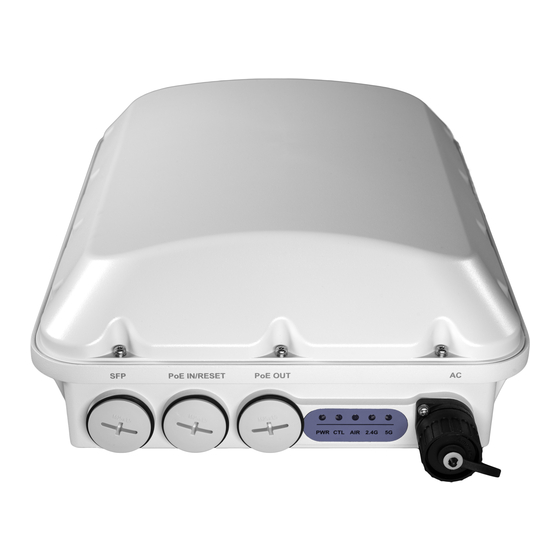

• T750SE Access Point
• M25 data cable gland extender
• Three M25 data cable glands
• Outdoor AP Mounting Bracket kit
• One ground wire with lug
• Cloud Management Statement
• Cable gland extender gasket
• AC Connector
• Zipcord cable gland grommet
• Four 1/2" (12.7 mm) wide adjustable clamps, 2.5" (63.5 mm) diameter,
for main mounting bracket on smaller poles
• Safety cable kit
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
• Regulatory Statement
でご覧
• RUCKUS WIRELESS AP Getting Started Guide
• This Quick Setup Guide
Unleashed Network Configuration
https://
Setup Using the Unleashed Mobile App
To perform setup using the Unleashed Mobile App, download the iOS or
Android app from the app store.
1. As soon as the Unleashed AP is powered on and connected to the
local network, it boots up and begins broadcasting a temporary
unencrypted WLAN named "Configure.Me-[xxxxxx]" from both radios.
2. Using your client's Wi-Fi connection settings, select and associate to
http://
the "Configure.Me-[xxxxxx]" WLAN.
3. Launch the app, and follow the on-screen instructions to configure
http://support.ruckuswireless.com/
your Unleashed network(s).

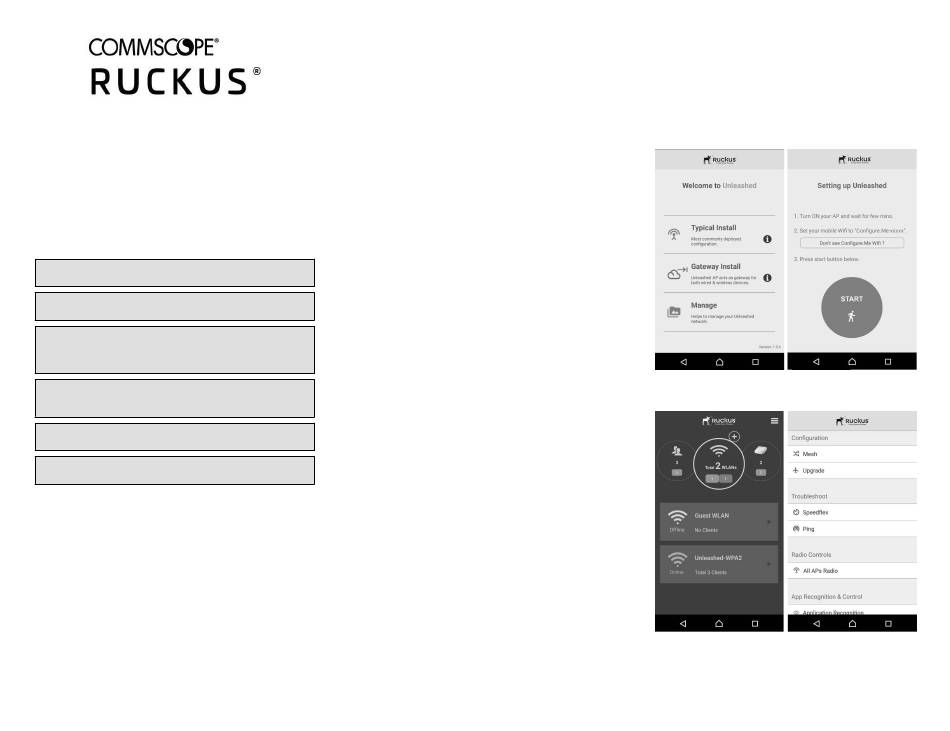

FIGURE 1 Unleashed Mobile App for iOS and Android
FIGURE 2 Configuring Unleashed from the Mobile App
Page 1 of 8
