CommScope RUCKUS T350c Quick Setup Manual

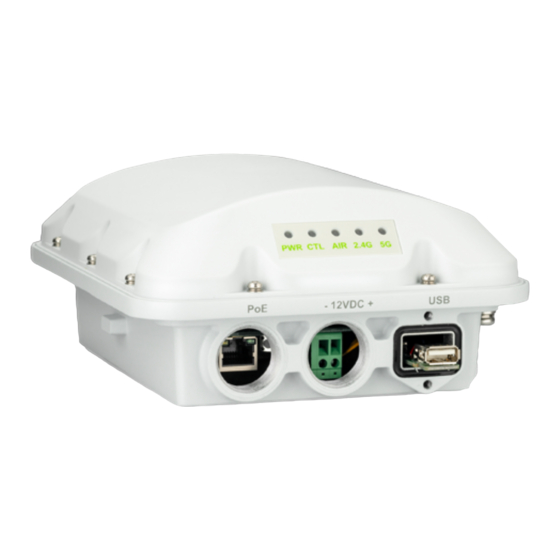

T350c Access Point
Quick Setup Guide
NOTE: The minimum software revision for the T350c is ZoneDirector
(ZD) 10.5 or later, or SmartZone (SZ) 6.0 or later.
This Quick Setup Guide provides step-by-step instructions on how to field-
install the RUCKUS T350c access point (AP). For detailed information on
planning the installation, performing a site survey, and operating the
T350c, refer to the RUCKUS Outdoor Access Point User Guide, available at
https://support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be allowed to
install, replace, or service this equipment.
WARNING! Installation of this equipment must comply with local and
national electrical codes.
CAUTION! Form a 80-mm to 130-mm (3-in. to 5-in.) drip loop in any
cable that is attached to the AP or the building. This will prevent water
from running along the cable and entering the AP or the building where
the cable terminates.
CAUTION! Be sure that grounding is available and that it meets local
and national electrical codes. For additional lightning protection, use
lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
CAUTION! RUCKUS strongly recommends that you wear eye protection
before mounting the T350c.
Before You Begin
Before deploying RUCKUS products, please check for the latest software
and the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
• Before deploying your RUCKUS Access Point, verify that all items listed
in Package Contents are included in the package. If any item is damaged
or missing, notify your authorized RUCKUS sales representative. Also,
make sure that you have the required hardware and tools.
Copyright © 2021 CommScope, Inc. All rights reserved.
Published December 2021, Part Number 800-72679-001 Rev B
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía en
support.ruckuswireless.com.
Required Hardware and Tools
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Wide flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire-stripping and terminal-crimping pliers
• Pipe or pole, or a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors, flat
washers, and hex nuts for flat-surface mount
Package Contents
A complete T350c field-installation package includes all of the following
items:
• T350c Access Point
• M25 data cable gland
• Ground wire with lug
• Pole/Wall Mount Bracket Kit
• Two steel pipe clamps
• Declaration of Conformity/Regulatory Statement

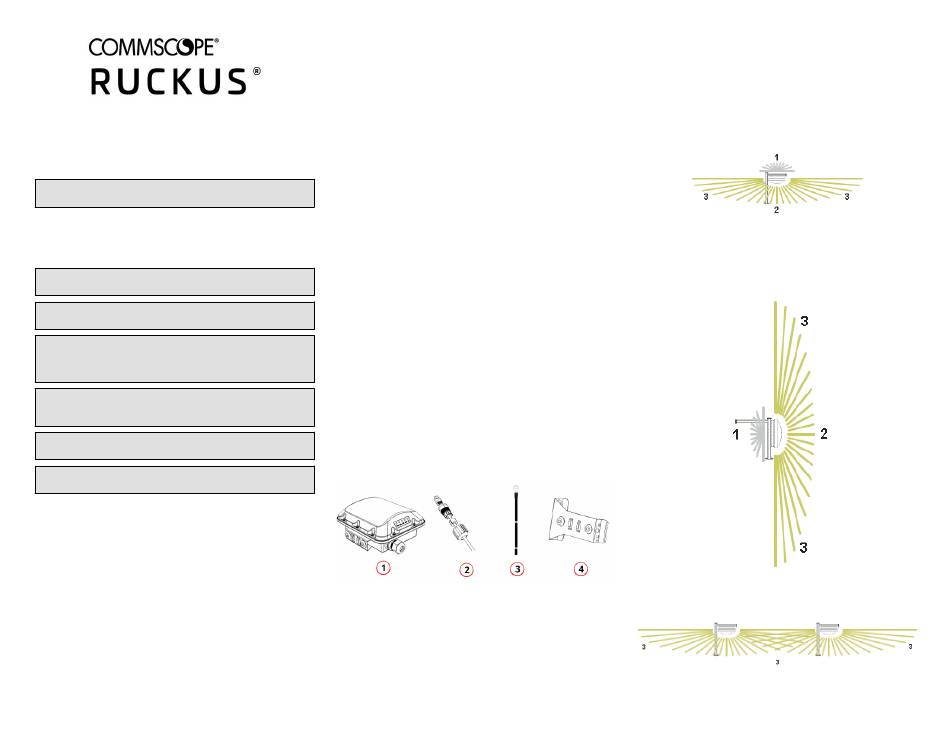

FIGURE 1 T350c Package Contents
http://
1. T350c Access Point
2. M25 data cable gland
Omni Antenna Coverage
https:// The AP (ordering part number 901-Txxx-xx-01) is best deployed where
internal-antenna lateral beamforming can provide the greatest reach and
throughput to a wide coverage area, or to provide the greatest distance
between APs in a connecting mesh device. See
typical side view coverage pattern, see
でご覧
pattern, and see
(https://
FIGURE 2 Typical AP Omni Coverage, Side View - Option1
https://
https://
1. Limited Reach
2. Good Reach
FIGURE 3 Typical AP Omni Coverage, Side View - Option2
3. Ground wire with lug
FIGURE 4 Typical AP Mesh Elevation Plane Coverage, Side View
4. Pole/Wall Mount Bracket Kit
Figure 2 and Figure 3
Figure 4 for a typical mesh coverage
Figure 5 for a typical top view coverage pattern.
3. Excellent Reach
Page 1 of 4
for a
