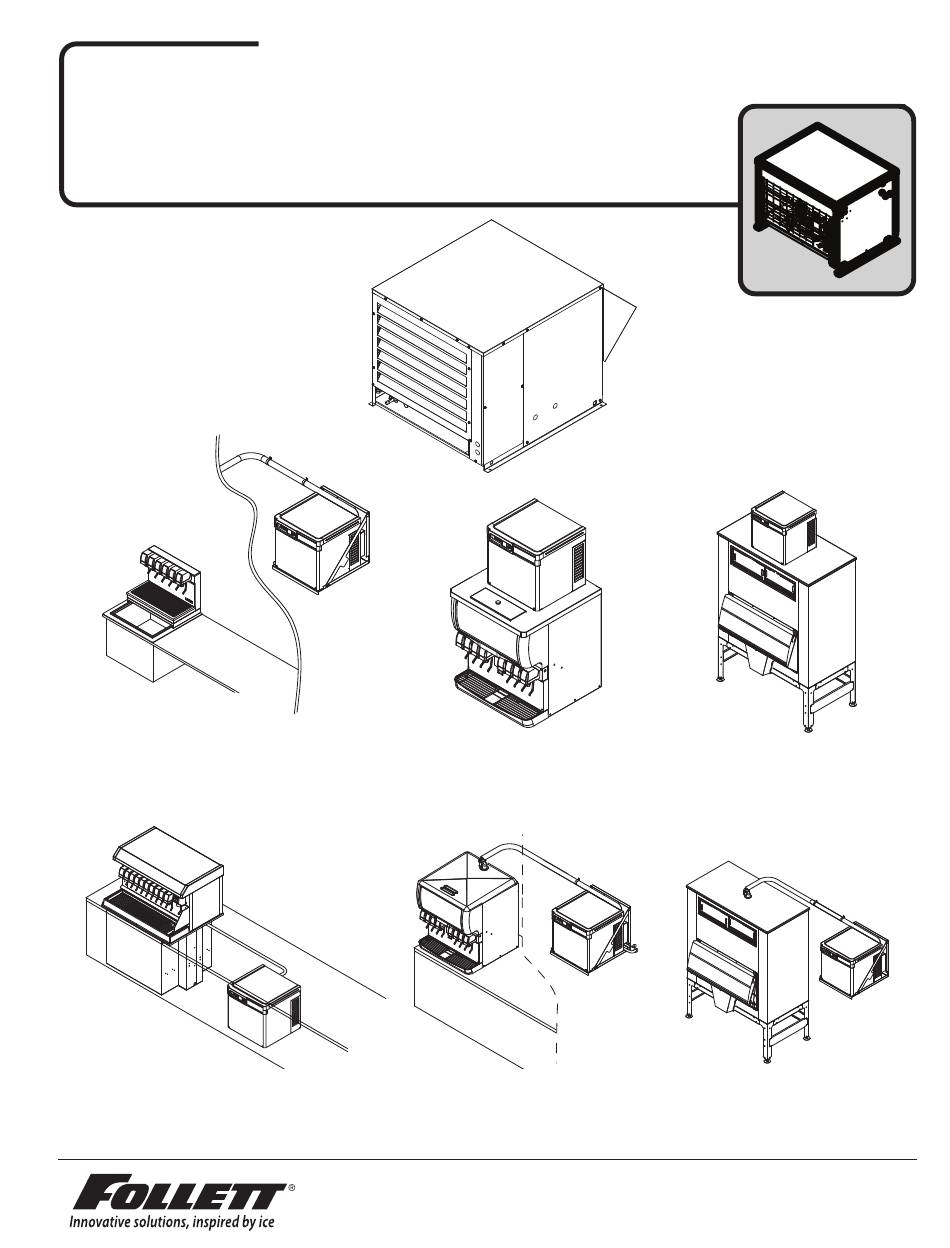

D1810R, D2110R
Order parts online
www.follettice.com
Drop-in Remote Condensing
RIDE
remote ice delivery equipment
®
Vision™ Remote Condensing
RIDE remote ice delivery equipment
REMOTE CONDENSING UNIT
Horizon Elite
™
Ice and Beverage Remote Condensing
Ice and Beverage Remote
RIDE remote ice delivery equipment
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
Ice Machine Installation Instructions
for Remote Condensing Unit
Top Mount
Condensing
Bin Remote Condensing
Top Mount
Bin Remote Condensing
RIDE remote ice delivery equipment
01157932R02
1
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite D1810R
Summary of Contents for Follett Horizon Elite D1810R
- Page 1 Horizon Elite Ice Machine Installation Instructions ™ for Remote Condensing Unit D1810R, D2110R Order parts online www.follettice.com Bin Remote Condensing Drop-in Remote Condensing Ice and Beverage Remote Condensing RIDE remote ice delivery equipment Top Mount Top Mount ® Ice and Beverage Remote Bin Remote Condensing Vision™...
-
Page 2: Site Preparation
Condensing Unit Shipping Weight Model Horizon 1810 Horizon 2110 Single-phase 305 lb (1139 kg) 305 lb (1139 kg) 3-phase 305 lb (1139 kg) 305 lb (1139 kg) Prior to installation, carefully unpack and inspect the contents of your condensing unit! Site preparation To ensure proper performance, ease of service and warranty coverage, it is critical that you follow the requirements detailed in this manual. -
Page 3: Condenser Unit
Condenser installation specifications CONDENSER UNIT 75' max. ➋ (22.8 m) maximum line rise S-trap required ➊ +13' (+4 m) P-trap required CORPORATION Easton Pennsylvania MODEL SERIAL NO PART NO SINGLE FULL LOAD AMPS MOTOR COMPRESSOR THERMALLY PROTECTED VOLTS PHASE REFRIGERANT CHARGE DESIGN PRESSURE HIGH SIDE LOW SIDE... -
Page 4: Condenser Installation
Condenser installation Install condensing unit • Level unit • Securely attach base of unit using holes found in base plate • Required rack system capacity at 0 F (–18 C) evaporator (EPR supplied by installer). 1810CU: 15,700 Btu/hr (3956 kcal/hr) 2110CU: 18,200 Btu/hr (4586 kcal/hr) Electrical requirements Condensing unit D1810CU... - Page 5 Single-phase condensing unit wiring diagram 208-230V/1/60Hz (Danfoss MTZ36-1AV) MOP = 45; MCA = 26.2 (Danfoss MTZ44-1AV) MOP = 45; MCA = 27.1 CIRCUIT BREAKER (by others) 45A for MTZ36-1AV 45A for MTZ44-1AV HIGH LIMIT 80F NOTE: MAKE CONNECTIONS AT CONTACTOR LUGS Start Relay COMPRESSOR RUN 1...
- Page 6 3-phase condensing unit wiring diagram 208-230V/3/60Hz (Danfoss MTZ36-3AV) MOP = 25; MCA = 15.7 (Danfoss MTZ44-3AV) MOP = 30; MCA = 19.9 CIRCUIT BREAKER (by others) 25A for MTZ36-3AV PHASE MONITOR 30A for MTZ44-3AV HIGH LIMIT 80F NOTE: MAKE CONNECTIONS AT CONTACTOR LUGS CONDENSER COMPRESSOR...
- Page 7 Phase monitor adjustments (if necessary) 1. Use a meter at the phase monitor to ensure there is voltage across all three phases and note the voltage value. ➊ 2. The Restart Delay should be set to 200 (seconds). ➋ 3. The Voltage Adjustment (VAC) should be set to match the voltage value from Step 1.
-
Page 8: Refrigeration Line Installation
Refrigeration line installation Refrigeration line installation: 7/8" suction / 3/8" liquid line (D1810R, D2110R) CAUTION • The installer of the refrigeration line set must be USA Government Environmental Protection Agency (EPA) certified in proper refrigeration handling and service procedures • A qualified person must perform all roof or wall penetration •... - Page 9 Refrigeration line installation 2. Leak check field joints. 3. Evacuate line set via the condensing unit service valves. 5. Open the liquid line service valve and suction line service valve on the condensing unit. 6. Connect the self-sealing liquid and suction line quick disconnects to the evaporator. 7.
-
Page 10: Start Up And Test
Start up and test NOTICE Ice machine MUST be cleaned and sanitized prior to operation! Consult Operation and Service Manual provided with ice machine for cleaning and sanitizing instructions. Verify operation • Turn dispenser power ON if applicable • Check current draw of compressor to verify correct electrical operation. •... - Page 11 REMOTE CONDENSING UNIT...
-
Page 12: Remote Condensing Unit
Horizon Elite, Ice Manager, and Vision are trademarks of Follett Products, LLC. Chewblet, RIDE and Follett are registered trademarks of Follett Products, LLC, registered in US. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 • +1 (610) 252-7301...
