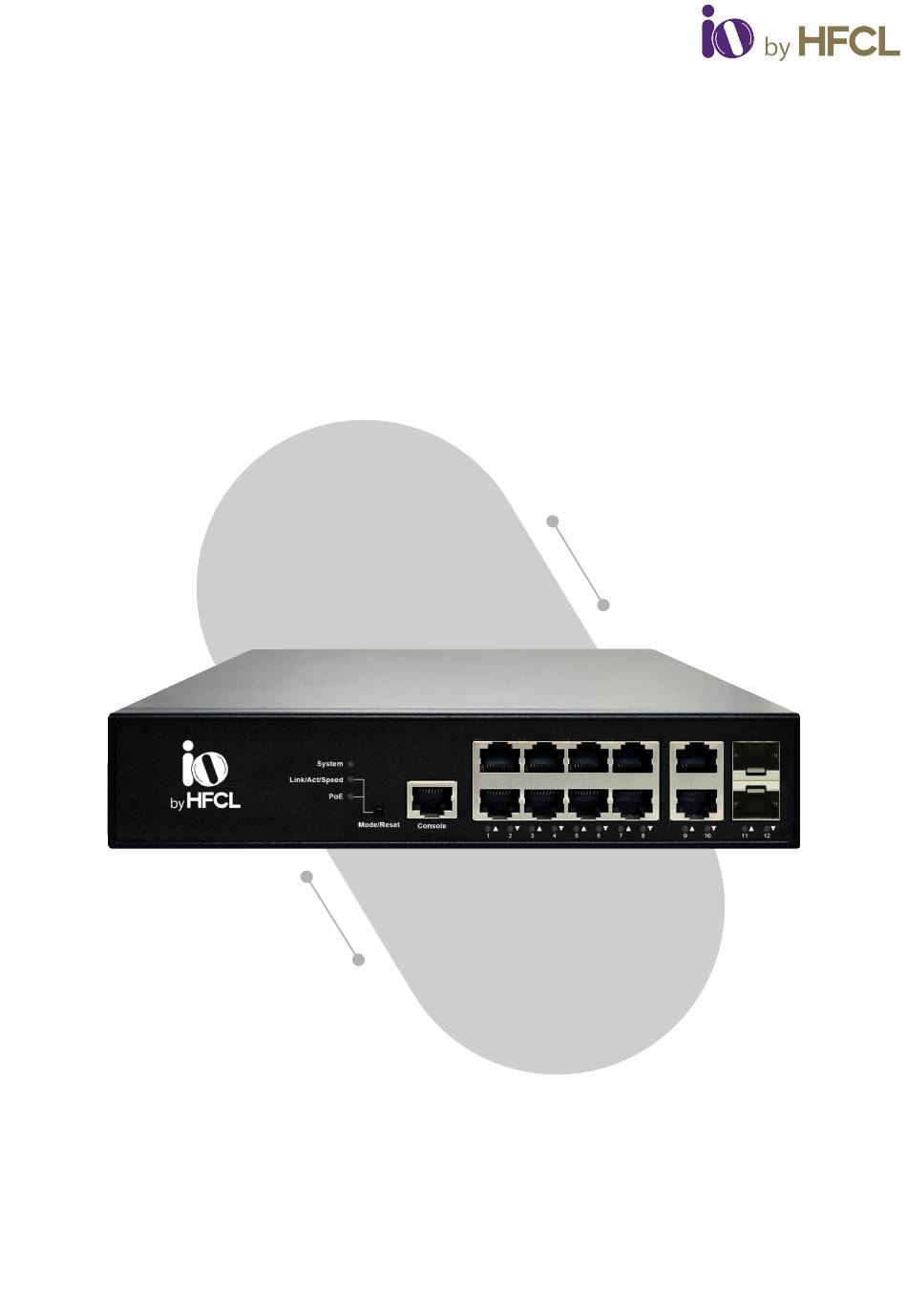

- Page 1 Quick Start Guide Model No: HSP-IO-8GE2S-C2PA+ 8-Port PoE/PoE+ L2 Commercial Managed Switch...
- Page 2 Advanced GUI with Device Management System High Speed Fiber & Copper Based Backhaul Rich Layer-2 Features...
- Page 3 Introduction Thank you for choosing 8-Port L2 Managed Commercial Switch from HFCL Switching Platform (HSP+). PoE Variants Suitable in an enterprise/telco/campus environment to connect end PoE clients like Wi-Fi AP, CCTV, P2P, P2MP, IoT etc. Non-PoE Variants Suitable to connect Small Cells/BTS, P2P/P2MP etc. in telco environment and Desktops/Servers, IP-Phone etc.
-
Page 4: Packaging Content
Packaging Content: 8 Port Switch Qty: 1 number Mounting clamps with screws Power supply cable 1x Console Port System LED 8x10/100/1000 Reset button RJ45 Ports 2x1G RJ45 + 2x1G SFP Uplink Ports... -
Page 5: Bracket Assembly
Bracket Assembly Assembly of brackets for rack mounting is described in the below diagram for 8 Port L2 Commercial switch model. Step 1. Attach the brackets to the device using the screws provided in the Mounting Accessory. Attaching the Brackets Step 2. -
Page 6: Product Specification
Product Specification 8 Port L2 Managed Switch Specifications Capacity Switching: 20 Gbps, Forwarding: 14.88 MPPS Port Configuration 8x10/100/1000 Base-T Gigabit Access Ports with PoE+ Uplink Ports 2x10/100/1000 RJ 45 Ports 2x1G SFP Gigabit Uplink Ports PoE Feature 130W (PoE Budget), Smart PoE L2 Features Support 4094 VLAN IDs, 8K MAC Table, STP/RSTP/MSTP... -
Page 7: Login Access
Login Access Console Port Access Via Web-GUI: Steps: Connect your PC to the Switch and ensure its IP address is in the same subnet, default IP of the Switch is 192.168.1.1/24 Launch your web browser and enter the URL: http://192.168.1.1 to access the Switch's local web GUI. Use any default login credential (Username is “admin”... - Page 8 Port LED Status Table 1: System LED Description Color State The switch is powered ON correctly. System Green The switch is not receiving power. Table 2: Mode LEDs Description Color State The Port Status LEDs display Link/Act/ the link status, network activity Green Speed and speed of each port.
- Page 9 Description Color State The port is enabled and established a link to the connected device, and Amber the connection speed is 1000Mbps. The port is transmitting/receiving Amber Blinking packets, and the connection speed is 10/100Mbps. RJ45 Ports The port has no active network cable connected, or it is not established a link to the connected device.
- Page 10 When PoE Mode LED Lit Description Color State The switch is powered ON correctly. Green An abnormal state, such as overload Amber status, has been detected in the switch. RJ45 Ports The port has no active network cable connected, or it is not connected to a PoE PD device.
-
Page 11: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. - Page 12 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
