- Page 1 Quick Start Guide MODEL: HSP-IO-8GE2S-I2PDH 8 Ports Industrial PoE Managed Switch...
- Page 2 Indigenously developed Secured Network OS High Speed Fiber & Copper based backhaul Zero Touch Provisioning & Automation Capabilities...
- Page 3 Introduction Thank you for choosing 8-port PoE+ Industrial Switch from HFCL Switching Platform (HSP). The Switch has all Gigabit ports with access ports PoE+ enabled. This is L2 Managed Industrial Switch with 2x1G SFP and 2x1G RJ-45 uplink ports enabling termination of both copper and optical cables simultaneously.
- Page 4 HSP-IO-8GE2S-I2PDH Specifications Capacity Switching: 24 Gbps, Forwarding: 17.86 mpps Port Configuration 8x10/100/1000 Base-T Gigabit Access Ports with PoE+ support. Uplink Ports 2x10/100/1000 Base-T 2x1G SFP Gigabit Uplink Ports PoE Feature 240W (PoE Budget), Smart PoE L3 Features Static Route and Inter-VLAN Routing, Dual Stack and IPv6 Security L2, L3, L4 ACLs, 802.1X Authentication...
-
Page 5: Product Overview

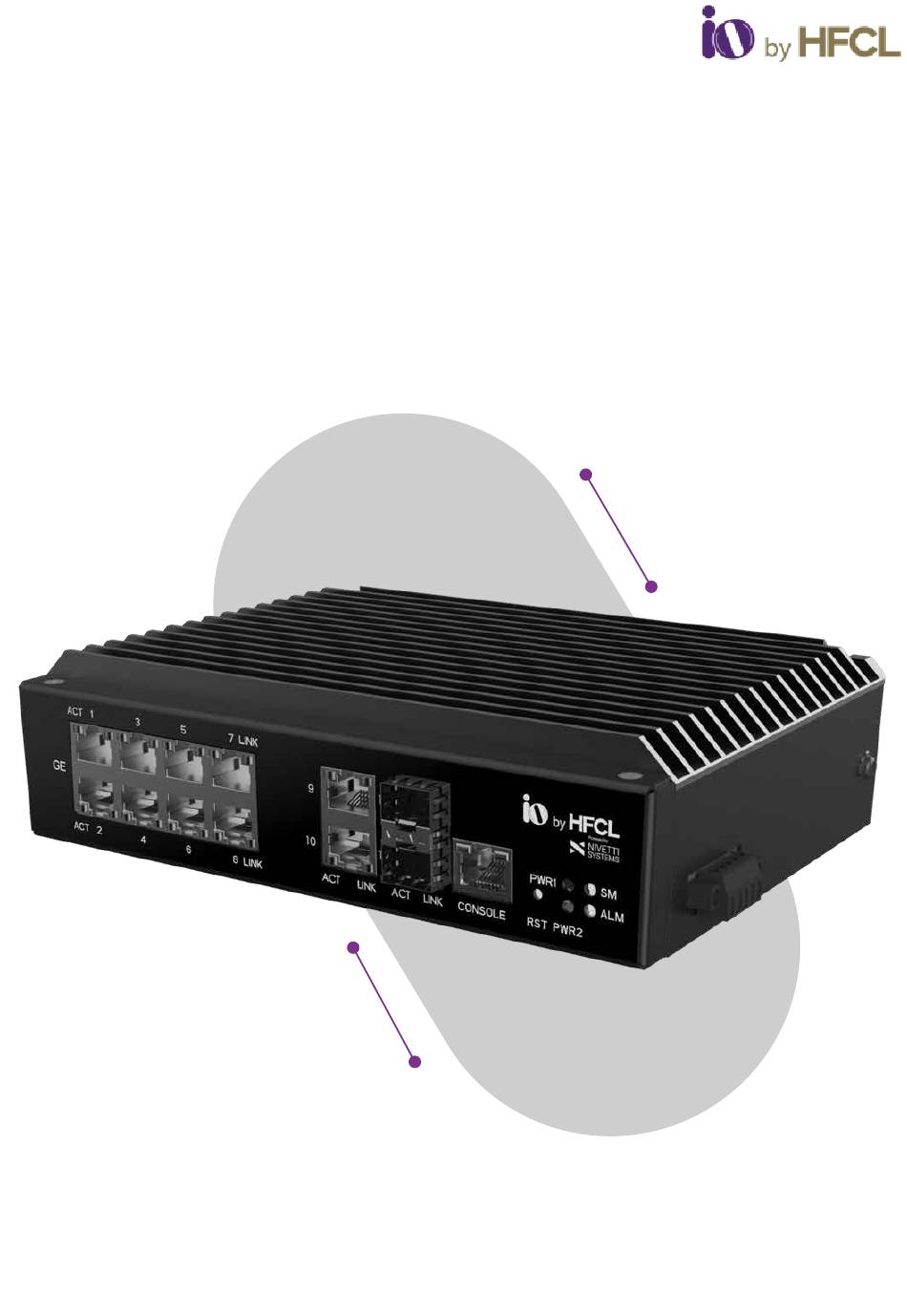

Product Overview 1x Console Port Heat Sink Cover Ground 8x10/100/1000 PoE+ Ports 2xDC 2x1G RJ45 + Power Input 2x1G SFP Uplink Ports System LEDs DIN Rail Mounting... - Page 6 DIN Rail Spring DIN Rail Clamp DIN Rail To install the switch on a DIN rail, perform the following procedure: Move the slot at the top of the DIN rail bracket onto the upper edge of the DIN rail. Apply downward pressure on the spring within the bracket located at the top rear edge of the switch until the bottom edge of the front faceplate of the switch can be pushed backward and positioned under the lower edge of the DIN rail.
-
Page 7: Login Access
Login access The console access to the Switch can be obtained via the console port using RJ45 to DB9 serial port adapter. An administrator can access the device using command line interface (CLI) with the following console port setting as part of factory default configuration. Speed: 115200 bps | Data bits: 8 Stop bit: 1 | Parity: none Flow control: hardware... -
Page 8: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. - Page 9 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
