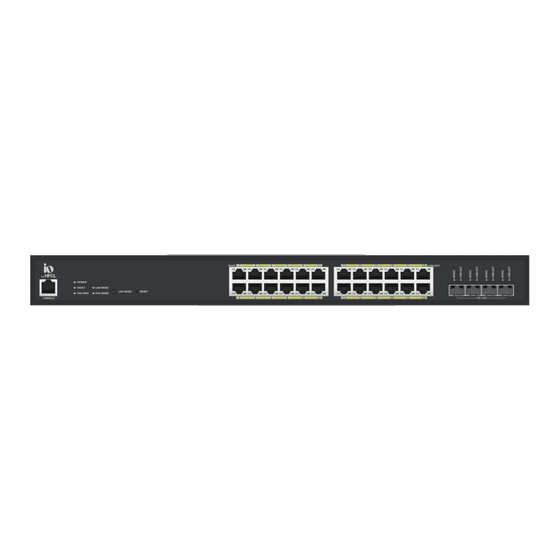

- Page 1 Quick Start Guide HSP-IO-24GE4XS-C1PA 24Port PoE+ L2 Managed Switch Also Applicable on: HSP-IO-24GE4XS-C1A 24-Port, Non PoE, L2 Managed Switch, 4x1/10G SFP+ Uplinks, Single AC Power Supply...
- Page 2 Advanced GUI High Speed Fiber & Copper Based Backhaul Rich Layer-2 Features...
- Page 3 Introduction Thank you for choosing 24-port managed Switch from HFCL Switching Platform (C1 Series).PoE Variants Suitable in an enterprise/telco/campus environment to connect end PoE clients like Wi-Fi AP, CCTV, P2P, P2MP, IoT etc.Non-PoE Variants Suitable to connect Small Cells/BTS, P2P/P2MP etc.
-
Page 4: Packaging Content
Packaging Content: 24 Port Switch Qty: 1 number Mounting clamps with screws Power Supply cable: 1 Pc... -
Page 5: Installation
Installation: Assembly of brackets for Rack mounting described in below diagram for 24 Port L2 managed Switch Model. Step 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten then with a screwdriver to secure the brackets. Mounting Brackets Switch... -
Page 6: Login Access
Login Access Switch: 192.168.0.239 PC IP : 192.168.0.1 ~ 192.168.0.254 Access Via Web-GUI: Steps: Connect your PC to the Switch and ensure its IP address is in the same subnet, default IP of Switch is 192.168.0.239/24 Open the web browser and enter the URL: http://192.168.0.239 to access the Switch's local web GUI. -
Page 7: Product Specification
Product Specification 24 Port L3 Managed Switch Specifications Capacity Switching: 128 Gbps, Forwarding: 95.232 MPPS Port Configuration 24x10/100/1000M RJ45 ports PoE Feature PoE Budget - 410W, PoE Configuration Uplink Ports 4x1/10G SFP+ Uplink Ports L2 Features Support 4094 VLAN IDs, 16K MAC Table Security L2, L3, L4 ACLs, 802.1X Port Authentication with RADIUS, Port Security... -
Page 8: Led Description
LED Description Description Status Color indicator Flashing Before system boot Solid On Power On Power Green Light Off Power Off Any fault Solid On Fault Amber Normal Light Off When the total PoE output power achieve max power Solid On System budget PoE Max... - Page 9 Description Color Status indicator Solid On Link Transmit or receive Flashing Link/Act Green Slot on this port Light Off No Link Reset to default: Press and hold for over 10 seconds, and all ports LED will go off and on. Then the device will be reset to factory default settings.
-
Page 10: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. Disclaimer : Images are for representation, final product may differ. - Page 11 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
