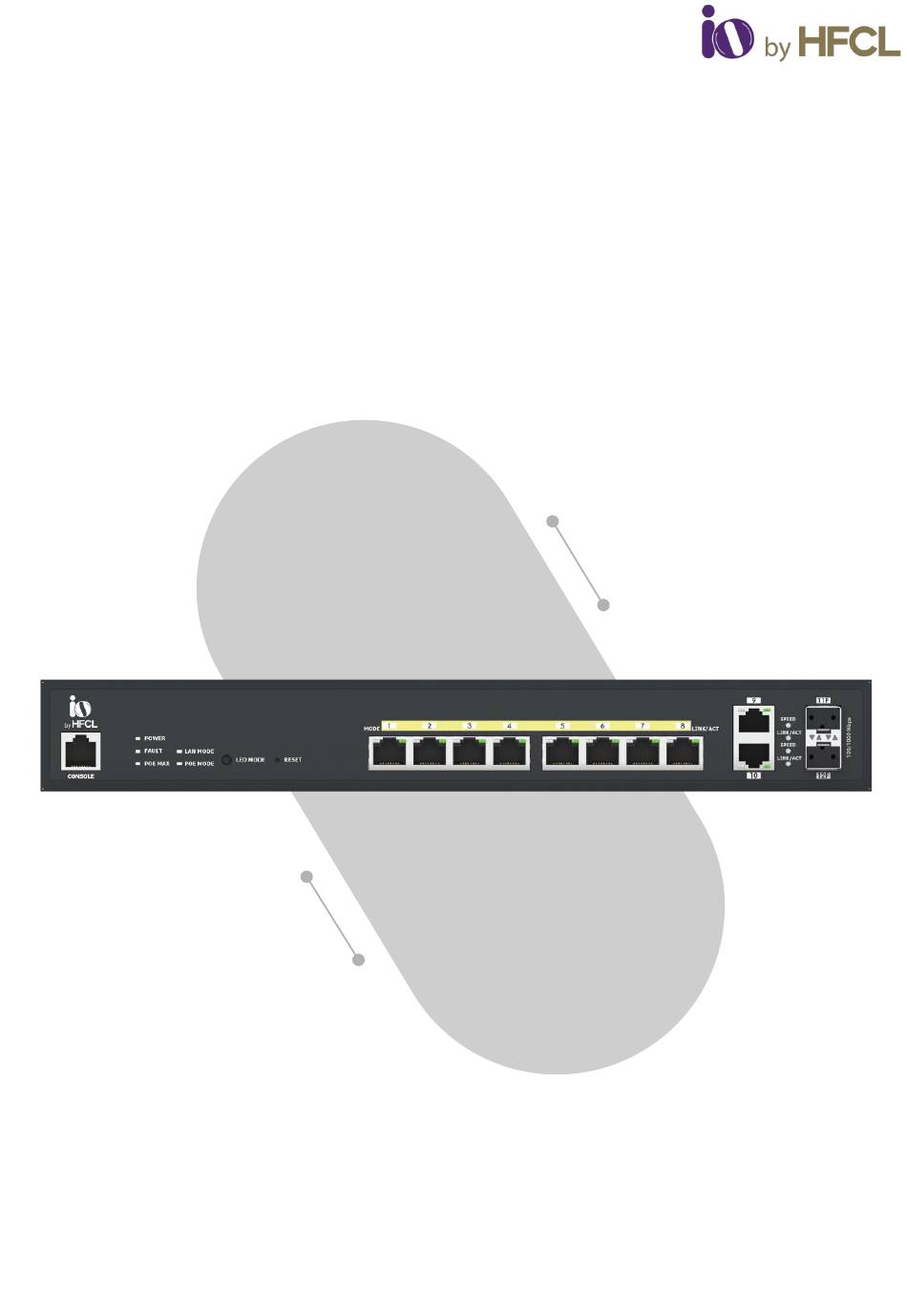

- Page 1 Quick Start Guide Model No: 8-Port PoE/PoE+ L2 Managed Switch HSP-IO-8GE2S-C1PA...
- Page 2 Advanced GUI High Speed Fiber & Copper Based Backhaul Rich Layer-2 Features...
- Page 3 Introduction Thank you for choosing 8-port L2 Managed commercial Switch from HFCL Switching Platform (C1 Series). PoE Variants Suitable in an enterprise/telco/campus environment to connect end PoE clients like Wi-Fi AP, CCTV, P2P, P2MP, IoT etc. in telco environment and Desktops/Servers, IP-Phone etc.
-
Page 4: Packaging Content
Packaging Content: 8 Port Switch Qty: 1 number Mounting clamps with screws Power Supply cable: 1 unit... -
Page 5: Installation
Installation: Assembly of brackets for Rack mounting described in below diagram for 8 Port L2 commercial switch Model Step 1. Attach the Mounting Brackets as below and fasten the brackets using the eight Bracket Screws. Mounting Brackets Brackets Switch Screws Attaching the Brackets Step 2. -
Page 6: Product Specification
Product Specification 8 Port L2 Managed Switch Specifications Capacity Switching: 24 Gbps, Forwarding: 17.856 MPPS Port Configuration 8x10/100/1000 Base-T Gigabit Access Ports with PoE+ Uplink Ports 2x10/100/1000 RJ 45 Ports 2x1G SFP + 2x1G RJ45 Gigabit Uplink Ports PoE Feature 130W (PoE Budget), PoE Configuration L2 Features Support 4094 VLAN IDs, 8K MAC Table,... -
Page 7: Login Access
Login Access Switch: 192.168.0.239/24 PC IP : 192.168.0.1 ~ 192.168.0.254/24 Access Via Web-GUI: Steps: Connect your computer to the switch and ensure its IP address is in the same subnet. Open web browser and enter the URL: http://192.168.0.239 to access the Switch's local web GUI. Use the default login credential (Username is admin and Password is password) to log in to the Switch's local web page. - Page 8 Port LED Status Description Status Color Indicator Flashing Before system boot Solid On After system boot Power Green Light Off Power Off Any fault Solid On Fault Amber Normal Light Off When the total PoE output power achieve max power Solid On System budget...
- Page 9 Description Color Status Indicator Green Solid On Speed 1000 Mbps Speed Amber Solid On Speed 100 Mbps Slot Solid On Link Transmit or receive Green Link/Act Flashing on this port Light Off No Link Reset to default: Press and hold for over 10 seconds, and all ports LED will go off and on.
-
Page 10: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. Disclaimer : Images are for representation, final product may differ. - Page 11 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
