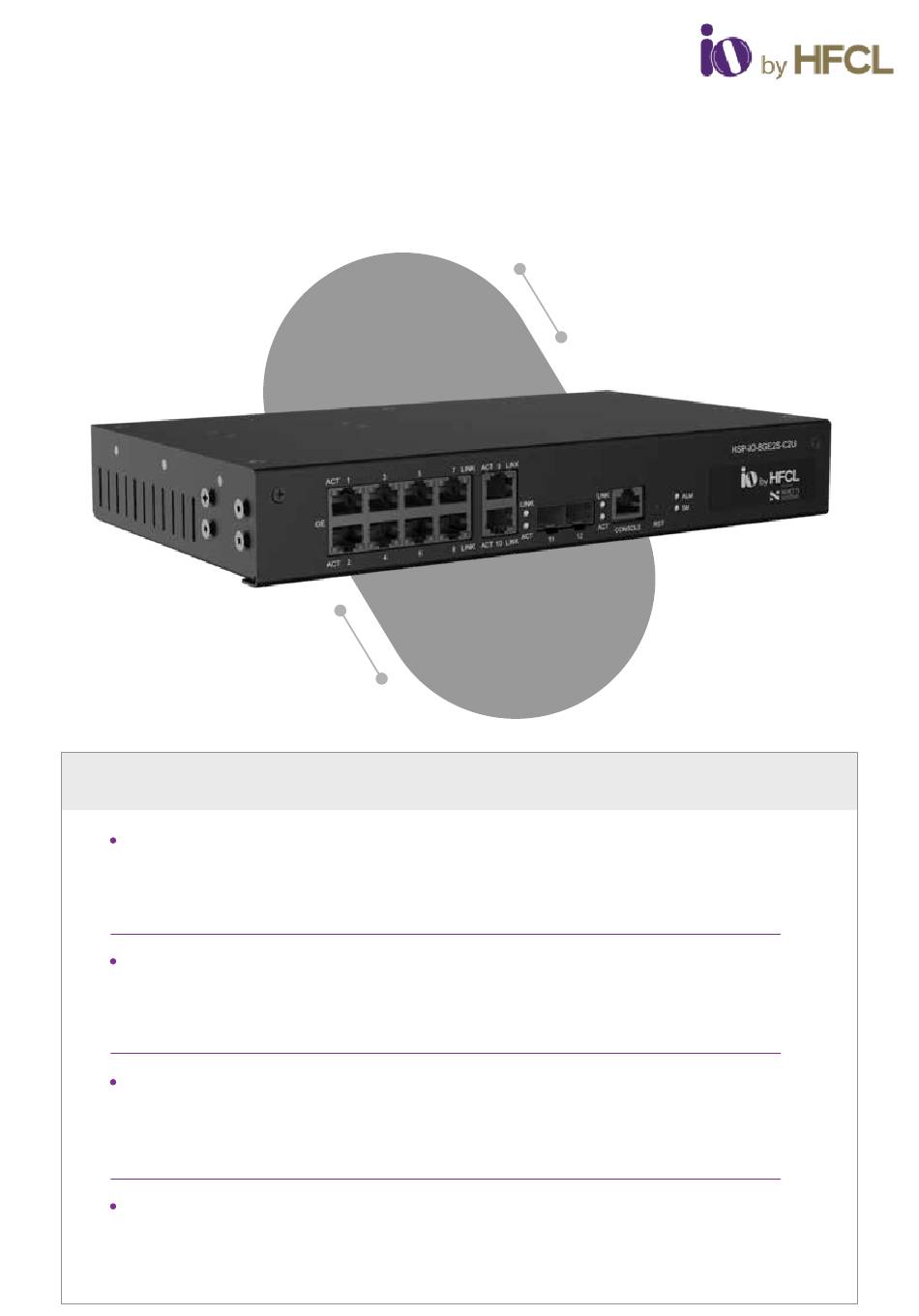

Quick Start
Guide
8 Port L2
Managed Switch
Applicable on:
HSP-IO-8GE2S-C2PA
IO 8-Port PoE+ L2 Managed Switch with 2x1G SFP
and 2x1G RJ45 Uplink ports and Single AC Power Supply
HSP-IO-8GE2S-C2PD
IO, 8-Port, PoE+, L2 Managed Switch,
2x1G SFP + 2x1G RJ45 Uplinks, Single DC Power Supply
HSP-IO-8GE2S-C2D
IO, 8-Port, Non-PoE, L2 Managed Switch,
2x1G SFP + 2x1G RJ45 Uplinks, Single DC Power Supply
HSP-IO-8GE2S-C2A
IO, 8-Port, Non-PoE, L2 Managed Switch,
2x1G SFP + 2x1G RJ45 Uplinks, Single AC Power Supply
Advertisement
Table of Contents
Related Manuals for HFCL io HSP-IO-8GE2S-C2PA
Summary of Contents for HFCL io HSP-IO-8GE2S-C2PA
- Page 1 Quick Start Guide 8 Port L2 Managed Switch Applicable on: HSP-IO-8GE2S-C2PA IO 8-Port PoE+ L2 Managed Switch with 2x1G SFP and 2x1G RJ45 Uplink ports and Single AC Power Supply HSP-IO-8GE2S-C2PD IO, 8-Port, PoE+, L2 Managed Switch, 2x1G SFP + 2x1G RJ45 Uplinks, Single DC Power Supply HSP-IO-8GE2S-C2D IO, 8-Port, Non-PoE, L2 Managed Switch, 2x1G SFP + 2x1G RJ45 Uplinks, Single DC Power Supply...
- Page 2 Indigenously developed Secured Network OS High Speed Fiber & Copper based backhaul Zero Touch Provisioning & Automation Capabilities...
- Page 3 Introduction Thank you for choosing the 8-port L2 commercial Switch from HFCL Switching Platform (HSP). PoE Variants Suitable in an enterprise/telco/campus environment to connect end PoE clients like Wi-Fi AP, CCTV, P2P, P2MP, IoT etc. Non-PoE Variants Suitable to connect Small Cells / BTS, P2P/P2MP etc.
-
Page 4: Bracket Assembly
Bracket Assembly Assembly of brackets for Rack mounting described in below diagram for 4 Port L2 commercial switch Model 8 Port L2 Switch Model Bracket Assembly Step 1. Secure the brackets to the device using the supplied screws from the Mounting Accessory. Step 2. -
Page 5: Product Specification
Product specification 8 Port L2 Managed Switch Specifications Capacity Switching: 24 Gbps, Forwarding: 17.86 mpps Port Configuration 8x10/100/1000 Base-T Gigabit Access Ports with PoE+ and Non- PoE support Uplink Ports 2x10/100/1000 Base-T 2x1G SFP Gigabit Uplink Ports PoE Feature 240W (PoE Budget), Smart PoE L2 features Support 4094 VLAN IDs, 16K MAC Table Security... -
Page 6: Login Access
Login access The console access to the Switch can be obtained via the console port using RJ45 to DB9 serial port adapter. An administrator can access the device using command line interface (CLI) with the following console port setting as part of factory default configuration. Speed: 115200 bps | Data bits: 8 Stop bit: 1 | Parity: none Flow control: hardware... - Page 7 Port LED status Status LED Label LED Colour Indication Yellow blinking Non PoE with activity Green blinking POE ON with Activity Green/Yellow Solid Green POE ON with no activity Non PoE with no activity Solid Green Link Up at 1000Mbps speed LINK Green/Yellow Solid Yellow...
-
Page 8: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. - Page 9 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
