Quick Start
Guide

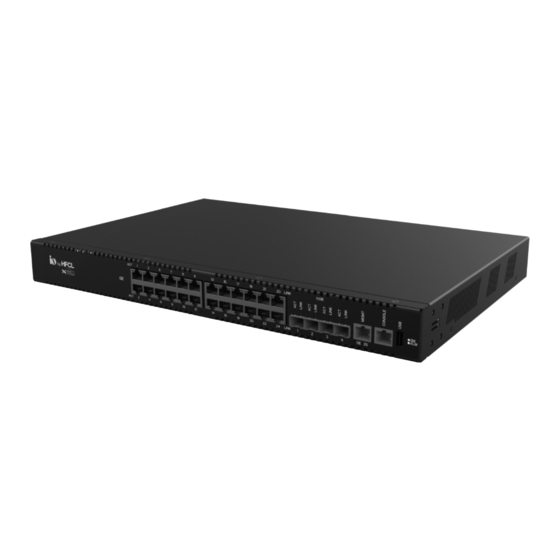

24 Port L2
Managed Switch
Applicable on:
HSP-IO-24GE4XS-C2A
IO 24-Port Non-PoE, L2 Managed Switch with
4x1/10G SFP+ Uplinks and Single AC Power Supply
HSP-IO-24GE4XS-C2AH
IO 24-Port Non-PoE, L2 Managed Switch with
4x1/10G SFP+ Uplinks and Dual AC Power Supplies
HSP-IO-24GE4XS-C2PAH
IO 24-Port PoE+, L2 Managed Switch with
4x1/10G SFP+ Uplinks and Dual AC Power Supplies
Advertisement
Table of Contents
Related Manuals for HFCL io HSP-IO-24GE4XS-C2A
Summary of Contents for HFCL io HSP-IO-24GE4XS-C2A

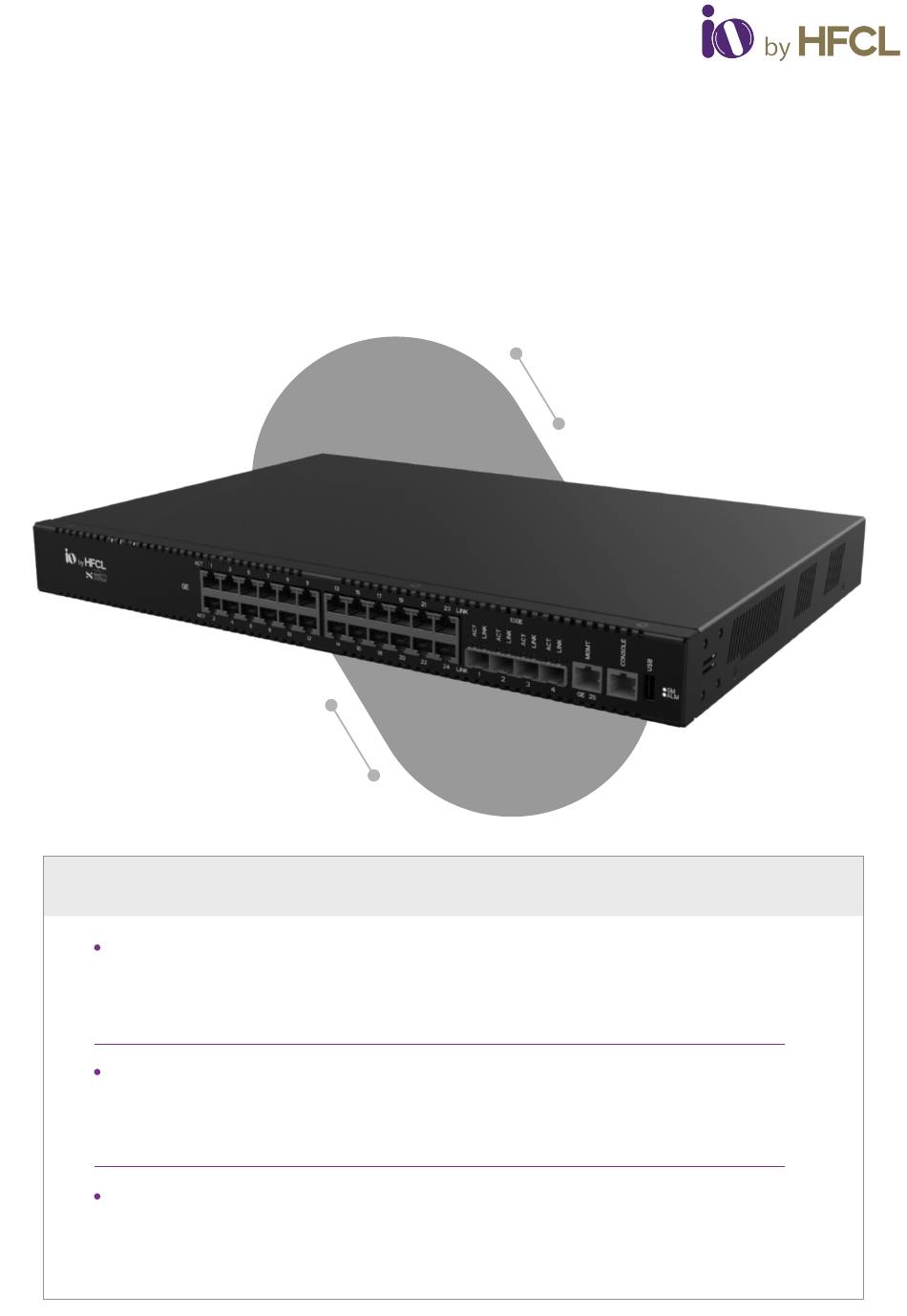

- Page 1 Quick Start Guide 24 Port L2 Managed Switch Applicable on: HSP-IO-24GE4XS-C2A IO 24-Port Non-PoE, L2 Managed Switch with 4x1/10G SFP+ Uplinks and Single AC Power Supply HSP-IO-24GE4XS-C2AH IO 24-Port Non-PoE, L2 Managed Switch with 4x1/10G SFP+ Uplinks and Dual AC Power Supplies HSP-IO-24GE4XS-C2PAH IO 24-Port PoE+, L2 Managed Switch with 4x1/10G SFP+ Uplinks and Dual AC Power Supplies...
- Page 2 Indigenously developed Secured Network OS High Speed Fiber & Copper based backhaul Zero Touch Provisioning & Automation Capabilities...
- Page 3 Introduction Thank you for choosing the 24-port L2 commercial Switch from HFCL Switching Platform (HSP). Variants Suitable enterprise/telco/campus environment to connect PoE clients like Wi-Fi AP, CCTV, P2P, P2MP, IoT etc. Non-PoE Variants Suitable to connect Small Cells / BTS, P2P/P2MP etc. in a telco environment and Desktops/Servers, IP-Phone etc.
-
Page 4: Packaging Content
Packaging Content: 24 Port Switch Qty: 1 number Mounting clamps with screws Standard power supply cord (1.5m) -
Page 5: Bracket Assembly
Bracket Assembly Assembly of brackets for Rack mounting described in below diagram for 24 Port L2 commercial Switch model. Step 1. Secure the brackets to the device using the supplied screws from the Mounting Accessory. Step 2. Install the device in the rack using four rack-mounting screws. -
Page 6: Login Access
Login access The console access to the Switch can be obtained via the console port using RJ45 to DB9 serial port adapter. An administrator can access the device using command line interface (CLI) with the following console port setting as part of factory default configuration. Speed: 115200 bps | Data bits: 8 Stop bit: 1 | Parity: none Flow control: hardware... -
Page 7: Product Specification
Product specification 24 Port L2 Managed Switch Specifications Capacity Switching: 128 Gbps, Forwarding: 95.232 mpps Port Configuration 24x10/100/1000 Base-T Gigabit Access Ports (PoE+ variants and Non-PoE variants) Uplink Ports 4x1/10G SFP+ Uplink Ports PoE Feature Smart PoE, PoE variants suitable as access or aggregation Switch and deployment of Wi-Fi AP/CCTV/IP Phone L2 features... - Page 8 Port LED status Status LED Label LED Colour Indication Yellow blinking Non PoE with activity Green blinking PoE on with activity Green/Yellow Solid Green PoE on with no activity Non PoE with no activity Link Up at 1000Mbps speed Solid Green LINK Green/Yellow Link Up at 100Mbps speed...
-
Page 9: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. - Page 10 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
