Summary of Contents for HFCL io HSP-IO-48GE4XS-C3PA+

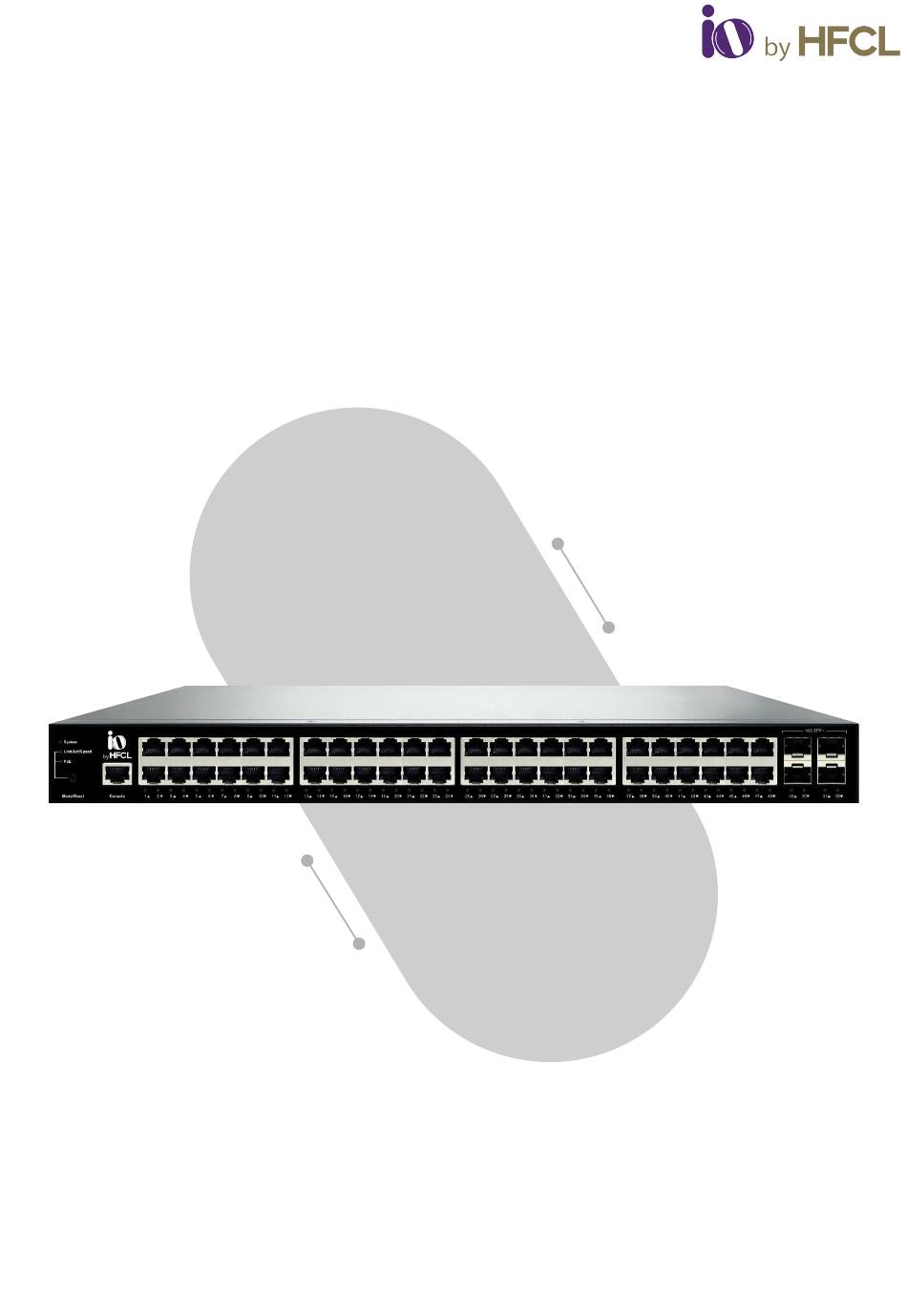

- Page 1 Quick Start Guide Model: HSP-IO-48GE4XS-C3PA+ 48 Port PoE+ L3 Managed Switch...
- Page 2 Advanced GUI with Device Management System High Speed Fiber & Copper Based Backhaul Rich Layer-2 Features with Layer-3 Capabilities...
-
Page 3: Packaging Content
Introduction Thank you for choosing 48-Port L3 Managed Switch from HFCL Switching Platform (HSP+). PoE+ Variants Suitable enterprise/telco/campus environment to connect end PoE clients like Wi-Fi AP, CCTV, P2P, P2MP, IoT etc. Non-PoE variants Suitable to connect Small Cells/BTS, P2P/P2MP etc. in telco environment and Desktops/Servers, IP-Phone etc. -
Page 4: Bracket Assembly
Bracket Assembly Assembly of brackets for Rack mounting described in below diagram for 48 Port L3 Managed Switch Model. Step 1. Attach the mounting brackets to both sides of the chassis. Insert screws and tighten them with a screwdriver to secure the brackets. Attaching Brackets to the Switch Step 2. -
Page 5: Login Access
Login Access Console Port Access Via Web-GUI: Steps: Connect your PC to the Switch on access port and ensure its IP address is in the same subnet, default IP is 192.168.1.1/24 Open any web browser and enter the URL: http://192.168.1.1 to access the switch's local web GUI. Use the default login credentials (username is “admin”... -
Page 6: Product Specification
Product Specification 48 Port L3 Managed Switch Specifications Capacity Switching: 176 Gbps, Forwarding: 130.944 MPPS Port Configuration 48x10/100/1000M RJ45 ports PoE Feature PoE Budget - 740W, PoE Configuration and Scheduling Uplink Ports 4x1/10G SFP+ Uplink Ports L3 Features RIP v1/v2, OSPFv2/v3, Static Routing L2 Features Support 4094 VLAN IDs, 32K MAC Table Security... -
Page 7: Led Description
LED Description The LEDs on the front panel provide users with switch status checking and monitoring. There are three types of LEDs as follows: The following table details the functions and descriptions of various LED indicators. Table 1: System LED Description Color State... - Page 8 Description Color State The port is transmitting/receiving Green Blinking packets, and the connection speed is 1000Mbps. The port is enabled and established a link to the connected device, and the Amber connection speed is 10/100Mbps. The port is transmitting/receiving RJ45 Blinking packets, and the connection speed is Amber...
- Page 9 Description Color State The port has no active network cable connected, or it is not established a link to the connected SFP+ Ports device. Otherwise, the port may have been disabled through the switch user interface. When PoE Mode LED Lit Description Color State...
-
Page 10: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. - Page 11 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
