Summary of Contents for HFCL io HSP-IO-8GE2S-I2PDH+

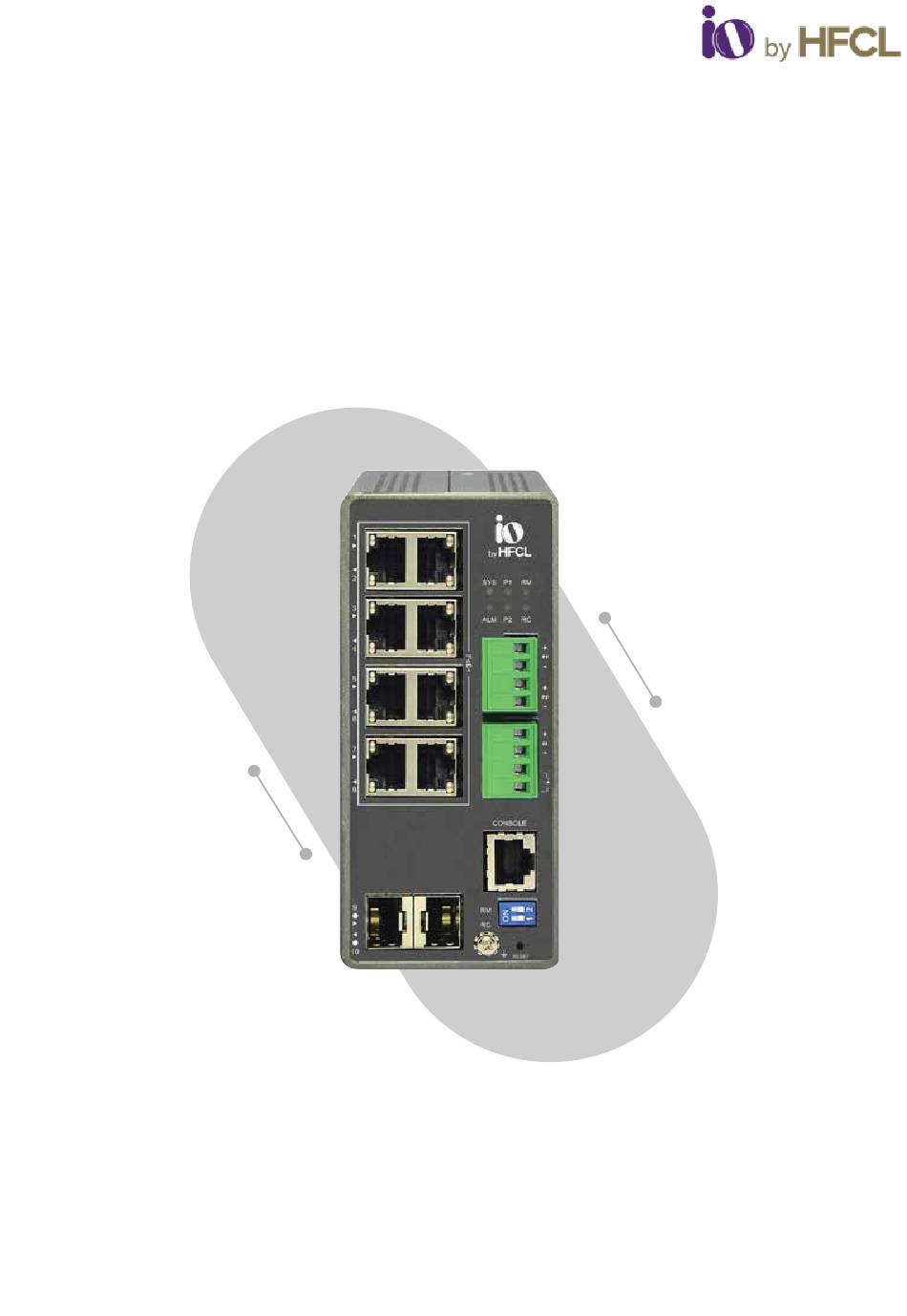

- Page 1 Quick Start Guide MODEL: HSP-IO-8GE2S-I2PDH+ 8-Port PoE/PoE+ L2 Industrial Managed Switch...
- Page 2 Advanced GUI with Device Management System High Speed Fiber & Copper Based Backhaul Rich Layer-2 Features With Layer-3 Capabilities...
- Page 3 Introduction Thank you for choosing 8-Port L2 PoE+ Industrial Switch from HFCL Switching Platform (HSP). The Switch has all Gigabit ports with access ports PoE+ enabled. This is a L2 Managed Industrial Switch with 2x1G SFP uplink ports enabling termination of both copper and optical cables simultaneously.
-
Page 4: Bracket Assembly
Bracket Assembly To install the switch on a DIN rail, perform the following procedure: Step 1. Attach the mounting plates to the rear panel of the chassis. Insert screws and tighten them with a screwdriver to secure the plates. Attaching DIN Rail Kit to the Switch Step 2. -
Page 5: Product Specification
Product Specification 8 Port L2 Managed Industrial Switch Specifications Capacity Switching: 20 Gbps, Forwarding: 14.88 MPPS Port Configuration 8x10/100/1000 Base-T Gigabit Access Ports with PoE+ Uplink Ports 2x1G SFP Gigabit Uplink Ports PoE Feature 240W (PoE Budget), Per port PoE configuration and scheduling L2 features Support 4094 VLAN IDs, 8K MAC Table... -
Page 6: Login Access
Login Access Console Speed: 115200 bps Port Data bits: 8 | Stop bit: 1 Parity: None Flow control: Hardware Access Via Web-GUI: Steps: Connect your PC to the Switch and ensure its IP address is in the same subnet, default IP is 192.168.1.1/24 Open your web browser and enter the URL: http://192.168.1.1 to access the Switch's local web GUI. - Page 7 Port LED status Description Colour State The switch is powered ON correctly. Power1 Green The switch is not receiving power from power1. The switch is powered ON correctly. Power2 Green The switch is not receiving power from power2. Table 2: System LED Description Colour State...
- Page 8 Table 4: Ring Master and Rapid Chain LED Description Colour State Ring Master has been detected Green in the switch. Ring Member has been detected (Ring Master) Amber in the switch. Disable Rapid Chain has been detected Green in the switch. (Active path) Rapid Chain has been detected Amber in the switch.
- Page 9 The port is transmitting/receiving packets, and the connection speed Amber Blinking is 10/100Mbps. The port has no active network RJ45 cable connected, or it does not Ports established a link to the connected device. Otherwise, the port may have been disabled through the switch user interface.
- Page 10 The port is transmitting/receiving packets, and the connection Amber Blinking speed is 100Mbps. The port has no active network Ports cable connected, or it does not established a link to the connected device. Otherwise, the port may have been disabled through the switch user interface.
-
Page 11: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the Switch: Do not power the device during installation. Keep away from high voltage cables. Do not power off the unit in the middle of an upgrade process. Do not open the enclosure. - Page 12 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
