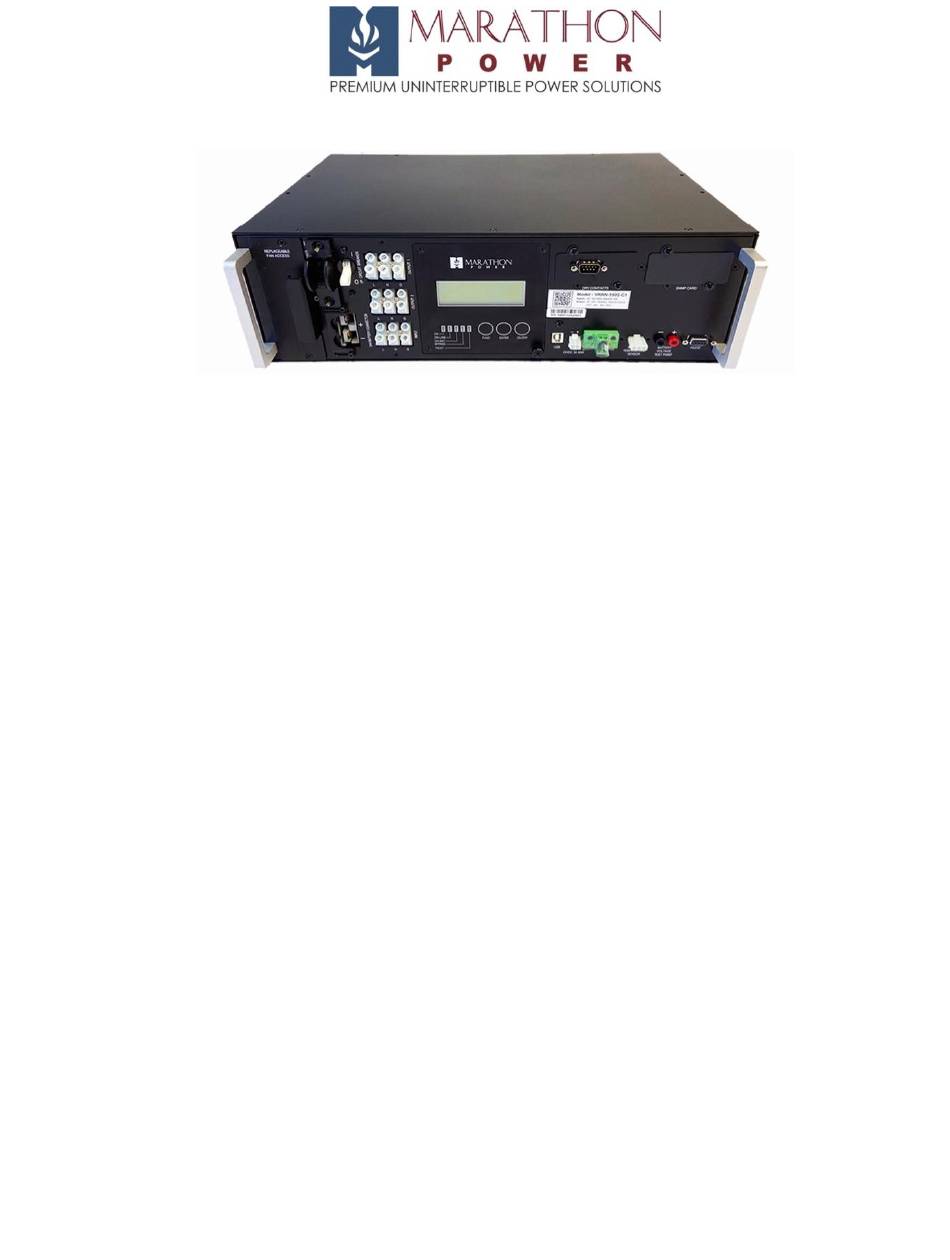

VRRN-1002-H1 & VRRN-1502-H1 QUICK START GUIDE
PLEASE NOTE THIS IS A QUICK REFERENCE GUIDE FOR SETUP AND INSTALLATION.
PLEASE SEE USER MANUAL FOR FULL SAFETY INFORMATION AND INSTRUCTIONS.
• Carefully unpack the UPS. Report any shipping damage immediately.
• Before installation, confirm that the voltage and current requirements of the
load(s) are compatible with the system output.
• Confirm that the line voltage and current is compatible with the system input
requirements.
• The system should be installed on a dedicated power circuit.
• Use proper lifting techniques when moving the system.
• The UPS has more than one live circuit. It is fed from AC as well as battery
power. Power may be present at the output(s) even if the system is
disconnected from line power.
• When installing a system in a cabinet, ensure that the environment meets
the system specifications.
SAFETY TIPS
FOR SUPPORT QUESTIONS CONTACT
310-689-2328 x 103

Advertisement

loading
Need help?

Need help?

Do you have a question about the VRRN-1002-H1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marathon Power VRRN-1002-H1

Summary of Contents for Marathon Power VRRN-1002-H1

  • Page 1 VRRN-1002-H1 & VRRN-1502-H1 QUICK START GUIDE PLEASE NOTE THIS IS A QUICK REFERENCE GUIDE FOR SETUP AND INSTALLATION. PLEASE SEE USER MANUAL FOR FULL SAFETY INFORMATION AND INSTRUCTIONS. SAFETY TIPS • Carefully unpack the UPS. Report any shipping damage immediately.

  • Page 2: Installation Components

    1. Installation Components VRRN-1002-H1 / VRRN-1502-H1 Power Transfer Switch (PTS) VSRC-3000-01 External Batteries (2 x 12VDC = 24VDC) or (4 x 12VDC = 48VDC) Battery Harness Kit...
  • Page 3 2. Front Panel View and Connections Front Panel Front Panel with optional AS400 Relay Card and SNMP Card 3. System Wiring Diagram with PTS...
  • Page 4 4. Connecting the Input and Output Power Open the upstream breaker feeding utility power to the signal cabinet. Disconnect the HOT wire (Black) connected between utility and traffic cabinet. Connect a #10 AWG black wire from the utility source to the VAC IN terminal on PTS.
  • Page 5 5. Connecting the Batteries Battery Wiring Diagram with One String Battery Wiring Diagram with Two Strings (Parallel)

  • Page 6: Starting The Ups

    6. Install and Connect the Temperature Probe NOTE: Batteries do not like heat; the Temperature Probe gives feedback to control the cooling system. You MUST plug the Battery Temperature Sensor connector into the UPS for the UPS to operate. IMPORTANT: Because it is easy to overlook, an unconnected Temperature Probe is the main reason that the red Alarm LED comes ON when power is applied.

  • Page 7: Emergency Shutdown

    8. LCD Home Screen Operation Operation of the UPS is indicated on the front panel with five LED indicators, three buttons and an LCD display. Output Voltage Output Power (Watts) Battery Voltage Temperature Indicator Lights On-Line On-Battery Bypass Fault Menu Controls FUNC, ENTER, ON/OFF 9.
