Marathon Power Track Series User Manual

Line interactive, true sine wave output
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Track Series
Line Interactive, True Sine Wave Output
Uninterruptible Power Supply
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Track Series and is the answer not in the manual?

Questions and answers

Related Manuals for Marathon Power Track Series

Summary of Contents for Marathon Power Track Series

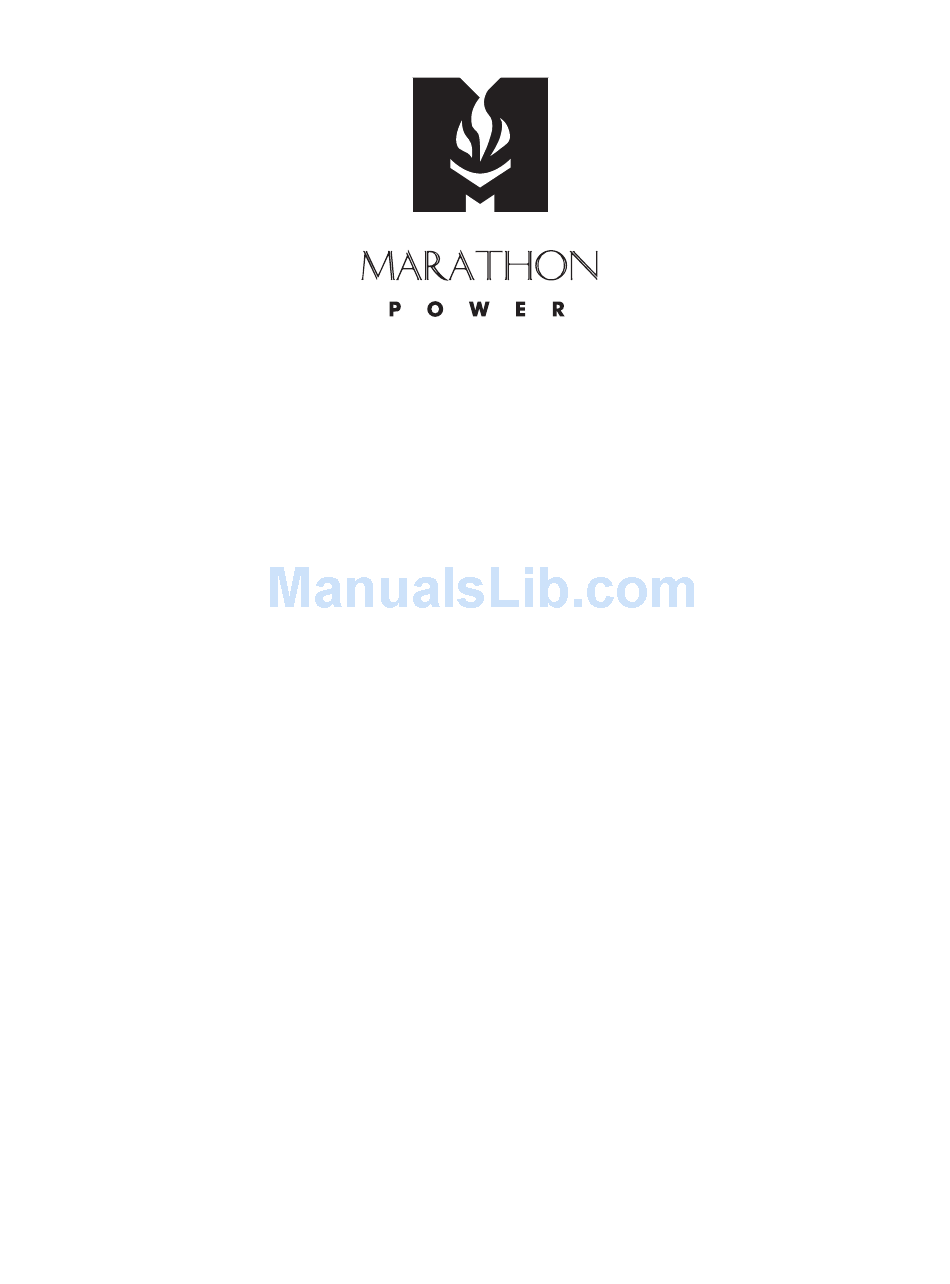

  • Page 1 Track Series Line Interactive, True Sine Wave Output Uninterruptible Power Supply USER MANUAL...
  • Page 3 Introduction & Important Safety Instructions Dear Customer, Thank you for selecting a Marathon Power Uninterruptible Power Supply (UPS). You can rest assured that you have purchased a product consistent with our reputation for quality and reliability. It will provide you with years of protection against disruptive and costly power disturbances. As future needs arise, we hope you will consider other products of ours.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 1. This Manual Contains Important Instructions that should be followed during Installation and Maintenance of the UPS and Batteries. 2. The equipment can be operated by any individual. No previous experience is required. 3. CAUTION (UPS with Internal Batteries): Risk of electric shock - Hazardous live parts inside this unit are energized from the battery supply even when the input AC power is disconnected.

  • Page 5: Table Of Contents

    Table of Contents Section Page 1. Overview ..............1 2.

  • Page 6: Overview

    1. Overview Marathon Power's Track models are ideal for more critical applications where a true sine wave output while in backup mode is required along with the efficiency of a line-interactive design. Tap- changing AVR (Automatic Voltage Regulation) provides mitigation of sags and swells without the need to transfer to battery.

  • Page 7: Functionality

    3. Functionality – Front Views (not to scale) 3.10 LED TOWER MODELS ON/TEST 3.10 3.9 3.8 3.7 LED RACK MOUNT MODELS For units with an LED display 3.1 “ ON/TEST” Button Once connected, pressing this button turns the UPS on and powers the loads. Depressing it for 1 (one) second activates the UPS's self-test function (while in normal power mode) or silences the alarm (while in backup mode).
  • Page 8 3.8 “ BACKUP” Indicator (GREEN LED) This LED illuminates when the UPS is supplying battery power to the loads. 3.9 “ BOOST (AVR)” Indicator (YELLOW LED) This LED illuminates when the UPS is correcting a voltage sag or undervoltage condition. The load receives normal power.
  • Page 9 3.14 LINE: Indicates normal operation from AC line. 3.15 BYPASS: Indicates the UPS is in bypass (standby) mode. Normal AC power supplies the load under this condition. When there is a power disturbance, the unit will transfer to backup mode. 3.16 INV: This indicates that the inverter, and therefore the unit, is functioning properly.
  • Page 10 3. Functionality – Rear Views (not to scale) 3.30 3.31 3.24 SITE REMOTE WIRING 3.24 PORT FAULT OUTPUT 3.25/3.33 SITE 3.30 FIRING FAULT 3.26 OUTPUT 3.31 REMOTE FUSE PORT 3.29 INPUT FUSE 3.26 3.29 3.28 INPUT 3.28 STANDARD 600VA / 1000VA TOWER MODELS STANDARD 1500VA / 2000VA / 3000VA &...
  • Page 11 3. Functionality – Front & Rear Views (19" Rack-Mount 2U Models) LED FRONT PANEL(600~3000VA RM (2U)) LCD FRONT PANEL (600~3000VA RM (2U)) REAR VIEW (600~1000VA RM (2U)) REAR VIEW (1500VA RM (2U)) REAR VIEW (2000VA RM (2U)) REAR VIEW (2500~3000VA RM (2U))
  • Page 12 Provides access to the optional SNMP adapters for Ethernet and Token Ring connectors. The SNMP adapter makes the UPS “SNMP manageable”, providing real time UPS and system status information for a network manager. NOTE: For more information on obtaining an SNMP adapter, contact Marathon Power technical support. 3.26 AC OUTPUT POWER RECEPTACLES 3.27 OUTPUT CIRCUIT BREAKERS...

  • Page 13: Installation

    4. Installation 4.1 Inspection Inspect the UPS upon receipt for any visible damage. The packaging is recyclable; save it for reuse or dispose of it properly. NOTE: If the power consumption of the load is listed in units other than VA (e.g., Watts), use the following calculations for conversion: ______ Watts(W) x 1.67 = ______ VA 120V x ______ Amps(A) = ______ VA...
  • Page 14 4.7 Site Wiring Fault Indicator Inspection (where applicable) After connecting the loads and the UPS, check the site wiring fault indicator on the rear panel. See section 3 for location of the indicator on the rear panel. It will illuminate if the UPS is connected to an improperly wired AC power outlet.
  • Page 15 Vertical and Wall-Mount Installation The following diagrams illustrate how to install or mount the UPS (and battery packs when applicable) in either vertical or wall-mount applications: Vertical Installation Wall-mount Installation...
  • Page 16 19” Rack-Mount Installation The following diagrams illustrate how to install or mount the UPS (and battery packs when applicable) in 19” rack-mount applications: Lower Slide Rail Installation Rear Bracket Installation...
  • Page 17 Unit Stack Installation The following diagrams illustrate how to stack the units (and battery packs when applicable): Stacking Units...

  • Page 18: Operation

    5. Operation 5.1 Turn-ON With the UPS plugged in, press the ON/TEST button more than 2 seconds to energize the UPS. It will perform a self-test each time it is switched ON. NOTE: When switched OFF, the UPS will maintain and continue to charge the battery and also respond to commands received through the computer interface port.

  • Page 19: Alarms

    6. Alarms 6.1 “ BACKUP” (slow alarm) When in back-up mode, the UPS sounds an audible alarm. The alarm stops when the UPS returns to LINE NORMAL operation. It can be silenced by briefly pressing the “ON/TEST” button when in backup mode.

  • Page 20: Care & Maintenance

    8. Care & Maintenance 1. Keep the unit clean and vacuum the ventilation intake periodically. 2. Wipe with a soft, damp cloth. 3. Check for loose and/or bad connections monthly. 4. Never leave the unit on an uneven surface. 5. Position the unit to allow at least 1/2” (1.3 cm) clearance between the rear panel and the wall. 6.

  • Page 21: Battery Replacement

    Do not lay tools or metal parts on top of batteries. e. Disconnect charging source prior to connecting or disconnecting battery terminals. Marathon Power strongly recommends that you contact tech support for assistance with battery replacement. To change the batteries in Tower units: 1.

  • Page 22: Storage

    To change the batteries in 19" Rack Mount units: 1. Unplug the UPS unit from the AC power source and disconnect all connected equipment. 2. Disconnect the AC power cord from the UPS. 3. Remove the two (2) front panel securing screws located on the front of the unit. 4.

  • Page 23: Troubleshooting

    13. Troubleshooting 13. Troubleshooting Problem Possible Cause Corrective Action Press the ON/TEST button for more than 2 Unit will not turn ON ON/TEST button not pushed or seconds to power the UPS and load. not pushed long enough. Remove connected loads from the UPS by Fuse is blown or the unplugging equipment and reset the circuit circuit breaker has tripped.

  • Page 24: Specifications

    14. Specifications STANDARD RUN-TIME MODELS GENERAL 600VA, 1000 VA, 1500 VA, 2000 VA, 3000 VA with a power factor of 0.6 Rated Capacity: Line-interactive topology with true sinewave output on battery Technology: INPUT Phase: Single phase plus ground Input Voltages: 110V, 115V, 120V or 220V, 230V, 240V Input Voltage Range: ±...
  • Page 25 14. Specifications All Models ALARMS AND INDICATORS Battery Backup: Slow beeping tone (approx. 0.25Hz) Battery Low: Rapid beeping tone (approx. 1.00Hz) Overload: Continuous tone Front Panel Display: LED on standard runtime models & LED or LCD on extended runtime models Display Parameters (LED): On Line (AC normal), On Battery (AC failure), AVR Boost, AVR Buck, Battery Capacity/Level (%), Load Level (%), Overload...
  • Page 26 14. Specifications (cont'd) Standard Run-Time Tower Models Capacity 600VA / 360 W 1000VA / 600 W 1500VA / 900 W 2000VA / 1200 W 3000VA / 1800 W Hardwire terminals Input Connection Fixed power cord Output Connection 4 x NEMA 5-15R 6 x NEMA 5-15R H/W + 4 x NEMA Battery Type &...
  • Page 27 14. Specifications (cont'd) Extended Run-Time Tower Models Capacity 1000VA / 600 W 1500VA / 900 W 2000VA / 1200 W 3000VA / 1800 W Hardwire terminals Input Connection Fixed power cord Output Connection 6 x NEMA 5-15R H/W + 6 x NEMA 5-15R Sealed, lead-acid Sealed, lead-acid Sealed, lead-acid...

  • Page 28: Product Warranties

    Take the following stps to file a warranty claim: Contact us at Marathon Power, Inc., Attn: Returns, 2538 E. 54th Street, Huntington Park, California 90255 or call (310) 689-2328 within 30 days of the occurrence. Be prepared to provide detailed information about the event, any damage, the UPS model number, purchase date and location.
  • Page 29 Notes ______________________________________________________________________________ ___________________________________________________________________________________ ______________________________________________________________________________ ___________________________________________________________________________________ ____________________________________________________________________________________...
  • Page 32 Marathon Power, Inc. 2007 www.marathon-power.com trackuserman2007rev2...
