Summary of Contents for Bartscher Gas 40 B330 TG

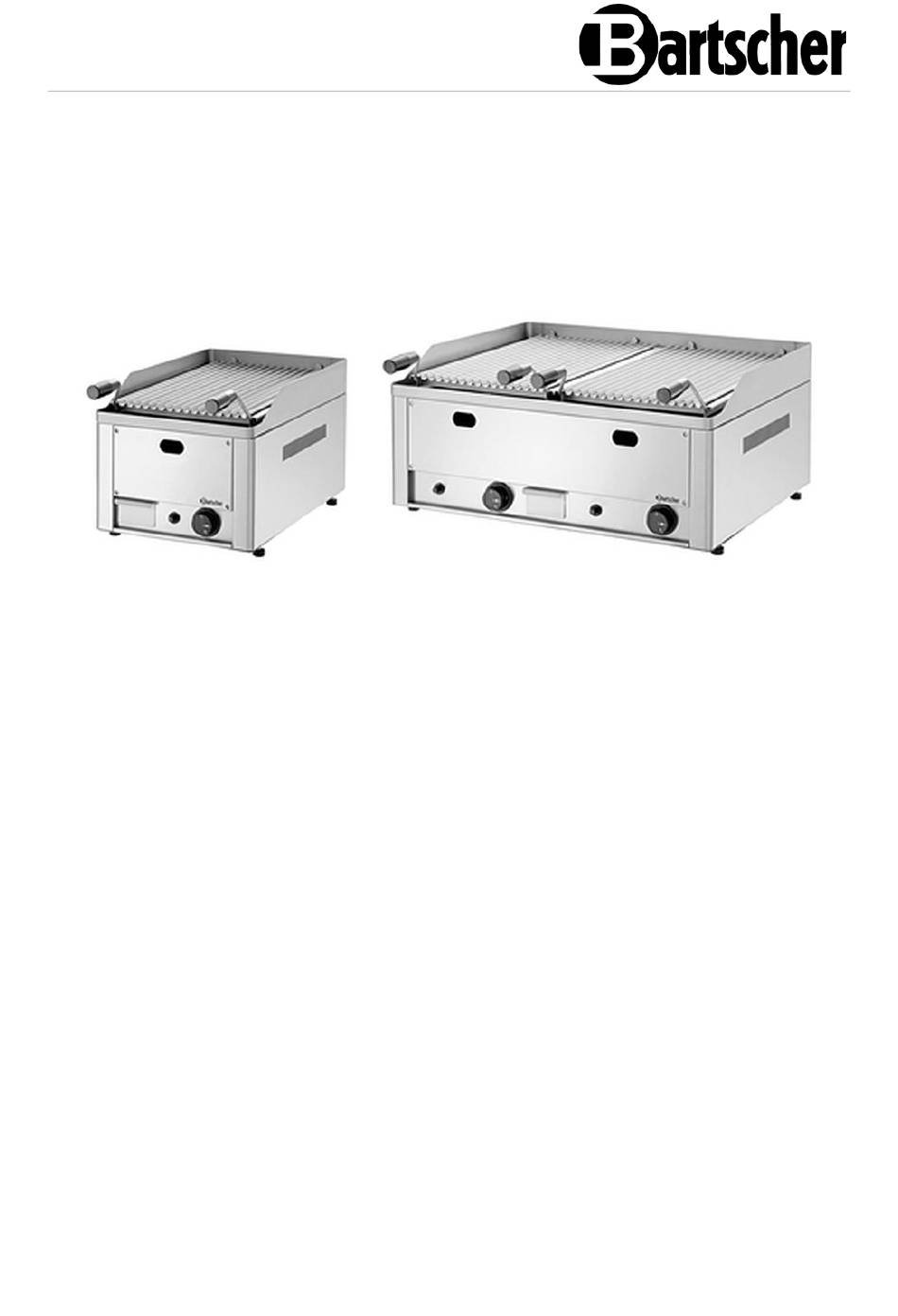

- Page 1 Gas 40, B330, TG - Gas 70, B660, TG 2006301 - 2006601...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Service hotline: +49 5258 971-197 Germany www.bartscher.com 1015CT0595 Version: 1.0 Prepared on: 2025-01-31...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety – do not produce sparks, do not actuate any electric switches, do not use phones (irrespective of it being landline phone or mobile phone); – do not operate any electric appliances in the vicinity of a gas supplied appliance; –...
-
Page 7: Intended Use
Safety • Operate the appliance and its components only in a technical condition that does not raise any objections, with functional protective and safety elements. • Prepare risk assessment at work positions. • Provide instruction and regular staff training. Pay special attention to and observe the section concerning safety and any safety hints. -
Page 8: Unintended Use
Safety Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator. The following is an intended purpose: Grilling of meat, fish and vegetables. -
Page 9: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Lava rock grill, Gas 40, B330, TG 2006301 Art. No.: Material: stainless steel Grill surface dimensions (W x D), in 312 x 483 Number of grill surfaces: Number of heating zones: Quantity of lava stone granulate, in kg: 1 Connected load: 4 kW Dimensions (W x D x H), in mm:... -
Page 12: Functions Of The Appliance
Technical Data Version / Characteristics • Type: table-top appliance • Supply type: gas • Gas type: – natural gas E – propane nozzles included • Ignition type: piezoelectric ignition • Grill grate type: V grate (for meat) • Height regulation of grill grate •... - Page 13 Technical Data Gas pressure table Type of Rated Countries equipment connection pressure pressure (mbar) (mbar) DE-LU-PL-RO 20, 20 G20, G25 2ELL 20/25 G20/G25 BE-FR AT-BG-CH-CZ-DK-HR-EE-ES-FI- GB-GR-IE-IT-LT-LV-NO-PT-RO- SE-SI-SK G2.350 BG-CY-CZ-DK-HR-EE-FI-GR-HU- IT-LT-LV-MT-NL-NO-RO-SE-SI- 3B/P AT-DE-HU CH-CZ-ES-GB-GR-IE-RO-SI-SK BE-CH-CY-CZ-EE-ES-FR-GB-GR- 28-30/37 IE-IT-LT-LV-PT-SI-SK 20,50 G20, G30 2E3B/P G20, G25, 20, 20, 50 2ELL3B/P...
- Page 14 Technical Data Type of Rated Countries equipment connection pressure pressure (mbar) (mbar) BG-CZ-DK-HR-EE-FI-GR-IT-LT- 20,30 G20, G30 LV-NO-RO-SE-SI-SK 2H3B/P 20, 50 G20, G30 AT-DE CH-CZ-EE-ES-GB-GR-IE-IT-LT- 20, 37 G20, G31 2H3P LV-PT-SI-SK CH-CZ-EE-ES-GB-GR-IE-IT-LT- G20, G30 2H3+ LV-PT-SI-SK 28-30/37 25, 30 G25, G30 2L3B/P 25, 50 G25, G30...
-
Page 15: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 2006601 Fig. 1 2006301 1. Piezoelectric ignition button 2. Control knob 3. Grease collection container 4. Feet (4x) 5. Housing 6. Ventilation openings 7. Splash guard 8. Grill grate with 2 handles (removable) Fig. -
Page 16: Installation Instructions
Installation Instructions Installation Instructions Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 17 Installation Instructions Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing packaging materials, for instance: plastic bags and EPS elements. • If the appliance is covered with a protective film, remove it. Remove the film slowly, so no glue residues are left.
- Page 18 Installation Instructions • Never place the appliance directly next to walls, furniture, or other objects made of flammable materials. Maintain minimum clearance of 100 mm between side and rear walls and the said objects and walls. • If keeping the minimum clearance is not possible, walls should be isolated with non-combustible, thermo-insulation materials (e.g., films made of heat resistant materials, which may sustain temperature of at least 90°C).
- Page 19 Installation Instructions Checking the gas pressure and nominal heat load • With first installation, the gas installation technician must verify the appliance's nominal heat load, as well as conduct maintenance, and, if needed, adjustment to other type of gas. • DO NOT attempt to increase the power nor nominal heat load specified by the manufacturer.
- Page 20 Installation Instructions Replacement of the main burner’s nozzle Fig. 3 1. Unscrew the front cover screws (1). 2. Remove the front cover (1). 3. Remove the the main burner's nozzle (2). 4. Replace the nozzle with a nozzle suitable for the selected gas type. Take into account the data in Table 2 The suitable nozzles are included in the scope of delivery.
- Page 21 Installation Instructions Flame adjustment at reduced power (ECO) The flame is adjusted to the minimum power (ECO) by means of a screw located in the control knob housing next to the shaft. To adjust the flame, proceed the following way: –...
-
Page 22: Operating Instruction
Operating Instruction Operating Instruction Indications for the User • Read carefully this instruction manual. It contains important indications for installation, usage and maintenance of the appliance. • Before operating the appliance, make sure that its condition is flawless and that it is located in a well ventilated room. -
Page 23: Operation
Operating Instruction Operation Warning indications WARNING! Risk of burning! During operation, the housing and grill surface become very hot and remain hot for a while after switching the appliance off. Do not touch the appliance. Use only designated control elements to control the appliance. Use suitable barbecue utensils for placing and removing grilled products. - Page 24 Operating Instruction 4. Place the grate on the appliance. 5. Place 1 kg of lava stones in each heating zone. 6. Distribute lava stones evenly on the grate. Lava stones have a diameter of min. 25 mm to max. 30 mm, at max. length of 50 mm, with a tolerance of +/- 5%.
- Page 25 Operating Instruction • Reinigen Sie das Ger ät und Zubehörteile vor dem Gebrauch gründlic h nac h den Anweis ungen im Absc hnitt 6 „R einigung“. Uw aż ać, a by do ins tal acji elek trycz nej i skrzy nki rozdzi elcz ej ni e dostała się w oda. Trocknen Sie das Ger ät und Zubehörteil e gründlic h ab! •...
- Page 26 Operating Instruction Setting low power 1. To set the device to a lower power, turn the control knob (2) to ‘ECO’ position (5). Switching the appliance off 1. To switch the appliance off, turn the control knob to '0' position (3). Food preparation 1.
-
Page 27: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance The operator must ensure that the device and its safety components are kept in good condition. Control and safety systems should be checked for their effectiveness. Maintenance, cleaning and repairs must only be carried out by suitably trained and specialised personnel. -
Page 28: Maintenance
Cleaning and Maintenance 10. Rinse in fresh water. 11. Wipe the housing and control elements of the appliance with a soft cloth soaked in warm water and a mild cleaning agent. 12. Finally, thoroughly dry all washed surfaces and detachable elements of the appliance. -
Page 29: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. The works may only be performed by suitably qualified technical personnel. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model and serial number. -
Page 30: Disposal
Disposal Disposal Gas Appliances At the end of the appliance's operational life cycle, dispose of the appliance, observing national and local regulations. To this end, we recommend contacting a professional company or a proper unit of the local authorities, responsible for utilisation.
