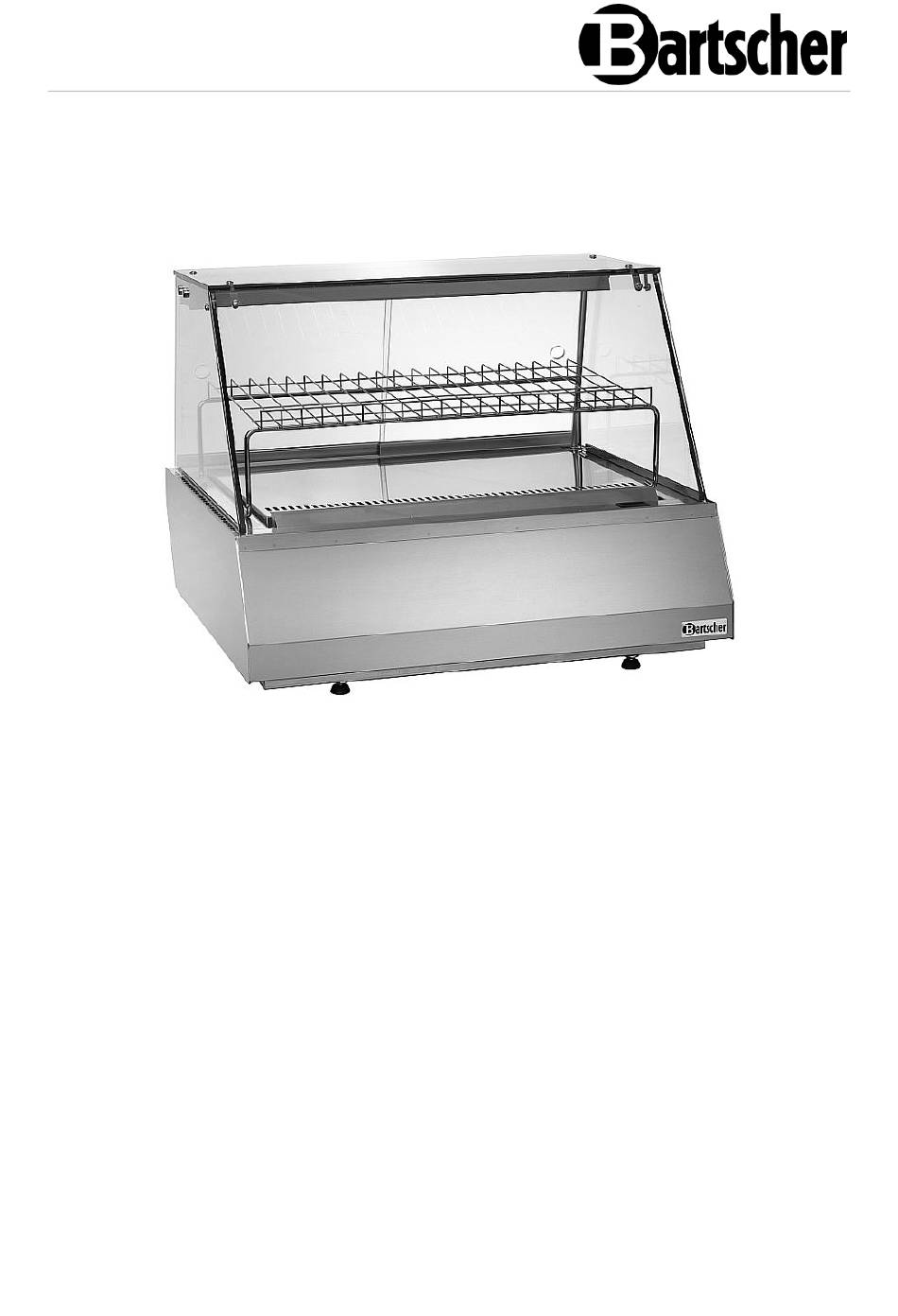

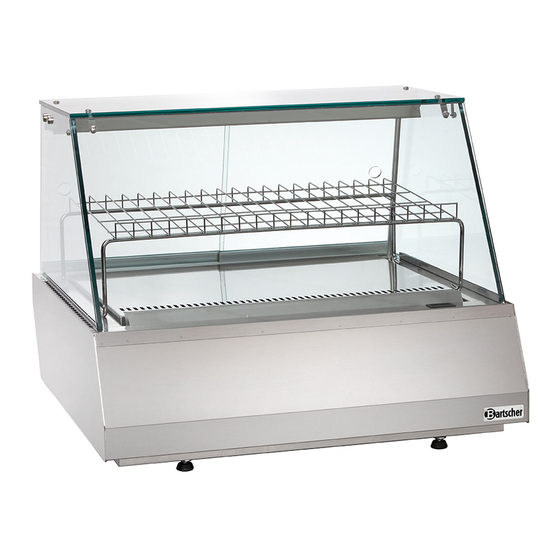

- Page 1 2/1 GN - 3/1 GN - 3/1 GN 406055 - 406056 - 405057...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2019-11-18...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of signal words ..............2 Safety instructions..................3 Intended use .................... 6 Unintended use ..................6 General information ..................7 Liability and warranty ................7 Copyright protection ................. 7 Declaration of conformity ................. 7 Transport, packaging and storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Inc orrect operati on of the applianc e may c ause fire or explosi on haz ard due to igniti on of its content. Fire hazard / flammable materials hazard / explosion hazard! •...
- Page 7 Safety Operating personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling food products in suitable GN containers, on plates, etc. Unintended use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage Delivery check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
• Sliding door position: rear side • Type of shelves: grille, CNS 18/10, without height adjustment • Internal lighting: halogen, switched separately Name: Refr. display 2/1 GN, straight glass 406055 Art. No.: Material: CNS 18/10, Glass Volume, in l: Gastronorm: 2/1 GN Max. - Page 12 Technical data Name: Refr. display 3/1 GN, straight glass 406056 Art. No.: Material: CNS 18/10, Glass Volume, in l: Gastronorm: 3/1 GN Max. GN container depth, in mm: Temperature range in °C: 6 - 10 Coolant, amount in kg: R290 / 0,100 Climate class: Number of sliding doors: Number of shelves:...
-
Page 13: List Of Components Of The Appliance
Technical data List of components of the appliance Delivery without GN containers! 1. Internal lighting 2. Sliding door (2x) 3. Surface for GN containers 4. Housing 5. Feet (4x) 6. Ventilation openings 7. Internal lighting ON/OFF switch 8. Power cord 9. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 Installation and operation 8. The temperature in the refrigerated display is shown on the temperature display at the front of the appliance. Functions of buttons STANDBY (ESC) Pressed shortly Pressed shortly • • Scrolls through menu options One level up in comparison to the current menu •...
- Page 17 Installation and operation LED Indicators Cooling Alarm Lights Compressor is ON Lights Alarm is present constantly: constantly: Flashes: Delay, protection or Flashes: Alarm snoozed activation blocked Defrosting function °F Lights Defrosting function Lights °F setting (dro=1) constantly: active constantly: Flashes: Manual activation or via DE Blower...
- Page 18 Installation and operation If no button is operated for more than 15 seconds (Timeout) or when the button is pressed once, the last value shown on the display will be adopted and the last message will be displayed again. Automatic Defrosting The appliance defrosts automatically 4 times over 24-hour period.
-
Page 19: Cleaning
Cleaning Switching the appliance off 1. When the appliance is not to be used any more, it should be switched off with the ON/OFF switch at the operating side of the appliance. 2. Disconnect the appliance from power supply by pulling the plug out. Cleaning Safety Instructions for cleaning •... -
Page 20: Disposal
Disposal 12. If the appliance is not to be used for a longer period of time, clean it according to the instructions above. Leave the appliance open to prevent generation of unpleasant odours inside. Disposal Electrical appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner.
