3.
Once the COM port has been determined, press the "Select COM Port (COM_)" option in the Compass application.
Enter the correct COM port into the "COM Port Selection" window shown in Figure 13.
4.
Press the "Start Communication" button in the Compass application. If the connection is successful, the application will
begin displaying the Direction, Inclination and Temperature calculated by the compass board. The display is shown in
Figure 14.
5.
To disconnect from the compass board, press the "Stop Communication" button.
10

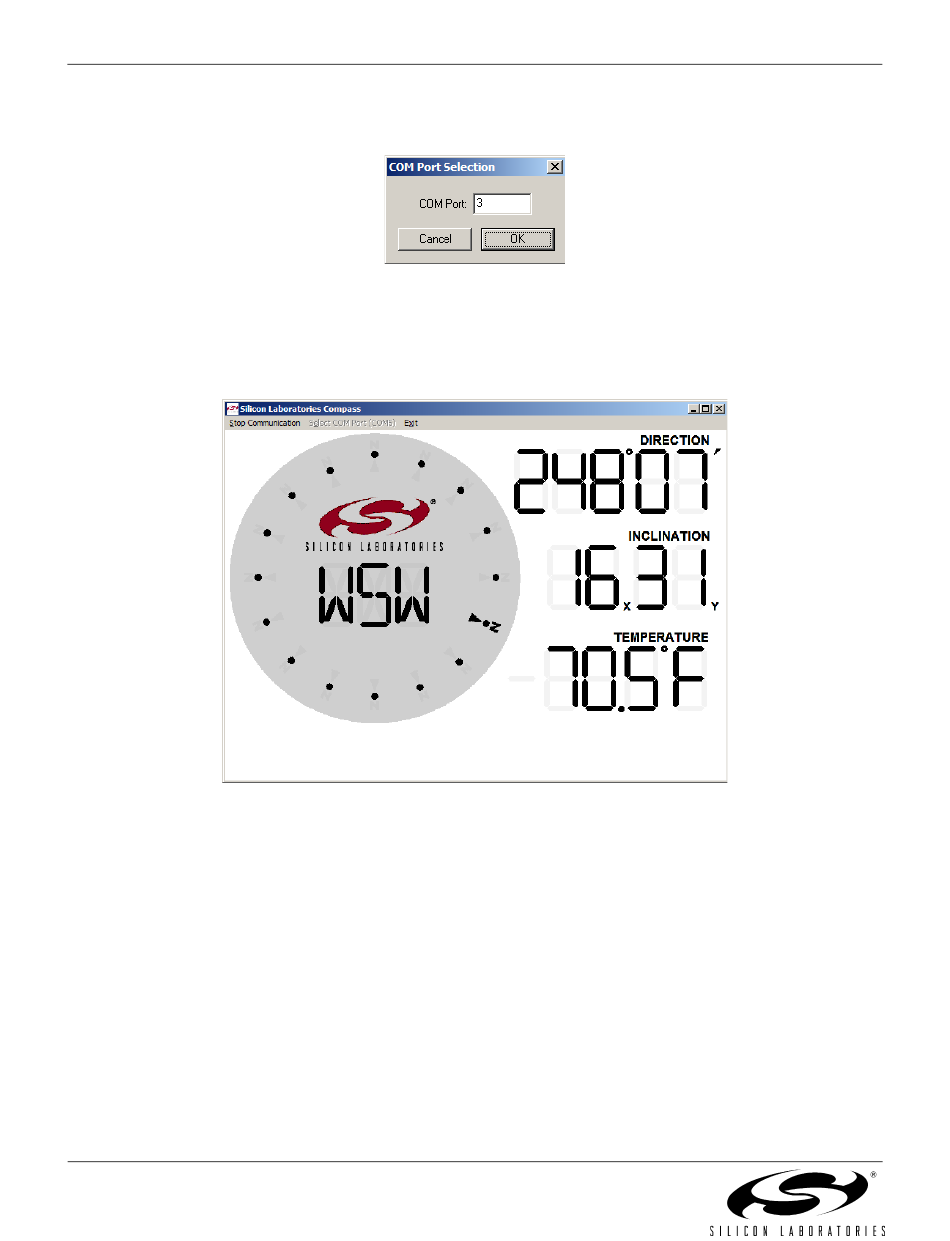

Figure 13. COM Port Selection
Figure 14. Compass Software Display
