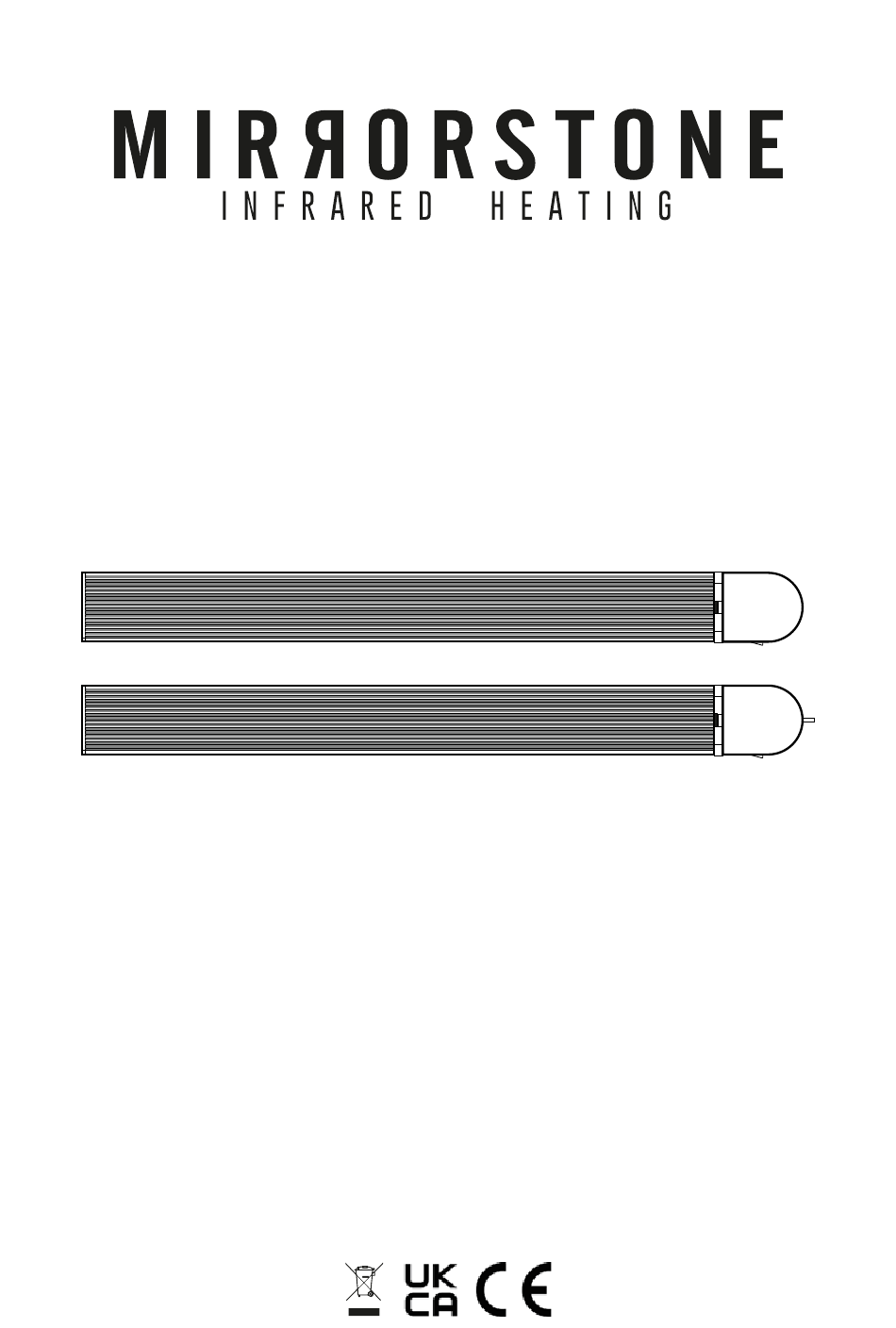

- Page 1 IONIS INFRARED BAR HEATER MANUAL MS-ION-12J/MS-ION-18J/MS-ION-24J/MS-ION-30J MS-ION-12WC/MS-ION-18WC/MS-ION-24WC/MS-ION-30WC...
-
Page 2: Table Of Contents
CONTENTS 1. Before using your heater for the first time 2. Important Safeguard 3. Installation Guide 4. Product Instructions for Non-Remote Controllable Ionis Heaters 5. Product Instructions for Remote Controllable Ionis Heaters 6. Wi-Fi Operation 7. Using the 7-day Timer With Your Heater 8. -
Page 3: Before Using Your Heater For The First Time
BEFORE USING YOUR HEATER FOR THE FIRST TIME Please read all the instructions in this manual carefully, even if you have prior experience of using an infrared heater. This manual should be kept in a safe place for future reference. Should you need to make any kind of warranty claim with the manufacturer,you will need to make note of the complete model number (located on the product card at the back of the heater), the date on which you received the product, and your receipt of purchase. - Page 4 In the event of such an occurrence, please return the heater to a qualified electrician for exami nation, adjustment, service or repair. • Do not touch the appliance with wet hands. • The most common cause of overheating is dust or fluff deposits getting stuck in the heater. •...
- Page 5 • The heater should be installed at a minimum of 2.2 metres from the floor. • Should the power cord become damaged, it must be returned to the manufacturer, or be repaired by a qualified electrician. • The heater should not be used in confined spaces with occupants who are unable to leave the room on their own.
-
Page 6: Installation Guide
INSTALLATION GUIDE 2x Brackets with notch 2x Brackets without notch The brackets have a notch, the one with the These holes at the back of the bar heater are not notch goes into the bar heater, without the for the screws, they allow air to ow. notch goes into the wall. - Page 7 Step 1: Use the screws provided to install two of the brackets to the back of the heater, as shown in Fig. A. Step 2: Use the screw provided to install two of the brackets to the wall or ceiling, as shown in Fig.
- Page 8 For wall installations,the height from the floor should be at least 1.8 metres,as shown in Fig.3. For suspended installation,the heater will hook up to the suspension cables and hang from the ceiling, as shown in Fig.4. Ionis Infrared Bar Heater Manual...
-
Page 9: Product Instructions For Non-Remote Controllable Ionis Heaters
PRODUCT INSTRUCTIONS FOR NON-REMOTE CONTROLLABLE IONIS HEATERS Outer casing Heating Plate Control Box Product Size Model Power Length(mm) Height(mm) Depth(mm) MS-ION-12J 1200W MS-ION-18J 1800W 1261 MS-ION-24J 2400W 1561 MS-ION-30J 3000W 1861 Circuit Diagram Before first use,please read this manual carefully. When removing the heater from the box, please take care to ensure that you do not damage the heater, and that you retain the box for storage purposes. - Page 10 When you require any service or repair, contact your local service centre or qualified electrician. Should the power cord become damaged, it must be replaced by a qualified electrician or the manufacturer. This heater is not intended for use by children or vulnerable people without supervision. Ionis Infrared Bar Heater Manual...
-
Page 11: Product Instructions For Remote Controllable Ionis Heaters
PRODUCT INSTRUCTIONS FOR REMOTE CONTROLLABLE IONIS HEATERS Outer casing Heating Plate Control Box Product Size Model Power Length(mm) Height(mm) Depth(mm) MS-ION-12WC 1200W MS-ION-18WC 1800W 1261 MS-ION-24WC 2400W 1561 MS-ION-30WC 3000W 1861 Circuit Diagram Remote Control 1. Power on/off buttons 2. Temperature button 3. - Page 12 Getting Started • When removing the heater from the box, please take care to ensure that you do not damage the heater, and that you retain the box for storage purposes. • Install the heater according to the instructions provided in this manual. •...
- Page 13 Locking Your Bar Heater • To use the child lock, press the Set button, quickly followed by the Child Lock button. You will see a padlock icon on the screen to tell you that Child Lock is enabled. • To unlock your heater, simply press Set followed by Child Lock again. Using Eco Mode •...
-
Page 14: Wi-Fi Operation
WI-FI OPERATION Scan the QR code with your mobile phone, to download and install the Smart Life app. Create an account if you haven’t already. Make sure to keep your password somewhere safe. Open the app, click Add device,or click on the + in the top right corner, then select the electric heater option. - Page 15 belonging to you, then this will be the correct band. If you see two networks, the name of the network should help you identify which band it belongs to, so a 2.4GHz network will have 24G, 2.4, 24 or something similar in the name, whilst the 5GHz network will have 5 or 5G in the name).
- Page 16 Set Button followed by the Down button again on your remote. The Wi-Fi symbol on your Bar Heater should start flashing slowly. In the app, when asked, you should confirm that the light is blinking slowly. Enter your Wi-Fi details on the next screen (network name and password), before connecting your phone to a new Wi-Fi network named “SmartLife_XXXX”...
-
Page 17: Using The 7-Day Timer With Your Heater
USING THE 7-DAY TIMER WITH YOUR HEATER 1. On the home screen of the Smart Life app,press the Timer button in the bottom right corner. 2. Then, press Add in the middle of your screen. 3. On the next screen, you’ll be able to choose your timer settings. 4. -
Page 18: Warning
WARNING • Please ensure that the heater is installed correctly, as per this instruction manual, and that it is facing the correct way. • The heater should be installed in a place where the controls cannot be used by someone who is using a bath or shower. - Page 19 86 Scudamore Road Leicester, LE3 1UQ +44 (0) 116 436 2250...
