Summary of Contents for Mirrorstone THEIA

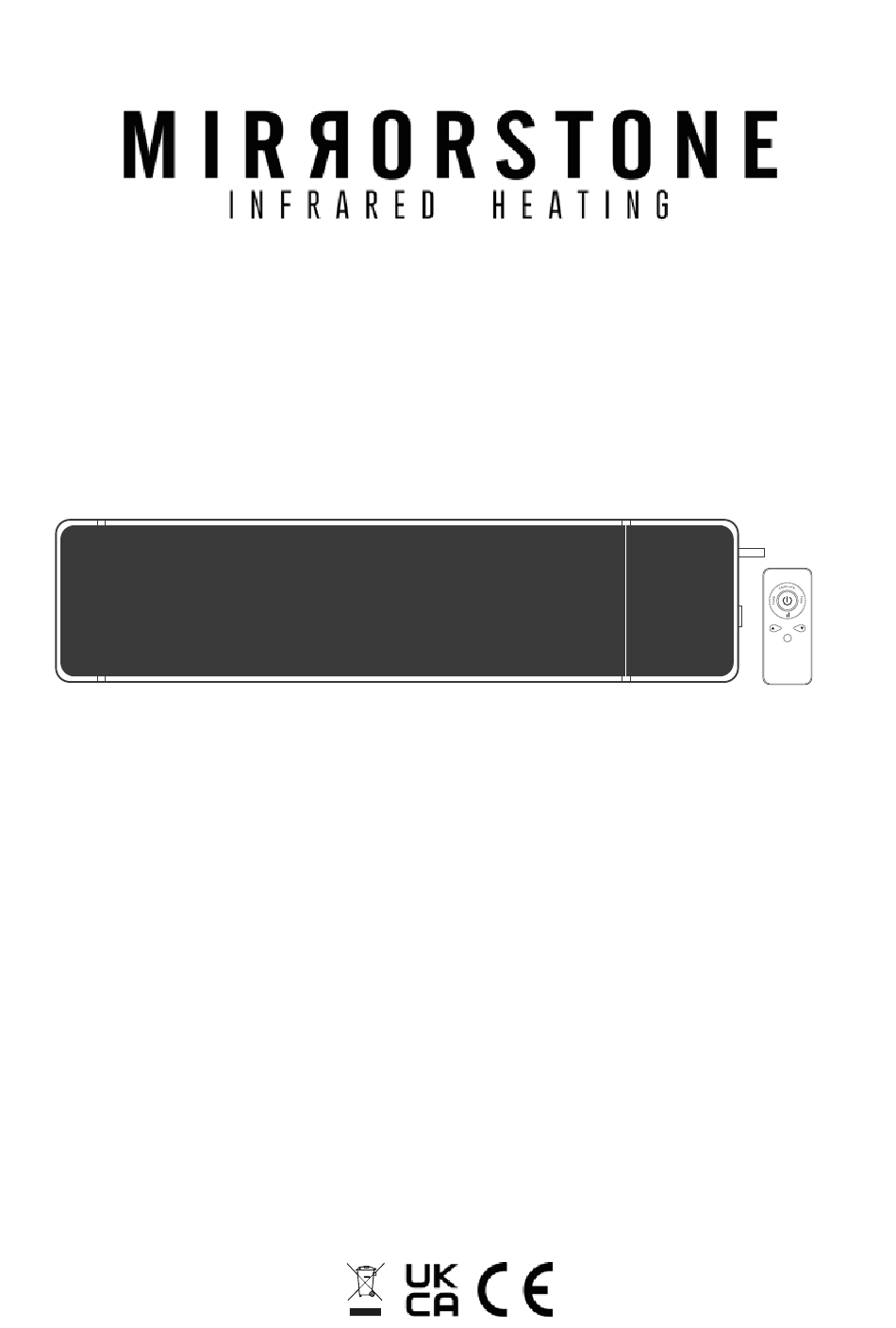

- Page 1 THEIA INFRARED BAR HEATER MANUAL MS-THI-15J/MS-THI-15WB/MS-THI-24J/MS-THI-24WB Please read instructions carefully before use. Remote control not available with all models.
-
Page 2: Table Of Contents
CONTENTS Intro Important Safeguards Contents Installation Guide Instruction For Remote Control Variants Wi-Fi Operation Using The 7-day Timer With Your Heater Warning... -
Page 3: Intro
Do not use the heater if the plug, power cord,or connectors become damaged in any way. In the event of such an occurrence, please return the heater to a qualified electrician for examination, adjustment, service or repair. Theia Infrared Bar Heater Manual... - Page 4 Please pay attention when children or vulnerable people are present. Theia Infrared Bar Heater Manual...
-
Page 5: Contents
D) 2 x Small Brackets E) 4 x Expansion Screws F) 4 x Butterfly Screws G) 8 x Wing Nuts H) 1 x Remote Control (only available with MS-THI-15WB and MS-THI-24WB) THEIA INFRARED BAR HEATER MANUAL Theia Infrared Bar Heater Manual... -
Page 6: Installation Guide
The heater must be installed using the mounting brackets provided with the heater from the manufacturer. Installation Guide Dimension A Dimension B Model (mm) (mm) MS-THI-15J/MS-THI-15WB MS-THI-24J/MS-THI-24WB Theia Infrared Bar Heater Manual... - Page 7 Step 3: Using the wing nuts and butterfly screws, join the large brackets on the wall to the small brackets on the back of the bar heater at your desired angle. Once set, tighten the wing nuts so that the heater is securely installed. Theia Infrared Bar Heater Manual...
- Page 8 The distance between the side of the heater to the wall should be at least 100mm. The distance between the ground to the heater should be at least 2200mm. For Vertically Installations: The height from the ground to the heater should be at least 2200mm. Theia Infrared Bar Heater Manual...
-
Page 9: Instruction For Remote Control Variants
INSTRUCTION FOR REMOTE CONTROL VARIANTS Product Diagram Product Size Power (W) L(mm) H(mm) W(mm) Model MS-THI-15J/MS-THI-15WB 1500 2400 MS-THI-24J/MS-THI-24WB Circuit Diagram Heating Plate Switch 220-240VAC 50/60Hz Theia Infrared Bar Heater Manual... -
Page 10: Remote Control
Child lock button High/Low switch buttons Up button Down button Set button Functions Number Name Wi-Fi Indicator LED Number Display Power Settings Indicator Power Indicator Timer Indicator Body Motion Sensor Timer(H) Indicator Heating Indicator Child Lock Indicator Theia Infrared Bar Heater Manual... -
Page 11: Timer Settings
To lock the heater, press the Set button, followed by the Child Lock button. You will see the Child Lock Indicator on the screen, and none of the buttons will be operational while it is locked. Theia Infrared Bar Heater Manual... - Page 12 Pressing any button will switch the display back on. Wi-Fi Reset/Pairing Mode Pressing the Set button followed by the Down button resets the Wi-Fi setting for the bar heater. Once reset, the Wi-Fi symbol will begin to flash on the display. Theia Infrared Bar Heater Manual...
-
Page 13: Wi-Fi Operation
2.4GHz network will have 24G, 2.4, 24 or something similar in the name, whilst the 5GHz network will have 5 or 5G in the name). Theia Infrared Bar Heater Manual... - Page 14 Wi-Fi network named “SmartLife_XXXX” where the “XXXX” will be randomised numbers. Once you’re connected to “SmartLife_XXXX”, click the button that says Confirm the hot spot, next, the app will begin attempting to connect to the heater. Theia Infrared Bar Heater Manual...
-
Page 15: Using The 7-Day Timer With Your Heater
Press the Switch button to set whether you want the heater to switch on or off at the time you have set. Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8 Theia Infrared Bar Heater Manual... -
Page 16: Warning
flammable. When disposing of your heater ,please use your local rubbish collection facilities rather than using your general waste services. Contact your local council for information regarding these collection services. Theia Infrared Bar Heater Manual... - Page 17 86 Scudamore Road Leicester, LE3 1UQ +44 (0) 116 436 2250...
