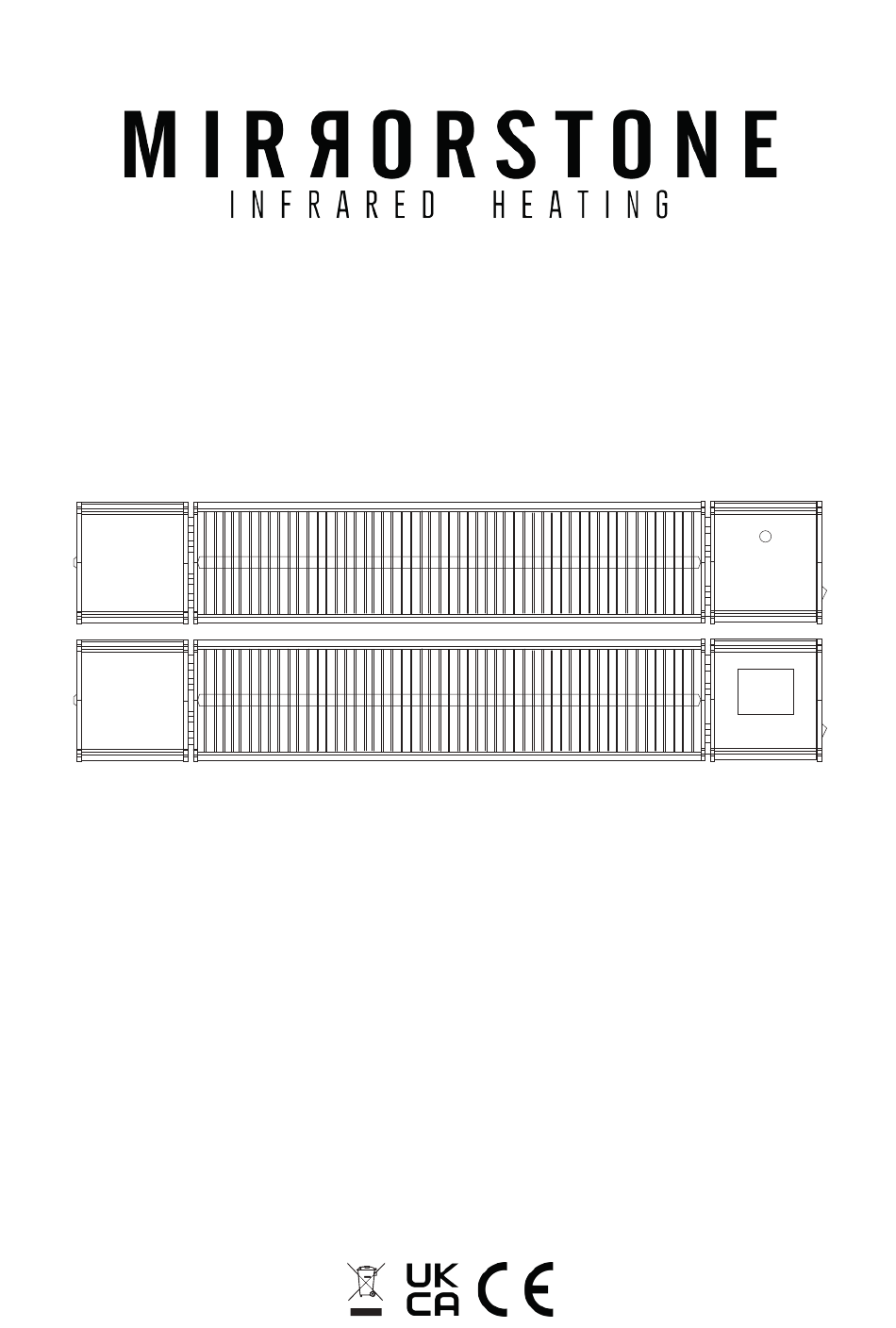

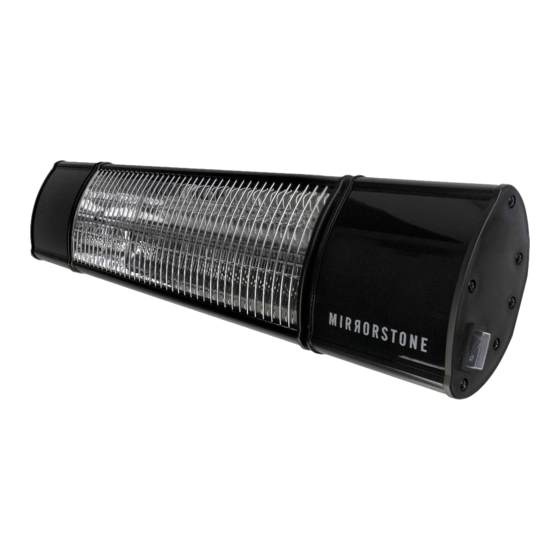

- Page 1 ATHENA INFRARED BAR HEATER MANUAL MS-ATH-12J/MS-ATH-24J/MS-ATH-12WB/MS-ATH-24WB Please read instructions carefully before use. Remote control not available with all models.
-
Page 2: Table Of Contents
CONTENTS Intro Important Safeguards Installation Guide Instruction For Remote Control Variants Wi-Fi Operation Using The 7-day Timer With Your Heater Warning... -
Page 3: Intro
Keep it in a safe place for future reference. Mirrorstone and its affiliated companies are not liable for any damages that result due to the misuse of this heater, or a failure to comply with the instructions provided in this manual. - Page 4 fused spur or standard 3-pin plug socket. Please consult a qualified electrician before using the heater for anything other than home/domestic use. • The heater should not be operated or used by vulnerable people, including children or the elderly, unless there is an adult present who is responsible for their safety, who can either use the heater on their behalf, or ensure that the heater is being used in the correct manner by the vulnerable person.
-
Page 5: Installation Guide
Model Voltage Amps Power Product Size MS-ATH-12J 220-240V AC 1200W 794*160*88mm MS-ATH-12WB 220-240V AC 1200W 794*160*88mm MS-ATH-24J 220-240V AC 2400W 994*160*88mm MS-ATH-24WB 220-240V AC 2400W 994*160*88mm INSTALLATION GUIDE This heater should be installed by a qualified electrician. Before and during the installation, please ensure that the heater is disconnected from the power, and that the heater has cooled down if it has been on. - Page 6 Contents: (A)4 X wall brackets (B)2 x 15mm screw (C)2 x large wing nut (D)4 x small wing nut (E)4 x 60mm screw (F)4 x large wall plugs (G)2 x 12mm screw (H)2 x small wall plugs Figure A: Remove the accessories from the accessory bag.
- Page 7 Figure C: Using the 15mm screw (B) and large wing nut (C), join the brackets on the wall to the brackets on the back of the bar heater, tilting the angle to your desired setting, and tightening the brackets using the wing nut. Athena Infrared Bar Heater Manual...
-
Page 8: Instruction For Remote Control Variants
INSTRUCTION FOR REMOTE CONTROL VARIANTS If you have a remote controllable bar heater (Models MS-ATH-12W and MS-ATH-24W), this section will show you how to pair your heater with the included remote and your Wi-Fi signal. Please note: That the remote control is only supplied with the MS-ATH-12WB and MS-ATH-24WB models. - Page 9 • To lock the heater, press the Set button, followed by the Child Lock button. You will see a square lock icon on the screen, and none of the buttons will be operational while it is locked. To unlock the heater,you can simply repeat the process, pressing Set followed by Child lock.
-
Page 10: Wi-Fi Operation
WI FI OPERATION Connect your smartphone or tablet to your Wi-Fi network. (The wireless network must 2.4GHz. All Wi-Fi routers have a 2.4GHz band, however, some newer routers are dual band with both 2.4GHz and 5GHz. When scanning your available networks, if you see a single network belonging to you, then this will be the correct band. - Page 11 Once you’re set up, click either Add Device in the centre of the screen, or the + icon in the top right corner. On the next screen, under the Small Home Appliances category on the left, scroll down and select “Heater in the Life subcategory. On your remote, press the Set button followed by the Down to reset the Wi-Fi setting for the Bar Heater.
- Page 12 The app will now scan for the heater, and connect once it has paired. Confirm on the next screen that the LED light is blinking. Enter your Wi-Fi network details on the next screen (network name and password), before connecting your phone to a new Wi-Fi network named “SmartLife_XXXX” where the “XXXX” will be randomised numbers.
-
Page 13: Using The 7-Day Timer With Your Heater
USING THE 7 DAY TIMER WITH YOUR HEATER On the home screen of the Smart Life app,press the Timer button in the bottom right corner. Then, press Add in the middle of your screen. On the next screen, you’ll be able to choose your timer settings. Use the sliders at the top of the screen to set what time you want your heater to switch on or off. -
Page 14: Warning
WARNING • If the inside of the heater becomes covered or clogged up with dust or dirt,please have it cleaned from a qualified service engineer,and do not operate the heater in this state. • Only clean the exterior of the heater. •... - Page 15 86 Scudamore Road Leicester, LE3 1UQ +44 (0) 116 436 2250...
