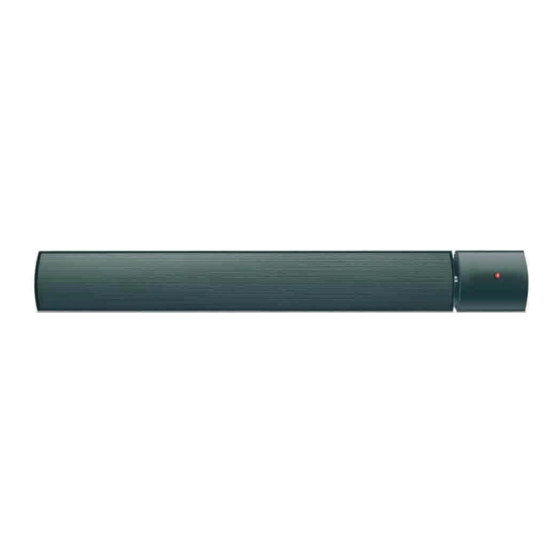

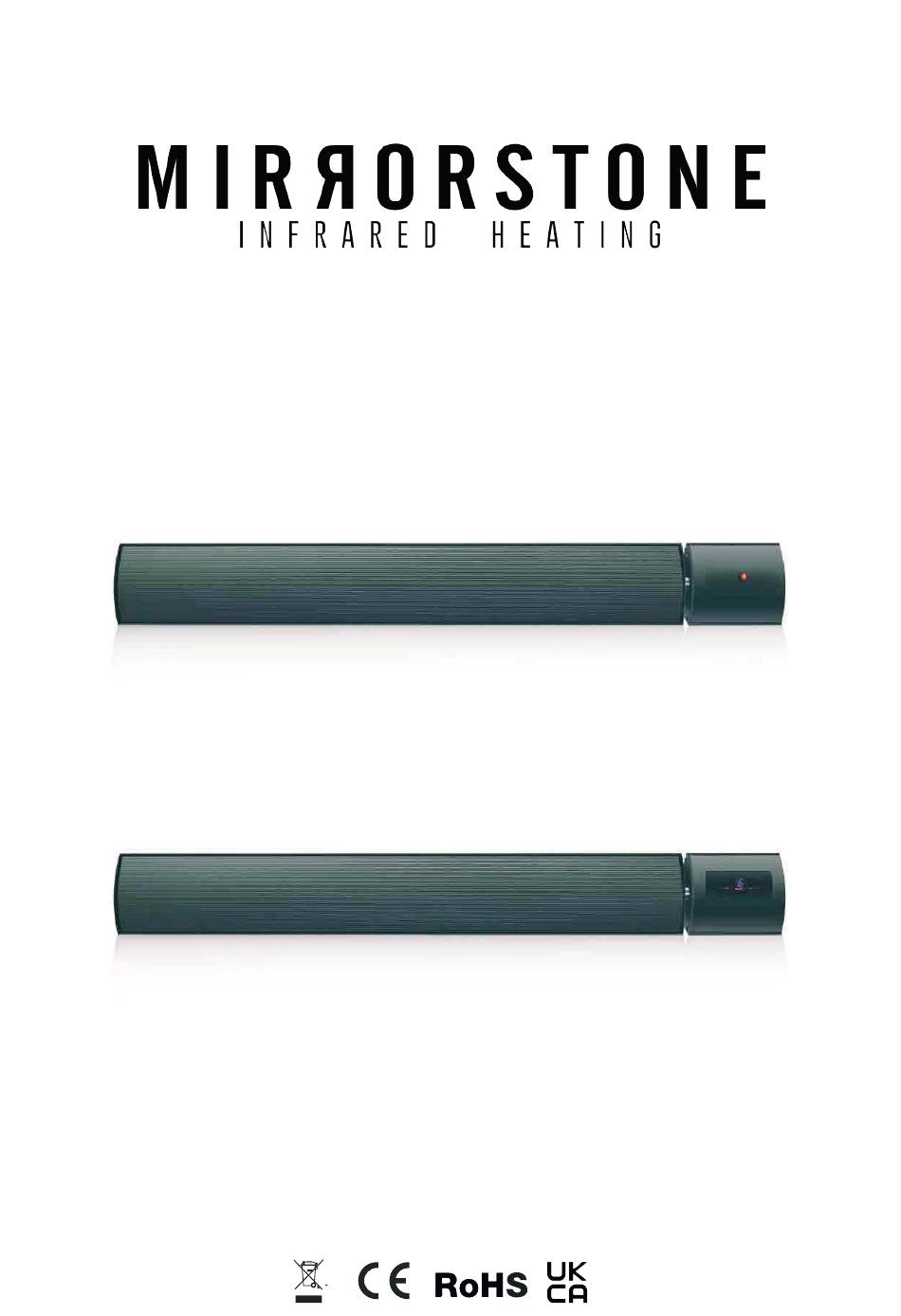

- Page 1 HELIOS BAR HEATER MANUAL MS-THC-12JB / MS-THC-18JB MS-THC- 24JB / MS-THC-30JB MS-THC-12JW / MS-THC-18JW MS-THC-24JW / MS-THC-30JW MS-THC-12DBW / MS-THC-18DBW MS-THC- 24DBW / MS-THC-30DBW MS-THC-12DWW / MS-THC-18DWW MS-THC-24DWW / MS-THC-30DWW...
-
Page 2: Table Of Contents
CONTENTS 1. BEFORE USING YOUR HEATER FOR THE FIRST TIME 2. IMPORTANT SAFEGAURDS 3. INSTALLATION GUIDE 4. PRODUCT INSTRUCTION FOR HELIOS NON- REMOTE HEATERS 5. PRODUCT INSTRUCTION FOR HELIOS REMOTE CONTROLLABLE HEATERS PAIRING YOUR REMOTE CONTROL HELIOS BAR HEATER TO YOUR WI FI NETWORK 7. -
Page 3: Before Using Your Heater For The First Time
BEFORE USING YOUR HEATER FOR THE FIRST TIME Please read all the instructions in this manual carefully, even if you have prior experience of using an infrared heater. This manual should be kept in a safe place for future reference. Should you need to make any kind of warranty claim with the manufacturer, you will need to make note of the complete model number (located on the product card at the back of the heater), the date on which you received the product, and your receipt of purchase. - Page 4 • The most common cause of overheating is dust or fluff deposits getting stuck in the heater. You can prolong the life and ensure the safety of your heater by disconnecting it regularly and vacuum cleaning the air vents and grilles. •...
- Page 5 • The outer surface of the heater can get very hot and cause burns if contact is made with the skin for prolonged periods of time. Please pay attention when children or vulnerable people are present. • The heater should be installed at a minimum of 2.2 metres from the floor. •...
-
Page 6: Installation Guide
INSTALLATION GUIDE Model L (mm) L1 (mm) MS-THC-12DBW MS-THC-12DWW 2x Brackets with notch 2x Brackets without MS-THC-18DBW 1240 1007 MS-THC-18DWW notch MS-THC-24DBW 1540 1307 MS-THC-24DWW MS-THC-30DBW 1840 1607 MS-THC-30DWW The brackets have a notch, the one with the These holes at the back of the bar heater are not notch goes into the bar heater, without the for the screws, they allow air to ow. - Page 7 Step One: Use the screws provided to install two of the brackets to the back of the heater, as shown in Fig. A. Step Two: Use the screws provided to install two of the brackets to the wall or ceiling, as shown in Fig.
- Page 8 (Spare parts purchased separately) For suspended installation, the heater will hook up to the suspension cables and hang from the ceiling, as shown in Fig. 3.
-
Page 9: Product Instruction For Helios Non- Remote Heaters
PRODUCT INSTRUCTIONS FOR HELIOS NON- REMOTE HEATERS Outer Casing Heating Plate Control Box Product Size Model Power Length (mm) Width (mm) Height (mm) MS-THC-12JB 1200W MS-THC-12JW MS-THC-18JB 1800W 1240 MS-THC-18JW MS-THC-24JB 2400W 1540 MS-THC-24JW MS-THC-30JB 3000W 1840 MS-THC-30JW Circuit Diagram... - Page 10 Replacement of Power Cord Should the power cord become damaged, it must be replaced by a qualified electrician or the manufacturer. Child Supervision This heater is not intended for use by children or vulnerable people without supervision.
-
Page 11: Product Instruction For Helios Remote Controllable Heaters
PRODUCT INSTRUCTIONS FOR HELIOS REMOTE CONTROLLABLE HEATERS Outer Casing Heating Plate Control Box Product Size Model Power Length (mm) Width (mm) Height (mm) MS-THE-12DBW 1200W MS-THE-12DWW MS-THE-18DBW 1800W 1240 MS-THE-18DWW MS-THE-24DBW 2400W 1540 MS-THE-24DWW MS-THE-30DBW 3000W 1840 MS-THE-30DWW Circuit Diagram Heating Plate Switch 220-240VAC 50/60Hz... - Page 12 Before first use, please read the following points carefully. 1.1. When removing the heater from the box please take care to ensure that you do not damage the heater, and that you retain the box for storage purposes. 1.2. Install the heater according to the instructions provided in this manual. 1.3.
- Page 13 2.8. To reset the Wi-Fi settings on the heater, press 'Switch", then "High/Low Switch", then 'Up" all within 5 seconds. You will know when it has been reset, as the Wi-FI symbol will start flashing rapidly on the screen. 2.9. To toggle between High Power and Low Power, press the "High/Low Switch"...
-
Page 14: Pairing Your Remote Control Helios Bar Heater To Your Wi Fi
PAIRING YOUR REMOTE CONTROL HELIOS BAR HEATER TO YOUR WI FI NETWORK Before starting, ensure your smart device is connected to a 2.4GHz Wi-Fi signal. All Wi-Fi routers emit a 2.4GHz signal, but some new models also emit 5GHz. You can normally tell at a glance which signal is which, because 5GHz networks will contain a “5”... -
Page 15: Day Timer
Timer 7 DAY TIMER Using The 7-Day Timer With Your Heater: On the home screen of the Smart Life app, press the 'Timer' button in the bottom right corner. Then, press 'Add' in the middle of your screen. The following screen allows you to set your timer settings: Use the sliders at the top of the screen to set what time you want your heater to switch on or off. - Page 16 Add Schedule Save Add Schedule Save PM 2:23 PM 2:23 Every day Every day Switch ON Switch ON Repeat Once Repeat Once No timer data Note Note Notification Notification Switch Switch Timer Figure 1 Figure 2 Figure 3 Figure 4 Repeat Schedule Add Schedule...
- Page 17 Table for information requirements for electric local space heaters MS-THC-12DBW MS-THC-1808W MS-THC-2408W MS-THC-3008W Model identifier(e): MS-THC-120WW MS-THC-18DVVVV MS-THC-24DWW MS-THC-30DWW Item Symbol Value Unit Heat output Nominal heat output Pnom Minimum heat output Pmin (indicative) Maximum continuous Pmax heat output) Auxiliary electricity consumption At nominal heat output elma 1.137...
-
Page 18: Warning
WARNING Please ensure that the heater is installed correctly, as per this instruction manual, and that it is facing the correct way. The heater should be installed in a place where the controls cannot be used by someone who is using a bath or a shower. The heater should not be installed directly above an electrical socket. - Page 19 86 Scudamore Road Leicester, LE3 1UQ +44 (0) 116 436 2250...
