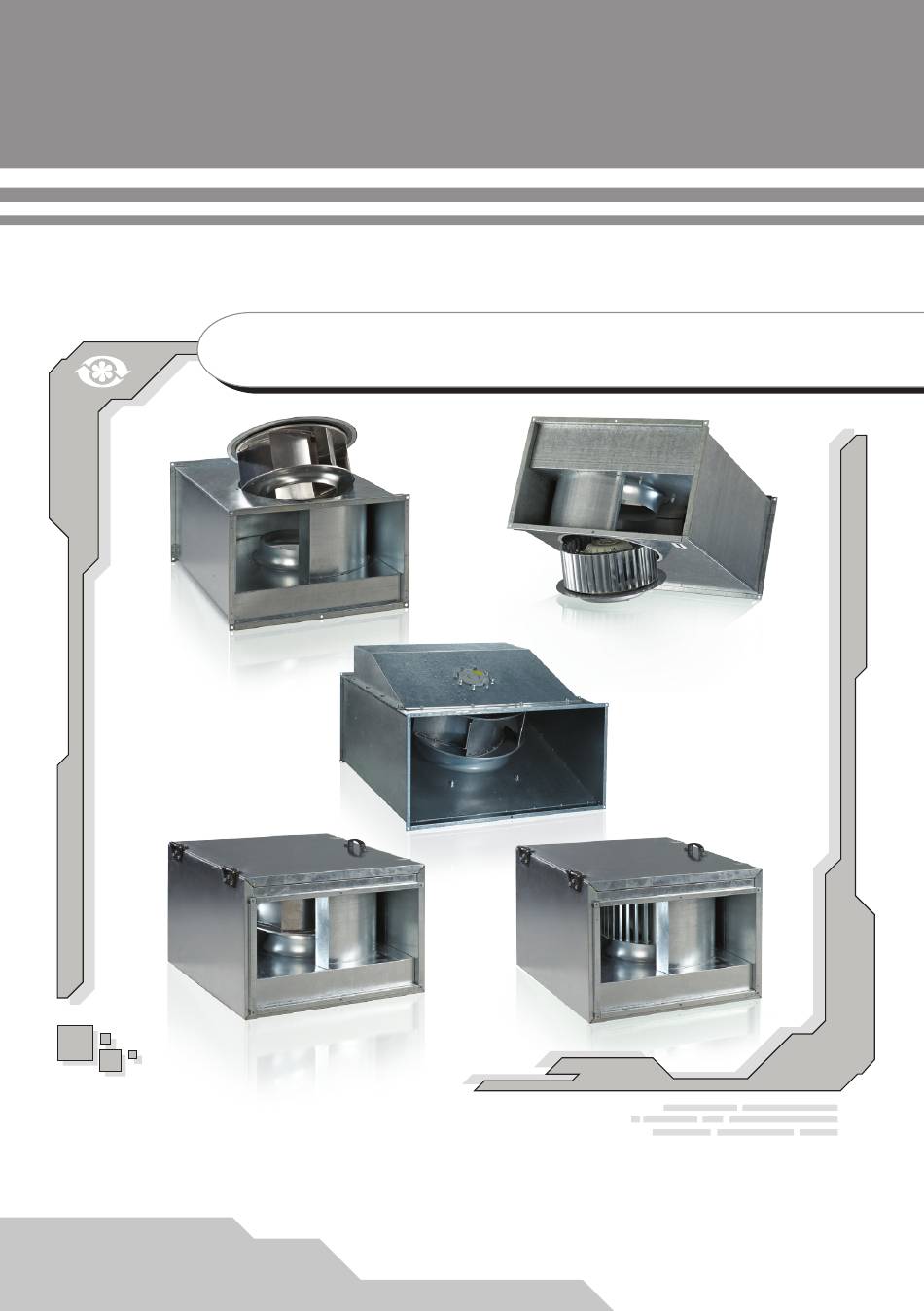

- Page 1 USER'S MANUAL INLINE RECTANGULAR FANS VKP SERIES VENTS VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC SERIES...
-
Page 2: Table Of Contents
VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC CONTENT Application ..........................Delivery set ..........................Fan designation key ......................Basic technical data ......................Safety requirements ......................Installation and safety guidelines.................. Fan inline rectangular duct mounting example ............ Connection to power mains..................... -
Page 3: Application
APPLICATION Inline rectangular fans are intended for supply and exhaust ventilation of residential, public and industrial premises (production and storage facilities, sport halls, water pools, large auditoriums, conference halls, etc.). The fans are designed for mounting into rectangular ducts. The fans are rated for continuous operation always connected to power mains. Ingress protection rating is IPX4. -
Page 4: Fan Designation Key
VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC FAN DESIGNATION KEY VKP X X X X XXXxXXX X _: asynchronous motor EC: electronically commutated motor Rectangular duct size 400x200, 500x250, 500x300, 600x300, 600x350, 700x400, 800x500, 900x500, 1000x500 Phase : single-phase;... -
Page 5: Basic Technical Data
BASIC TECHNICAL DATA VKPF / VKPFI technical data: VKPF / VKPF / VKPF / VKPF / VKPF / VKPFI VKPFI VKPFI VKPFI VKPFI 4E 400x200 4D 500x250 6E 500x250 4D 400x200 4E 500x250 Voltage [V / 50 Hz] 1~ 230 3~ 400 1~ 230 3~ 400 1~ 230 Power [W]... - Page 6 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC technical data: VKPF / VKPF / VKPF / VKPF / VKPFI VKPFI VKPFI VKPFI 6E 600x350 4D 600x350 6D 600x350 4D 700x400 Voltage [V / 50 Hz] 3~ 400 1~ 230 3~ 400 3~ 400...
- Page 7 VKPF VKPFI Fan overall dimensions: Dimensions [mm] Weight Type [kg] VKPF 4E 400x200 17.5 VKPF 4D 400x200 17.5 VKPF 4E 500x250 VKPF 4D 500x250 VKPF 6E 500x250 VKPF 6D 500x250 VKPF 4E 500x300 VKPF 4D 500x300 VKPF 6E 500x300 VKPF 6D 500x300 VKPF 4E 600x300 VKPF 4D 600x300 VKPF 6E 600x300...
- Page 8 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC Fan overall dimensions: Dimensions [mm] Weight Type [kg] VKPFI 4E 400x200 VKPFI 4D 400x200 VKPFI 4E 500x250 40.5 VKPFI 4D 500x250 40.5 VKPFI 6E 500x250 40.5 VKPFI 6D 500x250 40.5 VKPFI 4E 500x300 52.5...
- Page 9 VKP EC Technical data: 600x300 EC 600x350 EC 700x400 EC 800x500 EC 900x500 EC 1000x500 EC Voltage [V / 50/60 Hz] 1~ 200-277 3~ 380-480 3~ 380-480 3~ 380-480 3~ 380-480 3~ 380-480 Power [kW] 0.48 0.99 1.70 2.95 2.98 2.98 Current [A] 3.10...
- Page 10 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC VKPI EC Technical data: VKPI VKPI VKPI VKPI VKPI VKPI 600x300 EC 600x350 EC 700x400 EC 800x500 EC 900x500 EC 1000x500 EC Voltage [V / 50/60 Hz] 1~ 200-277 3~ 380-480 3~ 380-480 3~ 380-480 3~ 380-480 3~ 380-480 Power [kW] 0.48 0.99...
- Page 11 VKP / VKPI Technical data: VKP / VKPI VKP / VKPI 2E VKP / VKPI VKP / VKPI 2E 400x200 500x250 4E 500x300 4D 500x300 Voltage [V] 1~ 220-240 1~ 220-240 1~ 220-240 3~ 400 Frequency [Hz] Power [W] Current [A] 0.60 0.88 1.32...
- Page 12 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC VKP 4D 1000x500 VKPI Fan overall dimensions: Dimensions [mm] Weight Type [kg] VKP 2E 400x200 11.25 VKP 2E 500x250 17.88 VKP 4E 500x300 19.80 VKP 4D 500x300 19.80 VKP 4E 600x300 27.77...
-
Page 13: Safety Requirements
SAFETY REQUIREMENTS Disconnect the fan from power mains prior to any connection, adjustment, maintenance and repair operations. Mounting and wireworks are allowed only by a duly qualified electrician with valid electrical work permit for electric units up to 1000 V after careful reading of the present user's manual. -
Page 14: Installation And Safety Guidelines
VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC INSTALLATION AND SAFETY GUIDELINES The fan is designed for mounting and operation in any position. In case of ceiling mounting the fan is recommended to be mounted with the motor cover downwards to facilitate access to the terminal box. -
Page 15: Connection To Power Mains
CONNECTION TO POWER MAINS Disconnect the fan from power mains prior to any operations with the fan. Connection of the fan to power mains by duly a professional electrician only! The rated electric parameters of the fan are shown on the factory sticker. Any tempering with internal connection is not allowed and will void warranty. - Page 16 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC The recommended rated current of the automatic circuit breaker and the wire cross section Automatic circuit Recommended cable, n x S, Fan type breaker current [A] where n means number of wires, S means cross section [mm VKP, VKPI 2Е...
- Page 17 Wiring diagram of the fan Wiring diagram of the fan VKP/VKPI 2E 400x200; VKP/VKPI 2E 500x250; VKP/VKPI 4D 500x300 (first option) with VKP/VKPI 4E 500x300; VKP/VKPI 4E 600x300; a three-phase motor to the alternating current ~400 V VKP/VKPI 4E 600x350 with a single-phase motor power supply 50/60 Hz to the alternating current power supply...
- Page 18 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC Wiring diagram of the fans VKPF, VKPFI with a single-phase motor to the alternating current power supply ~230 V 50 Hz РЕ Wiring diagram of the fans VKPF, VKPFI with a three-phase motor to the alternating current power supply ~400 V 50 Hz...
- Page 19 Cable 1 Cable 2 Wiring diagram of the fans VKP 600x300 EC, VKPI 600x300 EC Contact Connection Colour Purpose / Function Black Power supply 50/60 Hz, phase Cable 1 Cable 2 Blue Power supply 50/60 Hz, zero Green/Yellow Ground cable Fault relay, normally closed White 1 contact...
- Page 20 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC Wiring diagram for the fans VKP 700x400 EC, VKPI 700x400 EC Terminal Connection Purpose / Function Terminal Connection Purpose / Function Digital input 1 (electronics unblocking/blocking) Net, L3 Unblocking: Pin is opened or set voltage 5…50 V Net, L2 GND or set voltage block <...
- Page 21 Recommended wiring diagram for connection of the single-phase motor with overheating protection KM 1 KM 1 ~230 V 50/60 Hz TW 1 “ON” TW 2 “OFF” Recommended wiring diagram for connection of the three-phase motor with overheating protection ~400 V 50/60 Hz “ON”...
- Page 22 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC VKP, VKPI, VKPF, VKPFI 400x200, 500x250, 500x300, 600x300, 600x350 VKPF, VKPFI 700x400, 800x500, 900x500, 1000x500 VKP 600x300 EC, VKPI 600x300 EC, VKP 1000x500...
-
Page 23: Maintenance
VKP 600x350 EC, VKP 700x400 EC, VKP 800x500 EC, VKP 900x500 EC, VKP 1000x500 EC, VKPI 600x350 EC, VKPI 700x400 EC, VKPI 800x500 EC, VKPI 900x500 EC, VKPI 1000x500 EC MAINTENANCE Disconnect the fan from power mains and make sure the rotating parts do not move prior to any maintenance and repair operations. - Page 24 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC...
-
Page 25: Troubles And Troubleshooting
TROUBLES AND TROUBLESHOOTING Fault Possible reasons Fault handling Check the automatic circuit The fan does not operate No power supply breaker. Check the electric connections. Noisy operation Impeller misbalance Clean the impeller. STORAGE RULES Store the fan in manufacturer’s packaging in a ventilated room at temperatures between +5 °C and +40 °C and relative humidity not more than 80 % at +20 °C. - Page 26 VKP / VKPI / VKPF / VKPFI / VKP EC / VKPI EC No warranty for compatibility of the fans with other producers' goods. The warranty covers manufacturing defects only. All the defects and faults resulting from mechanical effect during operation process or natural wear and tear shall not be covered by the warranty.
-
Page 27: Acceptance Certificate
ACCEPTANCE CERTIFICATE The fan is duly recognized as serviceable. Model VENTS VKPI VKPF VKPFI VKP EC VKPI EC (check applicable model only) Date of production Approval mark Sold by (name and stamp of the trade company) Sales date WARRANTY CARD... - Page 28 V-07EN-03...
