Summary of Contents for Vents Quietline

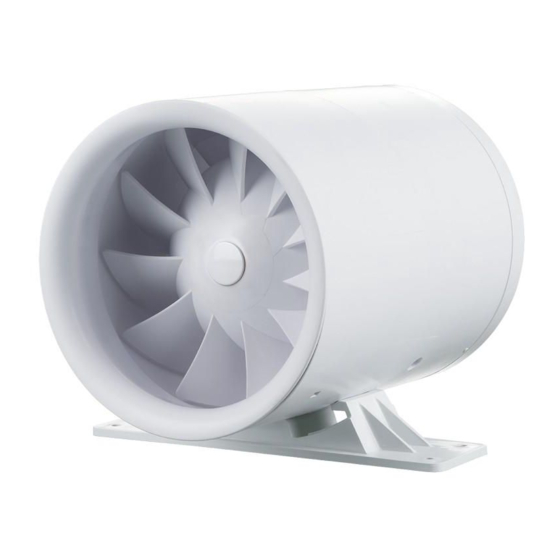

- Page 1 AXIAL FANS Quietline User’s manual www.ventilation-system.com...
-
Page 2: Table Of Contents
This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Quietline unit and all its modifications. Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country. -
Page 3: Safety Requirements
PLEASE READ THE USER’S MANUAL CAREFULLY PRIOR TO INSTALLING, CONNECTION TO POWER MAINS AND OPERATING THE UNIT. THE MANUFACTURING COMPANY SHALL NOT BE RESPONSIBLE FOR DAMAGE TO HEALTH AND PROPERTY OF THE CUSTOMER CAUSED BY THE CUSTOMER’S VIOLATING THE USER’S MANUAL. FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE OPERATION OF THE UNIT, ITS MECHANICAL AND ELECTRICAL RELIABILITY. - Page 4 • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or extract vents in order to ensure the efficient air flow. • Do not sit on the unit and do not put objects on it.
- Page 5 characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. WARNING! Similar to the use of any other household electrical appliances when operating this fan, the following basic rules must be followed: •...
- Page 6 ledningsreglerna och har en kontaktseparation i alla poler som möjliggör fullständig frånkoppling under överspänningskategori III. Se till att enheten är frånkopplad från elnätet innan du tar bort skyddet. WARNING: If there are any unusual oscillating movements, immediately stop using the appliance and contact the manufacturer, its service agent or suitably qualified persons.
-
Page 7: Delivery Set
Screws and dowels — 4 pcs. Self-tapping screws for fixing the bar* — 2 pcs. Mounting bracket (for Quietline-k fans) — 1 pc. Plastic screwdriver (only for the models with a timer) — 1 pc. Wire fixing bar * — 1 pc. -
Page 8: Designation Key
K: non-return valve R: power cord with an electric plug R1: power cord with a europlug R2: power cord with a British plug Spigot diameter [mm] 100/125/150 Fan series Quietline: duct axial fan Quietline-k: duct axial fan with a mounting bracket... -
Page 9: Installation
LT terminal. After the external switch is turned off the fan keeps operating for a set time period, adjustable from 2 to 30 minutes, and then turns off. The Quietline T DUO/Quietline T Extra fan has 4 operation modes. The choice of operating mode is carried out by setting the DIP switch to a certain position. - Page 10 Operation mode 2 (single-speed mode) The fan is turned off by default. When an external switch, such as a light switch, is triggered, the power supply voltage is applied to the LT terminal and the fan starts to run at the first speed. After the external switch is turned off the fan keeps operating for a set time period, adjustable from 2 to 30 minutes, and then turns off.
-
Page 11: Fan Setup
To adjust the fan turn-off delay time, turn the control knob Toff clockwise to increase and counter- clockwise to decrease the turn-off delay time respectively, adjustable from 2 up to 30 minutes. Quietline T DUO/Quietline 150 Extra T fan (Fig. 17) Modes 1, 2 and 3. -
Page 12: Technical Maintenance
TECHNICAL MAINTENANCE Disconnect the fan from power mains prior to any maintenance operations and take measures to prevent unintentional power- up until maintenance is complete. The fan maintenance periodicity is at least once per 6 months, depending on the operating conditions. -
Page 13: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 14: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 15 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user's manual. •...
- Page 16 ø D D [mm] L [mm] H [mm] K [mm] N [mm] Quietline 100 Quietline-k 100 Quietline 125 Quietline-k 125 Quietline 150 Quietline-k 150...
- Page 18 Wiring diagrams Quietline Quietline DUO/Quietline Extra speed 2: speed 2 3: speed 1 Quietline Т Quietline T DUO/Quietline T Extra...
- Page 19 Quietline Т 2 min 30 min Quietline T DUO/Quietline T Extra off & HS time 2 min 30 min 0 min 1 hour 2 min 15 hour...
- Page 27 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 28 Certificate of acceptance Quietline-k Quietline Extra The fan is recognized as serviceable. V178EN-01...
