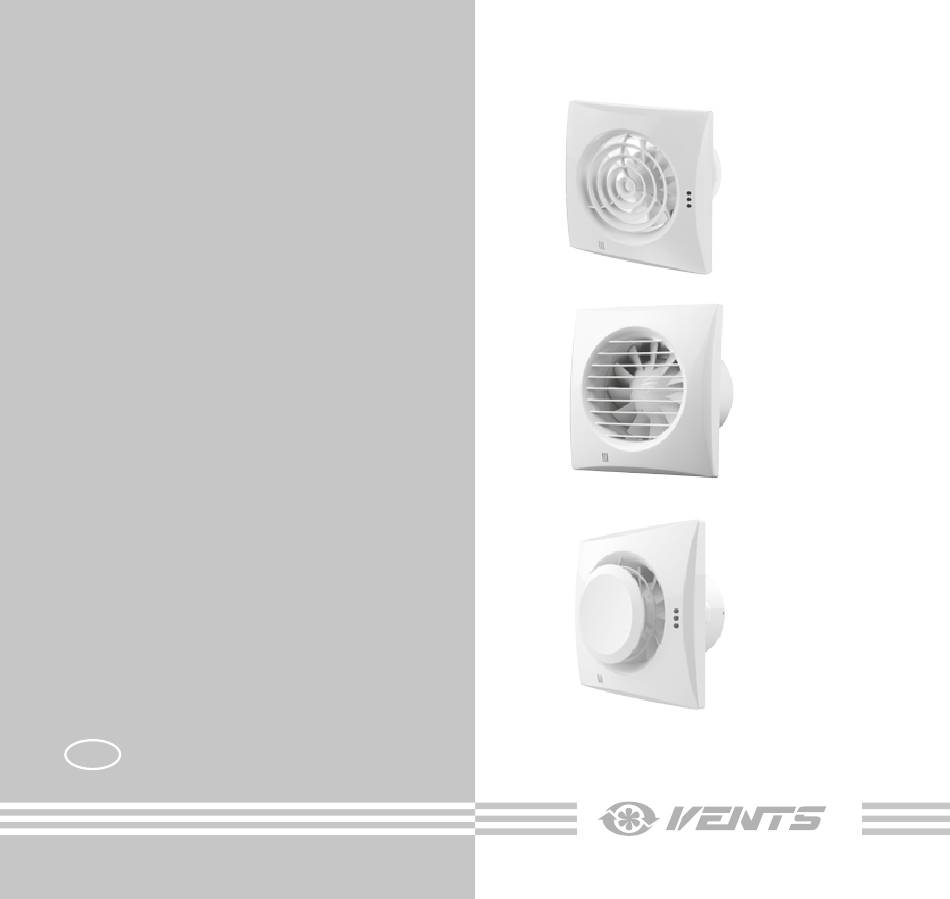

- Page 1 Quiet Quiet-Mild Quiet-Disc AXIAL FANS User’s manual www.ventilation-system.com...
-
Page 2: Table Of Contents
Manufacturer’s warranty ..........................................15 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the Quiet unit and all its modifications. -
Page 3: Safety Requirements
READ THE USER’S MANUAL CAREFULLY BEFORE PROCEEDING WITH INSTALLATION WORKS. COMPLIANCE WITH THE MANUAL REQUIREMENTS ENSURES RELIABLE OPERATION AND LONG SERVICE LIFE OF THE UNIT. KEEP THE USER’S MANUAL AVAILABLE AS LONG AS YOU USE THE UNIT. YOU MAY NEED TO REREAD THE INFORMATION ON THE PRODUCT SERVICING. - Page 4 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.
- Page 5 characteristics, design, or configuration of its products at any time in order to incorporate the latest technological developments. Never touch the unit with wet or damp hands. Never touch the unit when barefoot. This unit is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the unit by a person responsible for...
- Page 6 Ensure that the unit is switched off from the supply mains before removing the guard. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
-
Page 7: Delivery Set
DELIVERY SET Fan – 1 pc. Screws and dowels – 4 pcs. Plastic screwdriver (only for the models with a timer) – 1 pc. User’s manual – 1 pc. Packing box – 1 pc. Sealing gasket – 1 pc. BRIEF DESCRIPTION The product is an axial fan for exhaust ventilation of small and medium-sized premises. -
Page 8: Designation Key
T: turn-off delay timer VT: pull cord switch and turn-off delay timer TH: humidity sensor and turn-off delay timer VTH: pull cord switch and humidity sensor TP: motion sensor Outlet duct diameter [mm] Fan series Quiet/Quiet-Mild/Quiet-Disc Quiet Extra/Quiet-Mild Extra/Quiet-Disc Extra... -
Page 9: Installation
INSTALLATION The fan is designed for wall or ceiling mounting with direct air discharge to the ventilation shaft or into the round air duct of matching diameter (Fig. 2). Fan installation with direct air discharge upwards is not allowed (Fig. 2). Fan installation sequence: Step 1. -
Page 10: Fan Operation Setup
FAN OPERATION SETUP THE TIMER CIRCUIT IS LIVE. MAKE SURE THE FAN IS DISCONNECTED FROM POWER SUPPLY. — To adjust the fan turn-on delay time, turn the control knob T clockwise to increase and counter-clockwise to decrease the turn-on delay time respectively, adjustable from 0 up to 2 minutes. —... - Page 11 Operation Operation Operation mode 1 mode 2 mode 3 mode 4 mode 5 Quiet 150 Т Quiet 150 VT — — Quiet 150 TP 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4...
-
Page 12: Operation Indication
OPERATION INDICATION Only for Quiet 150 T, TH, VT, VTH, TP models 1. The light indicator blinks green once in 5 seconds – the fan operates with minimum speed in standby mode. 2. The light indicator blinks green once in a second – the turn-on delay time is activated (60 seconds). -
Page 13: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 21). • Remove the front panel, wipe the fan with a dry cloth or a brush (Fig. 22). •... -
Page 14: Storage And Transportation Regulations
STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 °C to + 40 °C and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation. -
Page 15: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/ EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. - Page 16 • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. • Unit connection to power mains with a voltage different from the one stated in the user's manual. •...
- Page 17 Dimensions [mm] Ø D Quiet 150 Quiet-Mild 150 Quiet-Disc 150...
- Page 19 N(3) S switch to ON or pull cord switch LT(1) L(2) N(3) Fan runs at speed 1 Quiet 150 V (speed 1) S switch to OFF or pull cord switch LT(1) L(2) N(3) Quiet 150 (speed 2) Fan does not run...
- Page 20 Quiet 150 (speed 1 and 2) speed 1 and 2 speed LT(1) Fan does not run L(2) N(3) S switch to ON speed LT(1) or pull cord switch L(2) N(3) Quiet 150 (speed 1 and 2) LT(1) L(2) Speed switch...
- Page 21 Quiet 150 T Quiet 150 VT LT(1) L(2) L(2) N(3) N(3) LT(1) L(2) N(3) Operation mode 1 Operation mode 2 Operation mode 3 1 2 3 4 1 2 3 4 1 2 3 4 Fan does not run Fan does not run...
- Page 22 Quiet 150 TH Fan does not run LT(1) L(2) N(3) S switch to ON or pull cord switch LT(1) L(2) Activation of turn-on N(3) delay timer (0-2 minutes) Quiet 150 VTH Humidity S switch is OFF exceeds set point LT(1)
- Page 23 Quiet 150 TH LT(1) Fan does not run L(2) N(3) S switch to ON or pull cord switch LT(1) L(2) Activation of turn-on N(3) delay timer (0-2 minutes) Quiet 150 VTH Humidity S switch is OFF exceeds set point LT(1)
- Page 24 Quiet 150 TH Fan runs at speed 1 LT(1) L(2) S switch to ON or pull cord switch N(3) LT(1) Activation of turn-on L(2) delay timer (0-2 minutes) N(3) Humidity Quiet 150 VTH exceeds set point S switch is OFF...
- Page 25 Quiet 150 TH LT(1) Fan does not run L(2) N(3) S switch to ON or pull cord switch LT(1) L(2) Activation of turn-on N(3) delay timer (0-2 minutes) Quiet 150 VTH Humidity exceeds set point S switch is OFF LT(1)
- Page 26 Quiet 150 TH Fan does not run LT(1) L(2) S switch to ON N(3) or pull cord switch LT(1) Activation of turn-on delay timer (0-2 minutes) L(2) N(3) Quiet 150 VTH Humidity S switch is OFF exceeds set point during countdown of turn-on...
- Page 27 Quiet 150 TP LT(1) L(2) N(3) Operation mode 1 Operation mode 2 Operation mode 3 1 2 3 4 1 2 3 4 1 2 3 4 Fan runs at speed 1 Fan does not run Fan does not run...
- Page 31 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 32 Certificate of acceptance Quiet 150 Quiet-Mild 150 Quiet-Disc 150 Quiet Extra 150 Quiet-Mild Extra 150 Quiet-Disc Extra 150 The fan is recognized as serviceable. V233-2EN-01...
