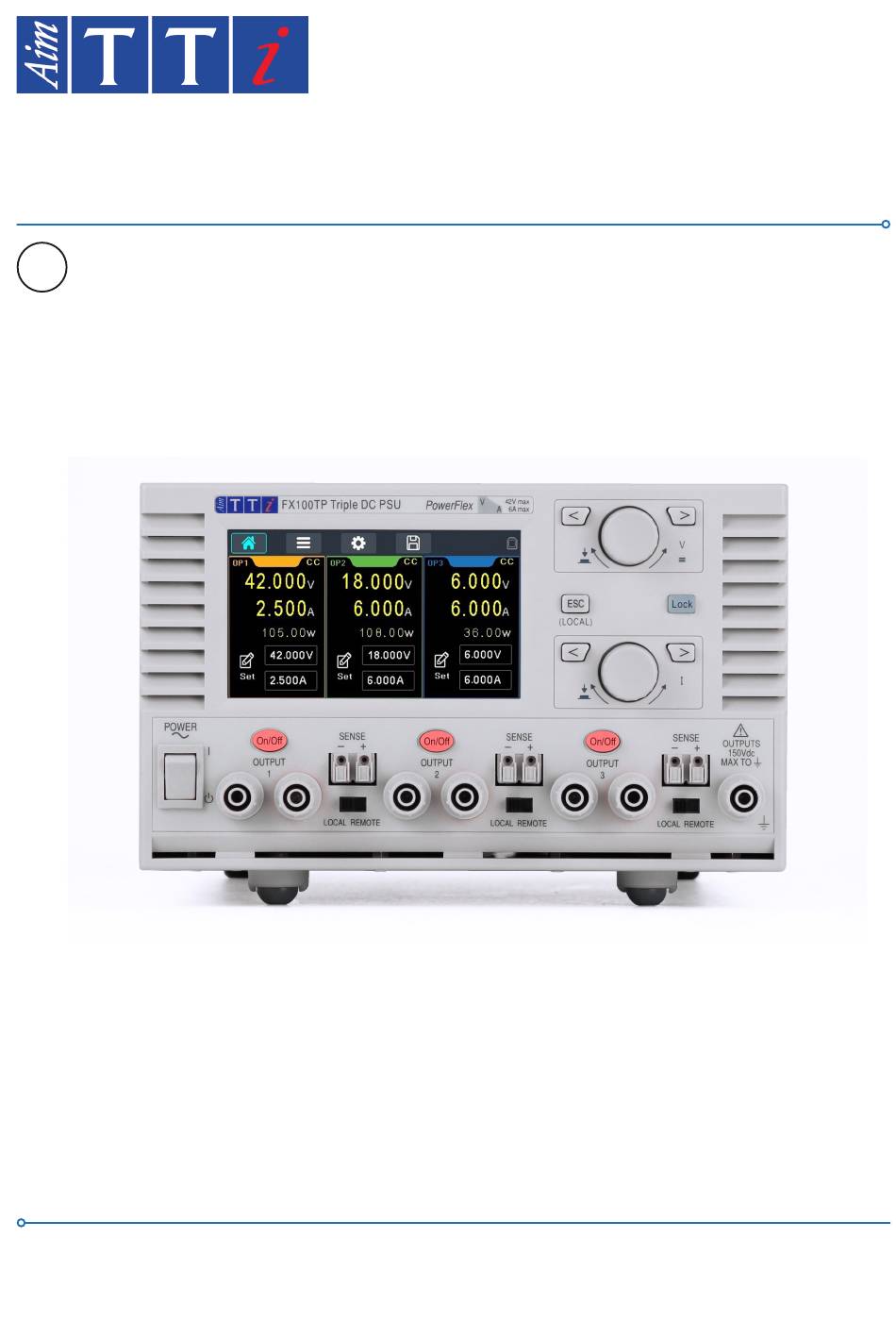

  • Page 1 INSTRUCTION MANUAL FX SERIES FX100DP & FX100TP Laboratory DC Power Supplies...

  • Page 2: Table Of Contents

    1 - Product Description Product Description ........................ 3 Safety ............................4 Symbols ..................................4 Safety Notices ................................5 Installation ..........................6 Mains Operating Voltage ............................. 6 Mains Lead ................................... 6 Mounting ..................................6 Ventilation ..................................6 Instrument Overview ....................... 7 Getting Started ........................
  • Page 3 1 - Product Description Parallel Wiring of Outputs ............................17 Series Wiring of Outputs ............................18 Instantaneous Current Output ..........................19 Output On/Off and Response Speed......................... 19 Using OVP and OCP ..............................19 Over-temperature Trip (OTP) ............................. 20 Remote Operation ........................21 Remote Interface Configuration ..........................

  • Page 4: Product Description

    1 - Product Description 1. PRODUCT DESCRIPTION The FX series of power supplies seamlessly combines versatility, and safety within a compact design. SELV compliant with the flexibiliy of PowerFlex, it’s the ultimate choice for test and laboratory use. Aim-TTi Powerflex is an advanced intelligent auto-ranging capability. It dynamically adjusts the operating range within the power envelope of the output.

  • Page 5: Safety

    2 - Safety 2. SAFETY Symbols This instruction manual contains information and warnings which must be followed by the user to ensure safe operation and to retain the instrument in a safe condition. The following symbols are displayed on the instrument and throughout the manual, to ensure the safety of the user and the instrument, all information must be read before proceeding.

  • Page 6: Safety Notices

    2 - Safety Safety Notices This instrument is: · A safety Class I instrument according to IEC classification and has been designed to meet the requirements of EN61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use). It is an Installation Category II instrument intended for operation from a normal single-phase supply.

  • Page 7: Installation

    3 - Installation 3. INSTALLATION Mains Operating Voltage This instrument has a universal input range and will operate from a nominal 115V or 230V mains supply without adjustment. Check that the local supply meets the AC Input requirement printed on the rear panel, also given in the Specification see ‘Technical Specifications’.

  • Page 8: Instrument Overview

    4 - Instrument Overview 4. INSTRUMENT OVERVIEW ④ ⑥ ⑦ ⑤ ③ ① ② ① Power ② Output For each output, the load should be connected to the positive (red) and negative (black) terminals terminals marked OUTPUT. Both are fully floating and can be connected to the ground terminal or to a terminal of another output.
  • Page 9 4 - Instrument Overview ③ ① ② ① AC power inlet Connect to AC mains using the power lead provided. See ‘Mains Lead’ for more details. ② The USB port accepts a standard USB cable. The Windows plug-and-play functions should automatically recognise that the instrument has been connected.

  • Page 10: Getting Started

    Trip/System Failure, Error, and Warning pop-up screens will appear when using any form of navigation. The FX Series consists of a dual output and a triple output version, throughout this document the screen images shown are of the triple version only.

  • Page 11: The Home Screen

    5 - Getting Started The Home Screen The Home screen shows the primary information for all outputs simultaneously whilst enabling voltage and current to be set for any output. ① ② ⑥ ⑦ ③ ⑧ ④ ⑦ ⑤ ① Menu keys Home Home menu, the active menu is highlighted in blue.

  • Page 12: Initial Operation

    5 - Getting Started Initial operation The user interface can be navigated using the touch screen, rotary knob, front panel keys or a combination of all three options. Many settings can be made quickly and easily using the touch screen alone; the rotary knob is most useful when, for example, a parameter is being frequently incremented or decremented during manual testing.

  • Page 13: Settings Menu

    6 - Settings Menu Use the < > keys on the front panel ⑪ or the Voltage rotary knob ⑨ to highlight the Navigation using the rotary knob and keys actionable field and press the knob to ‘okay’ the action. When an editable field is selected, adjustments can be made by turning the knob until the required value is selected.

  • Page 14: System Settings

    7 - System Settings Voltage Tracking Tracking voltages can be useful in setting up adjustable voltages of equal or opposite polarity, or when outputs are wired in parallel or in series. of output 1. To enable the tracking, press the Track button, the status of the The power supply can be set up such that the voltage of output 2 tracks that tracking is shown in the button.

  • Page 15: Info

    7 - System Settings Info Contains the serial number and firmware version for the instrument. Help The Help menu provides explanations on how to use this instrument. Brightness The LCD brightness can be adjusted in 3 steps: • low, • medium (default) and by pressing the Brightness button.

  • Page 16: Store And Recall Of Settings

    8 - Store and Recall of Settings 8. STORE AND RECALL OF SETTINGS ③ ① ② Up to 25 memories are provided that allow the user to store and recall the settings status for all outputs, including: Set Volts, Set Amps, OVP/OCP, output ON/OFF state, current To save a setup, press the Save Setup button ①, an on-screen keyboard will appear, up to meter averaging state, and the Multi-On/Multi-Off settings.

  • Page 17: Notes On Operation

    9 - Notes on Operation 9. NOTES ON OPERATION Accuracy and Resolution All outputs provide good accuracy and resolution and offer remote sensing to ensure precise regulation at the load. See ‘Technical Specifications’ for accuracy specifications. Remote Sense Each output has a very low output impedance, but this is inevitably increased by the resistance of the connecting leads and the contact resistance between terminals and leads.

  • Page 18: Parallel Wiring Of Outputs

    9 - Notes on Operation Parallel Wiring of Outputs If currents above 6 amps are required, this can be achieved by wiring two or more outputs in parallel. For example, outputs 1 and 2 could be paralleled to provide 42V/12A. In this situation it would be appropriate to use voltage tracking so that the voltage can be adjusted directly on one output.

  • Page 19: Series Wiring Of Outputs

    9 - Notes on Operation Series Wiring of Outputs If voltages above 42 volts are required, this can be achieved by wiring two or more outputs in series. For example, outputs 1 & 2 could be series connected to provide up to 84V. The drawing shows a series connection of two outputs using local or remote sensing.

  • Page 20: Instantaneous Current Output

    9 - Notes on Operation Instantaneous Current Output The current setting control can be set to limit the continuous output current to levels down to the milliamps. However, in common with all precision bench power supplies, a capacitor is connected across the output to maintain stability and good transient response. This capacitor charges to the output voltage and short-circuiting of the output will produce a current pulse as the capacitor discharges which is independent of the current limit setting.

  • Page 21: Over-Temperature Trip (Otp)

    9 - Notes on Operation OCP Trip at Output On If the OCP level is set to a very low level whilst also being below the set current level, it is possible for a trip condition to be created when the output is switched on. This is caused by the current needed to charge the output capacitance.

  • Page 22: Remote Operation

    10 - Remote Operation 10. REMOTE OPERATION Remote Interface Configuration The FX can be remotely controlled via its USB connection. The USB interface enumerates as a Communications Class device and interacts with application software through a standard virtual COM port device driver on the PC. The instrument firmware can be updated in the field via the USB port;...

  • Page 23: Command Timing

    10 - Remote Operation used), even though the COM port will disappear while the instrument is disconnected or switched off. Other instruments will receive different COM port numbers. NOTE A different PC will not necessarily assign the same COM port number to a particular instrument (it depends on the history of installations).

  • Page 24: Execution Error Register

    10 - Remote Operation Bit 4 Execution Error. Set when an error is encountered while attempting to execute a completely parsed command. The appropriate error number will be reported in the Execution Error Register. Bit 3 Verify Timeout Error. Set when a parameter is set with 'verify' specified and the value is not reached within 5 secs, e.g., output voltage is slowed by a large capacitor on the output.

  • Page 25: Status Byte Register

    10 - Remote Operation Bit 7 Reserved for future use Bit 6 Set when a fault trip has occurred which requires AC power OFF/ON to reset. Bit 5 Set when an output sense trip has occurred Bit 4 Set when an output over current trip has occurred Bit 3 Set when an output over voltage trip has occurred Bit 2...
  • Page 26 10 - Remote Operation Status Model FX100DP & TP Instruction Manual DRAFT...

  • Page 27: Scpi Commands

    11 - SCPI Commands 11. SCPI COMMANDS SCPI Overview This instrument uses SCPI (Standard Commands for Programmable Instruments) commands for remote control. The commands are based on SCPI Version 1999 and follow the syntax and rules including commands that are not taken from the SCPI standard. These commands are separated into two groups: common and subsystem.

  • Page 28: Parameter Data Format

    11 - SCPI Commands Parameter Data Format <NR1> Digits with no fractional part, i.e., an integer Example: 451 <NR2> Digits with an explicit decimal point. Example: 0.451 <NR3> Digits with an explicit decimal point and an exponent. Example: 45.1e+01 <NRF> A number in any format.
  • Page 29 11 - SCPI Commands *RCL <STRING> Recall a set up specified by <unquoted string> from the internal storage. File name could be mixture of letters and numbers but up to 8 characters long only. *SAV <STRING> Save the instrument set-up to a file <unquoted string> on the internal storage. File name could be mixture of letters or numbers but up to 8 characters long only.

  • Page 30: System Subsystem

    11 - SCPI Commands LSE1 <NRF> Set the Limit Status Enable Register<N> to <NRF> Returns the value in the Limit Status Enable Register. The response format is<NR1> LSE2 <NRF> Set the Limit Status Enable Register<N> to <NRF> Returns the value in the Limit Status Enable Register. The response format is<NR1> LSE3 <NRF>...

  • Page 31: Status Subsystem

    11 - SCPI Commands :SYSTem:VERSion? Query the instrument firmware version number. :SYSTem:KLOCk <Bool> Enable or disable the remote-control keyboard lock out. This disables the front panel LOCAL key when set to true. OFF|ON|0|1 :SYSTem:LOCal Go to local operation. Any subsequent command will restore the remote state. :SYSTem:COMMunicate:USB:VID? Query the instrument USB Vendor ID.

  • Page 32: Source Subsystem

    11 - SCPI Commands Replace # with the output number. If no number is specified, output 1 will be selected. :OUTPut#[:STATe] <Bool> Set the output state to OFF|ON|0|1 Query the output state. Response is 1 or 0 SOURce Subsystem Replace # with the output number. If no number is specified, output 1 will be selected. [:SOURCe#]:VOLTage[:LEVel][:IMMediate][:AMPLitude] <NRF>...

  • Page 33: Measure Subsystem

    11 - SCPI Commands [:SOURCe#]:VOLTage[:LEVel][:IMMediate]:DELTa <NRF> Set the voltage step size to <NRF> NV|UV|MV|V|KV|MAV Query the voltage step size. Response is of the format <NR3> [:SOURCe#]:CURRent[:LEVel][:IMMediate]:DELTa <NRF> Set the current step size to <NRF> NA|UA|MA|A Query the current step size. Response is of the format <NR3> [:SOURCe#]:VOLTage[:LEVel][:IMMediate]:INCrement Increment the voltage by step size.

  • Page 34: Maintenance

    12 - Maintenance 12. MAINTENANCE The Manufacturers or their agents overseas will provide a repair service for any unit developing a fault. Where owners wish to undertake their own maintenance work, this should only be done by skilled personnel in conjunction with the Service Guide, which may be requested directly from the Manufacturers or their agents overseas.

  • Page 35: Firmware Update

    12 - Maintenance Firmware Update CAUTION Disconnect all cables from the front terminals and set sense to local before performing the firmware update. The firmware of the instrument can be updated through the USB port using a PC software utility available from the manufacturer. This uses a HID (human interface device) USB class driver which will already be installed on any PC with a USB port.

  • Page 36: Technical Specifications

    13 - Technical Specifications 13. TECHNICAL SPECIFICATIONS FX100DP FX100TP Number of outputs VOLTAGE/CURRENT/POWER LEVELS Voltage Range O/P 1&2: 0V to 42V O/P 1&2: 0V to 42V O/P 3: 0V to 6V Current Range 1mA to 6A Power per output O/P 1&2: 105W (see Powerflex curve) O/P 1&2: 105W (see Powerflex curve) O/P 3: 36W Power Range Up to 210W...
  • Page 37 13 - Technical Specifications Monitors the voltage between the remote sense terminals and output terminals to protect against Sense trip mis-wiring. Maximum drop allowed is +1.5V and -1.5V (total of 3V drop). Over Temperature Monitors internal temperature rise to protect against excess ambient temperature or blocked protection ventilation slots.

  • Page 38: Default Values

    14 - Default Values 14. DEFAULT VALUES When supplied from the factory the power supply is set as follows: Default Value PSU Params Parameter Voltage 0.000 0.000 0.000 Current 1.000 1.000 1.000 47.0 47.0 Idamp Tracking Disable Multi On/Off Disable Default Values System Params OP Power Up state Always off...
  • Page 39 EXCELLENCE THROUGH EXPERIENCE Aim-TTi is the trading name of Thurlby Thandar Instruments Ltd. (TTi), one of Europe’s leading manufacturers of test and measurement instruments. The company has wide experience in the design and manufacture of advanced test instruments and power supplies built up over more than thirty years.
