USER MANUAL

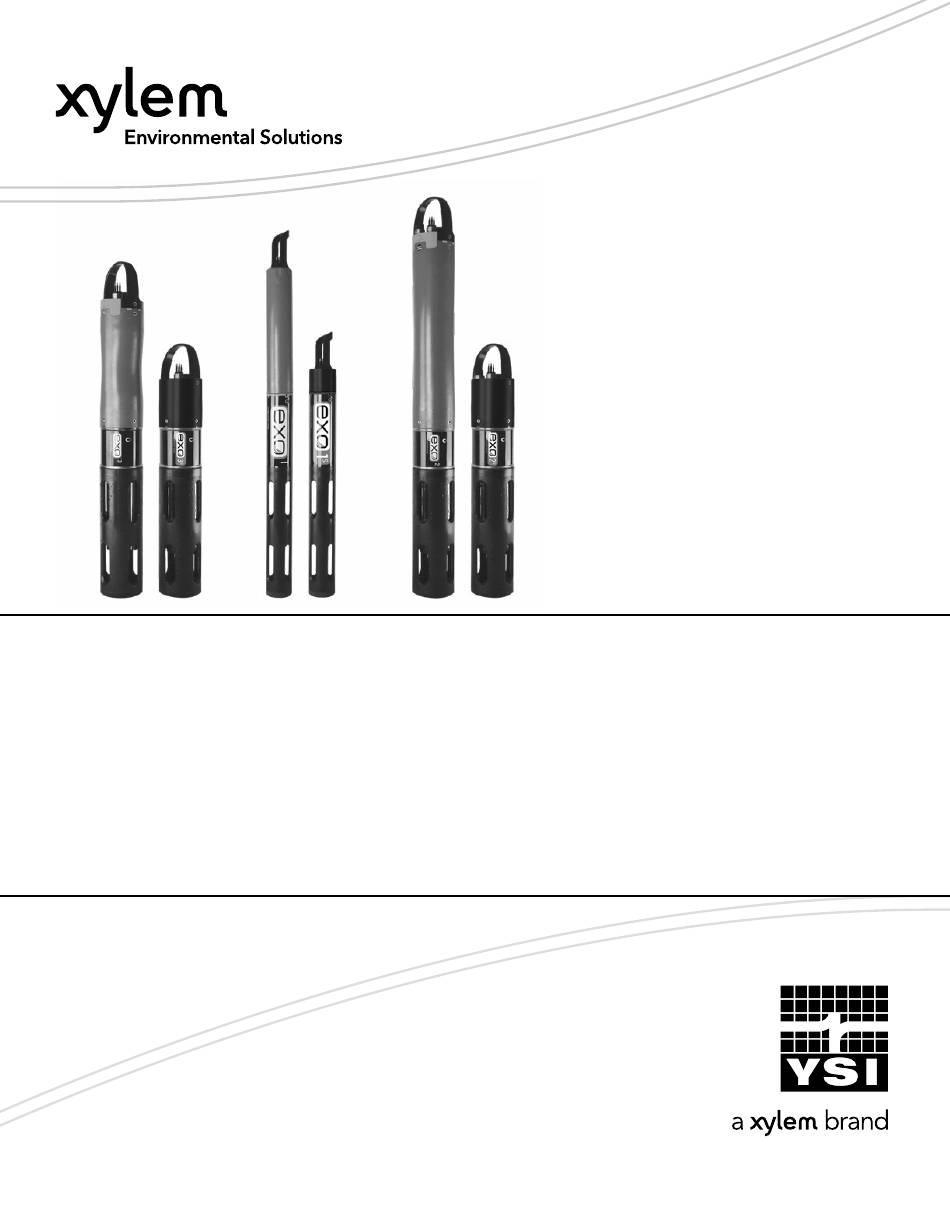

ITEM# 603789REF
REVISION L
EXO User Manual
ADVANCED WATER QUALITY MONITORING PLATFORM

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXO and is the answer not in the manual?

Questions and answers

Summary of Contents for Xylem EXO

  • Page 1 USER MANUAL ITEM# 603789REF REVISION L EXO User Manual ADVANCED WATER QUALITY MONITORING PLATFORM...
  • Page 2 Telephone: 800 897 4151 (USA), +1 937 767 7241 (Globally) EXO University Monday through Friday, 8:00 AM to 5:00 ET Watch our on-demand training Fax: +1 937 767 9353 (orders) videos for all things EXO! Email: info@ysi.com YSI.com/EXO-University YSI.com Safety Information Please read this entire manual before unpacking, setting up or operating this equipment.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. EXO Platform Overview 5. Sensors and Calibration EXO1 Sonde Overview Sensors Overview EXO1 Sonde Overview Calibration Basic Overview EXO2 Sonde Overview Calibration Report EXO2 Sonde Overview SmartQC Overview EXO3 Sonde Overview Conductivity / Temperature Sensor Overview...
  • Page 4 Sensor Storage and Rehydration 6.12 pH and pH/ORP Sensor Maintenance 6.13 ISE Maintenance and Storage 6.14 Sensor Module Replacement 6.15 EXO Central Wiper Maintenance and Storage 6.16 EXO Field Cable Maintenance and Storage 6.17 Connectors Maintenance and Storage 6.18 Anti-fouling Equipment Maintenance 6.19 Flow Cell Maintenance 6.20...
  • Page 5: Exo Platform Overview

    Section 1 EXO Platform Overview...
  • Page 6: Exo1 Sonde Overview

    Depending upon user-defined settings, the EXO1 will collect data and store it onboard the sonde, transfer the data to a data collection platform (DCP), or relay data directly to a user’s PC, mobile device, or the EXO Handheld.
  • Page 7 EXO1 Sonde 599501-xx Removable Bail 6-Pin Cable 599473 Connector Battery Cover Upper Battery 599052 Compartment Seal O-ring kit 599680 Battery Pressure Transducer Compartment Opening On/Off Magnetic Switch for Power Lower Battery and Bluetooth Compartment Seal Bulkhead Red LED Indicator Sonde Status Sensors Blue LED Indicator Bluetooth...
  • Page 8: Exo1 S

    The EXO1 features the same logging and communication options as the standard EXO1; however, an external power source is required. Power can be supplied via a DCP, the EXO Handheld or EXO GO. See Section 2.6 for a communication overview.
  • Page 9 EXO1 Sonde 577501-xx Removable Bail 6-Pin Cable 599473 Connector On/Off Magnetic Switch for Power and Bluetooth Red LED Indicator Sonde Status Bulkhead Blue LED Indicator Bluetooth Sensors Port Plug 599475 Sensor Guard 599666 Calibration Cup 599786 Guard Weight 626936...
  • Page 10: Exo2 Sonde Overview

    Depending on user-defined settings, the EXO2 will collect data and store it onboard the sonde, transfer the data to a data collection platform (DCP), or relay it to a user’s PC, mobile device, or EXO Handheld via cable, USB connection, or Bluetooth®...
  • Page 11 EXO2 Sonde Removable Bail 599502-xx 599474 Auxiliary Port Battery 6-Pin Cable Compartment Connector Battery Compartment Opening Battery Cap/ Pressure Relief Valve On/Off Magnetic O-ring kit 599681 Switch for Power and Bluetooth Pressure Transducer Opening Bulkhead Sensors Red LED Indicator Sonde Status Port Plug 599475 Blue LED Indicator...
  • Page 12: Exo2

    In addition to six standard sensor ports, the central port (port 7) can accept either a Central Wiper or an additional sensor. The auxiliary port on top of the sonde will allow the user to connect the EXO2 to other EXO sondes, making this our most expandable and flexible sonde.
  • Page 13 EXO2 Sonde Removable Bail 577502-xx 599474 On/Off Magnetic Auxiliary Port Switch for Power and Bluetooth 6-Pin Cable Connector Pressure Transducer Opening Bulkhead Sensors Port Plug 599475 Central Wiper 599090-01 Red LED Indicator Sonde Status Sensor Guard 599667 Blue LED Indicator Bluetooth Calibration Cup 599316...
  • Page 14: Exo3 Sonde Overview

    PC, mobile device, or EXO Handheld via cable, USB connection, or Bluetooth connection. ® Users communicate with the sonde via a field cable to an EXO Handheld, Bluetooth wireless connection to a PC or mobile device, or a USB connection (via communications adapter) to a PC. See Section 2.6 for a communication overview.
  • Page 15 EXO3 Sonde Removable Bail 599503-xx 599474 Battery 6-Pin Cable Compartment Connector Battery Compartment On/Off Magnetic Opening Switch for Power and Bluetooth Battery Cap/ Pressure Relief Valve Pressure Transducer Opening O-ring kit 599681 Bulkhead Sensors Port Plug 599475 Red LED Indicator Sonde Status Central Wiper 599090-01...
  • Page 16: Exo3

    (or a sensor). The EXO3 features the same logging and communication options as the standard EXO3; however, an external power source is required. Power can be supplied via a DCP, the EXO Handheld or EXO GO. See Section 2.6 for a communication overview.
  • Page 17 EXO3 Sonde Removable Bail 577503-xx 599474 On/Off Magnetic Switch for Power and Bluetooth 6-Pin Cable Connector Pressure Transducer Opening Bulkhead Sensors Port Plug 599475 Central Wiper 599090-01 Red LED Indicator Sonde Status Sensor Guard 599667 Blue LED Indicator Bluetooth Calibration Cup 599316...
  • Page 18: Exo Field Cables Overview

    Overview The EXO rugged field cable comes in many different lengths and options to meet the needs of your specific application. Selecting the correct cable length and coupler will ensure the best quality data for your project. For a full list of cable options and precautions...
  • Page 19: Cable Options

    599210-33 EXO 33 meter VENTED Flying Lead Cable Extended Field Cables Precaution There are some limitations for applications using EXO cable lengths greater than 100 meters - whether by extended cables, or by means of cable-coupling. NOTICE: To prevent system problems related to power and signal integrity, make sure you understand the system limitations if you plan to use cable couplers or extended cables.
  • Page 20 EXO Handheld Overview The EXO Handheld is a rugged, microcomputer-based instrument that allows the user to display sonde readings, configure sondes, store and retrieve data, and transfer data from sondes to a computer. Equipped with GPS and an integrated barometer, the Handheld communicates via field cable or USB connector.
  • Page 21 EXO Handheld 599960 Top-side Micro USB Connector (Charging / Data Transfer) Daylight-viewable LCD Screen Handstrap Function Keys (4) Escape Brightness Directional Enter / Return Arrow Keys (4) Power On / Off Integrated Help Menu Wet-mate Cable Connector...
  • Page 22: Exo Go Overview

    EXO sonde and a device ® running Kor Software. EXO GO remains topside while connected to a sonde via the field cable. Pair with a tablet, smartphone, or laptop running Kor to form a complete sampling system.
  • Page 23 EXO GO 577400 Wet-Mate Connector Bail Barometer Back Power Button Bottom Micro USB Connector Front Battery Level Protective Cap Communication Status...
  • Page 24: Operation

    Section 2 Operation...
  • Page 25: Remove Battery Cover

    Sonde Install / Replace EXO1 Batteries EXO1 water quality sondes use two (2) D-cell batteries as a power source. Using alkaline batteries, users can expect approximately 90 days of deployment from a fully loaded sonde that samples once every 15 minutes. However, deployment times may vary greatly depending on water temperature, sampling rate, sensor payload, and brand of battery.
  • Page 26: Replace Battery Cover

    4 Check and service o-rings NOTE: Before replacing the battery cover, check and service the four o-rings. Ensure that the o-rings are not nicked or torn and that there are no contaminants or particles on them or the sealing surfaces inside the battery cover. Clean the o-rings with a lint-free cloth.
  • Page 27 EXO3 sondes use two (2) D-cell batteries as a power source and can expect 60 days of deployment with an average sensor payload while sampling once every 15 minutes. NOTICE: Do not use Ni-Cad or 3.6 V Lithium batteries in the EXO sondes. Pressure in Battery Compartment The EXO2 and EXO3 sondes are equipped with a pressure relief valve to protect against catastrophic battery failure.
  • Page 28 3 Insert new batteries With the positive terminal facing up, insert four (4) new D-cell batteries into the battery well for EXO2 sondes, or two (2) new D-cell batteries for EXO3 sondes. Tilt the sonde horizontally and gently slide the batteries into the sonde to avoid damaging the batteries or the battery terminal.
  • Page 29: Install / Remove Guard Or Cal Cup

    Install / Remove Guard or Cal Cup Sensor guards protect EXO sensors from impact throughout deployment. Users must install the guard prior to data collection. The calibration cup (cal cup) is used for storage and calibration. NOTE: We recommend using two sensor guards and two calibration cups: one for field deployments and a second used exclusively for calibrations.
  • Page 30: Install / Remove Sensors

    Watch Now EXO sensors have identical connectors and identify themselves via onboard firmware; therefore, users can install any probe into any universal sonde port. The exception is the wiper for the EXO2 and EXO3 sondes, which must be installed in the central port 7.
  • Page 31: Sonde States And Led Descriptions

    When Off, the sonde is not powered (no batteries installed, no topside power) and cannot collect data. Users can apply power to the sonde internally, using batteries, or externally with an EXO field cable attached from the topside port to an EXO Handheld, DCP or other approved power source.
  • Page 32: Connection Methods Overview

    Connection Methods Overview Below is a high level overview of various methods you can use to connect and communicate with your EXO sonde: Field Cable, Sonde-to-Handhelds • Lab Calibration • Transfer Data from Sonde • Hardware Setup • Field Sampling...
  • Page 33: Awaken Sonde Activate Bluetooth

    Once power is applied to the sonde, internally or externally, users can awaken their sondes from Sleep state using any of several methods. Primarily, users activate EXO sondes and the Bluetooth connections via a magnetic switch installed in the sonde’s electronics compartment.
  • Page 34: Connect Sonde

    Connect Sonde Bluetooth Before users can communicate wirelessly with their EXO sondes, they must establish a Bluetooth link. All EXO sondes are equipped with Bluetooth. This technology provides a secure, two-way, reliable communication channel with which users can communicate with their sondes above water without cables. Many new computers are equipped with Bluetooth wireless installed internally;...
  • Page 35 Connect Sonde SDI-12: EXO3 and EXO3 Only The EXO3 and EXO3 Sondes includes native SDI-12 output for use with flying lead cables for a direct interface into 3rd party DCP systems. A communication adapter is NOT required for EXO3 and EXO3 SDI-12 communication.
  • Page 36: Communication Adapters Overview

    Overview The EXO platform now offers expanded communication adapter (comm adapter) options. Below is a high level overview of the comm adapter options available to you. Choosing the right adapter for your application, based on the desired communication protocol, will be a key factor in the success of your project.
  • Page 37 2.11 The USB signal output adapter (USB-SOA) [part #599810] allows users to connect to an EXO sonde over a standard USB connection. Although the USB-SOA is rugged and water resistant, users should protect its connectors with the included cap when not in use.
  • Page 38 Max Net Current Draw for Systems: • EXO magnetic sensor tool (optional) DCP 7-pin) ~120 mA (@12 VDC) • EXO Flying Lead Field cable [599008-x] Dimensions: L=3.5”, W=3.5”, H=1.5” • (1) Panel mounting bracket (8.9 cm x 8.9 cm x 3.8 cm) •...
  • Page 39: Status Led Indications

    Flashing at 0.1 Hz Low power sleep (Will flash on for 1 second when magnetic switch is activated.) Wiring Have the following ready: • EXO Sonde • DCP 2.0 Adapter • Flying Lead Cable • Desiccant if using Vented Cable •...
  • Page 40 NOTE: The orange wire on the flying lead cable to the sonde it may be necessary to redetect the sonde. This can will not be used when connecting EXO to a Signal Output be done by power cycling the adapter or by using Adapter.
  • Page 41: Output Configuration

    USB Passthrough Mode The 599820 DCP Signal Output Adapter can function in a similar fashion as the 599810 USB communication adapter. After the Signal Output Adapter is wired as shown in the previous configuration, connecting to the USB port on the adapter will allow direct communications with the sonde using Kor Software.
  • Page 42: Sdi-12 Interface

    EXO DCP Signal Output Adapter Programming Basics 1. SDI-12 Interface • General • Extended Commands • Compatible with v1.3 of • SDI-12 ‘Z’ command SDI-12 specification • Supports following standard commands: • ‘!’ Address Query • ‘A’ Change Address • ‘C’...
  • Page 43 Sonde Serial Number Query aZSN! aSN^M^Jnnnnnnnnn^M^J#_ Returns the sonde serial number, "nnnnnnnnn" "^M^J" and "^M^J#_" are protocol framing. Parameter List Query aZPARA! aPARA^M^Jn_nn_nnn_...^M^J#_ Returns the list of parameter codes, "n", "nn", or "nnn" as defined in Section 2.14, corresponding to the data values returned in the M or C commands.
  • Page 44 2.13 RS-232 The EXO DCP Signal Output Adapter (SOA) supports limited RS-232 commands. The SOA supports both SDI-12 and RS-232 communications. The order of the RS-232 parameter output is controlled by the SDI-12 tab on the deployment menu. [ ] indicates argument is optional <i>...
  • Page 45 setdelim [<i>] setperiod [<i>] Changes the SOA/DCP’s delimiter used in the data Sets the period for the data output in RUN mode. The command response. If you do not supply <i>, then the period is set to <i> milliseconds. Minimum value is 250 response is the current value for delimiter.
  • Page 46 Communication Adapters 2.14 SDI-12 The sonde can be connected to an SDI-12 bus using a DCP Signal Output Adapter (SOA). The SOA provides the necessary SDI-12 electrical interface and communicates to the sonde via the topside RS-485 interface. The SOA will automatically recognize when a sonde is connected and retrieve the SDI-12 address and ID from the sonde.
  • Page 47 (Sonde 5-pin, Power 2-pin, • EXO magnetic sensor tool (optional) Modbus 7-pin) Max Net Current Draw for Systems: • EXO Flying Lead Field cable [599008-x] ~120 mA (@12 VDC) • (1) Panel mounting bracket or Vented Flying Lead cable [599210-x] Dimensions: L=3.5”, W=3.5”, H=1.5”...
  • Page 48: Default Settings

    Download the latest version of Kor Software from the YSI Software Downloads panel or din rail mount: page. Disconnect the EXO from Kor before connecting the SOA via USB. With the SOA Modbus powered and connected via USB, click 'Manage Communication Panel Mount Adapters' under the |Instrument and Sensors| tab.
  • Page 49 EXO Modbus Adapter, however we are hand side of the enclosure. Waving the magnet in the EXO unable to provide specific support or configuration settings for sensor tool over the area referenced by the square above, these modules.
  • Page 50 599825 Modbus adapter. Each parameter from the EXO water quality sonde is stored in a different register (or register pair). Also in different registers is status information from the 599825 Modbus adapter and the same command is used to read status.
  • Page 51 General Modbus Information 40,000 Read 40,000 Read Holding Holding Read/Write Description Address Register Read/Write Sample Period: The period in seconds at which the SOA will sample the sonde data Single Reg and update holding registers (value between 0-3600) Force Sample: Write any value here to force the SOA to update holding registers with Write Only Single Reg sonde data allow 15 seconds for values to show up in data registers...
  • Page 52 Registry Configuration This section deals with mapping the water quality parameter types to the respective holding register 129-160. These are the measurement values generated by the water quality sonde. There are two methods to set the parameter map. The preferred method is to use the deployment templates available in any version of Kor.
  • Page 53 Available Parameter Codes The alternative setup method is to write these parameter codes using the SCADA system in the format indicated. The table below is the reference list of all available parameter codes for Read Holding Registers 129-160. Parameter Code Parameter Code Parameter...
  • Page 54: Advanced Configuration

    The first is to write any number into register #3, this will trigger the EXO sonde to wipe the sensors in both directions. 60 seconds should be allocated for the wiping to complete, and the data presented to the Modbus holding registers during the wiping sequence will not be representative of the water quality because of the effects of the wiper passing over the sensors.
  • Page 55 Scaled Integer Range Table Scale Scale Parameter Code Scale High Parameter Code Scale High Temperature, °C 605.35 Chloride, mV -1638.4 1638.35 Temperature, °F 605.35 TSS, mg/L 6553.5 Temperature, K 655.35 TSS, g/L 6.5535 Conductivity, mS/cm 655.35 Chlorophyll, μg/L 655.35 Conductivity, μS/cm 65535 Chlorophyll, RFU 655.35...
  • Page 56: Connect Sonde Flow Cell

    Connect Sonde 2.16 Flow Cell There are two versions of the EXO flow cell: EXO1/EXO1 flow cell [part #599080] and EXO2/EXO2 / EXO3/EXO3 flow cell [599201]. Flow rate through the flow cell is typically between 100 mL and 1 L per minute. Maximum flow rate depends on tubing type, size, and length.
  • Page 57: Daisy Chaining Sonde Expansion

    Auxiliary Port 3 Connect Sondes to SOA-DCP Using a flying lead cable, connect the topmost sonde to an EXO DCP Signal Output Adapter. Install batteries in the sonde furthest from the DCP adapter first. Then install 6-Pin batteries in the next sonde furthest from the adapter and then the sonde closest to Cable the adapter if there are three sondes attached.
  • Page 58: Sonde Clamping / Mooring Long-Term Monitoring

    In long-term monitoring applications, where the sonde will be left unattended for long periods of time, it is critical that you properly mount and protect your EXO sonde. This will ensure you receive quality data and that your instrument is not lost in a flood or other natural event.
  • Page 59 Horizontal Deployment Tube In shallow water applications it is possible to deploy your EXO sonde horizontally. However, care must be taken that the sensors stay submerged and hydrated. This configuration has inherent risks such as sediment build up and is somewhat susceptible to flooding events even when properly fixed in place.
  • Page 60 Sonde Clamping Guide Great care should be taken when securing an EXO sonde to other objects. The preference is to deploy the sonde inside of a PVC pipe without clamps as described previously. However, if clamping is desired, the sonde should never be mounted directly to a mooring line, steel cable or piling as the pressure from a band clamp will deform the sonde and potentially cause leaks.
  • Page 61: Kor Software

    Section 3 Kor Software...
  • Page 62: Introduction

    Kor Software Interfacing with Kor Software Watch Videos Now Introduction Kor Software and drivers require permissions for successful installation. Administrative privileges may be necessary for a business or networked PC. System Requirements Supported 32 bit (x86) and 64 bit (x64) Microsoft Operating Systems: •...
  • Page 63: Installation

    Kor Software is supplied with all EXO Sondes on a USB flash drive. Installation will require administrative privileges. NOTE: It is important to install Kor Software prior to connecting EXO hardware, as the required drivers are installed along with the software.
  • Page 64: Instrument Connection Panel

    Wired Connection: There are a few ways to establish a wired connection to an EXO Sonde. The most common method involves using a USB Signal Output Adapter (SOA) which plugs into the sonde directly. Alternatively, one can use the EXO Handheld or EXO GO which connects to the sonde via a field cable and connects to the computer via a USB cable.
  • Page 65: Wireless Connection

    Wireless Connection: Every EXO Sonde includes a built-in Bluetooth chip which allows for wireless communication with a computer or mobile device that has Bluetooth capabilities. This is extremely convenient for calibration and sampling at the surface level. However, the Bluetooth communication is severed when the sonde is submerged under water.
  • Page 66: Home Screen

    Live Data screen or downloaded from the EXO Sonde or EXO Handheld. Calibrate Sensors – Navigates to the Calibration screen with a list of available sensors to calibrate. An EXO must be connected to perform a calibration.
  • Page 67: Status Bar

    Users may choose to hide the ribbon from view or keep it open as they navigate the software. Status Bar The status bar displays important information about the connected EXO Sonde. • Instrument Serial Number • Averaging Mode – Select from drop-down list •...
  • Page 68: File Menu

    Users can adjust general settings related to the software as well as parameter specific settings. It is important to note that these settings are saved locally and only pertain to the software itself. These settings are not pushed to any EXO devices nor are they carried over to instances of Kor Software installed on other computers.
  • Page 69 FILE EXPORT • CSV Delimiting Character – Select from drop-down list The delimiting character represents a boundary and acts to separate data in a CSV file. The default option is a comma ‘,’ but some users may prefer a period ‘.’ or Tab as the delimiter. •...
  • Page 70: Parameter Settings

    Parameter Settings Parameter-specific display preferences are found in the Settings menu. This is where users can enable or disable parameters and select the units of measure for display in Live Data view and Recorded Data view. Note that these settings are saved locally to Kor Software and do not change sensor hardware settings.
  • Page 71 Display Settings Parameter Unit Dissolved Oxygen % Sat mg/L Local DO % CB % RTB fDOM fDOM Decimal Degrees NH4+ -N (Ammonium) mg/L NH3 (Ammonia) mg/L NO3 -N (Nitrate) mg/L Cl- (Chloride) mg/L PAR Channel 1 µmol·s-1·m-2 (requires user input) PAR Channel 2 µmol·s-1·m-2 (requires user input) Rhodamine WT...
  • Page 72 Kor Software Calibration Menu The calibration menu is where users calibrate EXO sensors, view calibration records, and set calibration reminders. This section will explain the calibration options and settings. Information related to calibration methods for a specific parameter calibration can be...
  • Page 73: Export To Csv

    Export to CSV Select this to save in a file format which can be opened in a spreadsheet (such as Excel). Export to XML Select this to save in file format which can be imported by another instance of Kor Software. Print Records Select this to print a calibration report for any record shown in the Calibration Records Panel.
  • Page 74 The deployment menu is where users setup the sonde for unattended logging. The sonde log status and deployment information is displayed in the main window. Additionally, a ribbon menu includes options to create, edit, start, and stop a deployment. An EXO must be connected to view its settings and start a deployment.
  • Page 75 BASIC DEPLOYMENT SETTINGS: Deployment Template Name – the name the template will be saved as Logging Interval Time – how frequently the sonde will log data File Name Prefix – the file name under which the logged data will be saved Site Name –...
  • Page 76 NOTE: This section is only applicable if the sonde will be communicating to an external device via SDI-12, RS-232, or Modbus protocol. SDI-12 Address – address of the EXO Sonde Available SDI-12 Parameters – all parameters available to select and organize Section 2.14...
  • Page 77 ADVANCED: There are several advanced settings which are optional for the deployment. Logging Mode: Normal – The sonde will log readings based on the normal interval time specified in the BASIC settings. Sample and Hold – This is designed to ensure that the data the sonde logs internally matches the data sent to a DCP. Burst –...
  • Page 78: Create New Site

    The site photo must be a 24-bit BMP file no larger than 240 pixels wide by 260 pixels tall. Manage Sites Access a local site database to view, modify, or delete existing sites. This also allows users to import existing sites from an EXO Handheld.
  • Page 79: Live & Recorded Data

    Live Data The Live Data screen display readings from a connected EXO Sonde. There are three options for viewing data on this screen: DASHBOARD – The default, grid view of enabled parameter values which are refreshed at the specified time interval.
  • Page 80: Graph Configuration

    Clear All Graphs Clears data from any open graphs. Start Wiping Activates the wiper on an EXO Sonde. Graph Configuration Graph Configuration Add up to ten graphs with either Time or Depth on the x-axis. Populate the left and/or right y-axis with the parameter and unit to be graphed, and customize the graph colors.
  • Page 81: Recorded Data Menu

    Recorded Data Menu The Recorded Data menu displays data files that have been logged in the software and/or downloaded from the EXO Sonde’s internal memory. Users must first select the file(s) in the Search menu before data are displayed. Data can be viewed in Table or Graph view.
  • Page 82 Table Configuration Table Configuration Change parameter order and toggle metadata columns such as File Name, Site Name, User ID, and Fault Code. Changes will apply to the data in Kor and exported data.
  • Page 83: Instruments And Sensors

    Logged data files can be manually downloaded from the sonde or handheld. The QC Score of each EXO device is available to view. Simply click on the specific device to view details related to its QC Score (See Section 5.4...
  • Page 84 Section 4 Kor Mobile...
  • Page 85: Kor Mobile

    Kor Mobile Installing Kor Kor is a mobile application designed to interface with EXO Sondes and conveniently access water quality data. Kor Mobile is available on all Android phones and tablets and can be downloaded from the Google Play Store.
  • Page 86: Setup

    Kor Mobile Setup User Login On first launch of the Kor mobile app, users will be asked to allow Kor to access the location data (GPS) from the device. YSI recommends enabling location while using this app. NOTE: Allowing this will enable the GPS coordinates to be automatically entered when creating a Site, and calculating the distance from current location to a Site in the Manage Site list.
  • Page 87 A pop-up message will ask if the user would like to enable the option to always search and connect for the last instrument used. A pop-up message invites the user to set their preferences for the app. • “Set preferences now” takes the user to the App Settings screen.
  • Page 88: App Settings

    Kor Mobile App Settings General Tab Adjust general settings for the app. • Connect Automatically enables the app to search and connect to the last instrument used. • File Export, CSV Delimiting Character (See #2) • File Export, CSV Export Type (See #3) Users can select from three options for CSV Delimiter for file exports: •...
  • Page 89: Parameter Tab

    Parameter Tab Adjust parameter settings for the app. • Turn on/off parameter view • Choose preferred units Select the parameter to modify settings for. Depth shown as an example here. Select Units options, which are unique for each parameter. Login Tab Adjust settings for whether or not the app will require User Login.
  • Page 90: Navigation

    Menu when connected to an EXO GO • Device Type and Serial Number are displayed • Battery Level and SmartQC are displayed • Deployment and internal storage are not displayed for EXO GO (not supported) Menu when connected to an EXO Sonde •...
  • Page 91: Connection

    Kor Mobile Connection Offline Access When no instrument is connected, this page is shown. Users still have access to five shortcuts: • Manage Site • View Recorded Data • Create a New Site • App Settings • Contact YSI Tap the Scan button to begin scanning and connecting to instruments via Bluetooth.
  • Page 92 NOTE: It may take up to 30 seconds to connect. NOTE: Keep the mobile device close to the instrument during the connection process. If Kor Mobile fails to connect after several minutes, close and reopen the app and/or tap Rescan. Once connected, the Live Data screen will appear.
  • Page 93: Live Data

    Kor Mobile Live Data The Live Data screen displays all the data from the connected instrument, if enabled in the App Settings, in the selected units. Live Data Screen Unique menu for the Live Data screen View or change the connected instrument Change the interval for sampling rate Change the site location Live data display...
  • Page 94 Connected Instrument Tap the name of the instrument in the upper-left-hand corner (in this example: EXO GO) to view the Connected screen. View information about the connected instrument including: • Instrument name • Serial number • Instrument ID • Firmware version •...
  • Page 95 Site Tap the Map icon to view the Site List. NOTE: Sites must be created in Sites Management to be available here. Select the desired site from the list by tapping its name. Tap Cancel to return to the Live Data screen. Record Tap the Record icon to begin recording data.
  • Page 96: Data Point

    Tap the Wiper icon to initiate one wipe cycle. NOTE: This button is only available when a Central Wiper is installed on an EXO2, EXO2 , EXO, or EXO3 Data Point Tap the Snapshot icon to record a single data point for selected parameters.
  • Page 97: Data Management

    Manage Recorded Data Select Manage Recorded Data to see a list of all the data files that have been recorded from the dashboard or imported from an EXO Sonde. These are all CSV files that can be shared via email.
  • Page 98 In List View, tap on the three-dot menu in the upper-right-hand corner to see three actions: • Grid View • Transfer • Reorder Select Grid View to change the view data in a table organized by the Date, Time, Site, and parameter(s) collected. NOTE: Tap the three-dot menu again to change back to List View.
  • Page 99 Select Reorder to change the order of the parameters both in List View and Grid View. Tap and hold the icon next to the parameter name to drag the parameters into the desired order. Tap Save to confirm the new parameter order. Select Transfer to access the Transfer screen.
  • Page 100 Import Sonde Data NOTE: A sonde must be connected in order to perform this function. Select Import Sonde Data from the Data Management Menu to see a list of the files available on the sonde. NOTE: These files are only being displayed and have not yet been imported.
  • Page 101 Transfer .bin File Select Transfer .bin File from the Data Management Menu to transfer a BIN file instead of a CSV file. This will open a list of available BIN files. NOTE: A ".bin" file, or binary file, is the raw data from the instrument that can be viewed in Kor.
  • Page 102: Site Management

    Kor Mobile Site Management The Site Management Menu can be used to create new sites and manage existing sites, with the ability to add GPS coordinates, site phots, and descriptions. Site Management Menu Manage Site Create Site Manage Site Select Manage Site to see a list of all the sites stored on the mobile device.
  • Page 103 Users are able to Delete or Edit existing sites using the two buttons at the bottom of the screen. • Editing the Site will allow any of the information to be changed. When tapping the photo for the Site, there are three options: •...
  • Page 104: Create Site

    Changes will be reflected in the List View and Site View. NOTE: If the site name is edited, a new site will be created, and the original site will remain in the site list. Create Site Select Create Site to add a new Site. Enter a Site Name.
  • Page 105: Deployment

    Kor Mobile Deployment You can configure your EXO for unattended deployment by setting the logging interval, parameter information, data averaging, and more. You can also create templates to be applied to multiple instruments to streamline your workflow. Deployment Menu Sonde Template — If a template is already stored on the sonde, some details will be listed such as name, interval, and site Deployment Status —...
  • Page 106 • Selecting Start Deployment gives you three options: • Now — Starts the deployment immediately • Next Interval — The deployment will start one interval from the current time • Custom — Allows the user to select a Date and Time to start the deployment Deployment Status —...
  • Page 107 Create a New Deployment Template A new deployment template can be created by selecting the blue button on the main Deployment Menu. When creating a new deployment template, there are four options: • Blank Template • Using 15 mins Default Template •...
  • Page 108 SDI-12 Output (Optional) • If using SDI-12 Output, users must enter the SDI-12 Address • Select the Parameters from the pop-up menu NOTE: The SDI-12 Addresses and parameter list and order entered in the template must match those entered in your data logger's settings. Advanced (Optional) •...
  • Page 109 The new deployment template can be saved using the button at the bottom of the screen. Once saved, a pop-up will ask if the new template should be applied to the sonde. NOTE: If Cancel is selected, the file will be saved. If the template is applied, the template will be sent to the sonde and the user will be asked if they want to start the deployment.
  • Page 110: Calibration

    Kor Mobile 4.10 Calibration You can calibrate your EXO sensors using Kor Mobile, as well as view calibration records and sensor reminders. Calibration Menu Calibrate Sensor Calibration Records Sensor Reminders Calibrate Sensor Select Calibrate Sensor to see a list of all connected sensors and devices that can be calibrated.
  • Page 111 The name of the sensor, port number, and serial number will be displayed at the top of the screen. Each parameter option for the sensor will also be shown with the unit and last calibration date. You can choose to perform a Factory Reset or Calibrate the selected parameter.
  • Page 112 The Help screen shows the tips to calibrate the selected parameter. The Advanced Options allow you to add data fields for Standards Type, Manufacturer, and Lot Number for each step of the calibration process.
  • Page 113 Use the check boxes to select any you would like to add and click Apply. Back on the main Calibration menu, wait for the sensor readings to stabilize and click Apply. A Preview will be displayed. From the Calibration Point Preview, you can: •...
  • Page 114: Calibration Records

    When you complete the calibration, a final Preview will be displayed. This will include all sensor information as well as the calibration points that were added. You can add any calibration notes. Select View Record to complete the calibration and review the Calibration Record for this sensor.
  • Page 115 Tap on the Filter icon to filter the records by Date, Sensor Type, or Parameter. Tap on the Transfer icon to email the selected Calibration Record.
  • Page 116 Sensor Reminders Select Sensor Reminders to see a list of all supported sensor types. NOTE: All reminders are “off” by default and need to be enabled to work. Select a sensor to enable a reminder and set a reminder time. NOTE: Reminders are set to 90 days by default, but can be changed to any value between 1 and 729 days.
  • Page 117: Instrument Settings

    QC Scores, port numbers, and serial numbers. Select an instrument or sensor to view more details. On the EXO GO details screen, you will see: • Battery Level • Serial Number • Firmware Version •...
  • Page 118 Tap the Settings to adjust additional settings: • Custom ID • GPS • Auto Shutoff time Press Apply to save changes. On the Sonde details screen, you will see: • Battery Level • Used Internal Storage Level • Serial Number •...
  • Page 119 Tap the Settings to adjust additional settings: • Custom ID • Date and Time • Averaging Mode Press Apply to save changes. On a Sensor details screen, you will see: • Port Number • Serial Number • Firmware Version • QC Score •...
  • Page 120 Some sensors have additional settings: • Conductivity/Temperature Sensor has options for the Reference Temperature, Cell Constant, TDS Conversion Factor, and Specific Conductance Temperature Coefficient • Dissolved Oxygen Sensor has options for the Sensor Cap Settings. This shows all K Values, DO Gain, and Cap Serial Number. These can be updated when a new Sensor Cap is installed.
  • Page 121: Contact Ysi

    Kor Mobile 4.12 Contact YSI Contact YSI Call YSI Support - Opens the phone app with the YSI phone number Email YSI Support - opens the phone email client with the support email address filled in...
  • Page 122: Sensors And Calibration

    Section 5 Sensors & Calibration...
  • Page 123: Data Filtering

    EXO sondes collect data from the EXO sensors and are able to output data at rates up to 4 Hz.
  • Page 124: Adaptive Filtering

    Response times for EXO sensors are based on laboratory testing. This testing, though stringent, cannot mimic the actual response times in the field due to the wide variety of use cases. To characterize an EXO sensor’s response time, a step change in the sensor’s primary output parameter is applied, and the time to reach 63% of the final stimulus value is recorded.
  • Page 125: Basic Overview

    Watch Videos Now Basic Overview EXO sensors (except temperature) require periodic calibration to assure high performance. Calibration procedures follow the same basic steps with slight variations for particular parameters. Calibration procedures described in this section will mainly focus on using Kor Software. Refer to Section 7.4...
  • Page 126 Factory Reset Calibration A Factory Reset Calibration can be performed to return the sensor gain and offset to factory specifications. Performing a Factory Reset Calibration will allow the user to start a calibration with default sensor metadata values. A new calibration of the sensor will then help with additional troubleshooting, if needed.
  • Page 127: Calibration Report

    QC Score. Calibration Reports are saved in the Kor Software database on the computer or the EXO Handheld that was used during calibration (not on the sonde or the sensors). All reports can be accessed and viewed through the Calibration Records menu in Kor Software.
  • Page 128 Every EXO sensor has an embedded microprocessor which, along with calibration metadata, enables EXO to warn users of calibration errors or when a sensor is unable to be calibrated due to age, fouling, or damage, for example. For any sensor a QC Score is presented as red, yellow, or green: A green SmartQC Score means the sensor is calibrated properly and all parameters used to assess its performance state are within factory-defined limits.
  • Page 129: Sensor Overview

    Sensor Overview The EXO combination conductivity and temperature sensor should be installed in nearly all sonde applications. Not only will this sensor provide the most accurate and fastest response temperature data, but it will also provide the best data for the use in temperature compensation for the other EXO probes.
  • Page 130: Temperature Thermistor

    EXO sensors reference the C/T probe for temperature compensation. To display and log temperature, a C/T probe must be installed in an EXO sonde. Thermistor readings are logged in the sonde’s raw data–viewable in Kor Software–...
  • Page 131 1 mS/cm (1000 μS/cm) for greatest stability. Pour conductivity standard into a clean and dry or pre-rinsed EXO calibration cup. YSI recommends filling the calibration cup up to the second marked line to ensure the standard is above the vent holes on the conductivity sensor. Immerse the probe end of the sonde into the solution, gently rotate and/or move the sonde up and down to remove any bubbles from the conductivity cell.
  • Page 132 An ideal cell constant is dependent upon the type of conductivity sensor; there are two types of conductivity sensors (wiped and non-wiped) on the EXO platform: • For non-wiped conductivity [599870], the ideal cell constant = 5.1/cm ± 10% The CT sensor can be evaluated in air when it is new, and as the sensor ages this may be a useful tool for assessing its drift from factory performance.
  • Page 133 Biofilms, barnacles, and algal growth are common culprits of poor data quality, clogging up conductivity cells and coating sensor optics. While the EXO Central Wiper can mechanically remove biofouling from other sensors to maintain data integrity over long deployment periods, in particularly high fouling environments the EXO Wiped C/T sensor provides superior conductivity data by avoiding stagnant readings and reducing the impact of micro-environments.
  • Page 134: Sensor Installation

    Sensor Installation EXO sensors can be installed in any port, however for optimal cleaning avoid installing the Wiped C/T sensor as the first or last sensor in a group. If two conductivity sensors are installed in a single sonde, the temperature from the sensor with the lower port will be used for temperature compensation of other parameters.
  • Page 135 An ideal cell constant is dependent upon the type of conductivity sensor; there are two types of conductivity sensors (wiped and non-wiped) on the EXO platform: • For wiped conductivity [599827], the ideal cell constant = 0.469/cm ± 0.05 Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: Gain is within acceptable limits.
  • Page 136 “zeros” the sensor with respect to the local barometric pressure. A change in barometric pressure will result in a zero shift unless the transducer is recalibrated to the new pressure. EXO sondes have intake openings to allow water to act on the strain gauge. The EXO1 and EXO1 intake is located above the label of the sonde.
  • Page 137 Depth and Level 5.10 Calibration NOTE: This calibration option is available only if your sonde is equipped with an integral depth sensor or a vented level sensor. For the calibration, make certain that the depth sensor or vented level sensor is in air and not immersed in any solution. Also, review the basic calibration description in Section 5.2.
  • Page 138 SmartQC for Depth The SmartQC Score for depth and vented level is based upon an expected offset that would be computed by the sensor at the time of calibration. Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: The offset computed during the calibration is within factory specified limits.
  • Page 139: Dissolved Oxygen

    The principle of operation of the EXO Optical Dissolved Oxygen sensor is based on the well-documented concept that dissolved oxygen quenches both the intensity and the lifetime of the luminescence associated with a carefully chosen chemical dye. The EXO DO sensor operates by shining a blue light of the proper wavelength on this luminescent dye which is immobilized in a matrix and formed into a disk.
  • Page 140 Variables that Affect DO Measurements Variables that could affect dissolved oxygen measurements include temperature, salinity, and barometric pressure. Temperature and salinity are compensated for during instrument calibration and field use with real-time readings from the EXO Conductivity/ Temperature sensor and/or instrument software settings.
  • Page 141 In the Calibrate menu, select ODO, then select ODO % Sat or ODO % local (% CB or % RTB.) Calibrating in ODO % Sat automatically calibrates ODO mg/L and ODO % local and vice versa. NOTE: ODO % RTB is only available when the sonde is connected to the EXO Handheld or EXO GO. The barometric pressure will automatically populate in the calibration window.
  • Page 142 NOTE: Carrying out DO mg/L calibrations at values outside the range of ±10 % of air saturation is likely to compromise the accuracy specification of the EXO sensor. For highest accuracy, calibrate in % saturation. Rinse the sonde and sensor(s) in tap or purified water and dry.
  • Page 143 Dissolved Oxygen (DO) calculations are derived from polynomial equations based on the K1-K7 coefficients that are provided with each new EXO Dissolved Oxygen sensor cap. Each sensor has been thoroughly tested during the production process to generate these unique calibration coefficients.
  • Page 144 Red: The gain or zero-DO calibration coefficient has drifted significantly from the factory specified limits and the sensor may not report correct values. If a user calibration results in a red QC Score, perform the following actions: 1. Thoroughly clean the sensor and ensure that all debris is removed from the surfaces of the sensor. Occasionally, thin films from sediment may affix to the lens cap surface and will affect readings and calibrations.
  • Page 145 5.13 Sensor Overview The EXO fDOM (Fluorescent Dissolved Organic Matter) sensor detects the fluorescent component of DOM (Dissolved Organic Matter) when exposed to near-ultraviolet (UV) light. Colored Dissolved Organic Matter Users might wish to quantify colored dissolved organic matter (CDOM) in order to determine the amount of light which is absorbed by stained water and thus is not available for photosynthesis.
  • Page 146: Calibration Standards

    Remember that only trained personnel should handle chemicals. Preparation Use the following procedure to prepare a 300 μg/L solution of quinine sulfate (300 QSU) that can be used to calibrate the EXO fDOM sensor for field use: 1. Purchase solid quinine sulfate dihydrate (CAS# 6119-70-6) with a high purity (>99%).
  • Page 147 fDOM 5.15 Calibration Review the basic calibration description in Section 5.2. NOTE: User calibration is required to ensure the sensor is performing optimally. LED degradation over time is natural, but is corrected with this procedure. Before calibrating, be certain that the sensing window is clean (cleaning instructions, Section 6.6).
  • Page 148 SmartQC for fDOM Sensors (RFU or QSU) The SmartQC Score for fDOM is based on a gain factor and an offset factor. Both of these values may change as the sensor and the optics age. Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: Gain and offset are within acceptable limits.
  • Page 149: Sensors Overview

    ISEs: Ammonium, Nitrate, & Chloride 5.16 Sensors Overview NOTE: Ammonium, nitrate, and chloride ion-selective electrodes (ISEs) should be used in freshwater applications only at depths of less than 55 feet (17 meters) and less than 25 psi. The ammonium and nitrate sensors use a silver/silver chloride wire electrode in a custom filling solution. The internal solution is separated from the sample medium by a polymer membrane, which selectively interacts with ammonium or nitrate ions.
  • Page 150 ISEs are intended for sampling purposes and must be calibrated frequently due to sensor drift. • ISEs can be used in long-term deployments for qualitative trends. Use with an EXO wiper will deform the brush over time and may require more frequent brush replacement. The brush deformation may intensify with the fouling present in the monitored environment.
  • Page 151 Calibration This procedure calibrates the EXO Ammonium, Chloride, or Nitrate sensor. The sensors can be calibrated to one, two or three points. The 3-point calibration method assures maximum accuracy when the temperature of the media to be monitored cannot be anticipated;...
  • Page 152 Soaking EXO Ammonium Sensors are shipped in a dry container. Before initial use the sensor membrane needs to be soaked in the ammonium standard solution that is closest in value to your expected measurement range [part #003841, #003842, or #003843].
  • Page 153 Ammonium 3-point NOTICE: Do not expose electrodes to high-conductivity solutions. Exposure will reduce data quality and response of the sensors. During calibration of other sensors, remove the ISEs or cover them with a rubber shipping cap to avoid exposing them to conductivity standards, Zobell solution, pH buffer, or any solution with significant conductivity. In the Calibrate menu, select Ammonium, then select Calibrate.
  • Page 154: Sensor Drift

    Remember that only trained personnel should handle hazardous chemicals Preparation Use the following procedure to prepare 10 and 1000 mg/L chloride reagents for the EXO Chloride sensor. (Nitrate and Ammonium standards can be purchased from YSI or other laboratory supply companies.) 1000 mg/L Standard Purchase solid sodium chloride from a supplier.
  • Page 155 Many users find it useful to swap ISEs after 30 days of deployment with freshly calibrated sensors. On the EXO platform the calibration is retained inside the sensor, so they can be calibrated in the lab and installed in the field.
  • Page 156 SmartQC for ISEs ISE algorithms are derived from three independent coefficients (called J, S, and A) as well as mV, temperature and salinity. J, S, and A are the calibrated coefficients and S specifically is concentration of the analyte being detected by the sensor. S is the coefficient whose gain factor is the basis of SmartQC for these sensors.
  • Page 157 NitraLED UV Nitrate 5.18 Sensor Overview The EXO NitraLED UV Nitrate Sensor measures nitrate as nitrogen while compensating for interferences from organic matter in freshwater environments. Refer to the NitraLED Handbook for a complete guide on sensor operation and best practices.
  • Page 158: Theory Of Operation

    Theory of Operation UV-nitrate sensors have not supplanted traditional analytical methods such as ion-chromatography for quantitative analysis, but have become common practice as an invaluable screening method due to their inherent advantages of being chemical-free and field deployable. Traditional UV photometers use lamps such as xenon, mercury or deuterium which suffer from high power requirements and remain bulky and expensive.
  • Page 159 The correction is said to be loosely-adapted because this method calls for a nitrate absorbance of 220 nm, but YSI uses 235 nm, and also because this method calls for the filtration of suspended particles (turbidity) but YSI measures turbidity via YSI’s EXO Turbidity sensor and applies an internal correction since filtration is impractical for an in situ measurement for most monitoring stations.
  • Page 160 NitraLED Handbook more information. CAUTION: EXO NitraLED emits UV-B/C radiation within the optical cell. Personal protective equipment (PPE) for UV light, including safety glasses and gloves, should be worn when interfacing with a powered sensor. STEP 1: INSTALL CENTRAL WIPER The Central Wiper must be removed from the bulkhead to install the new spacer o-ring.
  • Page 161 STEP 3: INSTALL SENSOR BRACE Slide the Sensor Brace, from the NitraLED Sensor Kit [608090] or Sensor Brace Kit [608609], over the sensors. The top of the Sensor Brace should line up with the seam on the brush guard. NOTE: Make sure the Sensor Brace is seated approximately 0.5 cm below the optical sensor faces.
  • Page 162: Calibration Tips

    NO3-N in Type I water may be used as an alternative to YSI standards. While other standards may be used, such solutions may have interfering species that could result in a calibration that is not optimal for the EXO NitraLED sensor.
  • Page 163 3. Pour the raw site sample into a beaker or container and use a stir bar and stir plate to keep the sediment suspended. 4. With the probe guard installed, insert the EXO sensors in the raw sample and wait for readings to stabilize. Because this raw sample may have significant debris, readings might be continuously moving;...
  • Page 164 SmartQC for NitraLED Sensors The SmartQC Score for NitraLED is based on a gain factor and an offset factor. Both of these values may change as the sensor and the optics age. Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: Gain and offset are within acceptable limits.
  • Page 165 pH and ORP 5.20 Sensor Overview Users can choose between a pH sensor or a combination pH/ORP sensor to measure these parameters. pH describes the acid and base characteristics of water. A pH of 7.0 is neutral; values below 7 are acidic; values above 7 are alkaline. ORP designates the oxidizing-reducing potential of a water sample and is useful for water which contains a high concentration of redox-active species, such as the salts of many metals and strong oxidizing (chlorine) and reducing (sulfite ion) agents.
  • Page 166: Signal Quality

    Electrodes EXO measures pH with two electrodes combined in the same probe: one for hydrogen ions and one as a reference. The sensor is a glass bulb filled with a solution of stable pH (usually 7) and the inside of the glass surface experiences constant binding of H + ions.
  • Page 167 5.21 Calibration 1-point Select the 1-point option to calibrate the pH probe using one calibration standard. NOTE: While a 1-point pH calibration is possible, YSI recommends using a 2 or 3-point calibration for greater accuracy. 2-point Select the 2-point option to calibrate the pH probe using two calibration standards. In this procedure, the pH sensor is calibrated with a pH 7 buffer and a pH 10 or pH 4 buffer depending upon your environmental water.
  • Page 168 SmartQC for pH Sensors The SmartQC Score for pH is based on both a gain and an offset. The offset calculation is based on the millivolts recorded during sensor calibration. Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: Gain and offset are within acceptable limits.
  • Page 169 Additional QC Information for pH The calibration worksheet provides information that can be useful for assessing performance of the pH modules with age. Two useful parameters shown there are the “delta slope” and the “mV per decade.” In general the practice is to not use a pH module where the delta slope is less than 165 mV, and the mV per decade deviates by more than 5 units from an ideal of 59.16.
  • Page 170 How can one apply this information for QC? First, use the temperature compensation to determine what the slope should be for the calibration that was just performed. A calibration performed at 23°C, for instance, should have a slope of (296/298)*59.16, or 58.76. The calibration worksheet shows “mV per decade”...
  • Page 171 The oxidation reduction potential value shows an inverse relationship with temperature. This effect must be accounted for when calibrating the EXO ORP sensor with an ORP standard. YSI recommends using Zobell solution for calibration, but other standards may be used. Refer to the table included with your ORP standard instructions for the mV value that corresponds to the temperature...
  • Page 172 SmartQC for ORP Sensors The SmartQC Score for ORP is based on an offset from 0 mV. Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: Offset is within acceptable limits. Calibration was performed successfully and results are within factory specified limits.
  • Page 173 Rhodamine 5.23 Sensor Overview Rhodamine WT is a fluorescent dye commonly used for time of travel and tracer studies, which provide insight into the hydrological behavior of water bodies. The Rhodamine sensor is a dual-LED fluorescence sensor, featuring one LED for low concentrations and one for higher concentrations.
  • Page 174 μg/L. The sensor can also report in units ppb and RFU. An EXO Conductivity/Temperature sensor must be installed. The effect of temperature on the Rhodamine sensor electronics and the fluorescence of Rhodamine WT can be significant; however, the combination of these two factors is automatically taken into account by the sensor firmware providing temperature compensated readings.
  • Page 175 STEP 2: Prepare a 25 µg/L standard solution* of Rhodamine WT Depending on the amount (volume) of calibration solution you want to produce, use the following instructions: For 1,000 mL of 25 µg/L solution: Transfer 0.2 mL or 200 µL of the 125 mg/L Rhodamine WT base solution into a 1,000 mL volumetric flask. Fill the flask to the 1,000 mL volumetric mark with deionized or distilled water and mix well to produce a standard solution that is 25 µg/L of Rhodamine WT.
  • Page 176 Before proceeding with the calibration • make sure all sensors, guards, and calibration cups are clean • make sure an EXO Conductivity/Temperature sensor is installed STEP 1: Calibration Point #1 at 0 µg/L Place the sonde into a clean calibration cup containing distilled or deionized water. The software or handheld will show a graph while the sensor is stabilizing.
  • Page 177 SmartQC for Rhodamine Sensors The SmartQC Score for Rhodamine is based on gain factor and an offset factor. Both of these values may change as the sensor and the optics age. Guidance on interpretation of the SmartQC Score for this sensor is as follows: Green: Gain and offset are within acceptable limits.
  • Page 178: Total Algae

    Total Algae 5.25 Sensor Overview The Total Algae (TAL) sensors are dual-channel fluorescence sensors. The “channels” are for chlorophyll and phycocyanin (TAL-PC), or chlorophyll and phycoerythrin (TAL-PE), which are measured in the water. Each sensor thus yields two data sets: for TAL-PC, one results from a blue-emitting LED that excites chlorophyll (chl) molecules, and the second results from an orange excitation beam that excites the phycocyanin (PC) accessory pigment.
  • Page 179 Total Algae Sensor Units The TAL sensors generate data in RFU or µg/L of pigment (chl, PC or PE) units, with RFU as the default. When using either RFU or µg/L, the sensor’s response is highly linear: a reading of 50 of either unit represents twice as much fluorescence detected as a reading of 25, for example, if the temperature is constant.
  • Page 180 The first option was designed for users that were accustomed to this unit in our legacy 6-Series sondes, and who want their EXO data to tightly match the cells/mL data generated by these older sondes. The algorithm applied to “match” these outputs across sonde platforms is proprietary, and it is highly advisable that when using this unit at some point users actually test the validity of the outputs for their applications.
  • Page 181 Use of this table requires a temperature measurement, and the best way to do this is to have an EXO conductivity/temperature sensor on the sonde bulkhead during calibration. In general fluorescence is inversely related with temperature, and this effect will be accounted for to optimize the accuracy of your calibration by using the following table.
  • Page 182 Step 1: Prepare Rhodamine WT Dye Solution Purchase Rhodamine WT as a 2.5% solution to follow the procedure below. Note that there are many types of Rhodamine— make sure Rhodamine WT is selected. If a 2.5% solution cannot be obtained commercially, prepare it from a solid or liquid solution to a 2.5% final concentration, or adjust the dilutions below accordingly.
  • Page 183 Step 3a: Calibration at zero The zero point is always calibrated first. Place the sonde, loaded with a TAL and an EXO temperature sensor, into a clean calibration cup containing clean water. It is not required that this be deionized or even distilled water; it must be free of any particles that might fluoresce and interfere with the calibration process.
  • Page 184 Re-zeroing the TAL Sensor Oftentimes users will perform a “cal check” in water to assess if the sensor has drifted beyond an acceptable limit defined by that user. When drift has occurred ideally a two-point calibration should be performed. However, when there isn’t an opportunity to prepare the rhodamine solutions and perform a two-point calibration, or if users are mainly interested in accuracy at the lower end of the sensor’s range, they may choose to re-zero the sensor.
  • Page 185 Turbidity 5.27 Sensor Overview Turbidity is the indirect measurement of the suspended solid concentration in water and is typically determined by shining a light beam into the sample solution and then measuring the light that is scattered off of the suspended particles. Turbidity is an important water quality parameter and is a fundamental tool for monitoring environmental changes due to events like weather-induced runoff or illicit discharges.
  • Page 186: Turbidity Standards

    This method calls for this sensor type to report values in formazin nephelometric units (FNU), which is the default calibration unit for the EXO sensor. Users are able to change calibration units to nephelometric turbidity units (NTU). The EXO Turbidity sensor values in FNU and NTU units are equivalent; changing the reported unit does not alter the measured value.
  • Page 187 Calibration Practices The following section describes in detail how to calibrate EXO turbidity sensors. Before calibrating, be certain that the probe is very clean and free of debris. Solid particles, particularly those carried over from past deployments, will contaminate the standards and can cause either calibration errors and thereby errors in measurement.
  • Page 188 5.28 Calibration Tools and Practices YSI Turbidity standards that are based upon AMCO-AEPA polymer are the basis of SmartQC and EXO turbidity sensor specifications, and therefore should be used for turbidity sensor calibration. Gallon bottles are available as follows: Description Item No.
  • Page 189: Performing A 2-Point Calibration

    Performing a 2-point calibration Pour the 0 FNU standard (or deionized or distilled water) into the clean calibration cup and immerse the probe end of the sonde into the standard. The sonde should have the sonde guard on, and if one will deploy with the copper anti-fouling guard that is likewise the guard that should be used during calibration.
  • Page 190 4. If a three point calibration was performed with YSI’s polymer standards, make sure the correct values from the bottles were entered during calibration. For example, make sure the EXO values, and not the 6-Series values, were entered from the label.
  • Page 191: Total Suspended Solids

    5.29 Calculation Please follow the process below to calculate TSS. NOTE: This process cannot be performed via the EXO handheld. It must be done using Kor Software. Step 1 Make sure the turbidity probe is installed in the sonde. Step 2 In Kor Software, connect to the sonde, and navigate to Instrument and Sensors>Turbidity.
  • Page 192 Step 4 The message below will be displayed, asking for confirmation that the settings should be applied. Click Yes. Step 5 A message box appears which states that the coefficients have been successfully applied to the sensor. The coefficients are also displayed. Step 6 TSS values will now be displayed on the Dashboard based on the values entered via Kor and saved to the turbidity probe.
  • Page 193 Step 8 The units to display TSS will need to be activated separately in the EXO handheld. To add the TSS parameter to the handheld, navigate to Handheld> Display>Units>Turbidity>TSS and choose which unit to display. Click “Esc” to return to the live data dashboard. TSS will be displayed.
  • Page 194: Maintenance

    Section 6 Maintenance...
  • Page 195: Sonde Storage

    Sonde EXO Maintenance Watch Videos Now Storage Proper sonde storage helps to ensure proper sonde operation. To keep sondes in their best working order, users must follow these instructions. This section will identify storage as “long-term” or “short-term.” Long-term denotes storage during times of long inactivity (over winter, end of monitoring season, etc.).
  • Page 196: Sonde Maintenance

    Sonde Maintenance Like all precision equipment, EXO sondes work most reliably when users maintain them properly. A proper inspection and cleaning can prevent several issues, including leaks. When performing general maintenance on the sonde, also check this manual’s depth and connector sections.
  • Page 197: Replace Exo1 Sonde Bail

    Sonde Replace EXO1 Sonde Bail Sonde bails provide users with a handle for convenient transport and an attachment point for cable strain reliefs. If an EXO1 bail breaks due to impact or standard wear and tear throughout the life of the sonde, a user can easily replace it. We also recommend attaching the cable’s strain relief mechanism to the bail.
  • Page 198: Replace Exo2 & Exo3 Sonde Bail

    Sonde Replace EXO2 and EXO3 Sonde Bail Sonde bails provide users with a handle for convenient transport and an attachment point for cable strain reliefs. If an EXO2 or EXO3 bail breaks due to impact or standard wear and tear throughout the life of the sonde, a user can easily replace it. We also recommend attaching the cable’s strain relief mechanism to the bail.
  • Page 199: Depth And Level Sensor Maintenance And Storage

    Maintenance and Storage EXO depth and level sensors access the water through small holes (ports) located in the sonde body or bulkhead. Although users cannot access them directly, proper storage and maintenance will help to ensure reliable operation. Depth sensors can be stored dry, in water-saturated air, or submerged in clean water.
  • Page 200: Standard Optical Sensor Maintenance And Storage

    Standard Optical Sensors Maintenance and Storage Standard optical sensors include Turbidity, Total Algae, fDOM, Rhodamine, and NitraLED sensors; these optical sensors are very low maintenance. This section identifies storage as “long-term” or “short-term.” Long-term denotes storage during times of long inactivity (over winter, end of monitoring season, etc.).
  • Page 201 Conductivity / Temperature Sensor Maintenance and Storage EXO Conductivity and Temperature (C/T) sensors require little maintenance or special attention for storage. As much as possible, prevent impact to the sensor’s exposed thermistor. This section will identify storage as “long-term” or “short-term.” Long-term denotes storage during times of long inactivity (over-wintering, end of monitoring season, etc.).
  • Page 202: Dissolved Oxygen Sensor Storage

    Dissolved Oxygen Sensor Storage EXO DO sensors require separate storage instructions from other optical sensors due to their sensing membranes. This section will identify storage as “long-term” or “short-term.” Long-term denotes storage during times of long inactivity (over winter, end of monitoring season, etc.).
  • Page 203: Dissolved Oxygen Sensor Maintenance And Rehydration

    Maintenance and Rehydration EXO optical Dissolved Oxygen (DO) sensors require unique maintenance instructions due to their sensing membranes. Users should routinely perform these steps in order to achieve the highest levels of sensor accuracy. DO sensor caps have a typical life of 12 months.
  • Page 204: Dissolved Oxygen Sensor Cap Replacement

    Sensor Cap Replacement Follow these instructions to replace the sensor cap on an EXO optical Dissolved Oxygen sensor once the previous cap has exhausted its usable life (typically about one year). The DO sensor cap [part #599110-01] is shipped in a humidified container, and should be stored in a 100% humid environment.
  • Page 205 4 Configure sonde for new cap Connect the sonde to Kor and navigate to the Instrument and Sensors tab. Select the DO sensor. In the DO screen, enter the unique membrane cap coefficients found on the instruction sheet shipped with the DO sensor cap. Click Apply Sensor Settings to save the changes.
  • Page 206 pH and pH/ORP Sensors 6.11 Storage and Rehydration pH and pH/ORP sensors have two specific storage requirements: they should not be stored in distilled or deionized water and their reference electrode junction should never dry out. This section will identify storage as “long-term” or “short-term.” Long-term denotes storage during times of long inactivity (over-wintering, end of monitoring season, etc.).
  • Page 207: Ph And Ph/Orp Sensor Maintenance

    pH and pH/ORP Sensors 6.12 Maintenance pH and pH/ORP sensors will require occasional maintenance to clear contamination from the sensing elements. These contaminants can slow the sensor’s response time. Clean the sensors whenever deposits, biofouling, or other contamination appear on the glass, or when the sensor’s response time slows perceptibly.
  • Page 208: Sensor Maintenance

    6.13 Maintenance and Storage EXO Ammonium, Nitrate, and Chloride sensors utilize ion-selective electrodes (ISEs) to monitor these parameters. This section will identify storage as “long-term” or “short-term.” Long-term denotes storage during times of long inactivity (over-wintering, end of monitoring season, etc.). Short-term denotes storage during times the sonde will be used at a regular interval (daily, weekly, biweekly, etc.) Replace depleted sensor module as instructed in...
  • Page 209: Sensor Module Replacement

    6.14 Sensor Module Replacement EXO pH, pH/ORP, Ammonium, Nitrate, and Chloride sensors feature replaceable sensor modules [part #599795, 599797, 599743- 01, 599744-01, 599745-01] due to the electrolyte-depleting characteristics necessary to make such measurements. We recommend that users replace these modules as necessary—typically 12 to 18 months for pH and ORP and three to six months for ISEs, when stored properly.
  • Page 210 4 Inspect and service new sensor module’s o-rings Ensure that the two o-rings are not nicked or torn and have no contaminants or particles on them. If the user detects damage, carefully replace them with the extras included in the sensor module kit. Then apply a thin coat of silicone grease to each o-ring, taking care not to get any grease on the gold connector pins.
  • Page 211: Exo Central Wiper Maintenance And Storage

    1 and 6 on EXO2 and ports 1 and 4 on EXO 3 after the wiper has been installed in the sonde. NOTE: The EXO Sensor Brace [608609] is recommended for use with the Central Wiper to stabilize the sensors during the wipe cycle.
  • Page 212 In order to minimize the chance of water infiltration, YSI recommends annual replacement of the wiper shaft o-rings inside the EXO Central Wiper. This replacement must be performed by a YSI Authorized Service Center. EXO Authorized Service Centers are located in the United States and around the world. Please refer to the YSI website (YSI.com/Repair) for your nearest Authorized Service Center.
  • Page 213: Exo Field Cable Maintenance And Storage

    Maintenance and Storage EXO field cables are rugged and provide years of reliable service when properly maintained. As with all field cables, they are most vulnerable at their connectors. Take extra caution to protect the connectors from debris and physical harm.
  • Page 214 6.17 Maintenance and Storage EXO sondes utilize wet-mate connectors that greatly reduce problems associated with traditional underwater connectors. However these connectors must be properly maintained to reap the full benefit of this design. Following these instructions will minimize most potential issues.
  • Page 215: Anti-Fouling Equipment Maintenance

    6.18 Maintenance Many components on EXO sondes are made of an anti-fouling copper-alloy material that discourages the growth of aquatic organisms. However, longer deployment intervals and highly productive waters can result in biofouling of any equipment, so periodic cleaning may be required.
  • Page 216: Flow Cell Maintenance

    There are two versions of the EXO flow cell: EXO1 flow cell [part #599080] and EXO2 / EXO3 flow cell [599201]; also compatible with EXO-S sondes. Flow rate of the flow cell is typically between 100 mL and 1 L per minute. Maximum flow rate depends on tubing type, size, and length.
  • Page 217: Storage Cases Packing Options

    Carrying Case provides a secure manner in which to store your EXO equipment for travel or until the next trip into the field. As seen below, the EXO Hard-Case provides the perfect safe storage solution, though we do offer several case options.
  • Page 218 Ultimately, while the EXO equipment is built to withstand harsh field environments, we recommend users take care to safely store their systems while not in use. Both the EXO Hard-Sided Carrying Case and the cloth YSI case are viable options, but other non-YSI products may better suit more specialized user needs.
  • Page 219 Section 7 EXO Handheld...
  • Page 220: Exo Handheld General Operation

    EXO Handheld General Operation Keypad and Navigation Handheld: Opens the Setup menu. ON/OFF: Push and hold to turn the handheld on or Use to adjust system settings. off. Right arrow key: Navigates right in an alpha/ Exit/Escape key: Exits to the Dashboard screen. In numeric entry screen.
  • Page 221: Alpha/Numeric Entry

    1.5 seconds to turn off the handheld. Navigation The EXO handheld contains menus to change user-defined options, functions, and parameters. Use the arrow keys ) to highlight different options within menus and sub-menus, then push the key to select the option. Push the key to return to the previous menu.
  • Page 222 Dashboard screen description → → The Dashboard screen shows the live measurements for units selected in the Display Units menu If more measurements are selected than can be displayed on the Dashboard screen, a scroll bar will be shown. Use the arrow keys to view additional measurements.
  • Page 223 Taking Sampling Measurements For the highest accuracy, calibrate the instrument before taking measurements (Calibration). Create a Site List for logged data (if applicable). (Logging). Set the logging method (single or continuous) (Logging). Set the Auto Stable parameters (if applicable) (Auto Stable).
  • Page 224: Handheld Menu

    EXO Handheld Handheld Menu Push Handheld key to view and adjust instrument settings. Highlight a sub- menu then push the key to view the sub-menu options. Pre-defined or user-selected options are noted within brackets ([]). See Alpha/numeric entry. Use the Handheld menu to: •...
  • Page 225: Display Language

    Date/Time → Display → Date/Time For accurate logging and calibration data, set the date and time for the EXO handheld. Date/Time options: • Set YY/MM/DD, MM/DD/YY, DD/MM/YY or YY/DD/MM date format • Set the current date • Select 12 or 24 hour time format •...
  • Page 226: Display Backlight

    Display Backlight → Display → Backlight n Automatic mode, the keypad backlight will turn off 60 seconds after the last key is pushed. Once any key is pushed, the keypad backlight will turn back on and remain on for another 60 seconds of inactivity. When Manual mode is selected, the handheld backlight key is used to turn the keypad backlight on or off.
  • Page 227 Logging → Logging The Logging menu has options for user-defined sites to be included with the logged data. When the Site List is enabled, select which site to save data to when logging. Highlight Use Site List check box and push the key to enable the Site List feature.
  • Page 228 Audio Enabled: An audio alert will sound when stability is reached. Continuous Mode: The EXO handheld will continuously check sensor values against the stability criteria even after the sample period and sample count have been met.
  • Page 229 Unit ID → Unit ID The Unit ID is specific to the instrument and is used to identify calibration files, Site Lists, Configuration Files, and Data files transferred from the handheld to a User ID → User ID The User ID is a record of who used the Handheld to record data or calibrate sen- sors.
  • Page 230 The latest instrument software version can be downloaded using the Kor Software program available from YSI.com. Serial # → Serial # Serial # shows the serial number of the EXO handheld instrument. Note the serial number when contacting YSI support.
  • Page 231: Deploy Menu

    EXO Handheld Deploy Menu Use the Deploy key to configure sonde deployment settings, view the current status of a deployment, or to start or stop a deployment. Use the Deployment menu to • Start or stop a sonde deployment • Setup deployment options •...
  • Page 232: Advanced Setup Mode

    DCP Adaptor Outputs → DCP Adapter Output (1 or 2) The Data Collection Platform (DCP) Adapter Output menu is for users who have a DCP Adapter and are connecting a sonde to an external data logger. Use the DCP Adapter menu to setup how the sonde interacts with the data logger. Set the address to a number (0-9) or a single letter (A-Z) so that the data logger can identify from which source the data should be pulled.
  • Page 233 Advanced Setup Wipe Interval → Advanced Setup → Wipe Interval Set the interval (in measurements ) between when sensors are wiped. Advanced Setup Adaptive Logging → Advanced Setup → Adaptive Logging The Adaptive Logging option is used to temporarily change the defined sonde logging interval if one or two specified parameters exceed a user-defined threshold.
  • Page 234 Sonde Settings → Sonde Settings View or change sonde-specific settings in the Sonde Settings menu, including the sonde date and time, bluetooth pin number, battery type, and averaging mode. Use the Sonde Settings menu to • Assign a bluetooth pin number •...
  • Page 235: Calibration Menu

    EXO Handheld Calibration Menu Push the key to access the Calibration menu. Highlight a sub-menu then push the key to view sub-menu options. NOTE: Only sensors installed in the sonde will appear on the Calibration menu scree Use the Calibration menu to: •...
  • Page 236 Calibration standard values are automatically compensated for temperature for both buffer sets. Setup fDOM / TAL → fDOM / TAL → Setup For more information on fDOM and Total Algae setup and calibration, please see the full EXO User Manual.
  • Page 237 Setup Conductivity → Conductivity → Setup Temp Ref (Temperature Reference): The reference temperature is used to calculate temperature-compensated specific conductance readings. The default Temperature Reference value is 25 °C (77 °F). Set the Temperature Reference to a different value by selecting Temp Ref and entering a value between 15.00 °C (59 °F) and 25.00 °C (77 °F).
  • Page 238: Conductivity Calibration

    Conductivity calibration 1. I f necessary, clean the conductivity cell with the supplied soft brush. See full EXO User Manual for more details on sensor maintenance. Perform the related Calibration setup on the previous page. Place the correct amount of conductivity standard into a clean and dry or pre-rinsed calibration cup.
  • Page 239: Barometer Calibration

    NOTE: If you get calibration error messages, check for proper sensor immersion, verify the calibration solutions is fresh, the correct value has been entered into the EXO Handheld, and/or try cleaning the sensor. Rinse the Sonde bulkhead and sensors in clean water then dry.
  • Page 240 Dissolved oxygen ODO % Saturation calibration requires the current “true” barometric pressure. Make sure that the barometer is reading accurately and recalibrate the barometer as necessary. DO% Sat and DO% Local - water saturated air calibration NOTE: This method calibrates the instrument’s DO % Sat measurement or DO % Local measurement if DO % CB (Calibrated Barometer) or % RTB (Real-Time Barometer) is enabled in the sensor setup menu.
  • Page 241 DO mg/L calibration Place the ODO and conductivity/temperature sensor into a water sample that has been titrated by the Winkler method to determine the dissolved oxygen concentration in mg/L. Push the key, then select ODO. Select DO mg/L. Select Calibration value. Enter the dissolved oxygen concentration of the sample in mg/L.
  • Page 242 pH/ORP pH calibration 1-point NOTE: If performing a 1-point calibration, use buffer 7 (6.86) as your calibration point for highest accuracy. NOTE: Observe the pH mV readings during calibration to understand the condition and response of the pH sensor. In buffer 7, pH mVs should be between -50 and +50. In buffer 4, the mVs should be a +165 to 185 away from the pH 7 mV value.
  • Page 243: Orp Calibration

    pH calibration 2- or 3-point NOTE: If performing a 2- or 3-point calibration, one point should be in buffer 7; however, the calibration points can be in any order. Perform steps 1-7 of the pH calibration 1-point procedure (1-Point pH Calibration).
  • Page 244: Depth Calibration

    Altitude/Latitude: To compensate for atmospheric pressure based on elevation and gravitational pull, enter the local altitude in meters relative to sea level and latitude in degrees where the EXO handheld is sampling. Altitude effect: Varying altitudes cause approximately 90 mm change from sea level to 8000 m.
  • Page 245 Turbidity calibration 1-, 2- or 3-point NOTE: The sensor guard must be installed for the turbidity sensor calibration. NOTE: When performing a turbidity calibration, the first point must be zero. Select Calibration Value and enter 0.00. Perform the Calibration setup. Rinse the sensor 2-3 times with a small amount of 0 FNU (NTU) standard.
  • Page 246 ISEs: Ammonium, Nitrate, & Chloride Before performing the calibration, review Calibration setup. The ISEs can be calibrated to one, two or three points. A 2-point calibration without chilling a third calibration solution is extremely accurate and is the preferred method. However, if there is a large temperature variation during sampling, a chilled third calibration point is recommended.
  • Page 247 ISE calibration 3-point Perform the Calibration setup. Rinse the sensor 2-3 times with a small amount of standard #1. NOTE: It is best to calibrate in order of increasing concentration (e.g. if using 1 mg/L and 100 mg/L standards, calibrate with 1 mg/L first). Push the key, then select the applicable ISE.
  • Page 248 Once the readings are stable, select Accept Calibration. “Calibration successful!” will be displayed in the message area. fDOM & Total Algae (TAL) Sensors For more information on fDOM and Total Algae (TAL) Calibration, please review the full EXO User Manual. key, then select fDOM or TAL...
  • Page 249: Data Menu

    Data recorded via a sonde deployment is saved on the sonde's internal memory. Use the Transfer Sonde Data menu to transfer sonde data to the EXO handheld. Enter the desired filter criteria, then select Transfer Sonde Data to transfer data...
  • Page 250 Backup Data → Backup Data A USB female to micro USB male adapter is included with the EXO Handheld to directly backup files from the handheld to a standard USB storage device. The data is exported as a CSV file.
  • Page 251 View Calibration Records → View Cal Records Use this menu to view all calibration records stored in memory. Use the arrow keys to scroll through different calibration records. Calibration information includes the sensor type, the calibration date and time, and the calibration status. Records may also contain optional information, such as User ID and Sonde ID.
  • Page 252 Section 8 Vented Level Sonde...
  • Page 253: Vented Level Sonde Overview

    ~0.7 cm measurements. These cables have a vent tube running ~0.3 in through the center and connect to the EXO sonde at the connector near the bail. In the center of the sonde’s ~27.2 cm connector is a matching vent hole. When attached, ~13.9 cm...
  • Page 254 Vented Level Sonde Installation When installing a vented level sonde, users must ensure that the sonde never exceeds an operational depth of 10 meters. Provisions for floods, astronomical tides and severe storm events should be factored in. NOTICE: Exposing the depth sensor to depths greater than 10 meters could result in damage to the pressure sensor that is not covered by the warranty.
  • Page 255: Vented Cables And Desiccants Installation

    Hose a junction box to reach further distances. In the junction box, the EXO cable can connect to the desiccant, as well as another cable running to the data logger or DCP device. Mounting •...
  • Page 256: Calibration

    Vented Level Sonde Calibration NOTE: This calibration option is available only if your sonde is equipped with a vented level sensor. For the calibration, make certain that the vented level sensor is in air and not immersed in any solution. Orient the sonde in the same position as it will be deployed.
  • Page 257: Maintenance And Storage

    Vented Level Sonde Maintenance and Storage Short -term Storage NOTICE: It is important that the air in a sonde’s vent tube remains dry at all times. Level Sensor Storage Users can store these sensors either dry or submerged in clean water. However, regardless of storage method or length, ensure the vent tube remains dry.
  • Page 258 Section 9 EXO PAR...
  • Page 259: Exo Par Introduction

    Overview Li-Cor PAR sensors are required for the EXO PAR adapter and these sensors can either be supplied to YSI by the customer (brass mounting screws provided with the sensor are required for installing on the par system) or can be purchased from YSI as part of the complete system.
  • Page 260 Li-Cor PAR sensors. The EXO PAR system attaches to the EXO2 sonde via an upper and lower clamp system. The EXO PAR adapter attaches to the AUX port on the top bulkhead of the EXO2 sonde.
  • Page 261: Exo Par Installation

    Proper alignment of these clamps, as described below, should be followed as to not damage either system. NOTE: Install the EXO PAR system with the EXO PAR adapter cylinder on the same side of the sonde where the AUX port...
  • Page 262 Align the upper clamps with the yellow bulkhead of the sonde NOTE: In order for the EXO PAR adapter to be recognized, it must be plugged into the AUX port before applying power to the sonde. The bottom of the lower clamp should align with the upper edge of the top chamfer on the clear plastic section covered with the black “EXO²”...
  • Page 263 Once you have the EXO PAR system secured to the EXO2 sonde body it is time to deploy the sensor arms. To do so simply lift the arms and install the pins where the two arms meet, as shown. Lift the arms and install the pins where the two arms meet CAUTION: Potential pinch hazard, be mindful of fingers.
  • Page 264: Par Setup

    599040-xx (the –xx signifies the cable length; ex -2 equals 2 meters) Cable lengths start at 2 meters. If the EXO PAR sonde is connecting to a data logger, you can use the EXO flying lead cable, part number 599008-xx (again the –xx signifies the cable length) flying lead cables start at 10 meters.
  • Page 265 Setup Kor Software In the following steps we will cover the setup of the PAR sensor utilizing the YSI Kor software. You will first need to enable the PAR(s) sensor in Kor. To do so you will need to select File, and then select Settings, and from the list of parameters select PAR and you will see the screen below if done correctly.
  • Page 266 Enter the multipliers into Kor software. Now your PAR sensor(s) are ready to use. You can now see PAR data begin to show up in your Kor Dashboard. PAR data will begin to show up in your Kor Dashboard...
  • Page 267 Setup the EXO Handheld Display In the following section we will cover setting up EXO PAR utilizing the EXO Handheld Display. You will first need to enable the PAR sensor(s) in the EXO Handheld. To do so you will need to select Handheld, and then select Display, and from the list of Units select PAR.
  • Page 268 Leave the default value in Channel 2, which will be (1). Enter the multipliers exactly as they are on the certificates Now your PAR sensor(s) are ready to use. You can now see PAR data begin to show up in your EXO Handheld Display. PAR data on EXO Handheld Display...
  • Page 269: Ordering

    Section 10 Ordering...
  • Page 270: Ordering Exo Sondes And Accessories

    Ordering EXO Sondes 10.1 and Accessories When placing an order please have Telephone: 800 897 4151 (USA) the following available: +1 937 767 7241 (Globally) Monday through Friday, 8:00 AM to 5:00 ET 1. YSI account number (if available) Fax: +1 937 767 9353 (orders) 2.
  • Page 271 EXO GO Bluetooth Adapter EXO Signal Output Adapters YSI Item # Description 599820 EXO Signal Output Adapter - Data Collection Platform (DCP) 2.0 599825 EXO Signal Output Adapter - Modbus 599810 EXO Signal Output Adapter - USB (Necessary for firmware updates.)
  • Page 272 EXO Replaceable Sensor Tips YSI Item # Description 577603-01 EXO pH Sensor Replacement Module, Guarded (User replaceable tip for 577601) 577603-02 EXO pH Sensor Replacement Module, Un-Guarded (User replaceable tip for 577602) 577613-01 EXO pH/ORP Sensor Replacement Module, Guarded (User replaceable tip for 577611)
  • Page 273 EXO Anti-fouling Accessories YSI Item # Description 599867 EXO Anti Fouling C/T Screen 599563 EXO1 Anti-Fouling Guard 599564 EXO2 / EXO3 Anti-Fouling Guard 599663 EXO2 / EXO3 Probe and Sonde protective sleeves 6189-AF Copper tape kit C-SPRAY Protective probe solution, 100 mL bottle...
  • Page 274: Health And Safety, Warranty, Service

    Section 11 Health & Safety, Warranty, Service...
  • Page 275: Health And Safety, Chemicals

    Health and Safety 11.1 Chemicals NOTE: For additional health, safety, and disposal information about reagents, download the MSDS documents for the chemical in question from the EXO manufacturers’ websites: www.ysi.com or www.wtw.de. First Aid for all solutions Ammonium Solutions 3841, 3842, and 3843 Move to fresh air.
  • Page 276: Zobell Solution

    pH 4.00, 7.00, 10.00 Buffer Solutions 3821, 3822, and 3823 pH 4 Ingredients: Water, Potassium Hydrogen Phthalate, Red food coloring pH 7 Ingredients: Water, Potassium Phosphate Monobasic, Sodium Hydroxide, Yellow food coloring pH 10 Ingredients: Water, Potassium Hydroxide, Disodium EDTA dihydrate, Potassium Borate, Potassium Carbonate, Bromphenol Blue Sodium Salt, Bromphenol Green Sodium Salt Inhalation: Avoid breathing vapors or mists.
  • Page 277: Ultraviolet Light

    Ultraviolet Light The fDOM and NitraLED sensors radiates ultraviolet light (UV light) which can be harmful to the eyes even during brief periods of exposure. Do not look into the light at the tip of the probe and wear protective eyewear when handling UV LEDs. Lithium-Ion Battery Handling WARNING: Failure to exercise care when handling this product and to comply with the following conditions and guidelines could result in product malfunction, excessive heat, fire, property damage, and...
  • Page 278: Radio Frequency

    11.2 Radio Frequency Xylem certifies that the EXO product line has been tested and complies with the following radio frequency (RF) interference standards and are approved for use in the following countries: • United States: FCC Part 15 compliant • Canada: RSS compliant •...
  • Page 279: Declarations Of Conformity

    YSI Incorporated, a Xylem brand 1725 Brannum Lane Yellow Springs, OH 45387 USA Equipment name: EXO Sondes (EXO1, EXO2 and EXO3), EXO Handheld (V2) and EXO GO Model numbers: 599501-xx, 599502-xx, 599503-xx, 599960, 577400 Intentional Radiators: EXO Sondes (EXO1, EXO2 and EXO3) contain a Bluetooth module:...
  • Page 280 YSI Incorporated, a Xylem brand 1725 Brannum Lane Yellow Springs, OH 45387 USA Equipment name: EXO Sondes (EXO1, EXO2 and EXO3), EXO Handheld (v2) and EXO GO Model numbers: 599501-xx, 599502-xx, 599503-xx, 599960, 577400, 577502-xx, 577503-xx Accessories/Sensors: 57760x-(xx), 57761x-(xx), 599008-xx(x), 599020-xx, 599040-xx(x), 599080,...
  • Page 281 YSI Incorporated, a Xylem brand 1725 Brannum Lane Yellow Springs, OH 45387 USA Equipment name: EXO Sondes (EXO1, EXO2 and EXO3), EXO Handheld (v2) and EXO GO Model numbers: 599501-xx, 599502-xx, 599503-xx, 599960, 577400 Accessories/Sensors: 599090-xx, 599100-xx, 599101-xx, 599102-xx, 599104-xx, 599118-xx, 599800,...
  • Page 282 Model numbers: 599501-xx, 599502-xx, 599503-xx, 577400 Intentional Radiators: EXO Sondes (EXO1, EXO2 and EXO3) contain the PAN1026 Bluetooth module. Broadcasting and certification number R-C-XYL-EXO1 (for EXO1), R-C-XYL-EXO2 (for EXO2) and R-C-XYL-EXO3-PAN1026 (for EXO3). EXO GO (577400) contains a Bluetooth module. Broadcasting and certification number KCC-CRI-AEP-RN-42.
  • Page 283 YSI Incorporated, a Xylem brand 1725 Brannum Lane Yellow Springs, OH 45387 USA Equipment name: EXO Sondes (EXO1, EXO2 and EXO3) and EXO GO Model numbers: 599501-xx, 599502-xx, 599503-xx, 577400 Intentional Radiators: The EXO GO (577400) contains a Bluetooth module.
  • Page 284 Manufacturer: YSI Incorporated, a Xylem brand 1725 Brannum Lane Yellow Springs, OH 45387 USA Equipment name: EXO Sondes (EXO1,EXO2 and EXO3) and EXO GO Model numbers: 599501-xx, 599502-xx, 599503-xx, 577400 Intentional Radiators: EXO Sondes contain transmitter module with certification number:...
  • Page 285 EXO Sondes (EXO1, EXO2 and EXO3) and EXO GO Model numbers: 599501-xx, 599502-xx, 599503-xx, 577400 Intentional Radiators: Intentional Radiators: EXO Sondes (EXO1, EXO2 and EXO3) contain the PAN1026 Bluetooth module: Certificate of Homologation No. 01640-18-08838; Certificate of Conformity No. 00106288. EXO GO (577400) contains the RN42 Bluetooth module: Certificate of Homologation No.
  • Page 286: Instrument Warranty

    Limitation of Warranty This Warranty does not apply to any EXO product damage or failure caused by (i) failure to install, operate or use the product in accordance with the written instructions, (ii) abuse or misuse of the product, (iii) failure to maintain the product in accordance with...
  • Page 287: Instrument Service Cleaning And Packing

    Instrument Service 11.5 Cleaning and Packing Product Return Form Cleaning Instructions Before they can be serviced, equipment exposed to biological, radioactive, or toxic materials must be cleaned and disinfected. Biological contamination is presumed for Find the product return form online: any instrument, probe, or other device that has been used with body fluids or tissues, www.YSI.com/Repair or with wastewater.
  • Page 288: Instrument Service Recycling

    Batteries The user must remove and dispose of alkaline batteries when they no longer power the EXO1 sonde, EXO2 sonde, or EXO Hand- held. Disposal requirements vary by country and region, and users are expected to understand and follow the battery disposal requirements for their specific locale.
  • Page 289 Our products and services move, treat, analyze, monitor and return water to the environment, in public utility, industrial, residential and commercial building services settings. Xylem also provides a leading portfolio of smart metering, network technologies and advanced analytics solutions for water, electric and gas utilities. In...

This manual is also suitable for:

Exo1Exo1sExo2Exo2sExo3Exo3s ... Show all
