2018-03-14
Operating Manual
PTM40 / PLF40
pH-ORP-ISE / conductivity meter

Advertisement

Table of Contents
loading

Summary of Contents for Xylem PTM40

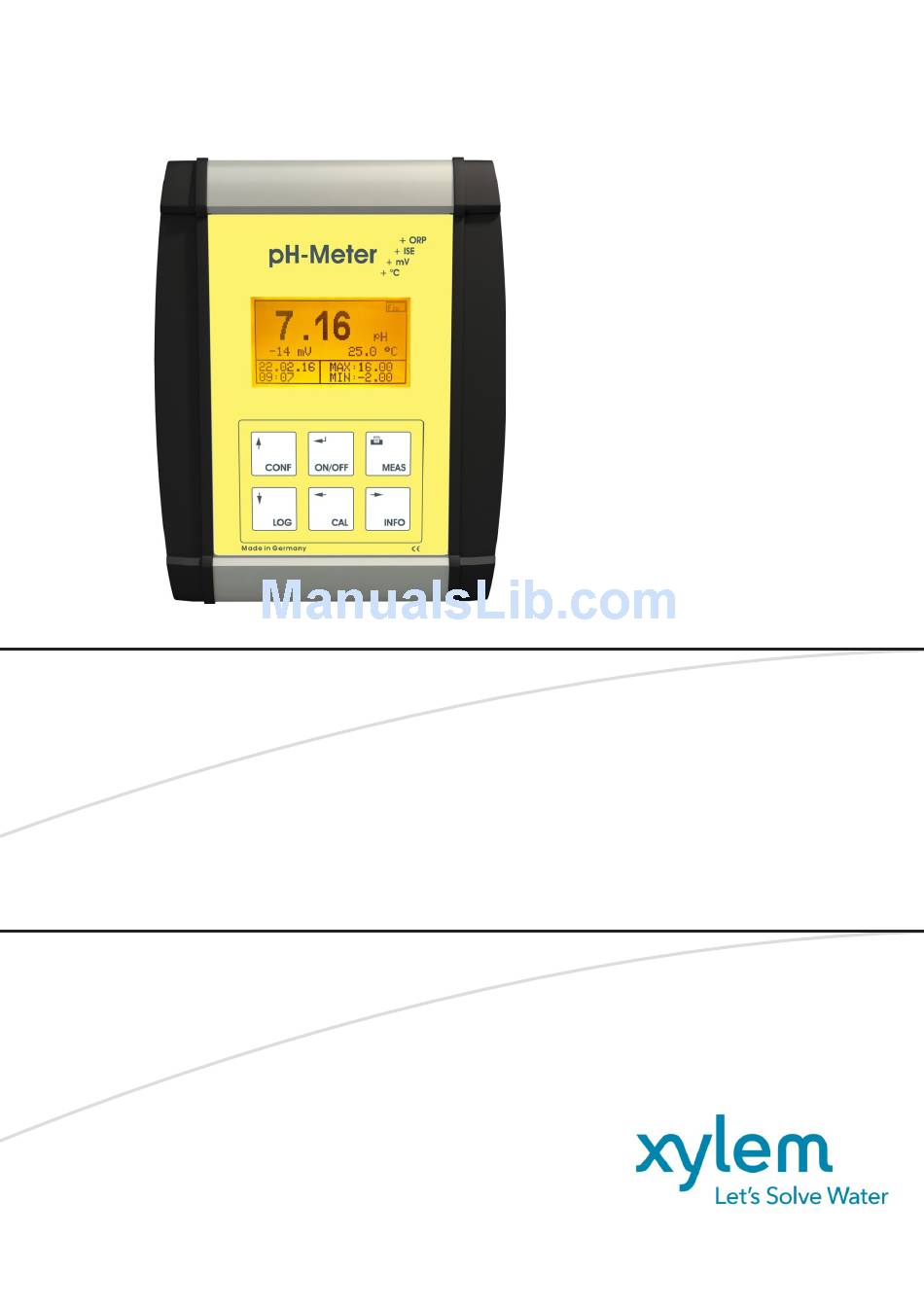

  • Page 1 2018-03-14 Operating Manual PTM40 / PLF40 pH-ORP-ISE / conductivity meter...
  • Page 2: Table Of Contents

    All specifications in this instruction manual are guidance values which are valid at the time of printing. However, for technical or commercial reasons or in the necessity to comply with the statuary stipulations of various countries, Xylem Analytics Germany GmbH may perform additions to the unit without changing the described properties.
  • Page 3 8.3.3 Configuration of the sensor type ..................15 Calibration method pH ........................16 8.4.1 Menu structure........................16 8.4.2 Calibration ..........................16 Calibration method ORP ........................18 8.5.1 Menu structure........................18 8.5.2 Calibration ..........................18 Calibration method ISE ........................19 8.6.1 Menu structure........................
  • Page 4: Technical Specifications Of The Meter Ptm40/Plf40

    Technical Specifications of the meter PTM40/PLF40 Intended Use The meter PTM40/PLF40 is intended for the measurement and documentation of analysis parameters while adhering to the technical specifications. Any use beyond this purpose - as well as your own modifications or expansions - is not in conformity with prohibited.
  • Page 5: Warning And Safety Information

    DIN EN ISO 9001 standard. For reasons of safety, the meter PTM40/PLF40 and the power supply (VER05US050-JA) must be opened by authorised persons only; this means, for instance, that work on electrical equipment must only be performed by qualified specialists.
  • Page 6: Set Up And Commissioning

    If it has to be assumed that safe operation is impossible, the meter has to be put out of operation and secured against inadvertent putting to operation! Switch the meter off, pull plug of the mains cable out of the power supply, and remove the meter from the place of work. Examples for the assumption that a safe operation is no longer possible, •...
  • Page 7: Device Description

    Use only the power supply VER05US050-JA (input 100-240 V~; 50/60 Hz; 0.18 A; output 5 V DC; 1 A max.; class II)! Device description Measuring inputs Fig. 1 PTM40/PLF40 1) Sensor connection 2) USB port 3) Main Supply On the front of the meter, there are special connectors to connect the sensor and a USB interface cable.
  • Page 8: Controls

    Controls The meter has an intuitive clear text menu structure. Fig. 2 PTM40 Switching Measuring Open menu Configuration Data logger Calibration Information ON/OFF print trigger Navigating Selection / Measuring Cursor up Cursor down Cursor left Cursor right ENTER mode the menu...
  • Page 9: Menu Structure

    4) Temperature 5) Min. main measured values 6) Max. main measured values 7) Time 8) Date 9) Secondary measured value Menu structure 9 / 25...
  • Page 10: Password Protection

    Password protection It´s possible to protect the menu items Calibration (CAL) and Configuration (CONF) by a password. This password can be defined in the menu item (CONF) under „General“ The password to open the individual menus is deactivated when the device is delivered! Passwort = 0 (status at time of delivery) Passwort >...
  • Page 11: Configuration Of The Clock

    Password configuration: (CONF) > „General“ > „Password“ enter and repeat password. > Via (INFO) or (CAL) you select the position to change. Via (CONF +1) or (LOG -1) you change the position. (ON/OFF) confirms and saves your setting. (MEAS) terminates the entry dialog without transferring the value. Configuration of the clock Configuration of the clock: „General“...
  • Page 12: Menu Structure

    Menu structure Back to the measurement value Back 1 Next period period Next measurement measurement value Info value Info Interval You can set up the memory intervals in the submenu point „Interval“. Via (INFO) or (CAL) you select the position to change. Via (CONF +1) or (LOG -1) you change the position.
  • Page 13: Menu Structure

    Menu structure CAL INFORMATION MIN/MAX INFO MESSMODUS RESET MIN/MAX Data communication / printer PC-Software „STMLabReader“ The reading of the data logger as well as the configuration of the measuring system can also take place via the software „STMLabReader“. Use only interface cable (Interface HMG USB) to transfer data from the meter to the PC. This cable is not included in the delivery and must be purchased separately (...
  • Page 14: Serial Data Output Via Printer Citizen Ct-S280

    All Meinsberg Electrodes are available with fixed cable and connector BK. Obviously special electrodes (pH combination electrodes, redox combination electrodes or electrodes supplied from other manufacturers with BK plug) can be used in connection with PTM40. The isopotential point (25 °C) of the used electrodes must be pH 14 / 25...
  • Page 15: Configuration Ptm40

    (MEAS) terminates the entry dialog without transferring the value. 8.3.3 Configuration of the sensor type 3 different sensor types can be connected to the PTM40. Sensor selection: Select „Sensor type“ >, then Type. Via (CONF +1) or (LOG -1) you selected the desired setting.
  • Page 16: Calibration Method Ph

    Calibration method pH 8.4.1 Menu structure 8.4.2 Calibration Select (CAL) to get to the menu item „Calibration“ and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. The sensor must be thoroughly cleaned with distilled or deionized water prior to and between every measurement.
  • Page 17 The automatic calibration of the pH measurement is a two point calibration and requires the knowledge, which buffer solutions you would like to use for the calibration. The PTM40 offers the following buffer sets for the calibration: NBS standard buffer solution as per DIN 19266: pH value at 25 °C 1.68 / 4.01 / 6.86 / 9.18 / 12.45...
  • Page 18: Calibration Method Orp

    If the calibration is faulty, an error message will be displayed (see  chapter 8.4.2.6). 8.4.2.6 Calibration error The limits for all calibration values are saved in the meter. If the entered values are outside these limits, one of the following error messages will be displayed: „!Incorrect entry!“...
  • Page 19: Calibration Method Ise

    Calibration method ISE 8.6.1 Menu structure 8.6.2 Calibration Select (CAL) to get to the menu item „Calibration“ and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. The sensor must be thoroughly cleaned with distilled or deionized water prior to and between every measurement.
  • Page 20: Meter Plf40

    Confirm this dialog with (ON/OFF). The currently measured values will be displayed. If the measured values (conductivity + temperature!) are in a stable condition, reconfirm by pressing (ON/OFF). > You will be prompted to enter a nominal value (temperature-corrected buffer value!). Via (INFO) or (CAL) you select the position to change.
  • Page 21: Configuration Of The Measuring Range „M Range

    (MEAS) terminates the entry dialog without transferring the value. 9.3.3 Configuration of the measuring range „M range“ > Configuration of the measuring range: First select the „M range“>, then the measuring range. The measuring range has 7 settings on the meter. Measuring range Main measured variable Secondary measured variable...
  • Page 22 Select (CAL) to get to the menu item „Calibration“ and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. The sensor must be thoroughly cleaned with distilled or deionized water prior to and between every measurement.
  • Page 23: Scope Of Delivery

    PTM40/PLF40 Interface HMG USB USB cable with data transfer software for PTM40/PLF40 Interface TMG Printer USB cable with data transfer to a printer for PTM40/PLF40 pH Combination Electrode plastic shaft, gel electrolyte, 2 ceramic frits, built-in temperature sensor EGA142-K010-U-X Pt 1000, 1 m fixed cable with 6 pole connector BK, length 120 mm, Ø...
  • Page 24: Maintenance

    Maintenance The meter must never be cleaned with an aggressive solvent (such as acetone)! Do not use stiff brushes or metal objects! Wipe the meter down with a moist, lint-free cloth every once in a while. For the maintenance and storage of the sensors and fittings to be connected, the notes and regulations in the respective instructions and data sheets apply.
  • Page 25: Service And Returns

    Service and Returns Manufacturer: Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Straße 1 D-82362 Weilheim Germany Service and Returns: Xylem Analytics Germany Sales GmbH & Co. KG Sensortechnik Meinsberg Meinsberg, Kurt-Schwabe-Straße 6 D-04736 Waldheim Germany Tel. +49 (0)34327 623 0 +49 (0)34327 623 79 E-Mail: info@meinsberg.de...
