Richter 6.14520 Assembly Instructions

ASSEMBLY INSTRUCTIONS
General information
A Surfacing requirements
This equipment should be installed on an
impact absorbing surfacing / loose fill material
that accords with EN 1176 and is adequate
for a maximum free height of fall of ≤ 1.50 m.
B Foundations
Please take into account the special sheet:
„Notes on the construction of foundations".
Special information
Certified by TÜV Product Service GmbH in
compliance with EN 1176.
Please do not alter any parts of the equipment
or the construction itself since this may affect the
safety standards and your guarantee.
We reserve the right to make technical alterations!
For further information please call your local agent.
Required space including safety distances (EN 1176)
860 x 500 cm

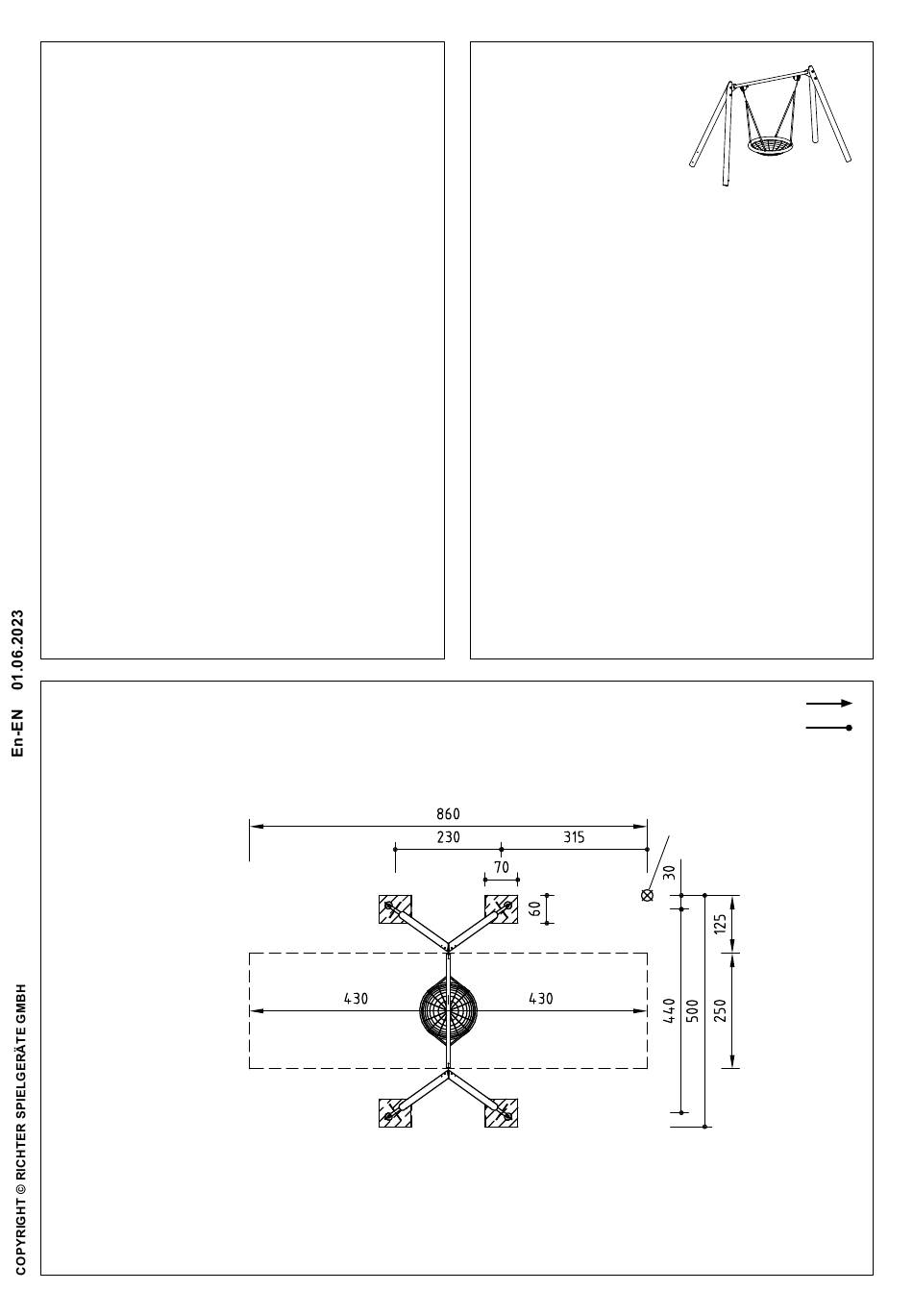

Ground plan
Scale 1:100
all dimensions in cm
Foundations
Quality of concrete
C25/30
4 items 60 x 70 x 60 cm
excavation depth 80 cm
RICHTER SPIELGERÄTE GMBH · D-83112 FRASDORF · PHONE +49-8052/17980 · FAX 4180
ASSEMBLY INSTRUCTIONS
Cradle Nest special
Order No. 6.14520/K6.14520
Components
Number of parts: 2
1 bundle: 4 stand posts with steel feet
1 bundle: stork nest with suspension
Total weight:
Heaviest single part:
Largest single part:
ASSEMBLY
and cross beam made of steel
approx. 280 kg
approx. 50 kg
Ø 18 cm x 3,80 m
point of reference
INSTRUCTIONS
safety distance
foundations
Page 1
