TRADITIONAL SAUNA SERIES
Installation and Operating Instructions
Tylö® Halmstad™ 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Halmstad 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tylo Halmstad 2

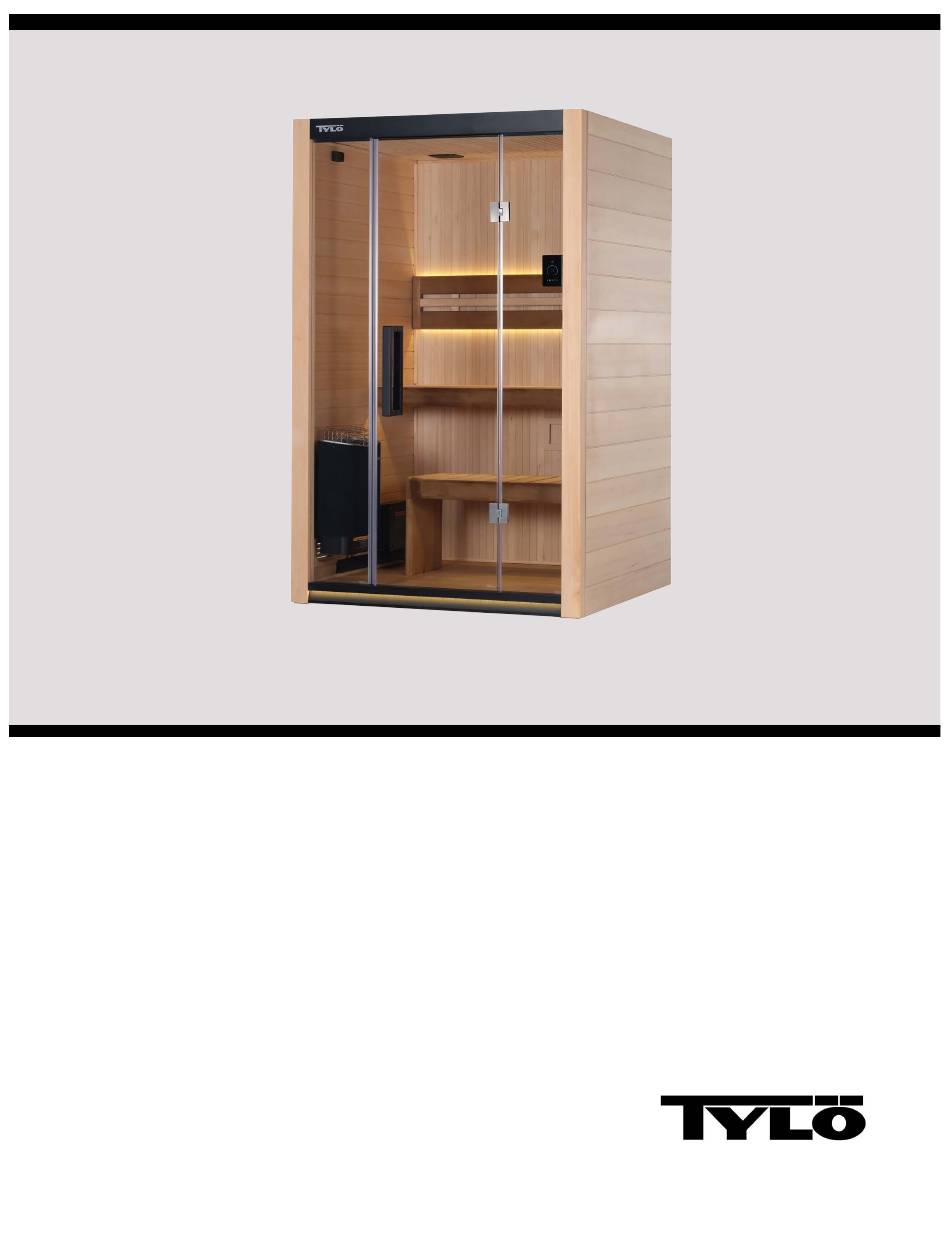

  • Page 1 TRADITIONAL SAUNA SERIES Installation and Operating Instructions Tylö® Halmstad™ 2...
  • Page 2 THIS PAGE IS INTENTIONALLY BLANK 71-0189 10/1/24 Tylö® Halmstad™ 2 Revision C...
  • Page 3 Before you begin reviewing the manual, please take a moment to register your warranty. Doing so will assist us in contacting you for any important notification. Prior to registering, you will need the serial number(s) located on the equipment. To register, please go to http://tylo.com/en-us/warranty FOR YOUR RECORDS Sauna Room Model/Serial Number: Control Model/Serial Number:...
  • Page 4 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page iv THIS PAGE IS INTENTIONALLY BLANK 71-0189 10/1/24 Tylö® Halmstad™ 2 Revision C...
  • Page 5: Table Of Contents

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page v Table of Contents SECTION 1. BEFORE YOU BEGIN ......................1 SECTION 2. SAFETY INFORMATION ....................... 2 2.1. CONSTRUCTION and INSTALLATION SAFETY ................2 2.2. USER and OPERATIONAL SAFETY ....................3 SECTION 3. INSTALLATION REQUIREMENTS ..................4 SECTION 4.
  • Page 6: Section 1. Before You Begin

    This manual is for installation and operation of an Tylö® Halmstad™ 2 sauna room with Sense UB heater (1801-17-1902, 1801-22-1902) mated with a Bliss control (1601-52) and CB21-1 (1201-21-1) contactor (CB) box. CB Box Tylö® Halmstad 2 Sauna Room Sense UB Heater Bliss Control...
  • Page 7: Section 2. Safety Information

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 2 SECTION 2. SAFETY INFORMATION 2.1. CONSTRUCTION and INSTALLATION SAFETY WARNING - ELECTRIC SHOCK HAZARD: High voltage exists within this equipment. There are no user-serviceable parts within this equipment. Have the equipment installed and serviced only by qualified and licensed personnel in accordance with local and national codes.
  • Page 8: User And Operational Safety

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 3 2.2. USER and OPERATIONAL SAFETY WARNING: Prolonged exposure to elevated temperatures can induce hyperthermia. Hyperthermia occurs when internal body temperature reaches several degrees above normal (98.6°F). Symptoms of hyperthermia include an increase in body temperature, dizziness, lethargy, drowsiness, and fainting. Effects of hyper- thermia include failure to perceive heat, failure to recognize the need to exit the room, unawareness of impending hazard, fetal damage in pregnant women, physical inability to exit the room and unconsciousness.
  • Page 9: Section 3. Installation Requirements

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 4 SECTION 3. INSTALLATION REQUIREMENTS To ensure safe use of the sauna room, verify the following criteria are met: • Two (2) adults are required for the assembly and installation of the room. •...
  • Page 10: Section 4. Part List And Tool Requirements

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 5 SECTION 4. PART LIST and TOOL REQUIREMENTS PART LIST Inspect and verify the packaging includes the following materials. Box #1: Floor, ceiling, benches and door handle. • Box #2: Left and right panels. •...
  • Page 11: Section 5. Sauna Room Assembly

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 6 SECTION 5. SAUNA ROOM ASSEMBLY Use these instructions for assembling a 2-person Traditional sauna room. LAYING THE FLOOR PANEL 1. Place the floor panel on a flat, level surface, between 3 and 6 inches away from nearby walls, and no more than 5 feet from the dedicated electrical receptacle.
  • Page 12 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 7 INSTALLING LEFT WALL SECTION 7. Place the hangers of the left wall section into the mating hangers located on the left edge of the floor panel labeled #2. 8. Lift up the left wall and slide the edge brackets into the mating brackets located on the back wall.
  • Page 13: Connecting Cables

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 8 13. When the wall panels are mated correctly, verify the top edges where the corners meet are flat and flush. Figure 7. Verifying Flat and Flush Corners INSTALLING CONTACTOR (CB) BOX 14. Remove the cover of the CB Box to gain access to the four (4) mounting holes located in the back of the box.
  • Page 14 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 9 ASSEMBLING LOWER BENCH Use Figure 10. for the assembly steps below. 23. Place the lower bench top down on a flat clean work surface. 24. Flip the leg brace top down and align the edge of the leg brace with the left edge of the lower bench.
  • Page 15: Installing Door Handle

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 10 INSTALLING FRONT WALL 32. Place the hangers of the front wall into the mating hangers located on the front of the floor panel. 33. Lift the front wall and slide the left and right brackets onto the edge brackets of the left and right walls.
  • Page 16 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 11 INSTALLING CEILING 41. From the top of the left, right, and back wall sections, Pull the ends of the cables out and over the outside edges. 42. Lift the ceiling section and gently place it between the wall sections and lock into place on the brackets.
  • Page 17 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 12 43. From the top of the ceiling, open the five (5) hatches located on the left, right, and back. ELECTRICAL CONNECTIONS - Ceiling, Left Back Corner 44. Fish out the five (5) cables from the hatch. 45.
  • Page 18 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 13 ELECTRICAL CONNECTIONS - Ceiling, Right Middle Wall 61. Fish out the one (1) cable from the hatch. 62. Connect right wall #7 cable to #7 ceiling cable. 63. Dress the wall cable into the trench. 64.
  • Page 19: Mounting The Heater

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 14 MOUNTING THE HEATER 70. Prepare the heater for installation. See the appropriate sauna heater installation and operating instruction manual. 71. Using the measurements provided in Figure 20. verify the position of the pre-drilled mounting holes for the heater.
  • Page 20: Section 6. Electrical Hook-Up

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 15 SECTION 6. ELECTRICAL HOOK-UP Use Figure 21. for the following steps. Electrical installation must be made by a licensed Electrician in accordance with the National Electric Code and local regulations. 1. Route the heater power cable through an opening located on the bottom of the CB box, high voltage side.
  • Page 21 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 16 DIAGRAM 1. ELECTRICAL, 120VAC 1 PHASE 71-0189 10/1/24 Tylö® Halmstad™ 2 Revision C...
  • Page 22 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 17 DIAGRAM 2. CB BOX INTERNAL VIEW 71-0189 10/1/24 Tylö® Halmstad™ 2 Revision C...
  • Page 23: Section 7. Control Installation

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 18 SECTION 7. CONTROL INSTALLATION The Bliss control is weather resistant and water resistant, allowing it to mount either on the interior or exterior of the sauna room. If the control was not pre-installed, use the following steps to install the control. 1.
  • Page 24: Section 8. Operating The Control

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 19 SECTION 8. OPERATING the CONTROL The instructions provided here are for operating a HEATER TEMPERATURE SETTING traditional sauna heater. See Bliss Operating Instructions for further details on the control. The temperature setting of the heater is displayed in small colored text.
  • Page 25: Section 9. Installing Safety Placards

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 20 SECTION 9. INSTALLING SAFETY PLACARDS Three (3) metal safety placards are included inside the installation instruction envelope packaged with the sauna system. Figure 25. Caution Placard 1. Position the CAUTION placard in plain sight on the interior wall directly above the sauna heater and attach with the two (2) screws provided.
  • Page 26: Section 10. Placing Sauna Rocks

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 21 SECTION 10. PLACING SAUNA ROCKS The rocks supplied with the heater were selected with the 2. For the firs layers, place smaller rocks around the outer best traditional sauna performance in mind. perimeter of the heating elements.
  • Page 27: Section 11. How To Take A Sauna

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 22 SECTION 11. HOW TO TAKE A SAUNA • Devote adequate time to completely relax while taking a sauna bath. • Remove clothing and jewelry. Apply a towel loosely about the body. • To enjoy the soothing effect of steam, splash a small amount of water onto the heated sauna rock.
  • Page 28: Section 12. Maintenance

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 23 SECTION 12. MAINTENANCE 13.1. PRE-HEAT MODE Inspect sauna room at the end of each day the room to If the air temperature inside the sauna is below 10°F ensure the control and system is off. (-12°C) at startup, or if the temperature sensor is not detected, the CAUTION Pre-Heat Mode screen appears.
  • Page 29: Sensor Not Detected

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 24 13.2. SENSOR NOT DETECTED 13.3. HIGH LIMIT ERROR When the sensor is not detected, power to the heater is When the high limit switch trips/activates, power to the disabled. heater is disabled. While the heater is on and if the temperature at the heater rises above the high limit threshold, the heater shuts off, an audible control alarm is sounded, and the WARNING High...
  • Page 30: Door Open

    HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 25 13.4. DOOR OPEN 13.5. JUMPER ERROR If an optional door switch (not provided by Sauna360) is This error occurs when the control detects an electrical installed, this message occurs when the control detects the jumper is open on the main board located in the CB Box.
  • Page 31 HALMSTAD™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 26 ©2024 Sauna360 Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sauna360 is under license. Apple® is a registered trademark of Apple Inc. Tylö®...
