Page 1

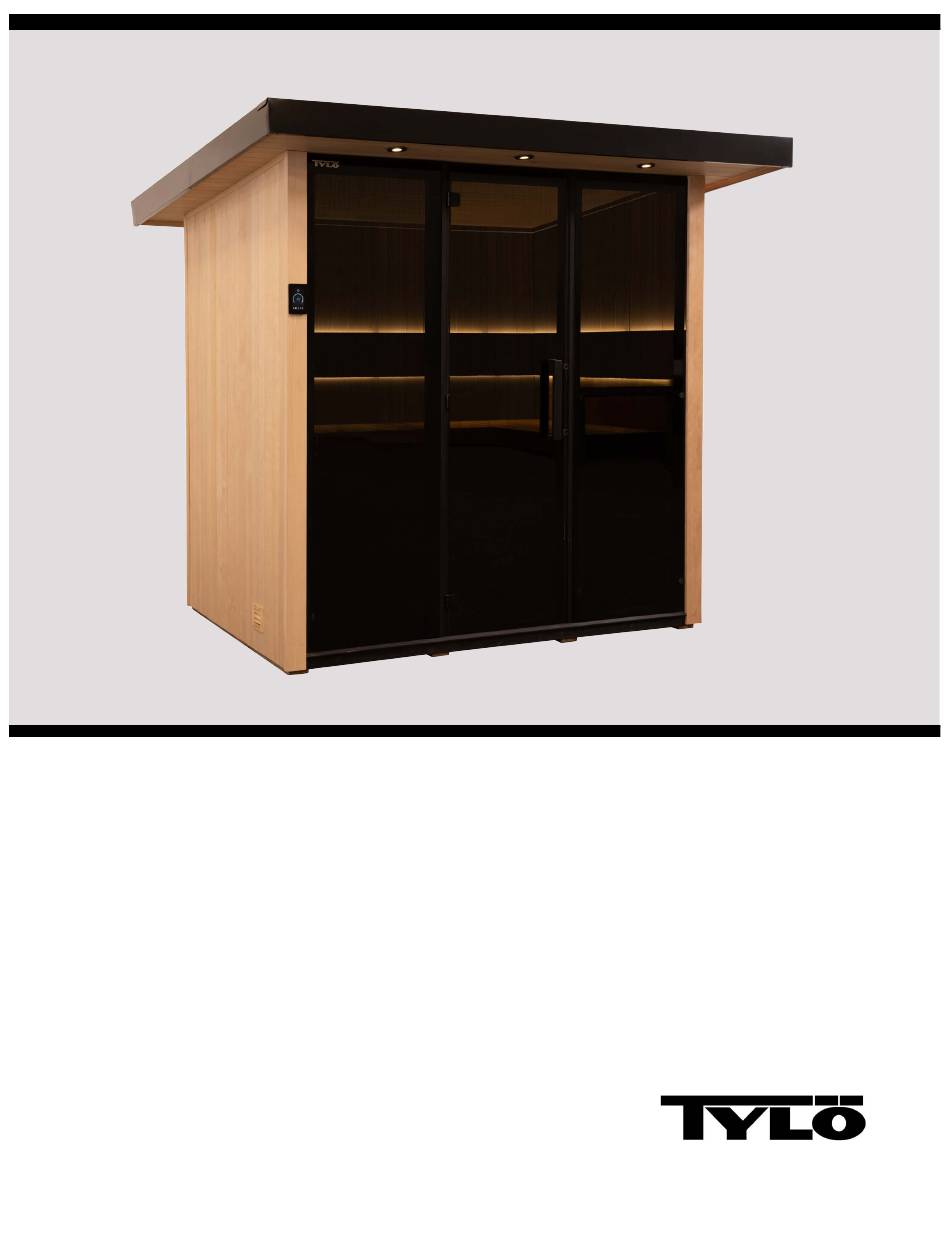

OUTDOOR SAUNA SERIES Installation and Operating Instructions Tylö® Luleå™ 3 Tylö® Luleå™ 4...
Page 2
THIS PAGE IS INTENTIONALLY BLANK 71-0191 | 4215-144 12/4/24 Luleå™ Sauna Room Revision B...
Page 3
Before you begin reviewing the manual, please take a moment to register your warranty. Doing so will assist us in contacting you for any important notification. Prior to registering, you will need the serial number(s) located on the equipment. To register, please go to http://tylo.com/en-us/warranty FOR YOUR RECORDS Sauna Room Model/Serial Number: Control Model/Serial Number:...
Page 4
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page iv THIS PAGE IS INTENTIONALLY BLANK 71-0191 | 4215-144 12/4/24 Luleå™ Sauna Room Revision B...
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page i Table of Contents SECTION 1. BEFORE YOU BEGIN ......................1 SECTION 2. SAFETY INFORMATION ....................... 2 2.1. CONSTRUCTION and INSTALLATION SAFETY ................2 2.2. USER and OPERATIONAL SAFETY ....................3 SECTION 3. INSTALLATION REQUIREMENTS ..................4 SECTION 4.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 1 SECTION 1. BEFORE YOU BEGIN This manual is for installation and operation of an Luleå™ Sauna Room with Sense UB heater (1801-83-1902) mated with a Bliss control (1601-52 | 1601-52-1) and CB 23-1 (12-23-1) contactor (CB) box. Bliss Control CB Box Sense UB Heater...
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 2 SECTION 2. SAFETY INFORMATION 2.1. CONSTRUCTION and INSTALLATION SAFETY WARNING - ELECTRIC SHOCK HAZARD: High voltage exists within this equipment. There are no user-serviceable parts within this equipment. Have the equipment installed and serviced only by qualified and licensed personnel in accordance with local and national codes.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 3 2.2. USER and OPERATIONAL SAFETY WARNING: Prolonged exposure to elevated temperatures can induce hyperthermia. Hyperthermia occurs when internal body temperature reaches several degrees above normal (98.6°F). Symptoms of hyperthermia include an increase in body temperature, dizziness, lethargy, drowsiness, and fainting. Effects of hyper- thermia include failure to perceive heat, failure to recognize the need to exit the room, unawareness of impending hazard, fetal damage in pregnant women, physical inability to exit the room and unconsciousness.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 4 SECTION 3. INSTALLATION REQUIREMENTS To ensure safe use of the sauna room, verify the following criteria are met: • Install this sauna room on a solid, flat, level surface that will support the combined weight of the sauna room and maximum occupant capacity.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 7 Should it become necessary to contact your dealer for assistance, record the model and serial numbers of the room, heater, contactor box, and control. Room Model Serial Number Heater Model Serial Number Contactor Box Model Serial Number Control Model...
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 8 SECTION 5. SAUNA ROOM ASSEMBLY Use these instructions for assembling a Lulea 3 and Lulea 4 Traditional OUTDOOR sauna room. For ease of illustration, instructions are written for the Lulea 4 sauna room.
Page 14
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 9 INSTALLING BACK-LEFT WALL SECTION 9. Place wall #4 onto the base rail section labeled #4. 10. Fit together the edge tongue and grooves of wall #4 with the tongue and grooves of wall #3. 11.
Page 15
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 10 INSTALLING LEFT-FRONT WALL SECTION 16. Place wall #6 onto the base rail labeled #6. 17. Fit together the edge tongue and grooves of wall #6 with tongue and grooves of wall #5. 18.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 11 INSTALLING WALL #1 22. Hold the front wall frame assembly in place while wall #1 is installed. 23. Place wall #1 onto the base rail labeled #1. 24. Fit together the edge tongue and grooves of wall #1 with the tongue and grooves of wall #2.
(#2 wall) into the back wall cable track and over to the back left corner. NOTE: The Lulea 3 does not include this cable. 47. Route the lighting cable from the back left corner (#3 wall) into the back wall cable track.
Page 18
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 13 INSTALLING the ROOF 52. Apply 1” wide weather stripping across the top edge of all four walls. HEAVY OBJECT: A minimum of two people are required to lift the roof sections into place. 53.
Page 19
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 14 ALIGNING front wall frame ASSEMBLY As installation nears completion, critical alignments are necessary before interior trim and side panes of glass are installed. 71. Using a bubble level check the door frame for plumb, squareness, inside, outside, left, and right orientations.
Page 20
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 15 INSTALLING WOOD FASCIA CAUTION: Ensure that you have assistance to hold the fascia boards in place while nailing. 78. Using 2” 16 gage or equivalent finish nails or wood screws, Attach the fascia to the Right edge of the roof. 79.
Page 21
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 16 INSTALLING SOFFIT TRIM 86. Using 1 ½” 18 gage finish nails or equivalent, attach the Back soffit trim beneath where the soffit meets the back fascia. 87. Using 1 ½” 18 gage finish nails or equivalent, attach the Right soffit trim beneath where the soffit meets the right fascia.
Page 22
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 17 INSTALLING LOWER BENCH 96. Carefully bring the (narrow width) lower bench into the sauna room. 97. Place each end of the lower bench onto the lower wall braces. 98. Slide the lower bench towards the back wall. NOTE: The top of the CB box may stop the bench from reaching the back wall.
Page 23
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 18 INSTALLING ARMREST AND RETURN BENCH NOTE: These steps apply only to the Lulea 4 sauna room. For the 3-person sauna room, proceed to instructions on Installing Backrests. 102. Bring the armrest into the room and position it in the right-front corner (A).
Page 24
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 19 110. Using two (2) 3” Torx head screws (G), attach the armrest frame to the right wall. NOTE: DO NOT use 4” long screws when attaching the armrest frame to the wall. Verify length of screws before attaching.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 20 INSTALLING BACKRESTS 112. Connect the lighting cable from the rear backrest to the corresponding mating cable from the upper back- left corner. 113. Mate the upper rear backrest with the French cleats located on the upper back wall (A).
Page 26
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 21 INSTALLING GLASS SIDE PANES The left glass pane includes the Tylö™ logo located to the top exterior of the glass. Each glass pane also includes the words: “Tempered Glass” etched at the bottom. 122.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 22 SECTION 6. INSTALLING METAL FASCIA and ROOFING Use the following instructions for preparing and installing metal fascia and roofing onto the outdoor sauna room. ROOFING MATERIALS Item # Description Felt, Roofing, #15, Plain 80 Sq Ft Roof, Closer, Inside, Pro-Rib, 1”...
Page 28
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 23 APPLYING WEATHER BARRIER 1. Using a stapler and roofing staples, apply weather barrier onto the wood decking, overlapping the ends onto the front, sides, and back edge fascia. Figure 38. Applying Weather Barrier APPLYING DRIP EDGE and LOWER REAR FASCIA 2.
Page 29
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 24 APPLYING SHEET METAL ROOFING 10. For the geographic location of where this sauna is installed, lay the metal roof sheets in the direction TOWARDS the prevailing winds. • Meaning, begin from the opposite end of the roof, moving towards the direction the wind predominately blows from most of the year.
Page 30
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 25 15. Using appropriately sized milled point screws, spaced accordingly, attach the metal sheet from the valley (not the crown) onto the wood decking. TIP: Using an 1/8” metal drill bit, pre-drill the holes •...
Page 31
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 26 19. Repeat Step 15 through Step 18 for each successive roofing panel. Figure 47. Attaching Roof Panel to Wood Decking INSTALLING SIDE FASCIA 20. Pre-fit the metal side fascia over each side of the roof. NOTE: The three (3) steps below are optional.
Page 32
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 27 24. With the side fascia right-side up, carefully align and apply the side fascia down over the roof edge crown while simultaneously pressing the side of the metal fas- cia against the wood fascia. 25.
Page 33
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 28 28. Measure across the front fascia and add 1 ” to the length. 29. Using a square for a straight line, mark the length to cut the front edge cap. 30. Using a tin snip, cut the front edge cap to length. 31.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 29 SECTION 7. ELECTRICAL HOOK-UP For reasons of safety, this manual does not include the complete steps for electrical installation of the heater. Electrical installation must be made by a licensed electrician in accordance with the National Electric Code and local regulations.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 32 SECTION 8. CONTROL INSTALLATION The Bliss control is weather resistant and water resistant, allowing it to mount either on the interior or exterior of the sauna room. NOTE: If installing the control after applying paint/stain, allow the finish to completely cure before installing the control. 1.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 33 SECTION 9. OPERATING the CONTROL The instructions provided here are for operating a tradi- HEATER TEMPERATURE SETTING tional sauna heater. See Bliss Operating Instructions for further details on the control. The temperature setting of the heater is displayed in small colored text.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 34 SECTION 10. INSTALLING SAFETY PLACARDS Three (3) metal safety placards are included inside the installation instruction envelope packaged with the sauna system. Figure 57. Caution Placard 1. Position the CAUTION placard in plain sight on the interior wall directly above the sauna heater and attach with the two (2) screws provided.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 35 SECTION 11. PLACING SAUNA ROCKS The rocks supplied with the heater were selected with the 2. For the firs layers, place smaller rocks around the outer best traditional sauna performance in mind. perimeter of the heating elements.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 36 SECTION 12. HOW TO TAKE A SAUNA • Devote adequate time to completely relax while taking a sauna bath. • Remove clothing and jewelry. Apply a towel loosely about the body. • To enjoy the soothing effect of steam, splash a small amount of water onto the heated sauna rock.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 37 SECTION 13. MAINTENANCE 14.1. PRE-HEAT MODE Inspect sauna room at the end of each day the room to If the air temperature inside the sauna is below 10°F ensure the control and system is off. (-12°C) at startup, or if the temperature sensor is not detected, the CAUTION Pre-Heat Mode screen appears.
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 38 14.2. SENSOR NOT DETECTED 14.3. HIGH LIMIT ERROR When the sensor is not detected, power to the heater is When the high limit switch trips/activates, power to the disabled. heater is disabled. While the heater is on and if the temperature at the heater rises above the high limit threshold, the heater shuts off, an audible control alarm is sounded, and the WARNING High...
LULEÅ™ 3|4 INSTALLATION and OPERATING INSTRUCTIONS Page 39 14.4. DOOR OPEN 14.5. JUMPER ERROR If an optional door switch (not provided by Sauna360) is This error occurs when the control detects an electrical installed, this message occurs when the control detects the jumper is open on the main board located in the CB Box.
