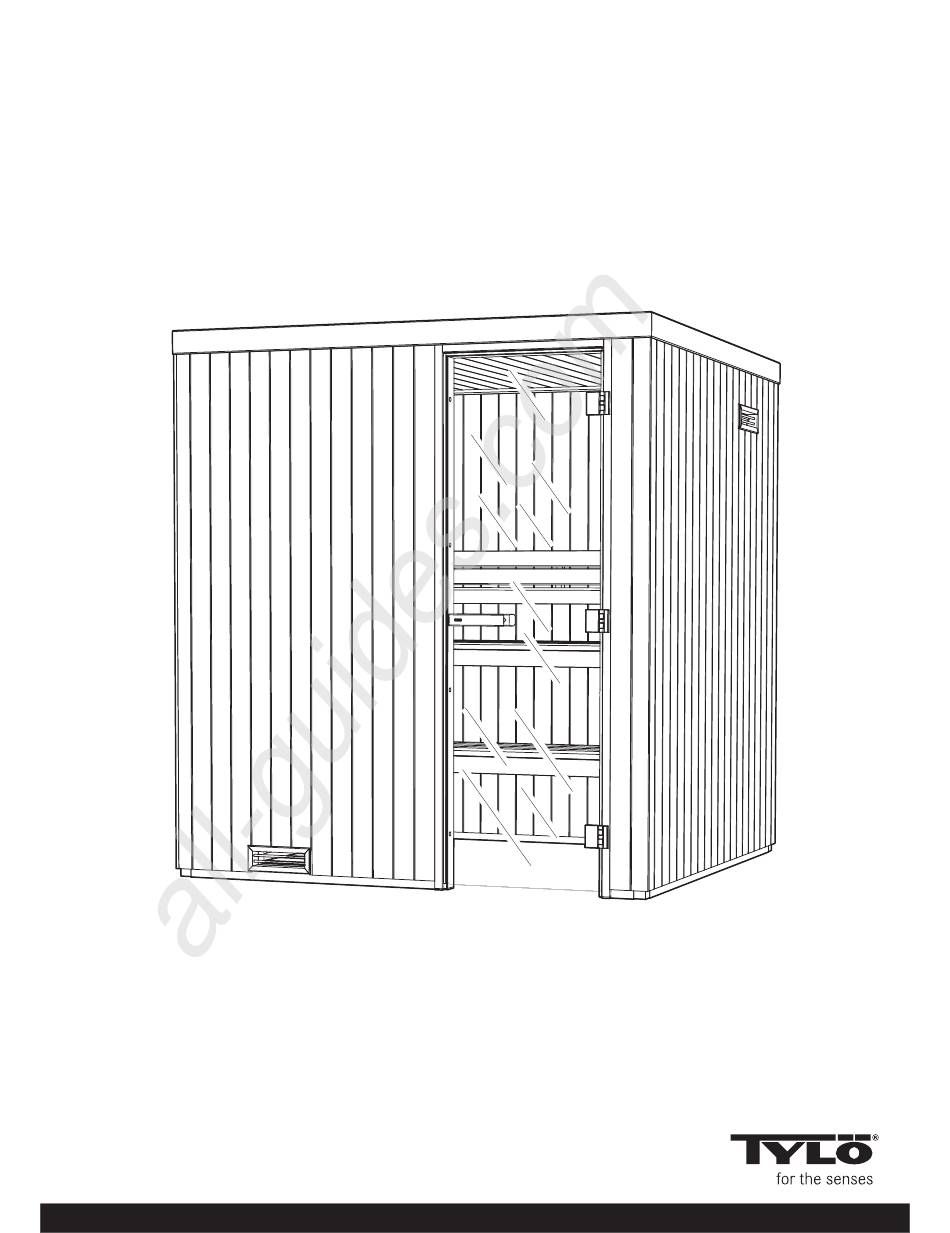

- Page 1 All manuals and user guides at all-guides.com 2017-04-10 TYLÖ SAUNA HARMONY Art.nr 2900 4700...
- Page 2 All manuals and user guides at all-guides.com Väggsektion för aggregat Information Wall section for heater Moduł ścianki do montażu pieca do sauny Ø 30...
- Page 3 All manuals and user guides at all-guides.com Information Tips! Tip! Porada! Rumsemballage Room packaging Opakowanie sauny Använd som skydd på Use as a protection on Można wykorzystać jako golvet vid montering av the floor during assembly ochronę podłogi podczas rummet. of the room.
- Page 4 All manuals and user guides at all-guides.com Panelriktning för vänster/höger placering av rummet. Information Panelriktning Se även layouten som medföljer rummet. Panel direction Panel direction for left/right location of the room. Also see the layout that comes with the sauna room. Monteringsbleck Monteringsbleck - hörn Mounting plate - corner...
- Page 5 All manuals and user guides at all-guides.com Information Spont Tounge Groove OBS! Hörnstolpen monteras på väggen med spont. NOTE! The corner post is to be mounted on the wall with the tounge. 47x10 mm OBS! Monteringsblecket monteras mellan vägg med not och 47x16 regel NOTE! The mounting plate is to be mounted between the wall with groove and the 47x16 stud...
- Page 6 All manuals and user guides at all-guides.com Detaljer och profiler som medföljer rummet Information Details and profiles included with the room 16mm 25mm 1/4" Glue 30mm 35mm Ø 2 80mm Ø 3.5 60mm 100mm 120mm 77.5x12x1970mm Golvram Floor frame 56.5x12x1970mm 45x12x1750mm 47x10x1944mm 45x3.2x600mm...

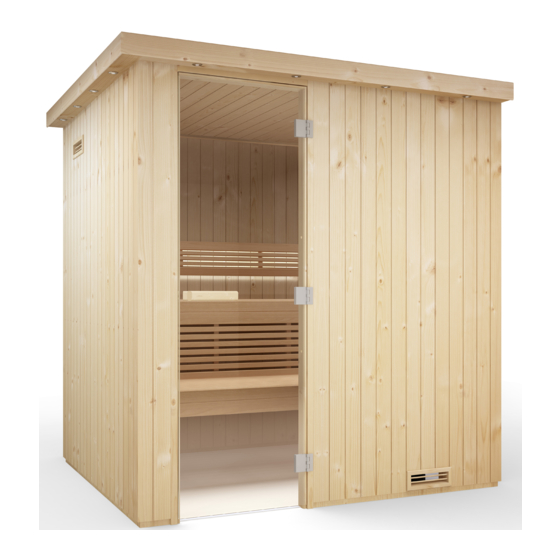

- Page 7 Rummet som monteras i denna manual är ett The room that is mounted in this manual is a Sauna 1925X1670 Harmony. Sauna 1925X1670 Harmony. Se layouten som medföljer rummet för mer See the layout that comes with the sauna room detaljer.
- Page 8 All manuals and user guides at all-guides.com Hörnstolpar Kant i kant Corner posts Flush fitting Kantenbündig Bord à bord Dokładnie wyrównać Kant i kant Flush fitting Kantenbündig ~50mm Bord à bord Dokładnie wyrównać ~50mm ~600mm 47x47 mm ~600mm 47x10 mm Spår Track 35mm...
- Page 9 All manuals and user guides at all-guides.com Montering hörn - om rummet skall monteras inifrån vid brist på utrymme. Mounting corner - if the room has to be mounted from the inside when lack of space. 47x16 mm 47x10 mm 100mm Montering inifrån Mounting from the inside...
- Page 10 All manuals and user guides at all-guides.com Montering hörn - om rummet monteras utifrån (Finns det utrymme rekommenderas att hörnstolpar och väggar skruvas ihop). Mounting corner - if the room is mounted from the outside (If there is space it’s recommended that the corner posts and walls are screwed together).
- Page 11 All manuals and user guides at all-guides.com 25mm...
- Page 12 All manuals and user guides at all-guides.com 47x10 mm 47x16 mm 100mm...
- Page 13 All manuals and user guides at all-guides.com 47x10 mm 47x16 mm 47x10 mm 47x16 mm 47x16 mm 47x10 mm...
- Page 14 All manuals and user guides at all-guides.com 45x12mm 2x1750mm 35mm ~200mm ~200mm Dörr Door Följ anvisningen som medföljer dörren. Drzwi Follow the instructions supplied with the door. Postępuj zgodnie z instrukcją dołączoną do drzwi.
- Page 15 All manuals and user guides at all-guides.com 80mm...
- Page 16 All manuals and user guides at all-guides.com 333mm 839mm 839mm 333mm Ceilings Mått och antal tak varierar beroende på rummets storlek Size and number of ceilings vary depending on room size Mot bastuvägg Mot bastuvägg OBS! Against sauna wall Against sauna wall N.B.! Do ściany Do ściany...
- Page 17 All manuals and user guides at all-guides.com OBS! Ovanför dörr NOTE! Above the door 30mm 45x12mm 45x3.2x600mm 35mm 13mm 140mm 13mm ~15mm ~15mm ~15mm ~15mm Ovanför dörr Above door Ceiling Ceiling Styrlist Styrlist Dach Dach Guide bar Guide bar Toit Toit Fürungsleiste Fürungsleiste...
- Page 18 All manuals and user guides at all-guides.com Ceiling Dach Toit Styrlist Guide bar Fürungsleiste 12x8mm Barre conductrice 12x8mm Vägg Wall Wand Cloison Wand Alternativ Option 120mm...
- Page 19 All manuals and user guides at all-guides.com 3x1970mm 3x1970mm 30mm Tips! Tip! Porada! 30mm...
- Page 20 All manuals and user guides at all-guides.com Tips! Tip! Porada! 30mm P10 P11 Alt. 1 Lave Bench Alt. 2...
- Page 21 All manuals and user guides at all-guides.com Utsida Outside Glue Ausenseite Exterieur Наруж Na zewnątrz Insida Insida Inside Inside Innenseite Innenseite Interieur Interieur Внутр Внутр Wewnątrz Wewnątrz Utsida Outside Ausenseite Exterieur Наруж Na zewnątrz Glue Glue...
- Page 22 All manuals and user guides at all-guides.com 90° 90° Måtten skall vara lika på diagonalen The dimensions must be equal on the diagonal Wymiary przekątnych muszą być równe 90° 90°...
