Summary of Contents for Tylo Kiruna Hybrid 2

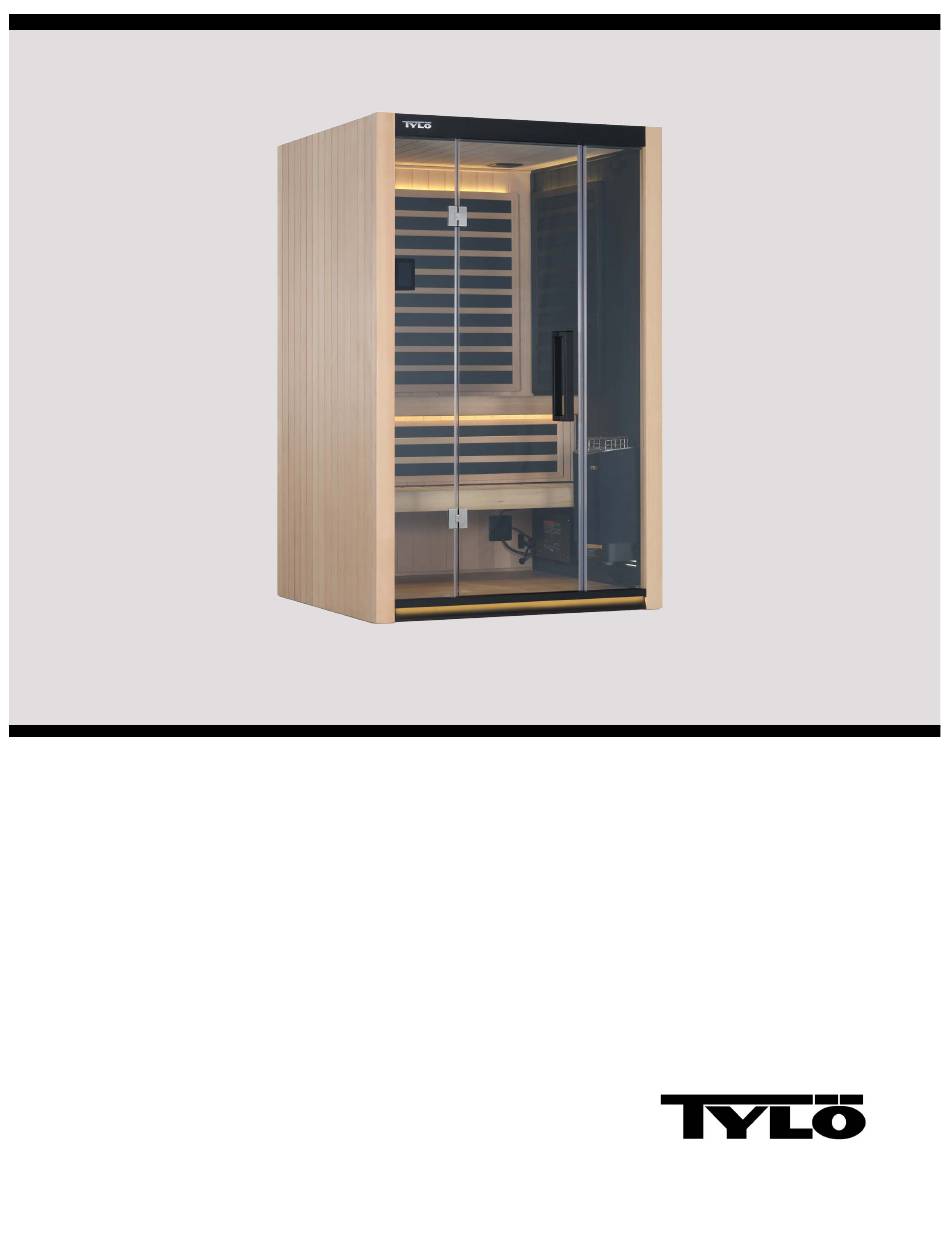

- Page 1 INFRASAUNA SERIES Installation and Operating Instructions Tylö® Kiruna Hybrid™ 2...
- Page 2 THIS PAGE IS INTENTIONALLY BLANK 71-0187 9/26/24 Tylö® Kiruna Hybrid™ 2 Revision C...
- Page 3 Before you begin reviewing the manual, please take a moment to register your warranty. Doing so will assist us in contacting you for any important notification. Prior to registering, you will need the serial number(s) located on the equipment. To register, please go to http://tylo.com/en-us/warranty FOR YOUR RECORDS IS Room Model/Serial Number: Sauna Heater Model/Serial Number:...
- Page 4 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page iv THIS PAGE IS INTENTIONALLY BLANK 71-0187 9/26/24 Tylö® Kiruna Hybrid™ 2 Revision C...
-
Page 5: Table Of Contents
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page v Table of Contents SECTION 1. BEFORE YOU BEGIN ......................1 SECTION 2. SAFETY INFORMATION ....................... 2 2.1. CONSTRUCTION and INSTALLATION SAFETY ................2 2.2. USER and OPERATIONAL SAFETY ....................3 SECTION 3. INSTALLATION REQUIREMENTS ..................4 SECTION 4. -
Page 6: Section 1. Before You Begin
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 1 SECTION 1. BEFORE YOU BEGIN This manual is for installation and operation of an Tylö® Kiruna Hybrid™ 2 sauna room mated with a Sense UB heater (1801- 17-1902, 1801-22-1902), a Bliss IS control (1601-53) and a CB20-1 (1201-20-1) contactor (CB) box. Tylö®... -
Page 7: Section 2. Safety Information
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 2 SECTION 2. SAFETY INFORMATION 2.1. CONSTRUCTION and INSTALLATION SAFETY WARNING - ELECTRIC SHOCK HAZARD: High voltage exists within this equipment. There are no user-serviceable parts within this equipment. Have the equipment installed and serviced only by qualified and licensed personnel in accordance with local and national codes. -
Page 8: User And Operational Safety
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 3 2.2. USER and OPERATIONAL SAFETY WARNING: Prolonged exposure to elevated temperatures can induce hyperthermia. Hyperthermia occurs when internal body temperature reaches several degrees above normal (98.6°F). Symptoms of hyperthermia include an increase in body temperature, dizziness, lethargy, drowsiness, and fainting. Effects of hyper- thermia include failure to perceive heat, failure to recognize the need to exit the room, unawareness of impending hazard, fetal damage in pregnant women, physical inability to exit the room and unconsciousness. -
Page 9: Section 3. Installation Requirements
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 4 SECTION 3. INSTALLATION REQUIREMENTS To ensure safe use of the IS sauna room, verify the following criteria are met: • Two (2) adults are required for the assembly and installation of the room. •... -
Page 10: Section 4. Part List And Tool Requirements
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 5 SECTION 4. PART LIST and TOOL REQUIREMENTS PART LIST Inspect and verify the packaging includes the following materials. Box #1: Floor, ceiling, bench skirt, bench seats, and • door handle. Box #2: Left and right walls. •... -
Page 11: Section 5. Is Room Assembly
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 6 SECTION 5. IS ROOM ASSEMBLY Use these instructions for assembling a 2-person hybrid sauna room. LAYING THE FLOOR PANEL 1. Place the floor panel on a flat, level surface, between 3 and 6 inches away from nearby walls, and no more than 5 feet from the dedicated electrical receptacle. - Page 12 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 7 INSTALLING LEFT WALL SECTION 6. Place the hangers of the left wall section into the mating hangers located on the left side of the floor panel labeled #2. 7. Lift up the left wall and slide the edge brackets into the mating brackets located on the back wall.
-
Page 13: Connecting Cables
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 8 INSTALLING CONTACTOR (CB) BOX Use Figure 9. for the following steps. 15. Remove the cover of the CB Box to gain access to the four (4) mounting holes located in the back of the box. 16. - Page 14 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 9 INSTALLING LOWER BENCH SEAT Use Figure 13. for the steps below. 24. Slide the lower bench seat over the top of the left and right lower bench braces and drop into place. 25.
- Page 15 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 10 INSTALLING UPPER BENCH SEAT Use Figure 16. for the steps below. 31. Slide the upper bench seat partially over the top of the left and right upper bench braces. 32. Connect the bench lighting cable to the corresponding cable from the wall.
-
Page 16: Installing Door Handle
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 11 INSTALLING DOOR HANDLE 38. Arrange the door handles and hardware as shown in Figure 18. Screws and cap are installed from inside the door. 39. Place the door handles on either side of the glass door, aligning with the holes in the glass. - Page 17 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 12 45. From the top of the ceiling, open the four (4) hatches located on the front left, right, and back left and right. ELECTRICAL CONNECTIONS - Ceiling, Back Right Corner 46. Fish out the seven (7) cables from the hatch. 47.
-
Page 18: Mounting The Heater
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 13 MOUNTING THE HEATER 69. Prepare the heater for installation. See the appropriate sauna heater installation and operating instruction manual. 70. Using the measurements provided in Figure 24. verify the position of the pre-drilled mounting holes for the heater. -
Page 19: Section 6. Electrical Hook-Up
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 14 SECTION 6. ELECTRICAL HOOK-UP Use Figure 25. for the following steps. Electrical installation must be made by a licensed electrician on accordance with the National Electric Code and local regulations. 1. Route the heater power cable through an opening located on the bottom of the CB box, high voltage side. - Page 20 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 15 DIAGRAM 1. ELECTRICAL, 120VAC 1 PHASE 71-0187 9/26/24 Tylö® Kiruna Hybrid™ 2 Revision C...
- Page 21 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 16 DIAGRAM 2. CB BOX INTERNAL VIEW 71-0187 9/26/24 Tylö® Kiruna Hybrid™ 2 Revision C...
-
Page 22: Section 7. Control Installation
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 17 SECTION 7. CONTROL INSTALLATION The Bliss IS control is weather resistant and water resistant, allowing it to mount either on the interior or exterior of the sauna room. If the control is not already pre-installed, use the following steps to install the control. 1. -
Page 23: Section 8. Control Quick Guide
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 18 SECTION 8. CONTROL QUICK GUIDE INFRARED Tap the Power icon once. The default settings for the tem- perature is 149°F, the bath time is 60 minutes. These set- tings are adjustable from 84° to 149°. Length of the sauna can be set from 0 to 60 minutes. -
Page 24: Section 9. Installing Safety Placards
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 19 SECTION 9. INSTALLING SAFETY PLACARDS Three (3) metal safety placards are included inside the installation instruction envelope packaged with the sauna system. Figure 29. Caution Placard 1. Position the CAUTION placard in plain sight on the interior wall directly above the sauna heater and attach with the two (2) screws provided. -
Page 25: Section 10. Placing Sauna Rocks
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 20 SECTION 10. PLACING SAUNA ROCKS The rocks supplied with the heater were selected with the 2. For the firs layers, place smaller rocks around the outer best traditional sauna performance in mind. perimeter of the heating elements. -
Page 26: Section 11. How To Take A Sauna
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 21 SECTION 11. HOW TO TAKE A SAUNA • Devote adequate time to completely relax while taking a sauna bath. • Before using the sauna, avoid eating a large meal and intake of alcoholic beverages. -
Page 27: Section 12. Maintenance
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 22 SECTION 12. MAINTENANCE 13.1. PRE-HEAT MODE Inspect sauna room at the end of each day the room to If the air temperature inside the sauna is below 10°F ensure the control and system is off. (-12°C) at startup, or if the temperature sensor is not detected, the CAUTION Pre-Heat Mode screen appears. -
Page 28: Sensor Not Detected
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 23 13.2. SENSOR NOT DETECTED 13.3. HIGH LIMIT ERROR When the sensor is not detected, power to the heater is When the high limit switch trips/activates, power to the disabled. heater is disabled. While the heater is on and if the temperature at the heater rises above the high limit threshold, the heater shuts off, an audible control alarm is sounded, and the WARNING High... -
Page 29: Door Open
KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 24 13.4. DOOR OPEN 13.5. JUMPER ERROR If an optional door switch (not provided by Sauna360) is This error occurs when the control detects an electrical installed, this message occurs when the control detects the jumper is open on the main board located in the CB Box. - Page 30 KIRUNA HYBRID™ 2 INSTALLATION and OPERATING INSTRUCTIONS Page 25 ©2024 Sauna360 Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sauna360 is under license. Apple® is a registered trademark of Apple Inc. Tylö®...
