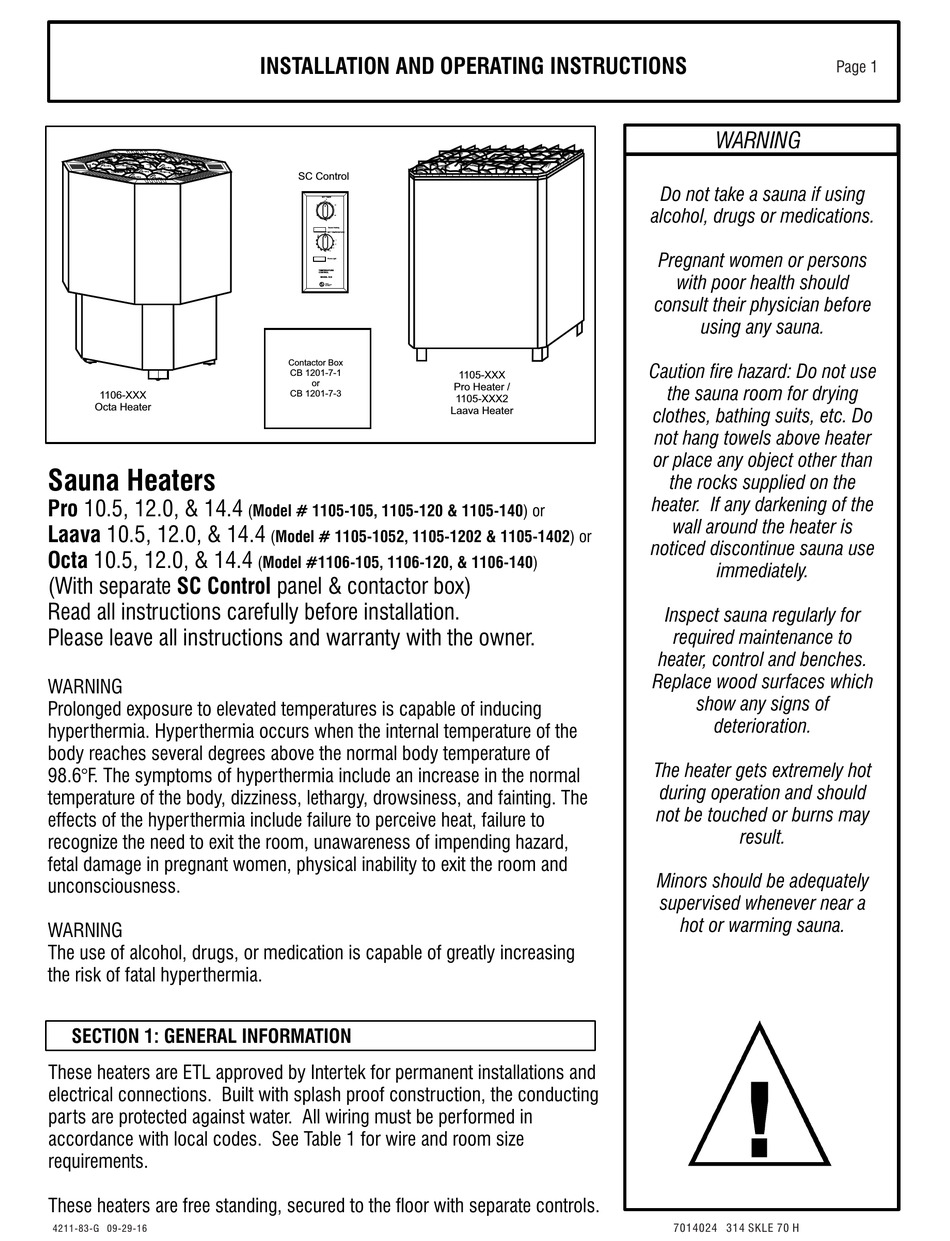

Pro, laava, octa series sauna heaters

Advertisement

1106-XXX
Octa Heater
Sauna Heaters
Pro 10.5, 12.0, & 14.4
Laava 10.5, 12.0, & 14.4
Octa 10.5, 12.0, & 14.4
(With separate SC Control panel & contactor box)
Read all instructions carefully before installation.
Please leave all instructions and warranty with the owner.
WARNING
Prolonged exposure to elevated temperatures is capable of inducing
hyperthermia. Hyperthermia occurs when the internal temperature of the
body reaches several degrees above the normal body temperature of
98.6°F. The symptoms of hyperthermia include an increase in the normal
temperature of the body, dizziness, lethargy, drowsiness, and fainting. The
effects of the hyperthermia include failure to perceive heat, failure to
recognize the need to exit the room, unawareness of impending hazard,
fetal damage in pregnant women, physical inability to exit the room and
unconsciousness.
WARNING
The use of alcohol, drugs, or medication is capable of greatly increasing
the risk of fatal hyperthermia.
SECTION 1: GENERAL INFORMATION
These heaters are ETL approved by Intertek for permanent installations and
electrical connections. Built with splash proof construction, the conducting
parts are protected against water. All wiring must be performed in
accordance with local codes. See Table 1 for wire and room size
requirements.
These heaters are free standing, secured to the oor with separate controls.
4211-83-G 09-29-16
INSTALLATION AND OPERATING INSTRUCTIONS
SC Control
SET TIMER
0
50
10
40
20
30
Sauna Heating
0
SET TEMPERATURE
10
9
1
8
2
7
3
6
5
4
Room Light
TEMPERATURE
CONTROL
MODEL 19-8
U L
Listed
Sauna heater
R
No. 339 B
Contactor Box
CB 1201-7-1
or
CB 1201-7-3
(Model # 1105-105, 1105-120 & 1105-140) or
(Model # 1105-1052, 1105-1202 & 1105-1402) or
(Model #1106-105, 1106-120, & 1106-140)
1105-XXX
Pro Heater /
1105-XXX2
Laava Heater
WARNING
Do not take a sauna if using
alcohol, drugs or medications.
Pregnant women or persons
with poor health should
consult their physician before
using any sauna.
Caution re hazard: Do not use
the sauna room for drying
clothes, bathing suits, etc. Do
not hang towels above heater
or place any object other than
the rocks supplied on the
heater. If any darkening of the
wall around the heater is
noticed discontinue sauna use
immediately.
Inspect sauna regularly for
required maintenance to
heater, control and benches.
Replace wood surfaces which
show any signs of
deterioration.
The heater gets extremely hot
during operation and should
not be touched or burns may
result.
Minors should be adequately
supervised whenever near a
hot or warming sauna.
7014024 314 SKLE 70 H
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1105-120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tylo 1105-120

  • Page 1 If any darkening of the Pro 10.5, 12.0, & 14.4 (Model # 1105-105, 1105-120 & 1105-140) or wall around the heater is Laava 10.5, 12.0, & 14.4 (Model # 1105-1052, 1105-1202 & 1105-1402) or noticed discontinue sauna use Octa 10.5, 12.0, &...
  • Page 2 INSTALLATION AND OPERATING INSTRUCTIONS Page 2 SECTION 2: MOUNTING OF SAUNA HEATER WARNING Carefully locate the heater according to the dimensions shown in Diagram 1 and Fire sprinkler systems used bolt it to the oor. (Bolts are not supplied with the heater.) Tighten to secure the inside any sauna room should heater in place.
  • Page 3 INSTALLATION AND OPERATING INSTRUCTIONS Page 3 DIAGRAM 1 Pro Heater 1105-XXX High Limit Control Reset 2" 5" 1x1" min. wooden 2½" post Sensor 49½" 5" min. min. min. ¾ x 4" wooden 78" 2½" rail min. min. 27" max. OBSERVING MINIMUM DISTANCES IS REQUIRED TO REDUCE THE RISK OF FIRE BOLTS Locate the sensor 2"...
  • Page 4 INSTALLATION AND OPERATING INSTRUCTIONS Page 4 DIAGRAM 1 Laava Heater 1105-XXX2 High Limit Control Reset 2" 4-1/2" 1x1" min. wooden 1" post Sensor 49½" 2" min. min. min. ¾ x 4" wooden 78" 1" rail min. min. 27" max. OBSERVING MINIMUM DISTANCES IS REQUIRED TO REDUCE THE RISK OF FIRE BOLTS Locate the sensor 2"...
  • Page 5 INSTALLATION AND OPERATING INSTRUCTIONS Page 5 DIAGRAM 1 Continued Octa Heater 2" High Limit Control Reset " 1x1" 46¾" min. Sensor wooden ¾ " post min. " min. 78" min. ¾ ¾ x 4" " wooden min. rail 30" max. OBSERVING MINIMUM DISTANCES IS BOLTS REQUIRED TO REDUCE THE RISK OF FIRE...
  • Page 6 INSTALLATION AND OPERATING INSTRUCTIONS Page 6 TABLE 1 Minimum Room Maximum Room Copper Wire Size 90° C Contactor to Power Supply Heater Model / Floor Ceiling Volume Ceiling Volume Contactor ** Breaker # Power Supply Contactor to Heater High Contactor to to Control Product Area...
  • Page 7 INSTALLATION AND OPERATING INSTRUCTIONS Page 7 SECTION 7: OPERATION WARNING The heater is intended for use with a SC-9, SC-60 or SC-Club Control Do not locate benches over Panel only. For health and re safety, never attempt to alter or bypass the heater.
  • Page 8 INSTALLATION AND OPERATING INSTRUCTIONS Page 8 SECTION 7: OPERATION, Continued MODEL SC-Club CONTROL PANEL, Model Number 19 - 8 - 17 (Attendant Present Control, Thermostat Only) This control panel is equipped with a main on/off switch, an electronic thermostat, and a sauna light switch. A pilot lamp in the main on/off switch indicates when the sauna heater is on.
  • Page 9 INSTALLATION AND OPERATING INSTRUCTIONS Page 9 DIAGRAM 6 SINGLE PHASE WIRING DIAGRAM HEATER MODELS: Pro 10.5, 12.0 & 14.4 Model Number: 1105-105, 1105-120 & 1105-140 Laava 10.5, 12.0 & 14.4 Model Number: 1105-1052, 1105-1202 & 1105-1402 208V or 240V 1-phase...
  • Page 10 INSTALLATION AND OPERATING INSTRUCTIONS Page 10 DIAGRAM 6, Continued THREE PHASE WIRING DIAGRAM HEATER MODELS: Pro 10.5, 12.0 & 14.4 Model Number: 1105-105, 1105-120 & 1105-140 Laava 10.5, 12.0 & 14.4 Model Number: 1105-1052, 1105-1202 & 1105-1402 208V or 240V 3-phase...
  • Page 11 INSTALLATION AND OPERATING INSTRUCTIONS Page 11 DIAGRAM 6 SINGLE PHASE WIRING DIAGRAM: HEATER MODELS OCTA 10.5, 12.0 & 14.4 Model Number: 1106-105, 1106-120 & 1106-140 208V or 240V 1-phase CONTACTOR BOX CB 7-1 (Model # 1201-7-1) Circuit 1 Field Circuit 2 Wiring (Re-set Fuse) Sensor...
  • Page 12 INSTALLATION AND OPERATING INSTRUCTIONS Page 12 DIAGRAM 6, Continued THREE PHASE WIRING DIAGRAM: HEATER MODELS OCTA 10.5, 12.0 & 14 Model Number: 1106-105, 1106-120 & 1106-140 208V or 240V 3-phase CONTACTOR BOX CB 7-3 (Model # 1201-7-3) Field Wiring (Re-set Fuse) Sensor N 1 2 Gr N 10 11 12 Control Panel(Model #)
  • Page 13 INSTALLATION AND OPERATING INSTRUCTIONS Page 13 DIAGRAM 6, Continued DIAGRAM 7 SC-9 Control Panel (19-8-1517) 2x4" framing 1/2" wallboard 9 +1 timer a1 a b b0 a1 a b b0 Sauna OYKS 9 light fiberglass insulation Pilot lamp foil vapor barrier 1 2 3 4 T&G soft wood 1 2 3 4...
  • Page 14 INSTALLATION AND OPERATING INSTRUCTIONS Page 14 SECTION 10: WARNING PLACARDS WARNING The "CAUTION" and Secure the two metal placards at eye level with the screws that are included "WARNING" placards must be in the Installation Instruction Envelope packaged with every Sauna Heater. mounted in accordance with The CAUTION placard must be attached to the interior wall of the sauna Section 10.
  • Page 15 INSTALLATION AND OPERATING INSTRUCTIONS Page 15 SECTION 12: VENTILATION VENTILATION Ventilation shall be provided in a sauna, the air should be changed about 6 times an hour. This can be achieved by making a vent opening (fresh air inlet) in the sauna wall directly below the heater. The air outlet must be lower than the upper benches, as far as possible from the heater and about two feet higher than the fresh air inlet vent, See Diagram 8.
