Summary of Contents for Clenergy TNK PV5/6

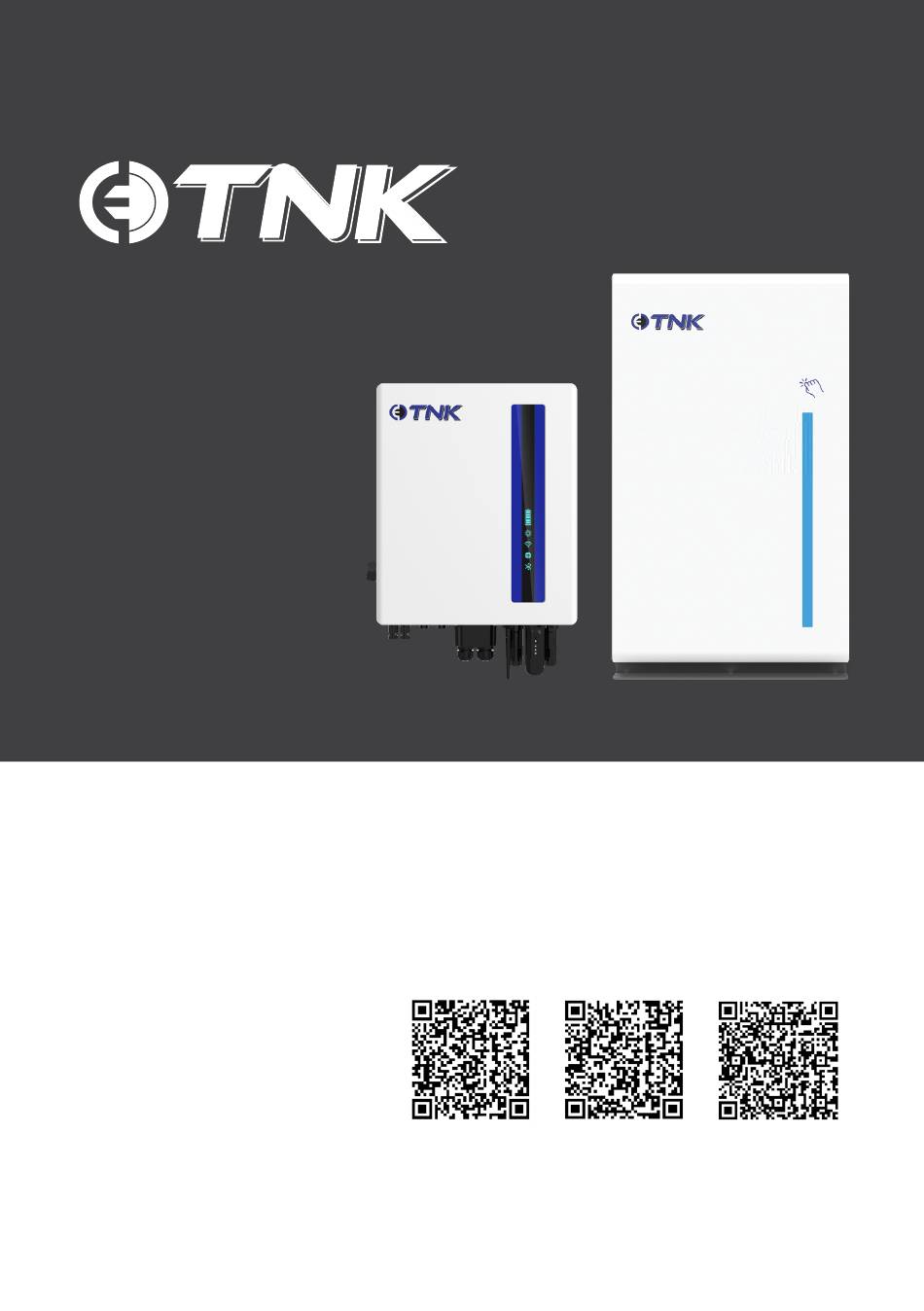

- Page 1 ·TNK PV5/6 ·TNK LV10 INSTALLATATION QUICK GUIDE Inverter Battery Commissioning User manual User manual Quick Guide Ver. 1.0 / Last Updated - Feb. 2025...
-
Page 2: What's In The Box
INSTALLATATION QUICK GUIDE WHAT’S IN THE BOX Inverter Inverter x 1 Back plate x 1 Fastening screw x 4 AC grid terminal x 1 AC backup terminal x 1 DC connector x 2 RJ45 connector x 8 Amphenol Plugs x 2 RS485 Meter cable x1 Wi-Fi Data Logger x 1 Eastron Meter and CT x 1... -
Page 3: Tools Required
INSTALLATATION QUICK GUIDE Battery Battery x 1 Battery bracket kit x 1 RJ45 Waterproof 120Ω CAN resistor x 1 connector x 2 DC Power cable pair x 1 Communication User manual x 1 Expansion screw x 9 cable x 1 Positioning cardboard x 2 Tools Required Technician... -
Page 4: Inverter Overview
INSTALLATATION QUICK GUIDE INVERTER OVERVIEW DC Side AC Side Front View Bottom View... -
Page 5: Battery Overview
INSTALLATATION QUICK GUIDE BATTERY OVERVIEW Label Description BAT + Positive DC battery connector CAN/RS485 port that connects to inverter’s CAN/ CAN IN RS485 port via communication cable Negative DC battery connector BAT - CAN OUT Currently unused Power Button Toggles battery ON or OFF DC Circuit Breaker Inbuilt circuit protection Indicates current battery state of charge –... - Page 6 INSTALLATATION QUICK GUIDE Step 1 : Select a suitable Location for the Inverter · It is recommended to install the Inverter in a location which has no exposure to direct sunlight. Exposure to sunlight can affect the IP Protection rating of the Inverter and de- grade the performance of the inverter.
-
Page 7: Step 2 : Mounting The Inverter
INSTALLATATION QUICK GUIDE Step 2 : Mounting the Inverter - The Inverter should be mounted vertically (+/- 5) - The inverter can be installed on a backwards tilt up to 15 · Do not mount the inverter tilted forward greater than 5 ·... - Page 8 INSTALLATATION QUICK GUIDE Step 3 : DC Cable installation Before connecting inverter, please make sure the PV array open circuit voltage is with in the limit of the inverter. Before connection, please make sure the polarity of the output voltage of PV array matches the ”DC+”...
-
Page 9: Step 4 : Battery Installation
INSTALLATATION QUICK GUIDE Step 4 : Battery Installation IMPORTANT: Confirm battery is powered OFF before commencing electrical work NOTE: An overcurrent protection and isolation device that operates both positive and negative conductors simultaneously is required between the inverter and the battery system and between parallel battery systems. - Page 10 INSTALLATATION QUICK GUIDE 3. Perform the electrical installation: - Earth Cable Connect crimped ground cable to battery and torque screw to 6NM – Connect the other side of the ground cable to a grounding point to 6NM. - DC cable ·...
- Page 11 INSTALLATATION QUICK GUIDE - Communication cable Connect the provided RJ45 communication cable between the CAN IN connector of the battery and the battery CAN/RS485 port of the inverter. Step 5 : AC Cable Installation · The AC conductors should be stripped with a minimum length of 9mm. ·...
-
Page 12: Step 6 : Communication Cable Installation
INSTALLATATION QUICK GUIDE Step 6 : Communication Cable Installation · Loosen the cable gland & remove the rubber seal inside the cable gland based on the number of cables required. · Please keep the unused holes sealed with the watertight caps. ·... - Page 13 INSTALLATATION QUICK GUIDE Installer Tip: · Meter installation is mandatory. · The smart meter with CT is pre-configured. Do not change any settings on the smart meter. Each smart meter can be used with only one TNK inverter.
-
Page 14: Bms Connection
INSTALLATATION QUICK GUIDE BMS Connection Note: BMS port pin definition (ElA/TlA 568B): CAN-H on Pin 4 CAN-L on Pin 5 Installer Tip: · RS485 connection between the Inverter & Meter can go up to 250m long. The maximum length of the CT cable is limited to 10m. ·... - Page 15 INSTALLATATION QUICK GUIDE Monitoring Connection/Communication To enable remote monitoring, connect the Clenergy Datalogger to the COM port at the bottom of the inverter. This will allow you to track system performance remotely and ensure everything is running smoothly after commissioning.
- Page 16 INSTALLATATION QUICK GUIDE Single Phase Backup Wiring Diagram...
- Page 17 DE: +49 (0) 40 3562 389 00 | TH: +66 (0) 2 277 5201 | PH: +63 977 840 7240 Global Partners UK: +44 (0) 1604 877573 @ClenergyGlobal @ClenergyClub @ClenergyAUS @ClenergyJP @ClenergyThailand @Clenergy @Clenergy_global @ClenergyClub @clenergy-japan @Clenergy @クリ ーンエナジージャパン MADE IN CHINA | DESIGNED IN AUSTRALIA...
