Summary of Contents for Timeguard LED10PIRB

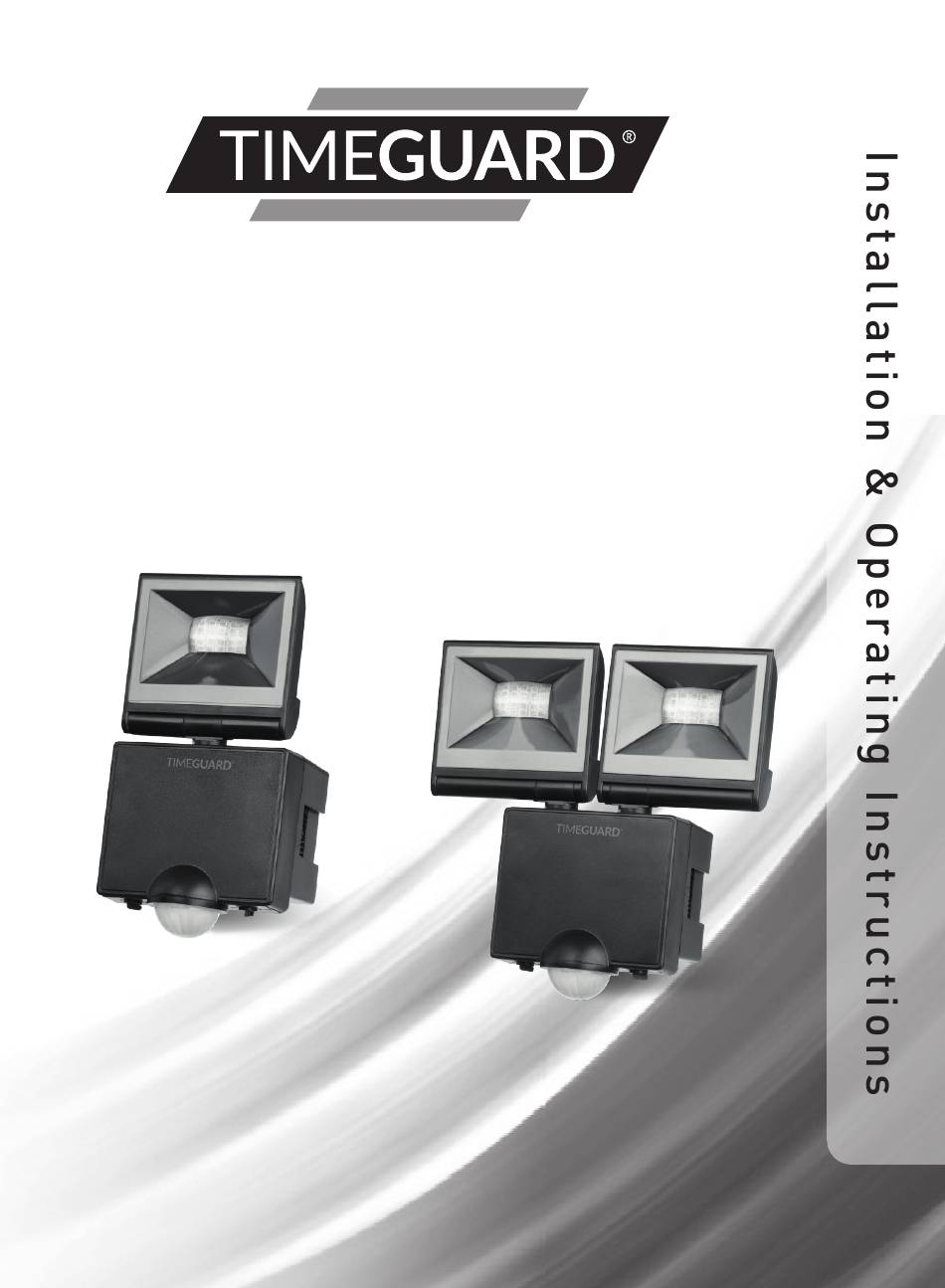

- Page 1 LED Pan & Tilt Single / Twin Head PIR Floodlights Model: LED10PIRB Model: LED20PIRB...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. Timeguard reserve the right to alter these instructions at any time. Note: Up to date instructions will always be available for download at www.timeguard.com 2. - Page 3 • Back Box Mounting Hole Centres: 84mm • IP Rating: IP55 • Motion Detection Range: Up to 10m at a 2.5m mounting height • Detection Angle: 140˚ • Light Time On Adjustment: 2 seconds to 30 minutes • Lux Adjustment: 2 to 200 lux •...
-
Page 4: Selecting A Location
4. Selecting a location • The PIR has a number of detection zones, at various vertical and horizontal angles as shown. See image A • The best all-round coverage is achieved with the floodlight mounted at the optimum height of 2.5 metres. See image B. •... - Page 5 5a. Installation This section covers installation without the use of the corner bracket. If the corner bracket is required for installation refer to section 5b Installation (Corner Bracket). • Mark the position of the mounting holes on the wall using the back box as a template (See image 1). Drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface.
- Page 6 5b. Installation (Corner Bracket) • Mark the position of the mounting holes on the wall using the corner bracket as a template (See image 3). Drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface.
-
Page 7: Connection Diagram
6. Connection Diagram L L1 230V AC 50Hz MAINS SUPPLY ISOLATION SWITCH Note terminal E is for earth continuity only. 230V 50Hz Mains Supply Live Supply (Brown or Red) Neutral Supply (Blue or Black) to Earth (Green/Yellow) to... -
Page 8: Isolation Switch
L L1 L L1 230V AC 50Hz MAINS SUPPLY ISOLATION SWITCH Up to 4 LED20PIRB & LED10PIRB SWITCHED units can be wired in parallel. LIVE 230V 50Hz Mains Supply Live Supply (Brown or Red) Neutral Supply (Blue or Black) to Switched Live (Link) to •... - Page 9 7. Setting Up Walk Test Procedure (Test Mode) • Make sure the PIR sensor is set to Test Mode i.e. the time on adjustment to the minimum (fully anti-clockwise) position, and the Lux Level set the Sun symbol (fully clockwise). •...
-
Page 10: Lamp Adjustment
• The LUX Level adjustment determines the level of darkness required for the unit to start operating. The setting is best achieved by the procedure below; 1. Set the LUX Level adjustment knob fully clockwise (Sun symbol). 2. When the ambient light level reaches the level of darkness at which you wish the lamp to become operative (i.e. -
Page 11: Manual Override
Note: a proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard), the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a... - Page 12 If you experience problems, do not immediately return the unit to the store. Email the Timeguard Customer Helpline: HELPLINE helpline@timeguard.com or call the helpdesk on 020 8450 0515 Qualified Customer Support Coordinators will be online to assist in resolving your query.
