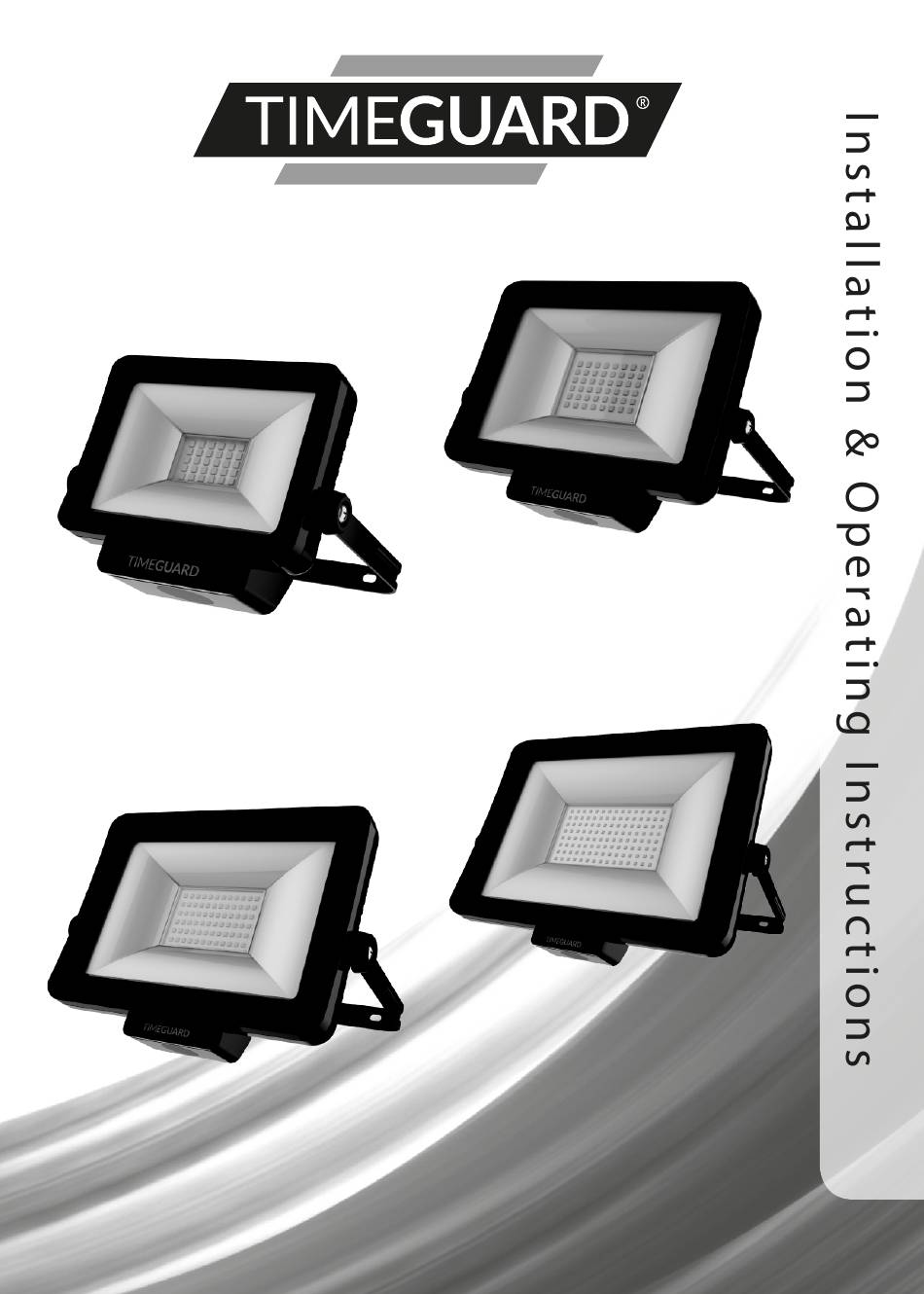

- Page 1 Slimline LED Floodlight Model: LEDPRO20WH (White) Model: LEDPRO20B (Black) Model: LEDPRO10WH (White) Model: LEDPRO10B (Black) Model: LEDPRO50WH (White) Model: LEDPRO50B (Black) Model: LEDPRO30WH (White) Model: LEDPRO30B (Black)
- Page 2 • Colour Temperature: 4000K • Energy Efficiency: Class F • IP65 Rated suitable for restricted external applications • CE Compliant LEDPRO10WH & LEDPRO10B • 10W LED Non replaceable lamp • Energy Usage: 10Kwh/1000h • Lumen Output: Black: 1160 lm, White: 1160lm LEDPRO20WH &...
- Page 3 LEDPRO50WH & LEDPRO50B • 50W LED Non replaceable lamp • Energy Usage: 50Kwh/1000h • Lumen Output: Black: 5300lm, White: 5300lm 4. Installation • Ensure the mains supply is switched off and the circuit supply fuses are removed or the circuit breaker turned off.
- Page 4 • Attach the strain relief to the luminaire and screw in ensuring not to over-tighten. • Attach the luminaire to the U bracket fitted to the wall. You are able to pre-fit the supplied fixing screws and washers to the luminaire before you do this, the screws will just need to be loose enough to fit over the upward facing slots...
- Page 5 Connect the 3 core mains supply cable to the block on the unit as follows:- LIVE (Brown or Red) NEUTRAL (Blue or Black) EARTH (Green/Yellow) Note: the L1 terminal is a Switch Live 'Live Output' for slave floodlights (when used in conjunction with the Timeguard LEDPROSLB/WH PIR or LEDPROPCB/WH Photocell)
- Page 6 6. Operation • Turn the power on to the isolating switch and test for correct operation. 7. Lamp Adjustment • The lamp can be tilted 360º turn through U-Bracket. 360º turn through U-Bracket...
- Page 7 Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a...
- Page 8 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Quali ed Customer Support Co-ordinators will be on-line to assist in resolving your query.
