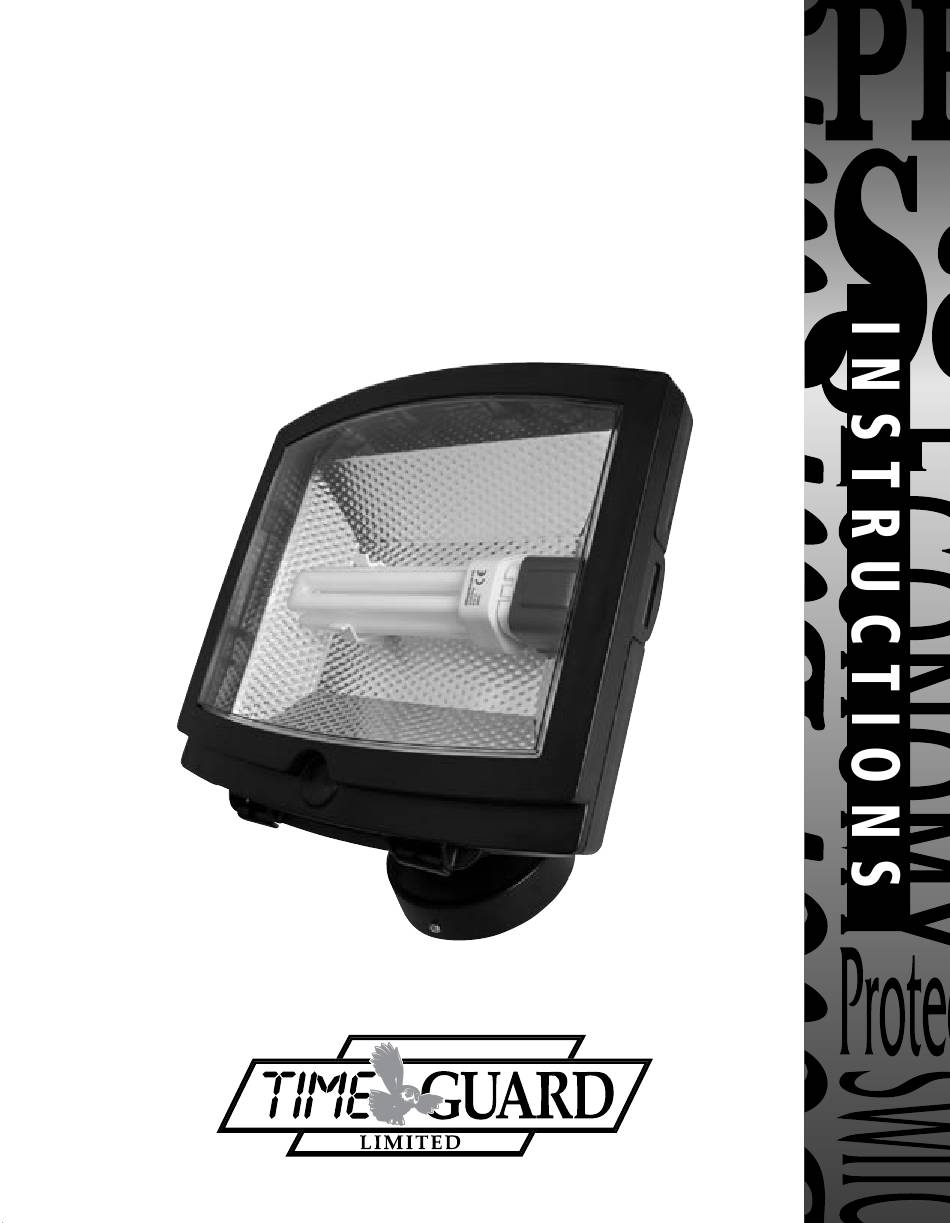

- Page 1 26W & 42W EnErgy SavEr FloodlightS cat no. Eco42F - 42W cat no. Eco26F - 26W instructions...
- Page 3 Clamping Screws (vertical adjustment) Time...
- Page 4 SECTION ONE GENERAL INFORMATION This floodlight features an integral daylight sensing photocell which will automatically switch the light on at dusk and off at dawn or at a time set by the user. Unit is for outdoor use only. Unit must be mounted as a fixed luminaire, and is not suitable for portable use.
- Page 5 To fit the bulb, release but do not remove the two screws on the rear of the floodlight (diagram B). Release the clips shown on diagram B at either side of the housing, the floodlight front cover will open and rotate down but will not separate from the main floodlight body. Remove the bulb from its packaging and fit into the lampholder.
- Page 6 SECTION THREE OPERATION AND TESTING SETTING UP FOR AUTOMATIC OPERATION The adjustment controls on the unit (diagram F) should be set as follows. The TIME control determines how long the lamp remains illuminated after activation. There are 5 designated “time on” settings O (or off), 2, 4, 6, 8 hours and dusk/dawn. These settings allow the lamp to illuminate for the designated time on period after darkness falls and the unit is activated.
- Page 7 TECHNICAL SPECIFICATIONS Power Supply 240V AC ~ 50Hz Lamp Type ECO42F - 240V 42W 4 pin (GX24q-4) Low Energy lamp ECO26F - 240V 26W 4 pin (GX24q-3) Low Energy lamp Time On 2, 4, 6, 8 hours from dusk or dusk/dawn Lux Level Adjustment Day &...
- Page 8 For assistance with the product please contact:- HeLpLIne 020-8450-0515 or email helpline@timeguard.com For a product brochure please contact: Timeguard Ltd. Victory park, 400 edgware Road, London nW2 6nD Tel: 020-8452-1112 or email csc@timeguard.com Group company 67-058-315 (Iss.1)
