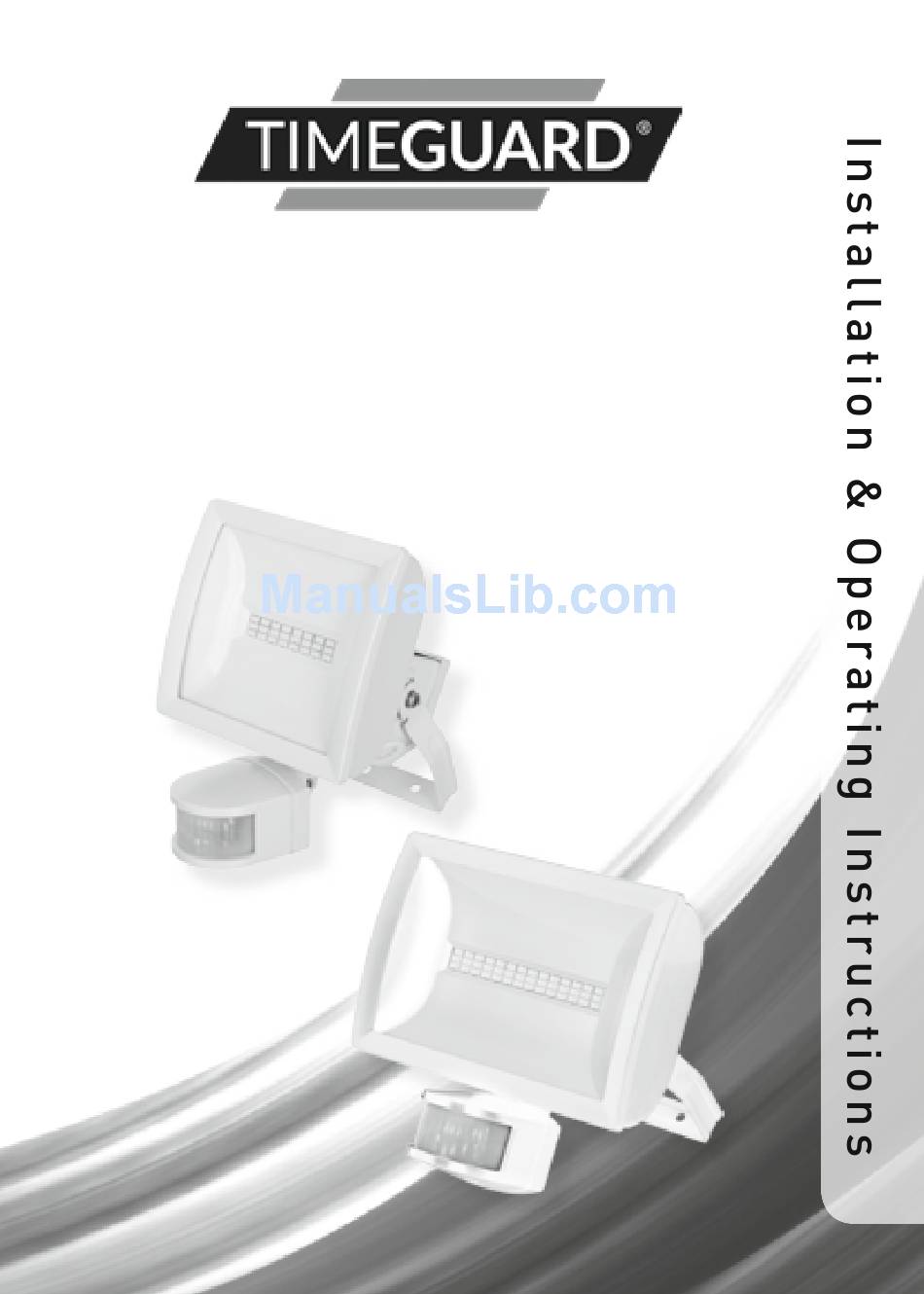

- Page 1 LED PIR Floodlight Model: LEDX10PIRWH – White Model: LEDX10PIRB – Black Model: LEDX20PIRWH – White Model: LEDX20PIRB – Black...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the luminaire is switched off and the circuit supply fuses are removed or the circuit breaker turned off. -
Page 3: Installation Advice
4. Installation Advice As the detector responds to changes in temperature, avoid the following situations: • Pointing the detector towards objects with highly reflective surfaces, such as mirrors etc. • Mounting the detector near heat sources, such as heating vents, air conditioning units, lights etc. -
Page 4: Installation Procedure
5. Installation Procedure • Mark the position of the mounting holes on the wall using the U bracket supplied as a template. • Drill the holes for the wall plugs ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface. - Page 5 • Attach the strain relief to the luminaire and screw in ensuring not to over-tighten. • Terminate the supply cable into the terminal block (please refer to section 6 connection diagram) ensuring correct polarity is observed and that all bare conductors are sleeved. •...
-
Page 6: Connection Diagram
6. Connection Diagram ISOLATION SWITCH MAINS SUPPLY Connect the 3 core mains supply cable to the block on the unit as follows:- LIVE (Brown or Red) NEUTRAL (Blue or Black) EARTH (Green/Yellow) -
Page 7: Operation
7. Operation • Turn the power on to the isolating switch and test for correct operation. 8. Walk Test and Adjustment • The purpose of the Walk is used to test and adjust the detection coverage of the LEDX10PIR and LEDX20PIR under auto mode. Test Procedure •... - Page 8 Knob Settings The LEDX10PIR and LEDX20PIR have two adjustment knobs: Time and Lux at the bottom of the detector head. • Adjust the knobs carefully with flat blade screwdriver. TIME knob setting • You can set the time knob from 5 seconds to about 10 minutes, the LEDX10PIR or LEDX20PIR will switch the lamp ON, for the time duration set after each detected movement.
- Page 9 Dusk setting (Time knob setting) • When setting the Time knob to fully clock wise, the motion detector of the LEDX10PIR or LEDX20PIR won’t function. The lamp will operate depending on the ‘Lux’ level, i.e. dusk to dawn. Setting Advice WARNING Lens Masking •...
-
Page 10: Manual Override Mode
Manual Override Mode The light can be switched on for longer time periods by use of the Manual Override Mode. This can be activated at night by using the internal wall switch or circuit breaker. • Switch the internal wall switch/circuit breaker once (OFF/ON) within 1.5 seconds •... -
Page 11: Troubleshooting Guide
Troubleshooting Guide Lamp stays ON all The unit may be suffering from false activation. the time at night. Cover the sensor lens completely with a thick cloth. This will prevent the sensor from ‘seeing’ anything. If the unit now switches off after the set time duration and does not re-activate, this indicates that the problem was caused by false activation. - Page 12 Unit activates during The level of ambient light in the area may be too dark the daytime. for the current DUSK setting. During daylight, adjust the DUSK control slightly anti-clockwise. When the lamp turns off, enter the detection area. If the PIR still activates, the setting is still too high.
-
Page 13: Year Guarantee
Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a replacement... - Page 14 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
