Summary of Contents for Timeguard LED200WFB

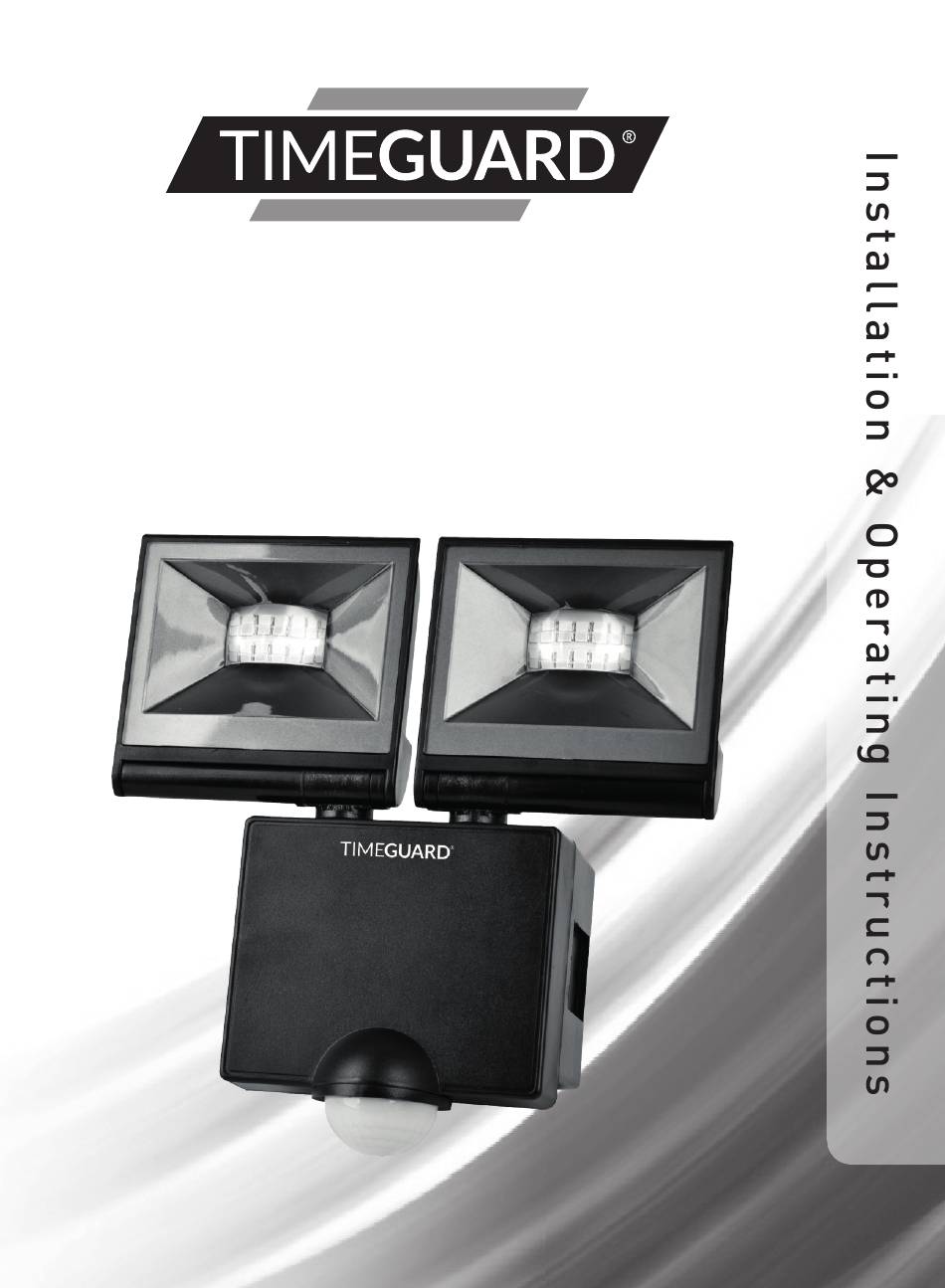

- Page 1 2x 10W LED Wi-Fi PIR Twin Floodlight - Black Model: LED200WFB...
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. Timeguard reserve the right to alter these instructions at any time. Note: Up to date instructions will always be available for download at www.timeguard.com 2. - Page 3 • Motion Detection Range: Up to 10m at a 2.5m mounting height • Detection Angle: 140˚ • Full Light Time On Adjustment: 5 seconds to 60 minutes • 2nd Stage Time On Adjustment: 1 minute to 8 hours • Lux Adjustment: 10 to 1000 lux •...
-
Page 4: Selecting A Location
5. Tuya Smart App Requirements • Smartphone/Tablet with at least iOS 11.0 or Android 7.0. Minimum requirements subject to Tuya Inc. and not Timeguard. • WLAN-enabled router: 2.4GHz (Separate Band) 6. Selecting a location • The PIR has a number... - Page 5 7a. Installation This section covers installation without the use of the corner bracket. If the corner bracket is required for installation refer to section 7b Installation (Corner Bracket). • Mark the position of the mounting holes on the wall using the back box as a template (See image 1). Drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface.
- Page 6 7b. Installation (Corner Bracket) • Mark the position of the mounting holes on the wall using the corner bracket as a template (See image 3). Drill the holes ensuring not to infringe with any gas/water pipes or electrical cables that may be hidden below the surface.
-
Page 7: Connection Diagram
8. Connection Diagram 230V AC 50Hz MAINS SUPPLY ISOLATION SWITCH Note terminal E is for earth continuity only. 230V 50Hz Mains Supply Live Supply (Brown or Red) Neutral Supply (Blue or Black) to Earth (Green/Yellow) to • After the mains supply cable has been terminated. Re-connect the luminaire to the back box ensuring that the two lugs firmly latch on the left and right hand side, indicated by a ‘click’. - Page 8 9. Downloading App & Registration Note: the mobile or tablet device must be connected to a 2.4GHz band on the router. Pairing on the 5GHz band will result in pairing timing out or being unsuccessful. Refer to your ISP (Internet Service Provider) on separating the bands if required.
-
Page 9: Pairing Your Device(S)
‘Me’ section on the home page of the App. Note: The Smart Home Assistant services supported by the TuyaSmart App may change as it is a 3rd party App Service. Any services that may be removed are the responsibility of TuyaSmart developers and not Timeguard. -
Page 10: Controls Screen
12. Controls Screen Temperature Wheel: Sets the colour temperature of the luminaire. Left: Warm White Right: Cool White Manual Override: Switch ON/OFF the luminaire as required. Note this is a permanent state. Delay Setting: Delay either the startup or shutdown times of the luminaire. -
Page 11: Year Guarantee
Note: a proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard), the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance before a... - Page 12 If you experience problems, do not immediately return the unit to the store. Email the Timeguard Customer Helpline: HELPLINE helpline@timeguard.com or call the helpdesk on 020 8450 0515 Qualified Customer Support Coordinators will be online to assist in resolving your query.
