Summary of Contents for Timeguard LEDX10PIR

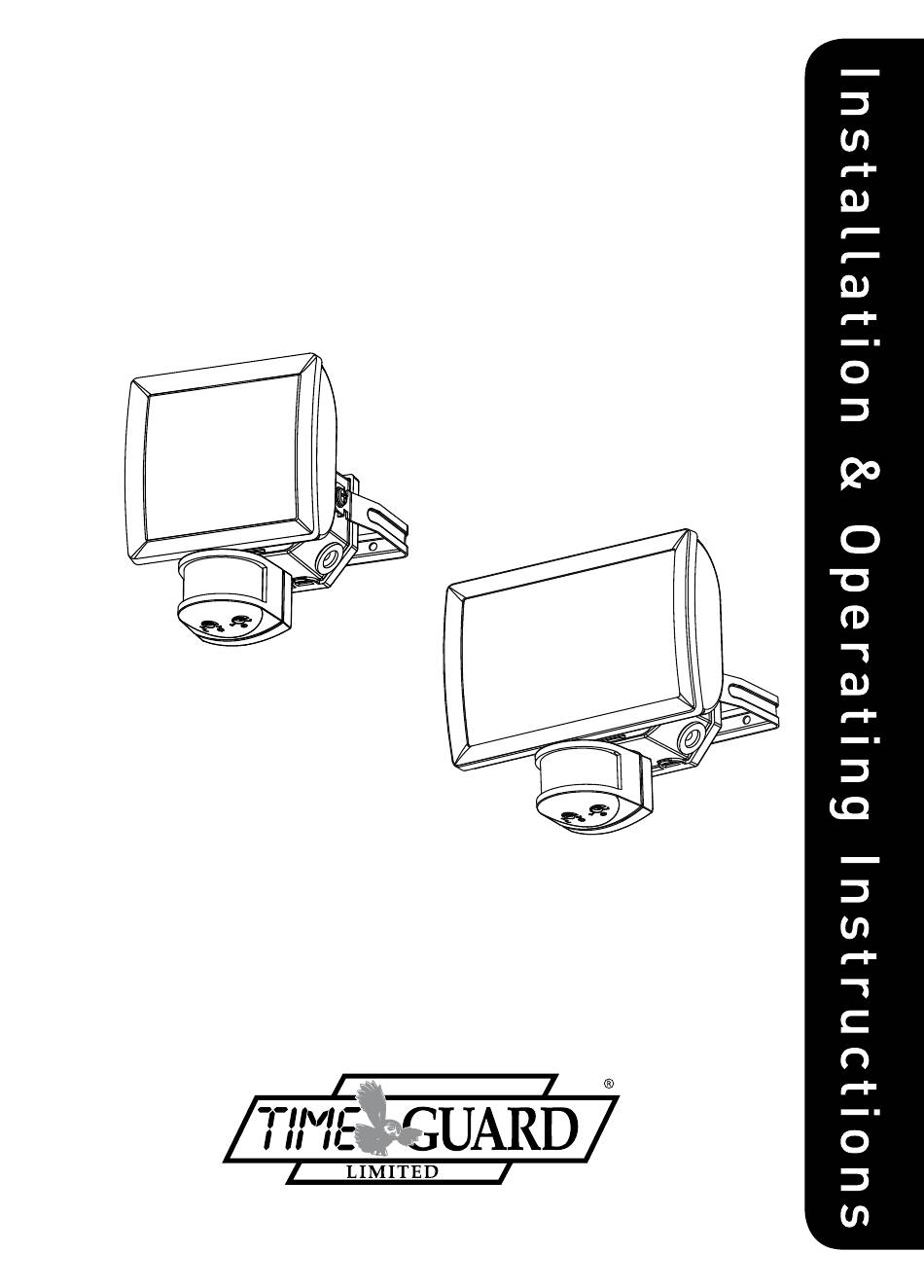

- Page 1 LED FLOODLIGHT Model: LEDX10PIR Model: LEDX20PIR...
-
Page 2: Designated Use
1. Designated Use • LEDX10PIR and LEDX20PIR are an outdoor motion detector for automatic LED lighting control. • Mainly for wall installation. • Simple plug in wall plate for easy & safe connection • Suitable for a wide range of locations: corridors, gardens, staircases, entrances, garages, outdoor parking areas etc. -
Page 3: Tools Required
3. Contents: What’s in the box? Screw: Screw peg: M4x32mm 6x30mm U C T I O I N S T R M A N U Screw: M3x12mm 4. Tools required: Tools / Equipment need for installation. Flat blade screw driver Suitable for screw head Drill bit with diameter 6mm... -
Page 4: Installation Procedure
5. Connection: Connect the cable to the terminal block as follows (see connection diagram): Ensure the connections are secure. Refit wall plate ensuring it clicks firmly into place. Mains Supply LIVE BROWN BLUE NEUTRAL EARTH GREEN / YELLOW Isolation Switch *** IMPORTANT *** Switch off the electricity at the fuse box by removing the relevant fuse or switching off the circuit breaker before proceeding with the installation. - Page 5 First, feed the cable through the Attach the strain relief to the rubber gasket of the junction box. device and screw in. Srews: (M3 x 12mm) x 2 EARTH Tighten the screws. Loosen the screws. Connect the individual wires to the appropriate terminal then tighten the screw.
-
Page 6: Detection Range
• Take account of motion direction during test run. Detection Range: LEDX10PIR and LEDX20PIR: Recommended installation height is 2.5 meter above ground, the maximum detection range about 12 meter and at the angle of about 180 deg. - Page 7 Walk Test and Adjustment The purpose of Walk Test is used to test and adjust the detection coverage of LEDX10PIR and LEDX20PIR under auto mode. • Adjust the Time knob to minimum (fully anti-clockwise), then conduct a walk test as described in test procedure.
- Page 8 • Adjust knobs carefully with flat blade screwdriver. TIME knob setting • You can set the time knob from 5 sec to about 10 min, LEDX10PIR or LEDX20PIR will turn ON the lamp, for the time duration set after each detected movement.
- Page 9 Lamp turns Lamp turns ON at day & night. ON at night. Setting Advise WARNING Lens masking The purpose of the lens mask is to mask out areas not desired for detection. Masking The Sensor Lens: • To restrict the sensor coverage, preventing detection in unwanted areas, mask the sensor lens using the masking label provided.
- Page 10 Manual Override Mode: The light can be switched on for longer time periods by use of the Manual Override Mode. This can be activated night by using the internal wall switch or circuit breaker. Switch the internal wall switch/circuit breaker single (OFF/ON) within 1.5 second.
-
Page 11: Technical Specifications
Colour Temperature 5000 - 5600k Colour Rendering > 70 Lumen Output initial LEDX10PIR - Black: 685 lm typ, White: 750 lm typ LEDX20PIR - Black: 1260 lm typ, White: 1325 lm typ Detection Range Up to 12 metres Detection Angle 180º... - Page 12 HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Offi ce: 020 8452 1112 or email csc @ timeguard.com 67.058.502...
