Getting started
Creating a map
Overview
To begin cleaning, a map must first be created. Each
map consists of a Home Point, a cleaning group, and
restricted areas (if any).
Steps
0
Select magic mode
1
Set up home point
2
Create cleaning group
3
Restricted area
0
Select magic mode

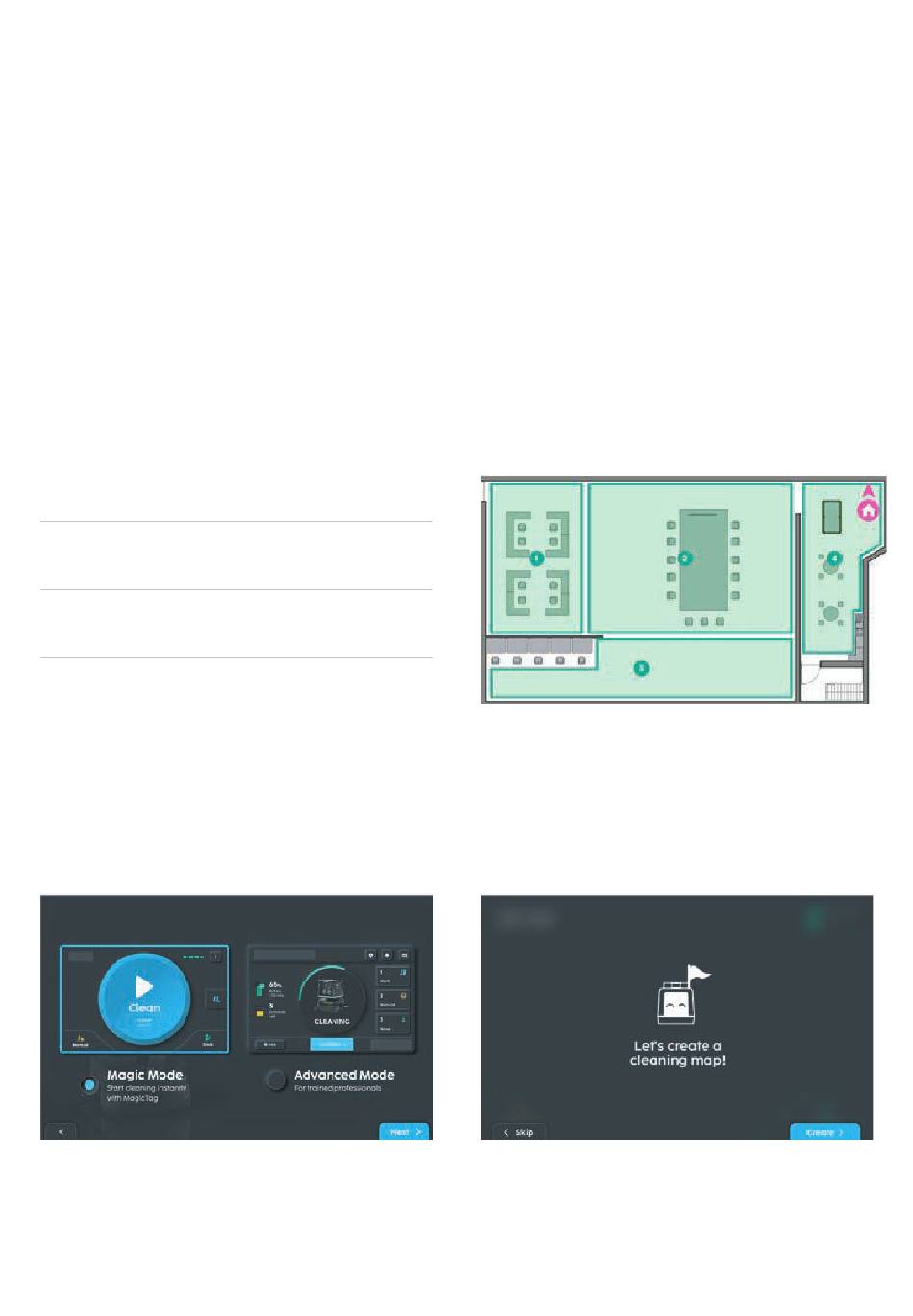

Before creating map, ensure that the robot is in 'Magic Mode'.
Click Setting and select Magic Mode and click
Why is mapping needed?
Mapping allows the robot to create the map of a
particular area to be cleaned, know its surroundings
and plan the most efficient cleaning route.
Resultant map
Next.
Click
Create.
1
Advertisement
Table of Contents
Related Manuals for Nilfisk-Advance SC25
Summary of Contents for Nilfisk-Advance SC25
- Page 1 Getting started Creating a map Overview To begin cleaning, a map must first be created. Each Why is mapping needed? map consists of a Home Point, a cleaning group, and Mapping allows the robot to create the map of a restricted areas (if any).
- Page 2 Set up home point Overview What is a Home Point? A Home Point is where the SC25 will start and end its cleaning. Each map contains at least one Home Point. Choose home point device Choose between the Docking Station or MagicTag to be used as the Home point for each map.
- Page 3 Find a home point location Once the cleaning map is created and named, you will be required to push the SC25 to a desired Home location to complete the Home Point setup. If a Docking station is used, it will have to be already set up at this Home location.
- Page 4 MagicTag successfully detected. the detection zone. Note If the SC25 cannot detect the MagicTag within the detection zone after a few tries, try moving the robot further or nearer to the MagicTag, or try a different wall background. Tips Detecting the Station successfully Following the on-screen instructions, move the SC25 so that it is about 1 foot spacing away from the station.
- Page 5 There are 2 methods to clean an area, via: 1. Boundary 2. Route Boundary cleaning Route cleaning Tips: choosing between boundary or route cleaning Boundary Route SC25 will clean the area SC25 will clean within the boundary that the route drawn. is drawn. Preferred if Preferred if •...
- Page 6 Create clean area After selection, push SC25 to desired clean area first. Press “Start” before pushing SC25 around to create the desired Desired area boundary or route of clean area. Press “Stop” once complete. 1. Push to desired clean area 2.
-
Page 7: Restricted Area
The SC25 will stay clear of restricted areas when cleaning. It can either be an area that does not need the SC25 to clean, or one that has obstacles to avoid. This step is optional; skip if there are no restricted areas. -
Page 8: Getting Started
Getting started Clean Localise the robot If the SC25 is not localised and not at the Home Point, push it there. Once at the Home Point, the MagicTag (or Docking station) will be detected. Follow on screen instructions MagicTag. Docking station to connect. -
Page 9: Other Controls
Other controls Create new maps Overview New or additional maps can be created. The steps to create them are outlined below. Please note that only 1 map can be stored in each MagicTag or Docking station. Any new maps created using the same MagicTag or Docking station will replace the existing one. Click on button Click on ‘More Options’... -
Page 10: Manual Cleaning
Other controls Manual cleaning Overview Manual cleaning refers to physically pushing the SC25 for cleaning. The steps to do so are outlined below. 1. While handlebar is up, click on “Manual”. 2a. Select the desired cleaning mode 2b. Customise cleaning mode... - Page 11 2c. Customise Cleaning Mode (Optional) Drag the slider to change the intensity of each cleaning setting. 3. Click to begin cleaning...
Need help?
Do you have a question about the SC25 and is the answer not in the manual?
Questions and answers
