1-4 Technical Information
IDE Drive Access – lights green when a CD-ROM, hard disk, or SuperDisk™
LS-120 drive installed in the MiniDock or NEC Versa is accessed.
Diskette Drive Access – lights green when a standard diskette drive installed
in the NEC Versa or MiniDock VersaBay II is accessed. Also lights green
when a diskette drive connected via an external FDD connector cable is ac-
cessed.

Left Features

Features on the left hand side of the MiniDock are shown in the following figure. Descrip-
tions follow the figure.

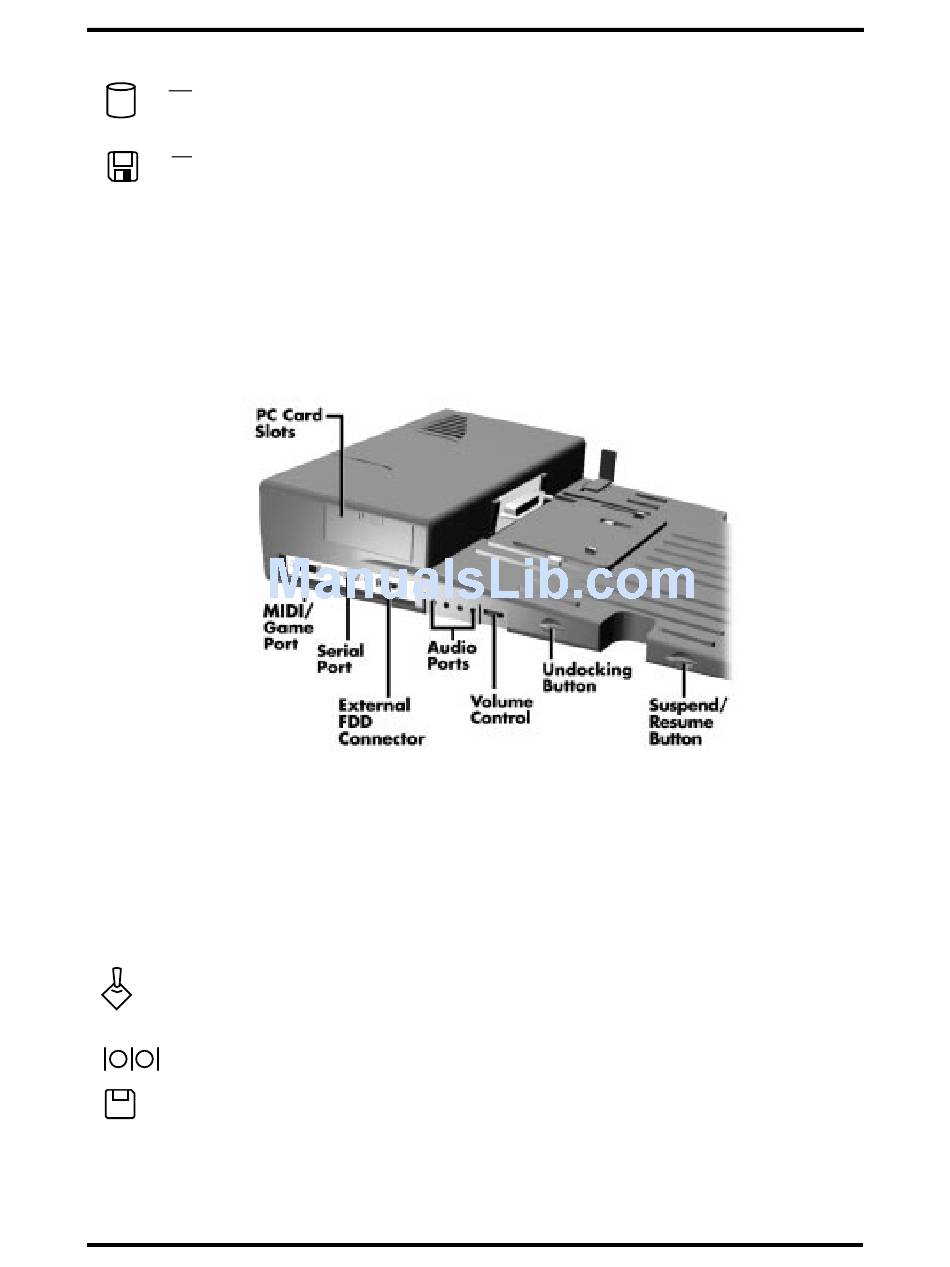

Figure 1-4 NEC Versa MiniDock 6000 Left Features
Left Feature Descriptions
T
T
T
T
PC Card Slots — lets you install two Type II PC cards, one Type III
PC card, or one Type III card in the top slot and one Type II card in
the bottom slot for use while docked.
MIDI/Game Port — supports MIDI/game devices, such as a joystick
or MIDI keyboard.
Serial Port — lets you connect serial devices to the MiniDock.
External FDD Connector — lets you connect an optional External
FDD cable directly to the MiniDock.
