Maintenance

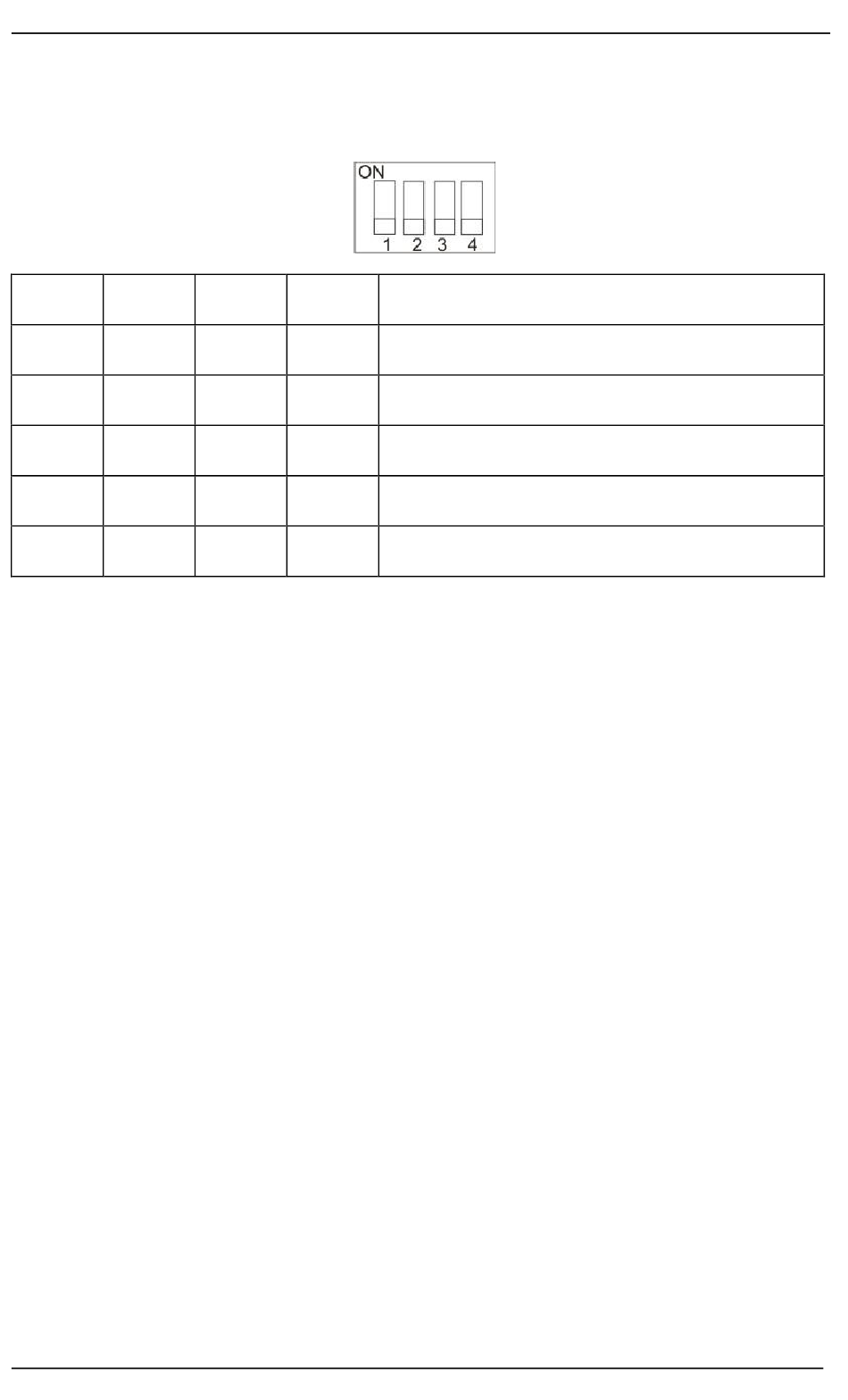

Figure 6: DIP switch positions (power must be cycled on the HMI to enable the DIP
switch mode except DIP switch 4).
SW1 SW2
ON OFF
OFF ON
OFF OFF
OFF OFF
OFF OFF
Touchscreen Calibration mode: This mode allows you to recalibrate
the touchscreen. Note: Calibration mode is accessed through the HMI‟s
System Toolbar on the X-models.
Hide System Toolbar: Hides the arrow in the bottom-right corner of the
screen that accesses the System Toolbar (same as "Hide System Toolbar"
in System Parameters and LB9020).
Boot Loader mode: This mode forces the HMI to not execute the
project. This mode is used when replacing or reinstalling the operating
system. Contact Maple Systems for more information.
Power Button Enable (X-models only): Enable (ON) or disable (Off)
the front panel Power button.
Fusing Requirements
If the display does not come on within two seconds of power up, remove
power. An internal fuse will prevent damage if the polarity of the DC
power is incorrect. Check wiring to insure proper connections and try to
power up again.
1010-1005 Rev 04
SW3 SW4
OFF OFF
OFF OFF
ON OFF
OFF ON
OFF OFF
HMI5000 Series Installation Guide
Mode
Calibration mode (except X-models)
Hide System Toolbar
Force into Boot Loader mode
Power Button Enable (X-models only)
Normal operation
